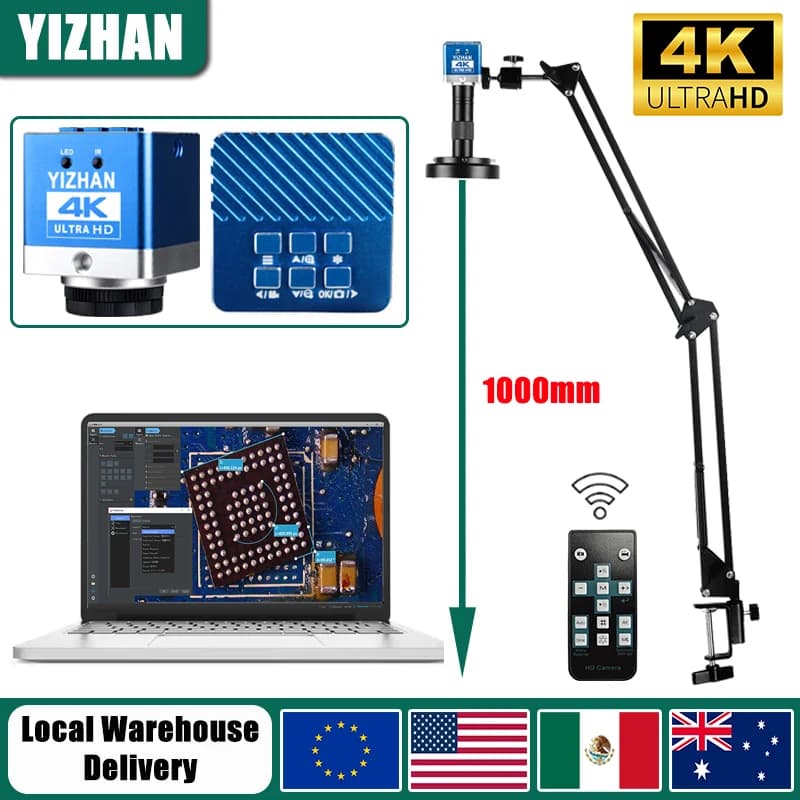

YIZHAN 4K 60MP UHD Electron Digital Microscope IMX415 HDMI Type-C Industrial Welding Camera 150X Zoom Lens Metal Stand 1080P

YIZHAN precision electronic repair microscope applicable scenarios:

①Precision electronic repair：

✔ Mobile phone/computer motherboard chip welding
✔ Micro circuit board defect detection
✔ SMT patch component precise positioning
▸ The lens magnification is optional, and it can be matched with a ring LED cold light source to easily capture micron-level defects such as solder joint cracks and component cold soldering, and say goodbye to the blurred vision of traditional magnifying glasses.

② Industrial equipment maintenance：

✔ Mechanical parts wear analysis
✔ Precision mold detection
✔ Micro gear set assembly calibration
▸ Long working distance design, no obstruction of operating space, single-handed adjustment of focal length, helping engineers to quickly complete troubleshooting.

③Watch and jewelry finishing：

✔ Swiss movement gear calibration
✔ Jewelry claw fine-tuning
✔ Antique cultural relics restoration
▸ Rotatable + metal shockproof bracket, meet the needs of sitting/standing multi-posture operation, 24-hour continuous observation without fatigue, so that the 0.1mm gem setting error can be seen.

④ Quality inspection and scientific research：

✔ PCB gold wire quality inspection
✔ Material surface microstructure observation
✔ 3D printed finished product defect screening

⑤ Medical equipment maintenance and calibration

⑥Automotive/aviation precision manufacturing

⑦Teaching and skills training

⑧Artwork restoration and miniature model making"

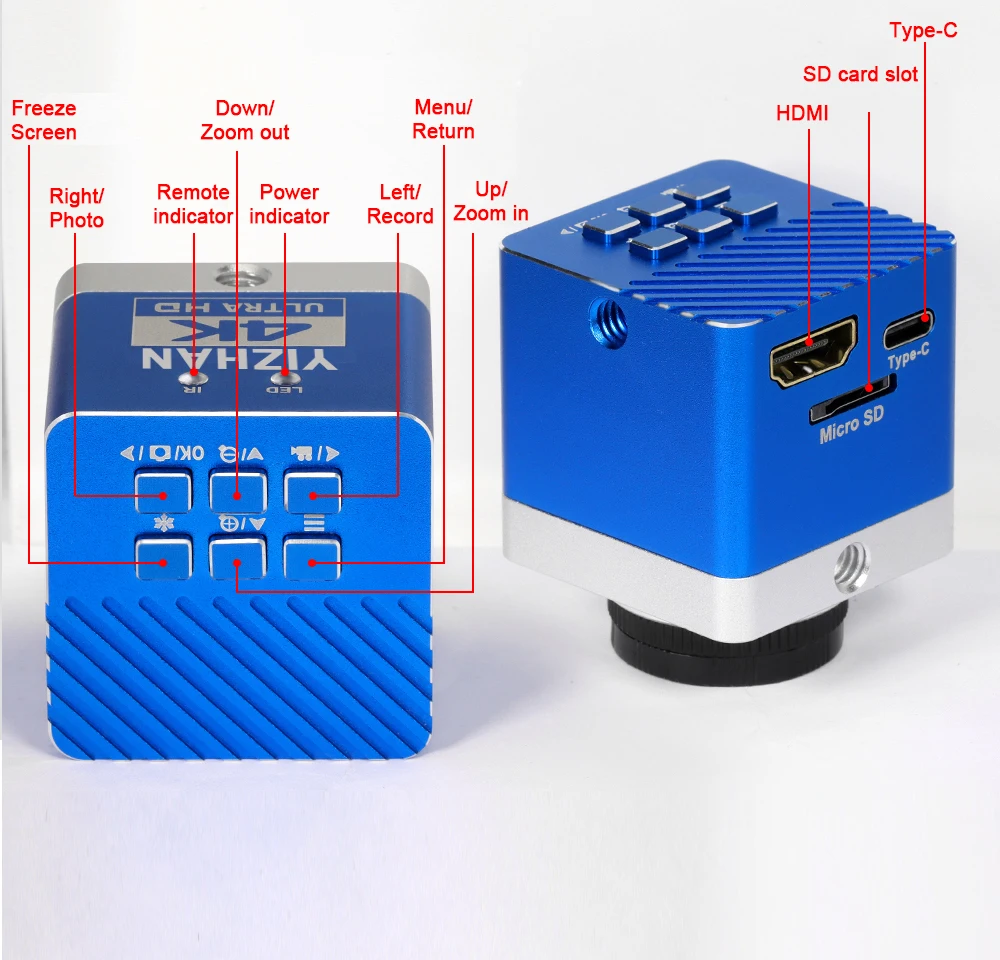

XHU4012 Camera Specifications:

Interfaces: HDMI + Type-C

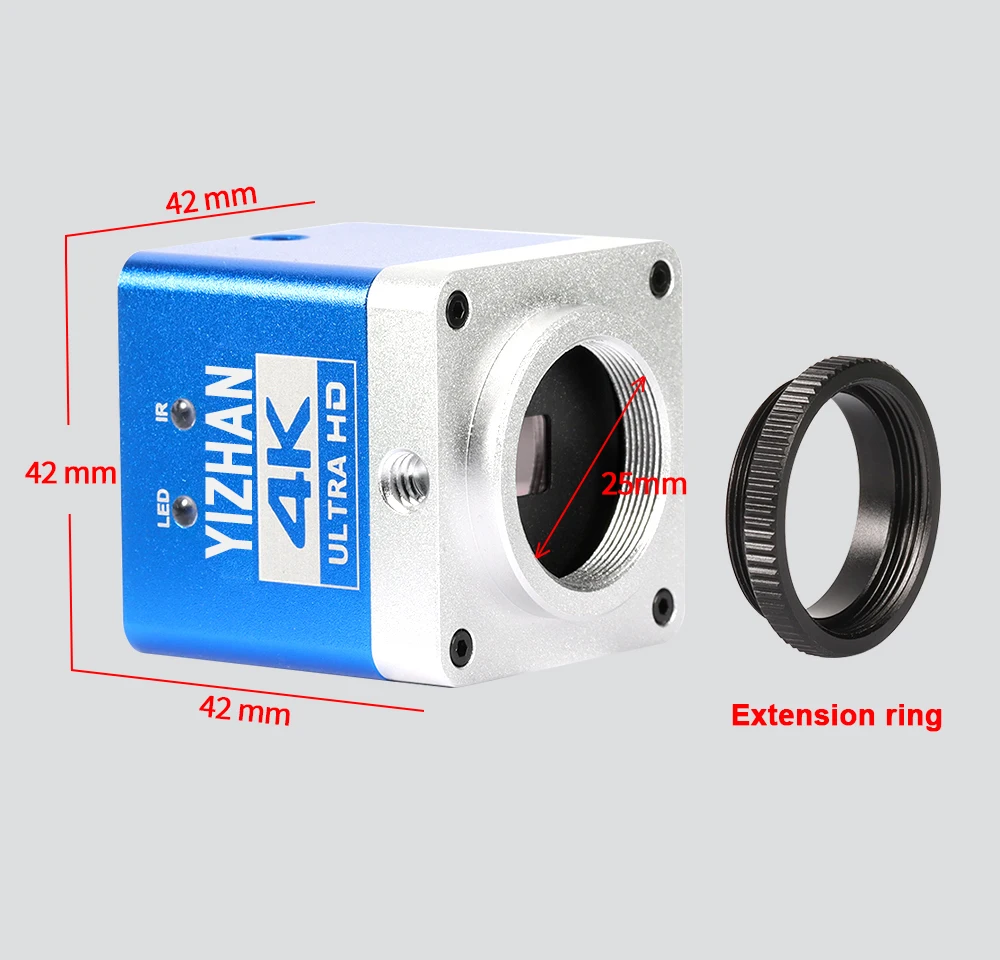

Dimensions: 42*42*46mm
Sensor Size: 1/2.7""
Power Supply: 12V/USB
HDMI Output Resolution: 4K @30FPS / 1080P @60FPS
USB-PC Output Resolution: 4K @30FPS / 1080p@30FPS
Shot Resolution: 60MP (10368*5888)
Video Resolution: 4K @30FPS / 1080P @30FPS
Menu Language: 11 languages
Modible Crosshairs: Supports 32 horizontal and vertical lines; color/line width adjustable
Lens Interface: CS
Operating Current: 190mA
Effective Pixels: 4K (3840*2160)
Scanning Method: Progressive Shutter Type: Electronic Shutter
Dynamic Range: 69dB
Signal-to-Noise Ratio: 40dB
White Balance Mode: Single White Balance/Manual/Auto
Reduced Reflection Adjustment: Adjustable
Black & White: Allowed
Negative: Allowed
Mirroring: Allowed
Freeze/Thaw: Allowed
Adjustable Image Brightness/Contrast/Sharpness/Saturation: Allowed

Package Includes:

1*XHU4012
1*HDMI Cable
1*Type-C Cable
1*EU/US Plug
1*Remote Control
1*Instruction Manual

Microscope software download address: https://drive.google.com/file/d/19ZvEU5O9uayVsi1dgsJTA-08-XyHPPEW/view

Please note:

This microscope software is not suitable for Apple computers!

Describe:

The ""S-EYE"" we developed is a powerful microscope camera control software that integrates real-time high-definition imaging, intelligent shooting and professional measurement, providing a full-process solution for scientific research, industrial inspection and education.

Software Features:

1. Precise control: real-time adjustment of exposure, gain, white balance, color and image flipping, adapting to the imaging needs of complex samples, and ensuring high-quality image output.
2. Multi-function shooting: support photo taking, recording and custom parameter saving to meet the needs of dynamic observation and data archiving.
3. Intelligent measurement and annotation: provides geometric measurement tools such as straight lines, angles, arcs, concentric circles, and supports text annotation, arrow indication and particle counting, greatly improving analysis efficiency.
4. User-friendly design: intuitive interface layout, combined with real-time image display and fast parameter adjustment, simplifies the operation process, suitable for users with different experience levels.
5. Support multiple national languages: Chinese, English, French, German, Indonesian, Japanese, Korean, Russian (languages are still being enriched).

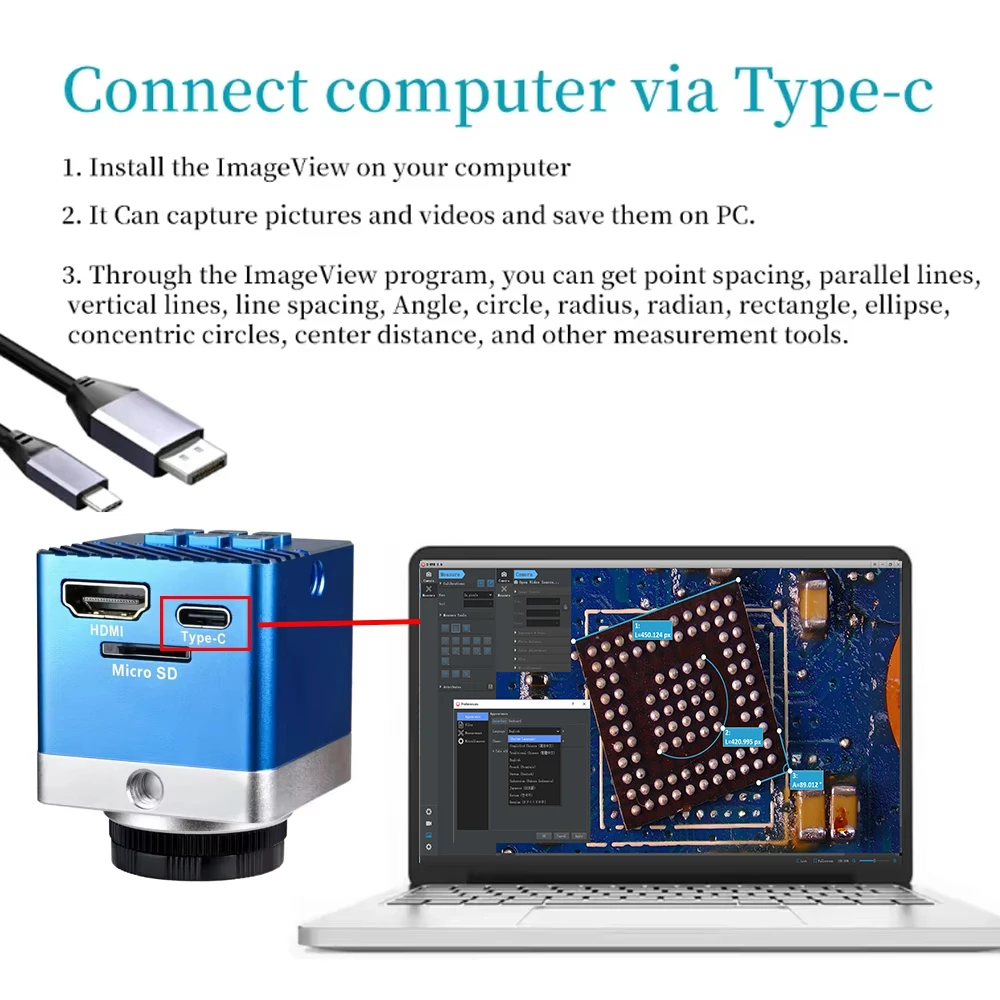

Connect computer via Type-c

1. Install the ImageView on your computer

2. It Can capture pictures and videos and save them on PC.

3. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.

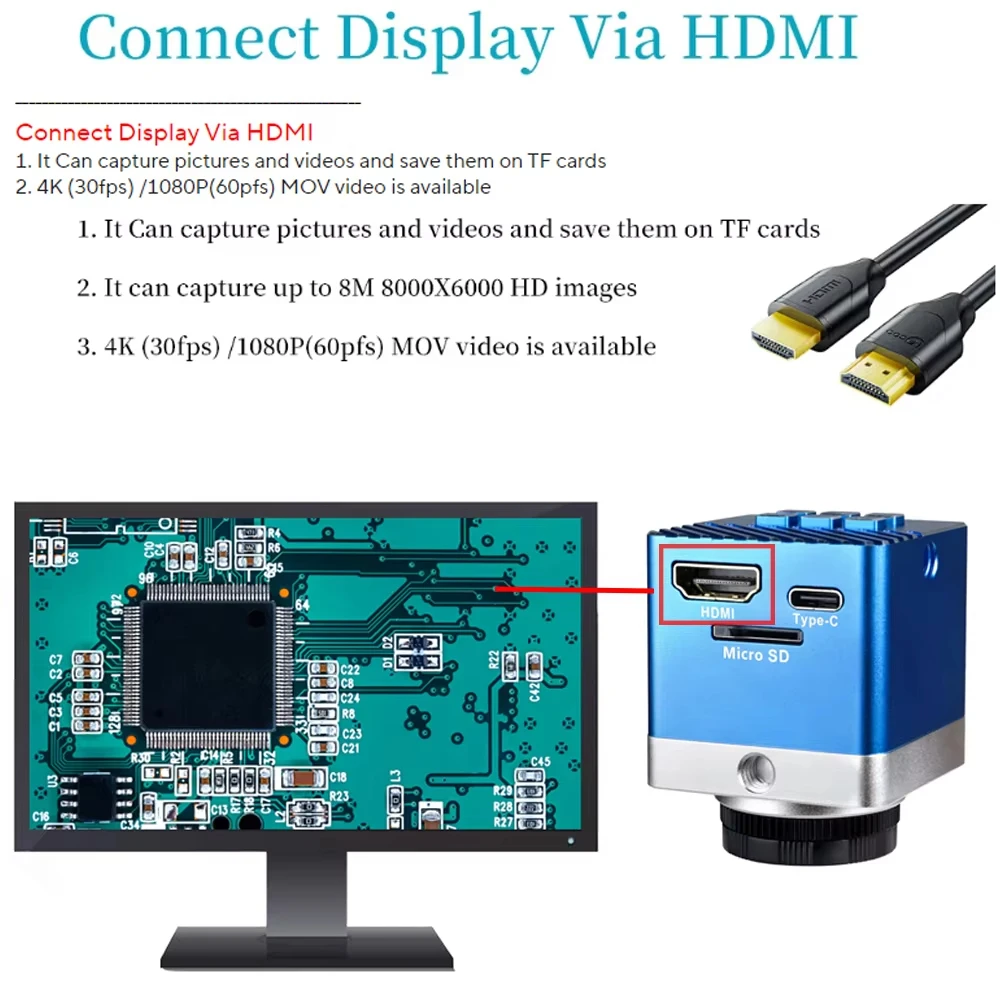

Connect Display Via HDMI

1. It Can capture pictures and videos and save them on TF cards

2. It can capture up to 8M 8000X6000 HD images

3. 4K (30fps) /1080P(60pfs) MOV video is available

150X Lens Specifications:

Mounting diameter: 28mm
Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification: 0.15-2X (approx. 1-150X on screen)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Dimensions: 99mm (length)
Weight: 100g
Compatible camera size: 25mm

Ring Light Specifications:

Material: Plastic
Color: Black/White
Size: 100mm
Weight: 240g
Model: WR63HW
Power: 4.5W
Power Input: 110V-220V
Output Voltage: DC12V/1A
LED Quantity: 56
Lifespan: 100,000 hours
Color Temperature: 6500K
Effective Distance: 50-300mm
Inner Diameter: 63mm
Outer Diameter: 97mm
Light Color: White

Metal Folding Stand Specifications:

Material: Aluminum Alloy
Dimensions: 34*32cm
Weight: 540g
Maximum Bottom Mounting Size: 50mm
Functions: Microscope Stand, Microphone Stand for Live Streaming, Phone Stand

Upgraded Folding Stand Description:

【Enhanced Flexibility】Experience a new level of flexibility in digital microscopy with our upgraded flexible arm stand. With its comprehensive adjustability, including 360° rotation, 135° extension, 180° movement, and a 270° metal adapter, you can easily position your microscope for optimal viewing and precise imaging. This makes it the perfect companion for soldering PCBs, providing the flexibility and precision needed for complex tasks.

【Rugged and Reliable】Rest assured, our stand can support the weight of your microscope, providing a stable and secure platform for your valuable equipment. Its robust and durable construction ensures durability and long-lasting performance, even under prolonged use. Trust the reliability of our stand to confidently support your microscope, providing the stability and safety required for precise observation and experimentation.

【Easy Storage and Setup】Our stand is designed with convenience in mind, offering easy storage and setup options. When not in use, simply fold the stand and store it compactly, saving valuable space in your lab or workspace. When you're ready to begin your microscopy task, the setup process is quick and easy, ensuring minimal preparation time. This simplified approach allows you to focus more on your microscopy task, maximizing efficiency and productivity.

【Precise Positioning】Experience unparalleled microscope positioning precision with the advanced adjustability of our stands. Whether you need to fine-tune the height, angle, or orientation of the microscope, our stands offer maximum flexibility to meet your specific needs. This level of precision ensures optimal conditions for detailed examination and imaging, enabling you to confidently and accurately capture every intricate detail.
