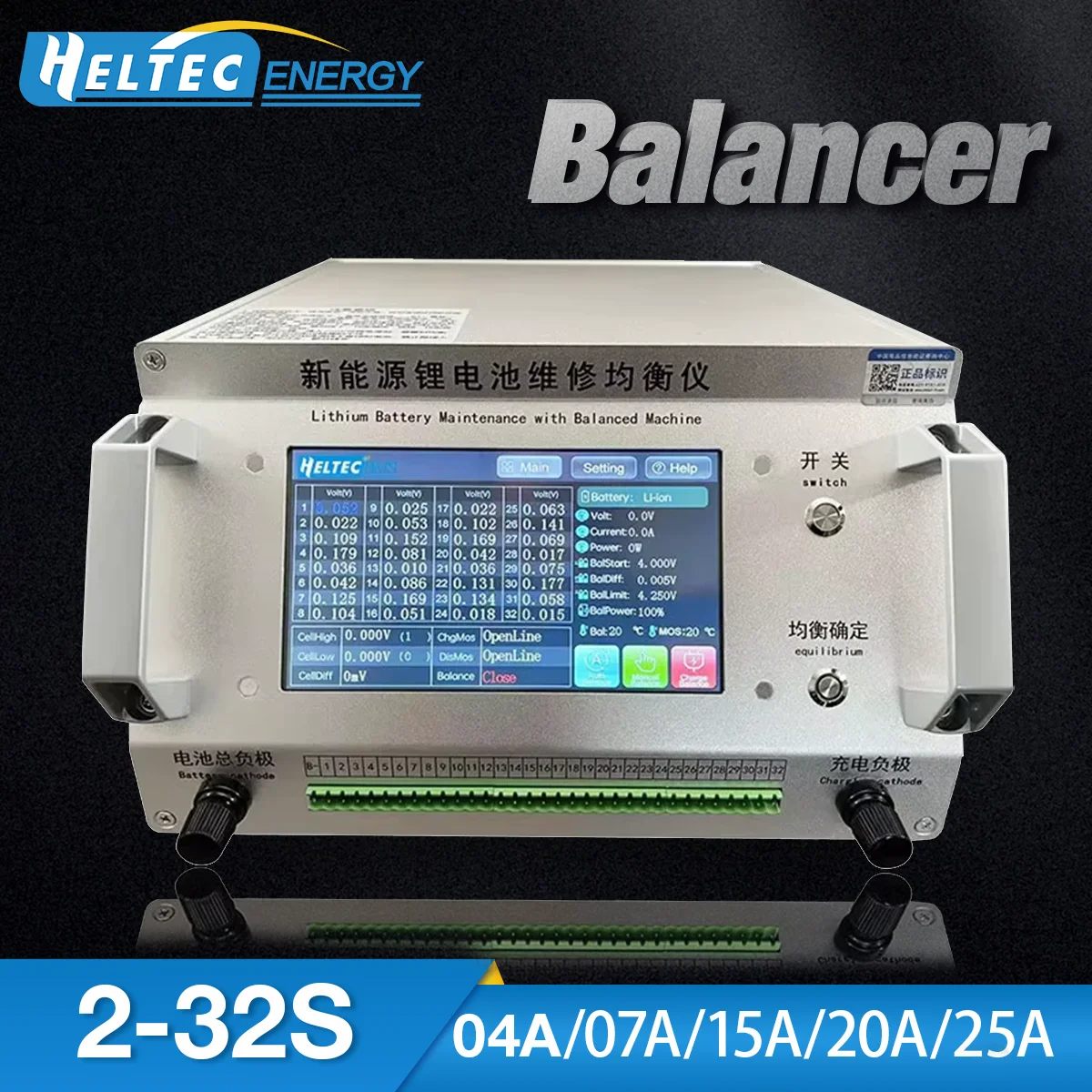

Heltec 2-32S 15A-25A Battery Balancer Equalizer for LiFePO4/Li-ion EV Car Golf Cart Battery Pack Repair Tool Balance Regulator

Charge Balance need a power

24S need 120V power

32S need 135V power

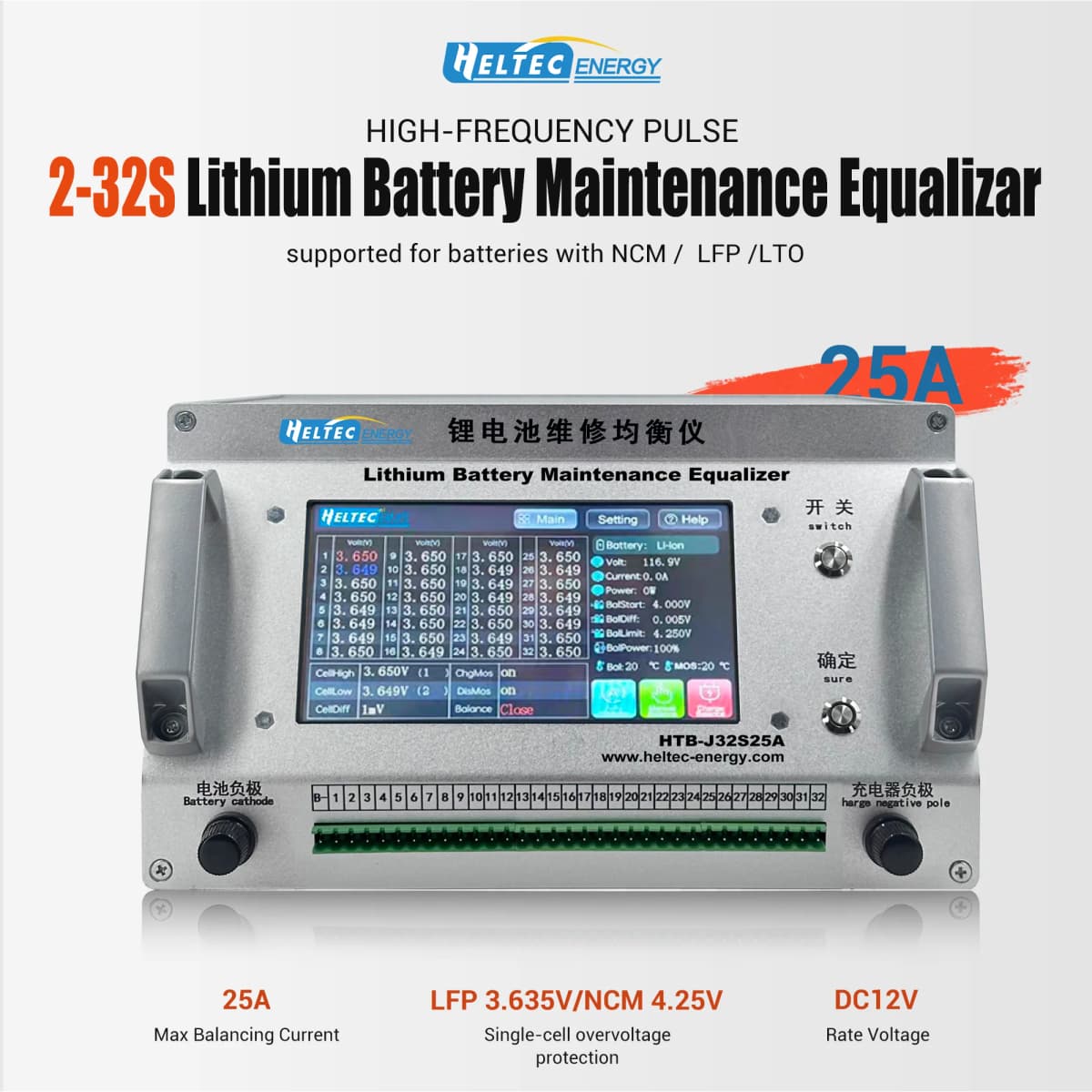

HTB-J32S25A

Feture

Rated voltage: DC12V

Repair range: 2-32S

Balance current: 15A 20A 25A

Size:360*290*170MM

This device cannot be used for Honda/Toyota hybrid batteries.

Balance setting

1. Manual Equalization

How it works: Manually set a target voltage (must be within the battery’s valid range), then click "Manual Balance" while the device is operating normally. The system will discharge higher-voltage cells until all cells match the set value.

2. Automatic Equalization

Best for: Low-speed vehicles and small-capacity battery packs.

Power: 5%–30% of total capacity.

How it works: Click "Automatic Equalization" during normal operation. The system detects the highest and lowest voltage cells, then discharges the high-voltage cells to match the low-voltage ones.

3. Charge Equalization

Performed when the battery is at half-charge to balance cell voltages.

Connection Setup

Connect the battery pack’s negative terminal to the device’s "Battery Negative" port.

Connect the charger’s negative to the device’s "Charging Negative" port.

Connect the charger’s positive directly to the battery’s positive terminal.

Current Limits:

Before balancing starts: ≤25A

After reaching balance voltage (LiFePO4: 3.45V / NMC: 4.00V): ≤5A (lower current improves balance quality).

Parameter Settings

A. LiFePO4 (Lithium Iron Phosphate) Batteries

Overvoltage Protection: 3.650V

Overvoltage Recovery: 3.650V

Forced Equalization Voltage: 3.650V

Balance Start Voltage: Matches the lowest cell voltage

Voltage Difference Trigger: 0.005V

Balance Current Ratio: 5%–100%

B. NMC (Ternary Lithium) Batteries

Overvoltage Protection: 4.250V

Overvoltage Recovery: 4.200V

Forced Equalization Voltage: 4.250V

Balance Start Voltage: 4.000V

Voltage Difference Trigger: 0.005V

Balance Current Ratio: 5%–100%

Battery Equalization Guide

1. Activation Conditions

Equalization starts only when at least one cell reaches the set voltage during charging

Below set voltage → No equalization

Optimal charging current during equalization: ≤5A

2. Balancing Process

Automatically balances cells until voltage differences reach target range

Stops automatically when balanced

3. Overvoltage Protection

Any cell ≥ set limit → Charging stops immediately

4. Recovery Mechanism

Charging resumes automatically when high cells drop below recovery value

5. Manual Forced Balancing

Set target voltage in settings

Click "Manual Balance" to force discharge

⚠️ Must stay within safe voltage range

6. Current Settings

Battery clips: 5-100%

Adapter boards: 5-50%

⚠️ Exceeding limits may damage equipment

Key Reminders

• Match settings to battery type (LiFePO4/NMC)

• Monitor currents during balancing

• Never exceed safe voltage ranges

HTB-J24S04A/07A

Feature

Power supply: DC12V 4A

Single channel voltage measurement range: 1-5V

Single channel voltage display accuracy: 0.001V

Single channel voltage acquisition accuracy :±(0.05%+0.003v)

Single channel voltage operating range: 2.0-4.5V

Adjustable balance current: 1A-4A/1A-7A(The smaller the voltage, the larger the impedance, the smaller the balance current)

Applicable battery type: ternary lithium, lithium iron phosphate and other battery voltage between 2.0v-4.5v

Operating temperature: 0°C-50°C

Working humidity: 20%-80%RH

Working environment: no corrosion, explosive and damage insulation gas and conductive dust

Technical Index

2 - 24S 3/4A Intelligent Battery Equalization Instrument

2 - 24S 1 - 7A Intelligent Battery Equalization Instrument

Model SKU

HTB - J24S04A

HTB - J24S07A


Applicable Battery Strings

2 - 24S

2 - 24S

Support battery type

NCM/LFP/LTO/Nominal voltage between 2V and 4.5V

NCM/LFP/LTO/Nominal voltage between 2V and 4.5V

Maximum / Minimum Measuring Voltage

4.5V/2V

4.5V/2V

Max Balancing Current

3A for lifepo4 / 4A for ternary

7A

Balancing Type

Discharge balancing

Discharge balancing

Single string input interface withstand voltage

- 100V～+ 100V

- 100V～+ 100V

external power supply

12V 5A

12V 5
