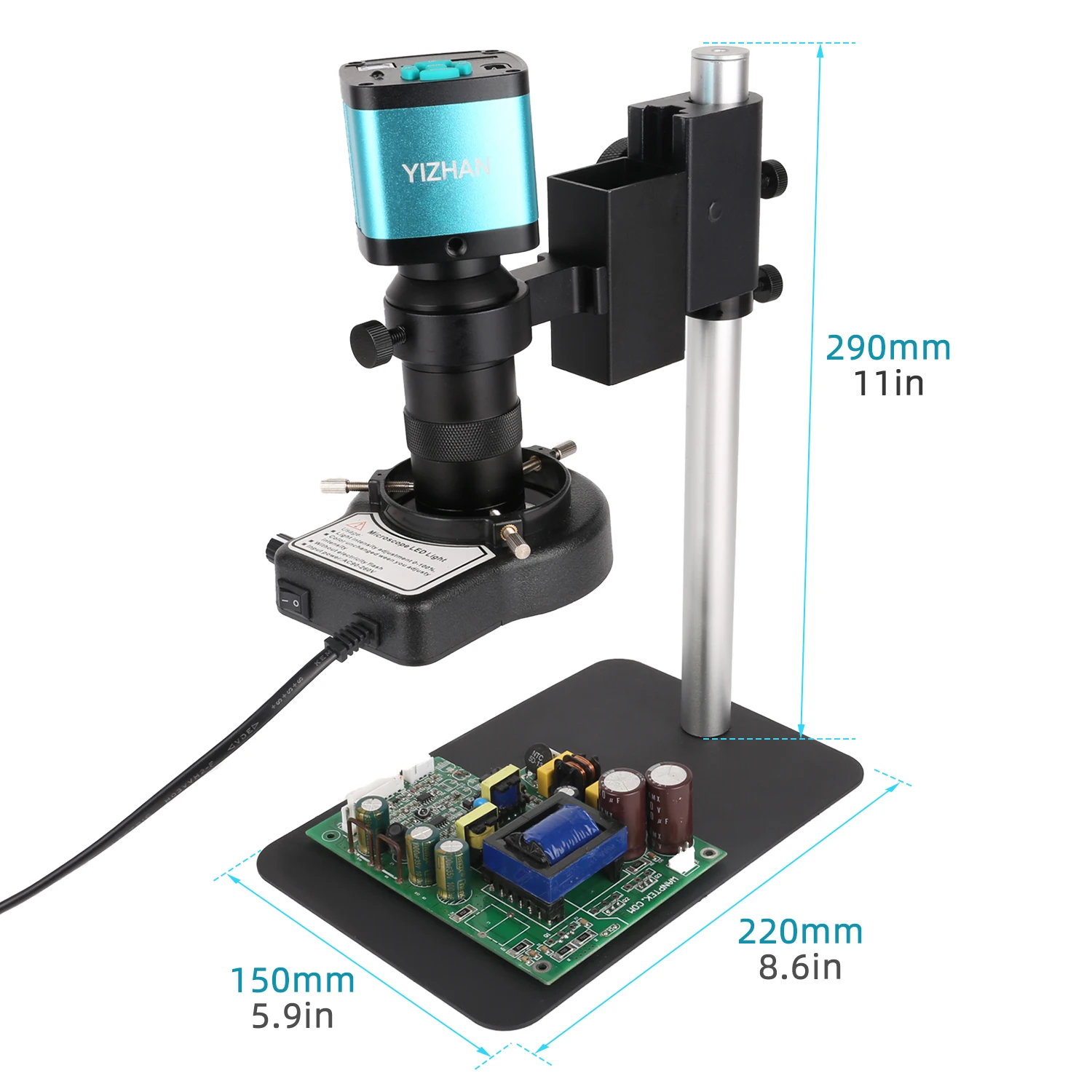

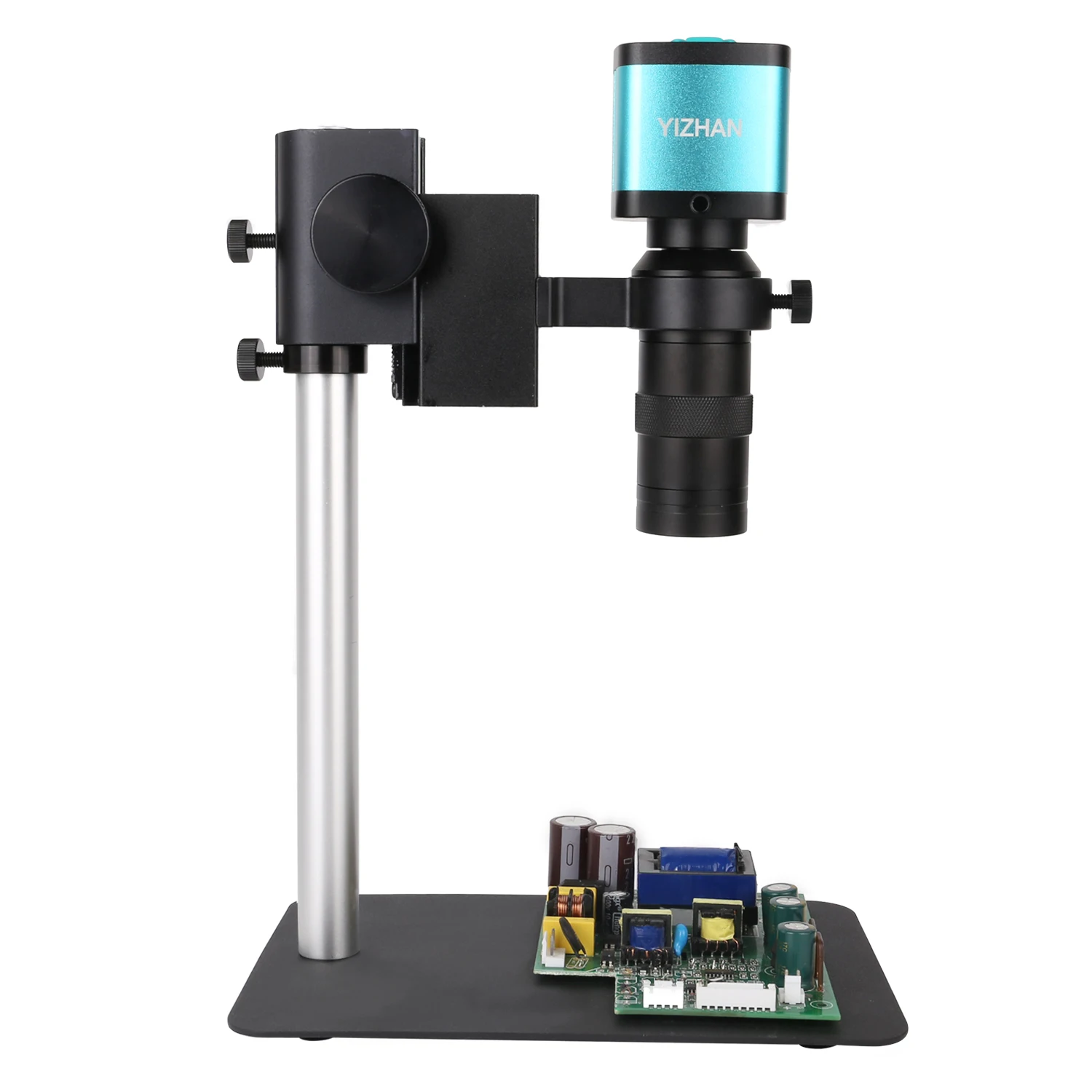

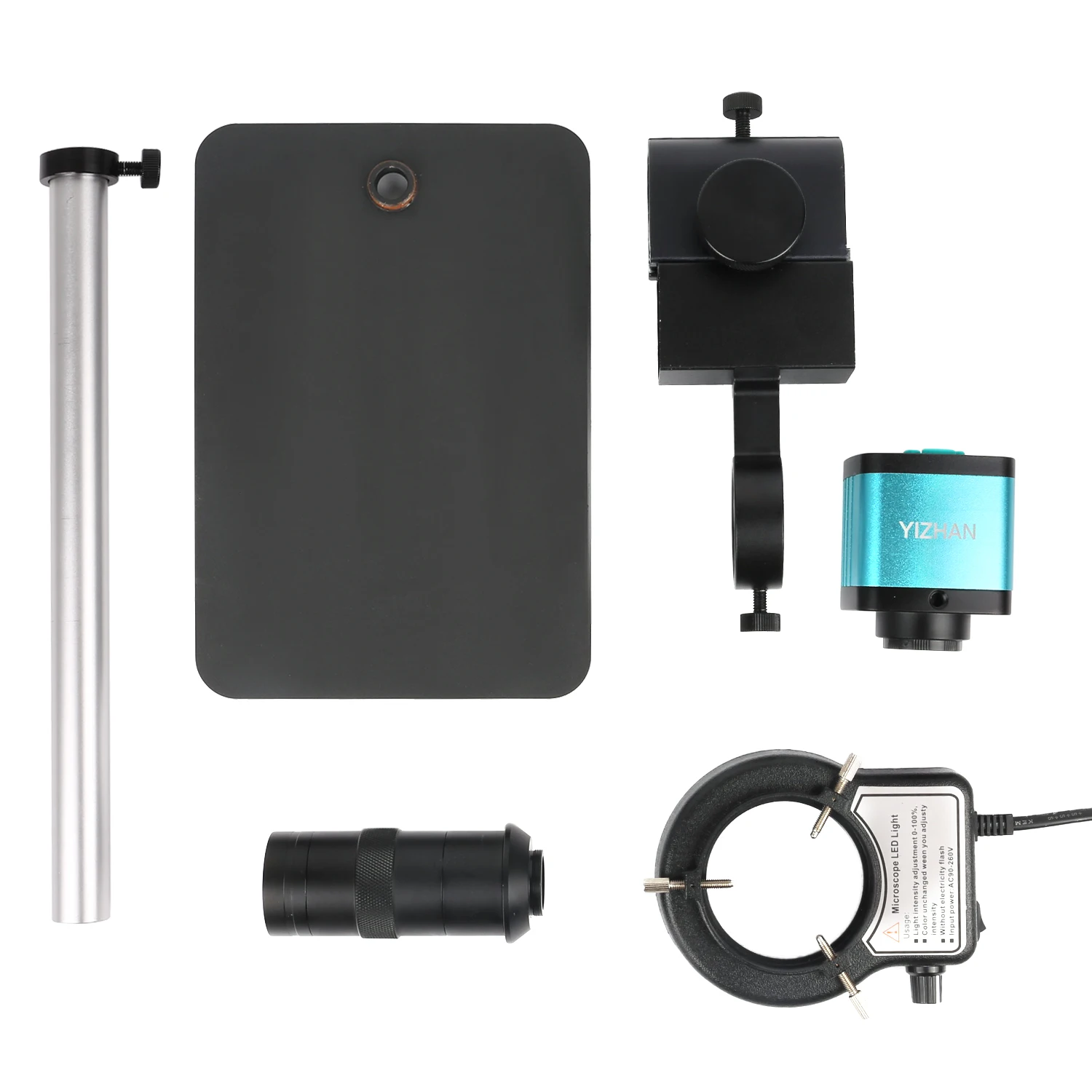

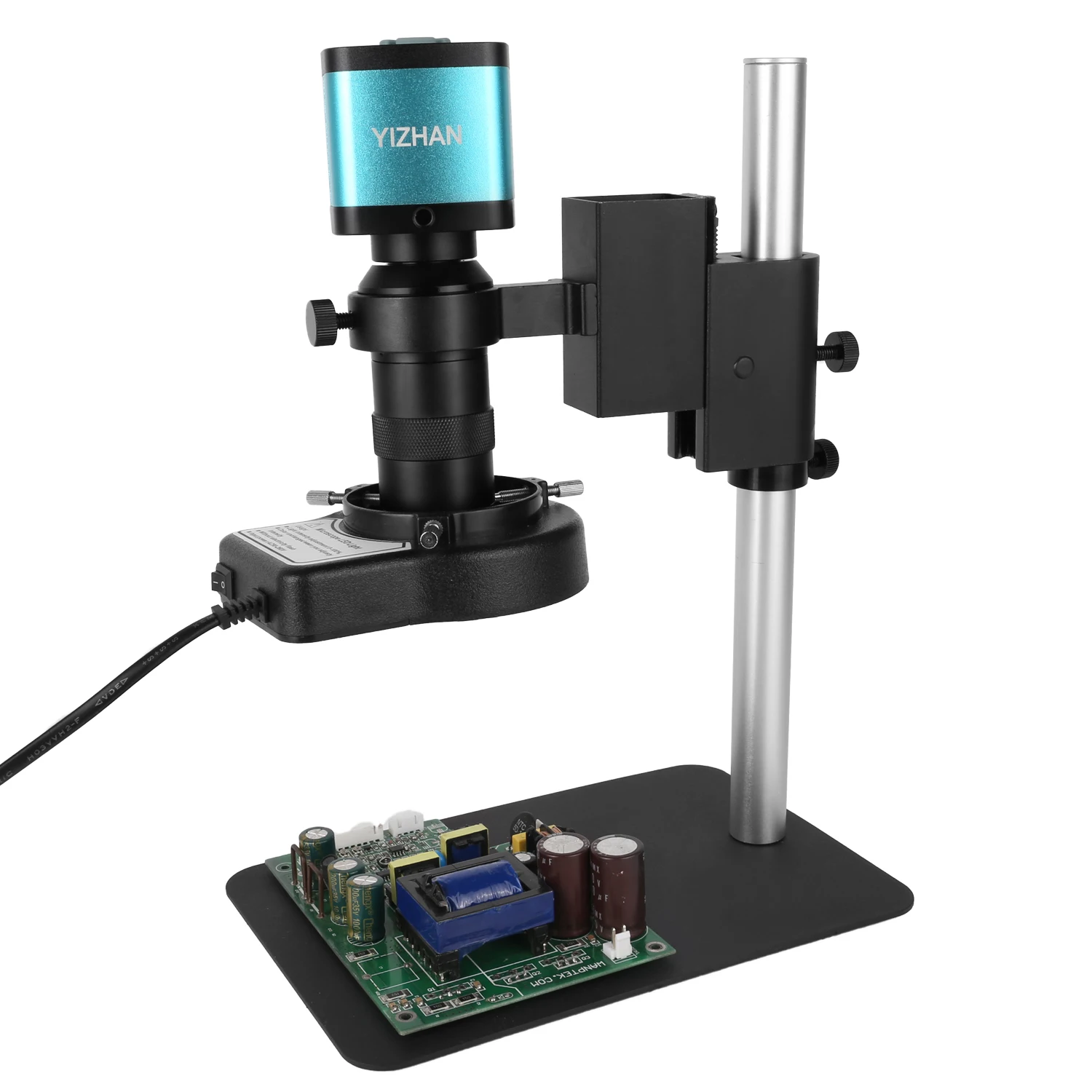

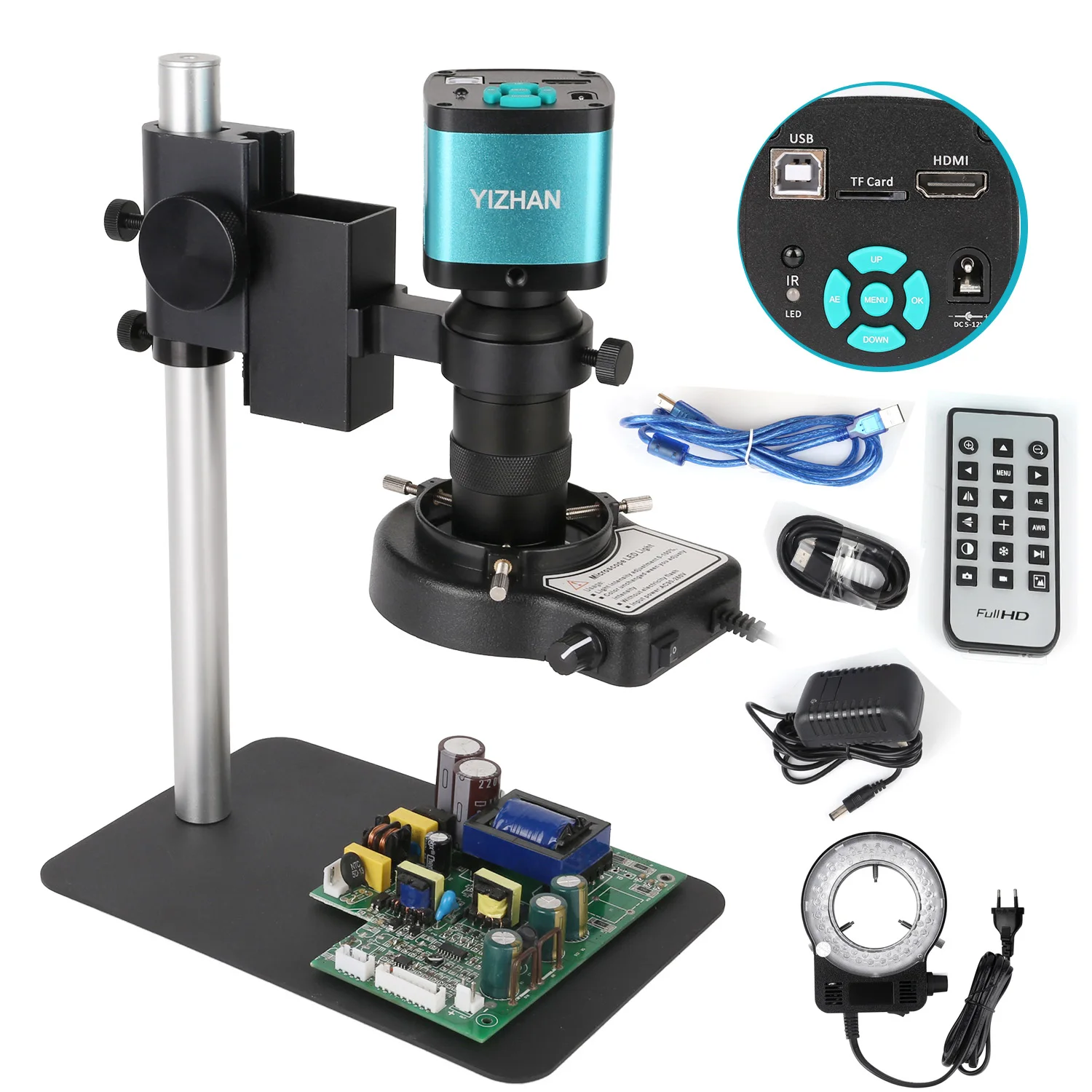

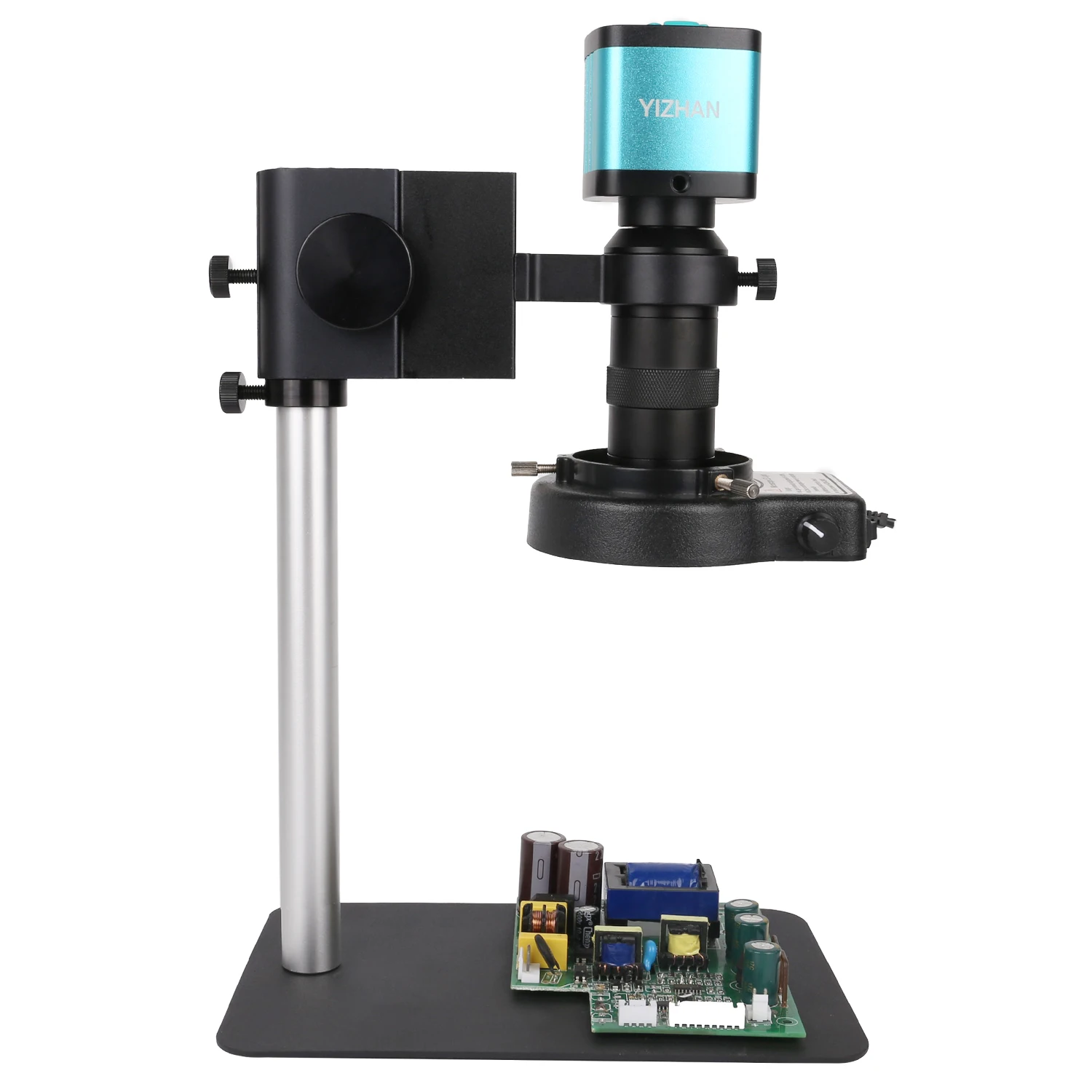

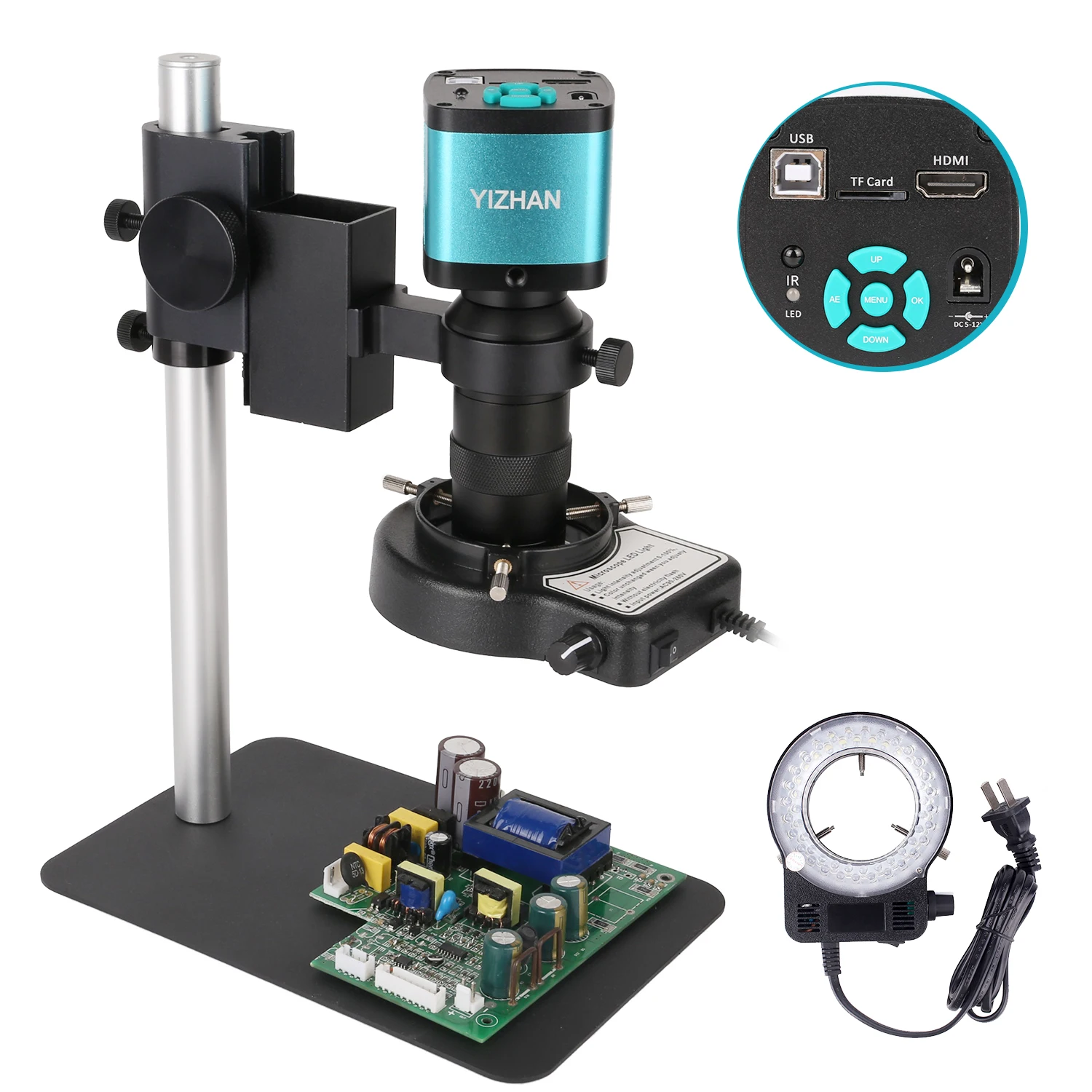

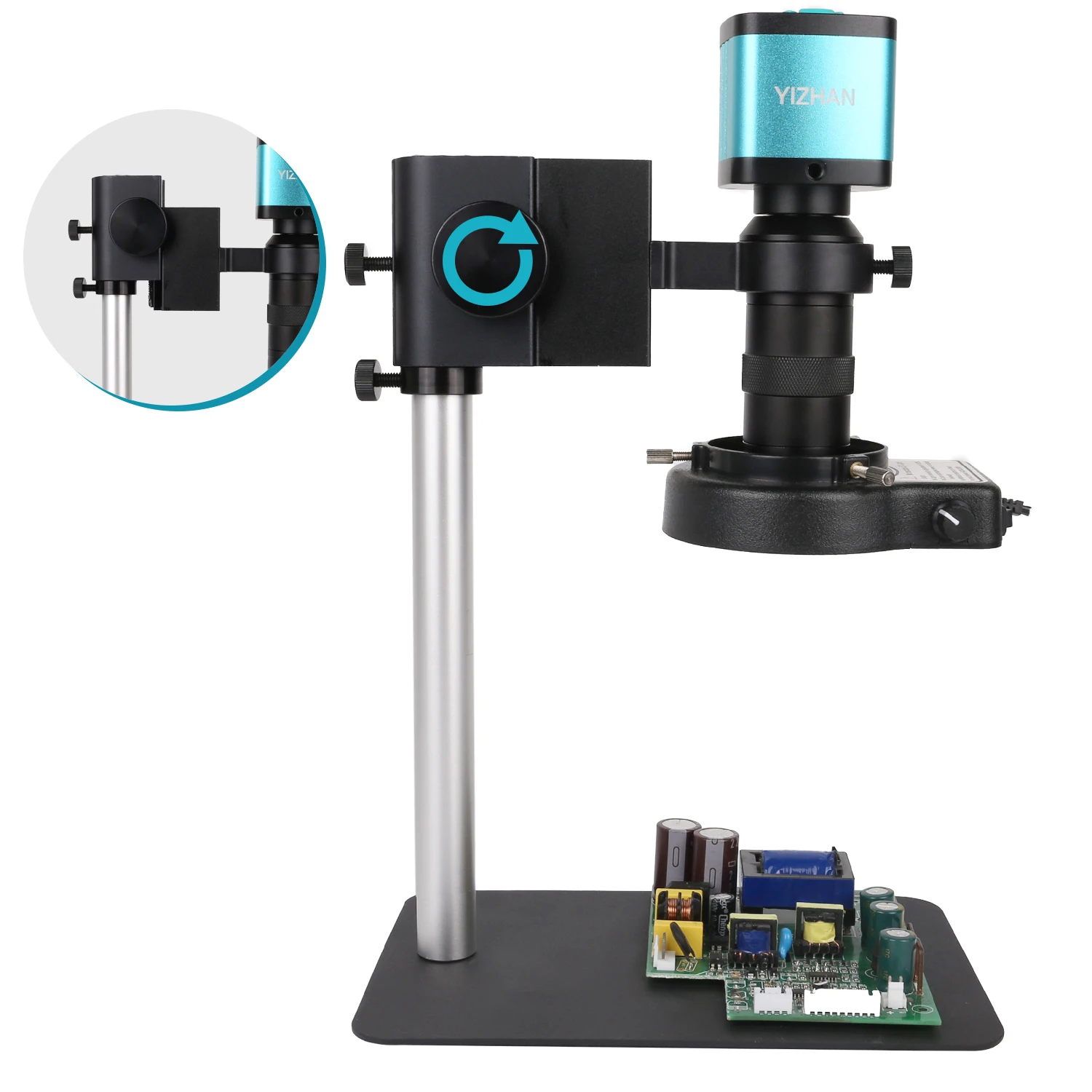

48MP 38Mp 4K 2K HDMI USB Industrial Digital Video Microscope Camera Zoom 130X C-Mount Lens LED Ring Light For Repair Soldering

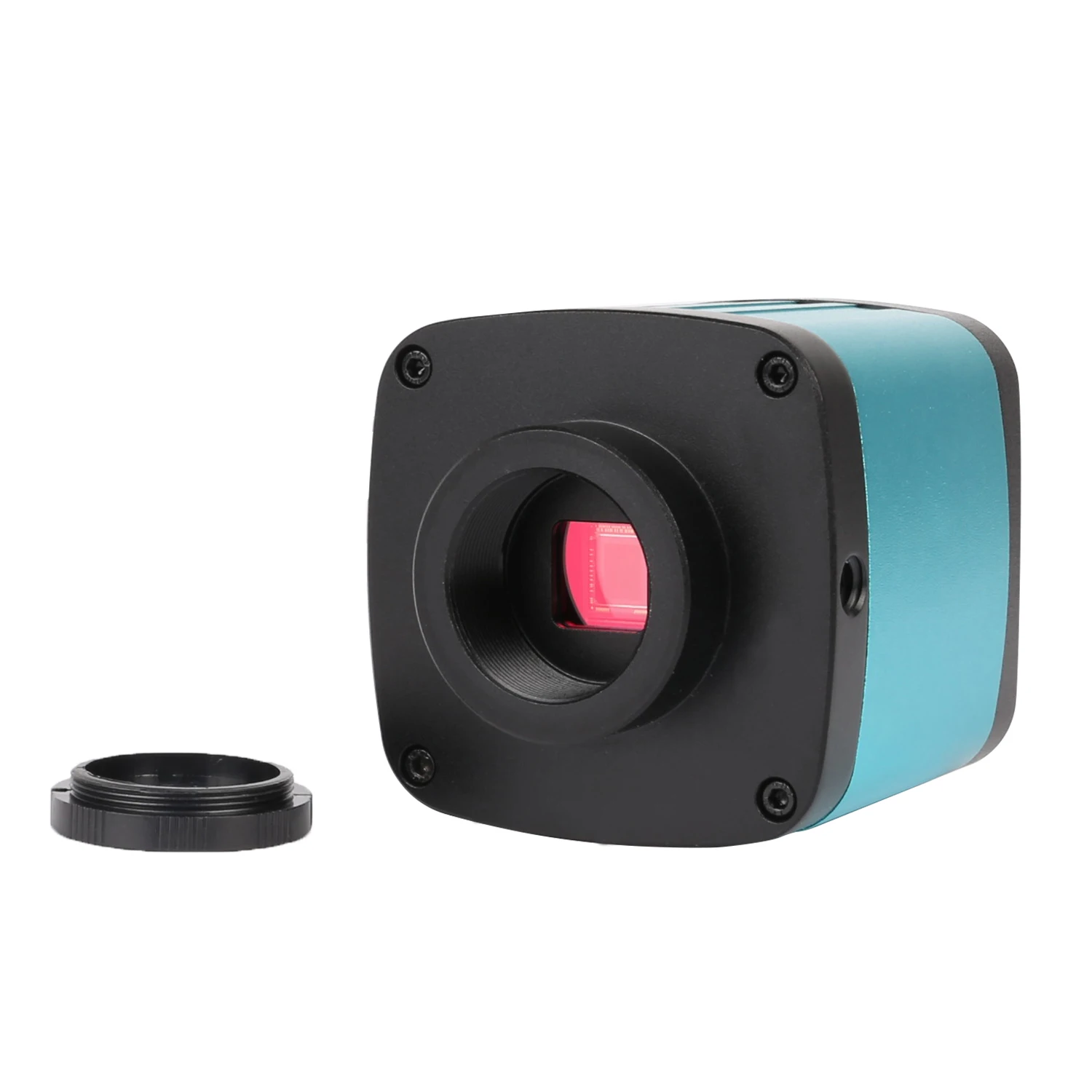

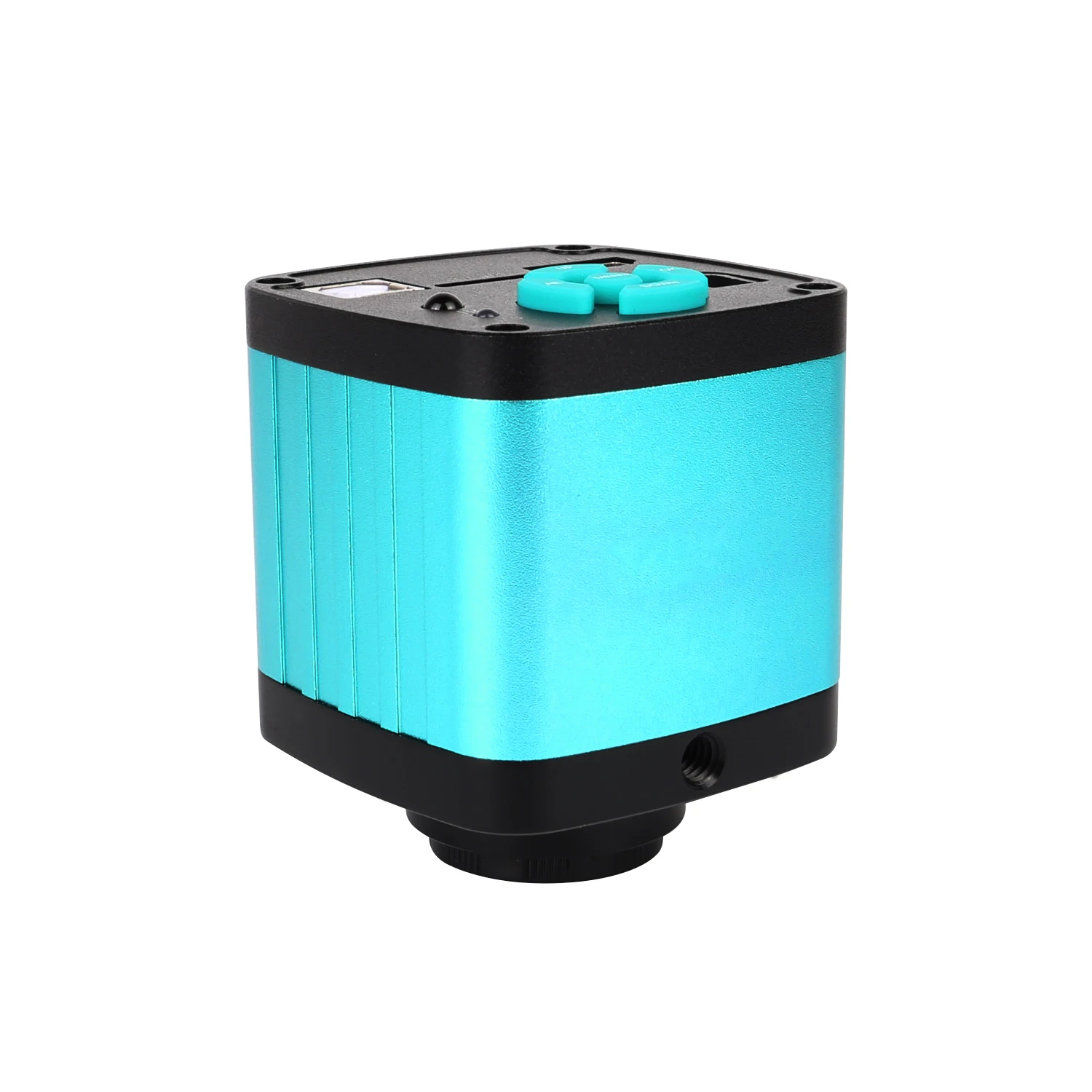

Camera 48MP:

◆ 48 million pixel imported Panasonic CMOS image sensor;

◆ Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;

HDMI 1080P 60 frame image output;

◆USB2.0 driver free output 1080P 30 frame image output;

4K video recording;

◆48 million photos, JPG format, photo size 4608x3456;

One-click freezing/thawing function;

◆48 megapixel photography and 1080P video recording;

Electronic zoom function;

Support manual/automatic exposure, exposure compensation value adjustment;

Support manual/automatic white balance, red, green, blue adjustable;

◆ Provide 8 line drawing functions, line color, thickness, position adjustable;

Display/close center cross;

Support TF card storage, up to 64GB;

Support remote control operation, take photos without jitter image more clear;

◆ Support Chinese and English menu language (default English);

Support shutdown setting parameters save;

◆ Strong metal shell;

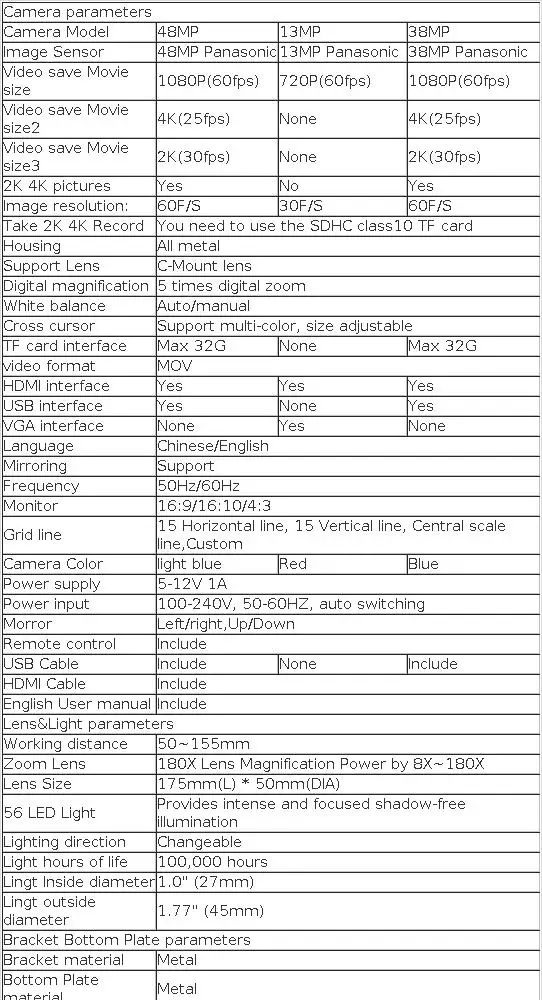

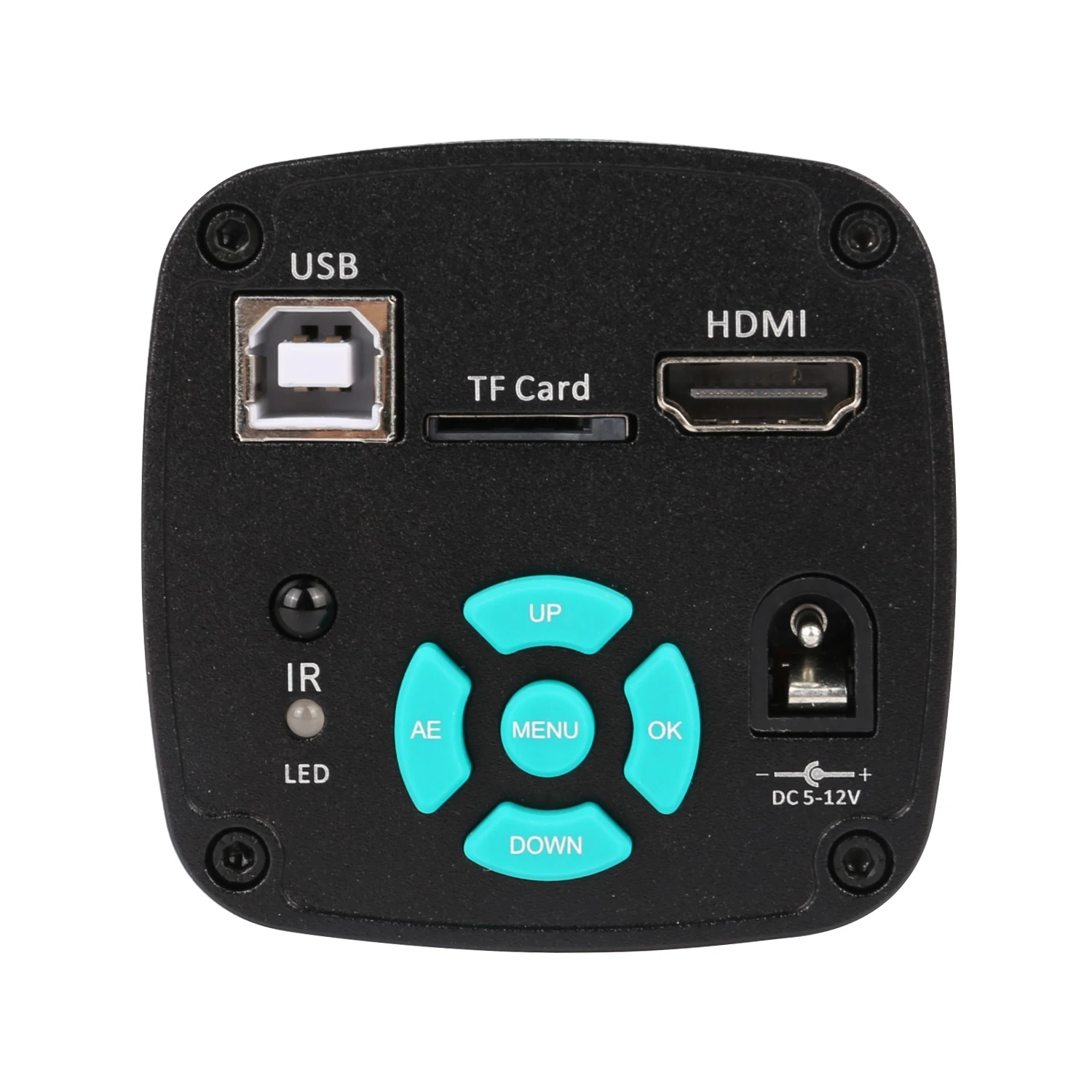

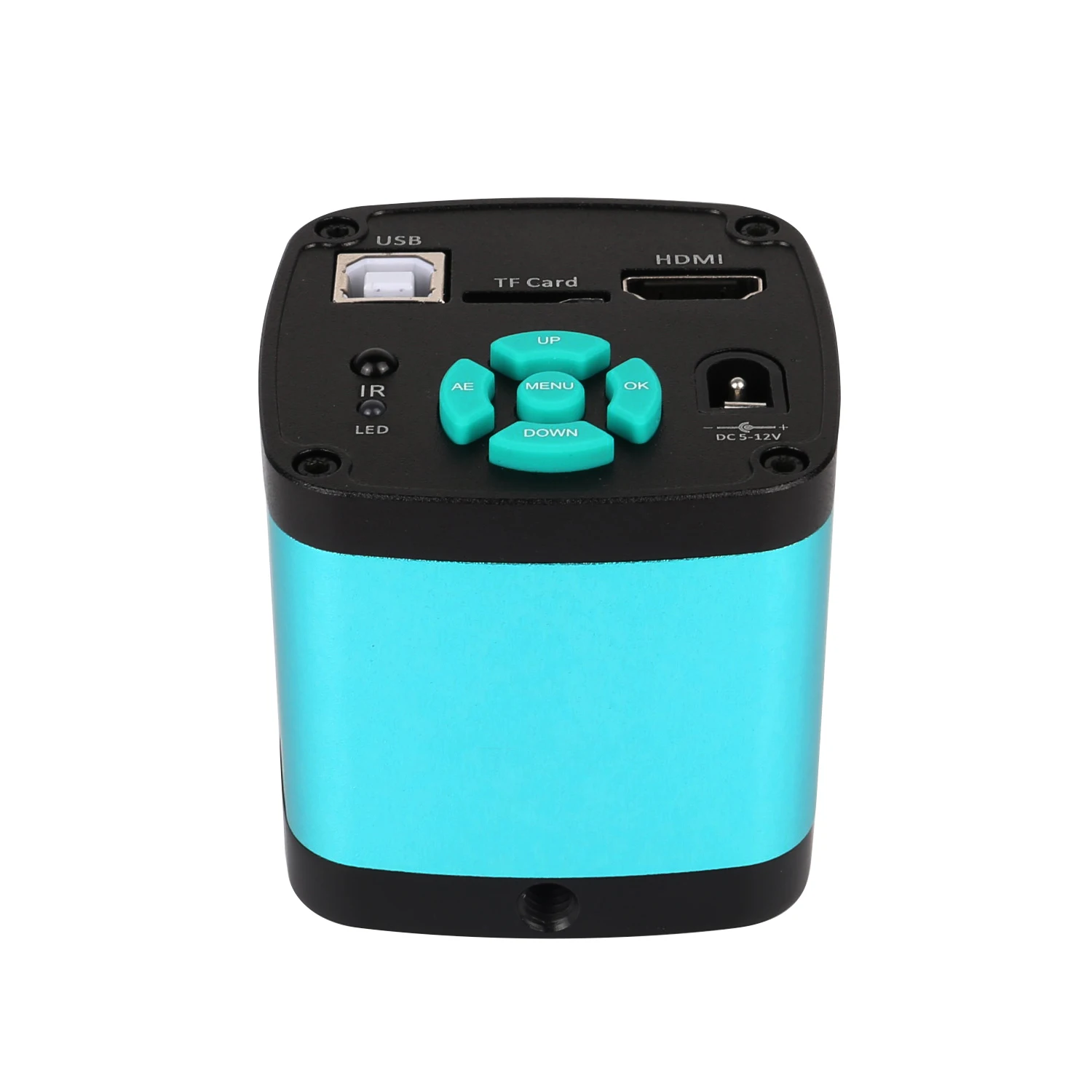

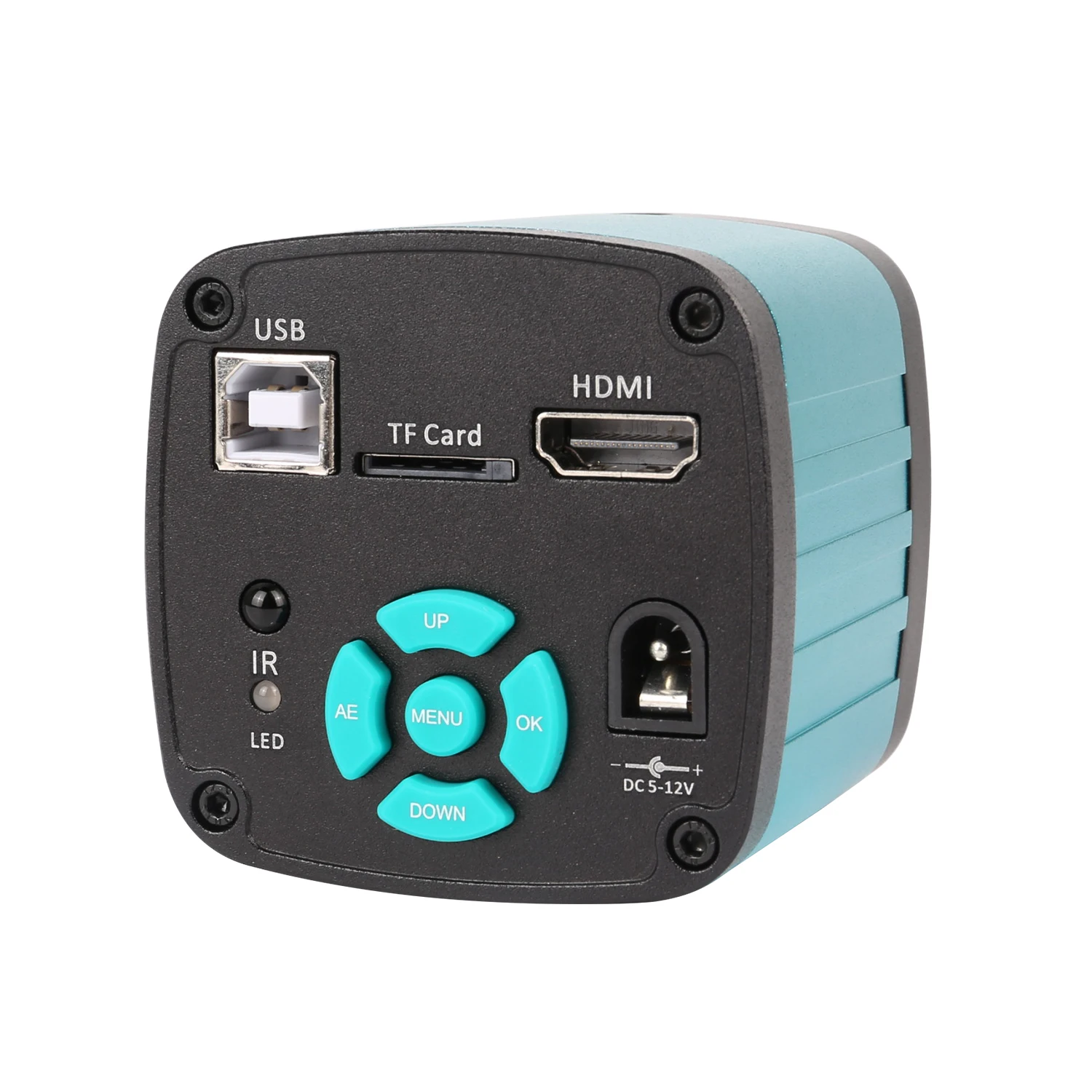

Camera specifications:

The sensor : 1/2.33 inch Panasonic 48 megapixel CMOS sensor

Pixel size : 1.335µm × 1.335µm

HDMI output : 1920*1080 60PFS

USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)

Camera interface : C/CS

Exposure : Automatic/manual

Exposure compensation : Support

White balance : Automatic/manual, RGB adjustable

Storage : Supports a maximum of 64GB

Input voltage : Dc 5v-12v

line : Supports 8 straight lines with adjustable color, thickness and position

Center line : Support

Menu language : English/Chinese

Remote control : Support remote control operation

Net weight : 250g

Rough weight : 450g

Product size : 66*66*49mm

Packing size : 145*130*70mm

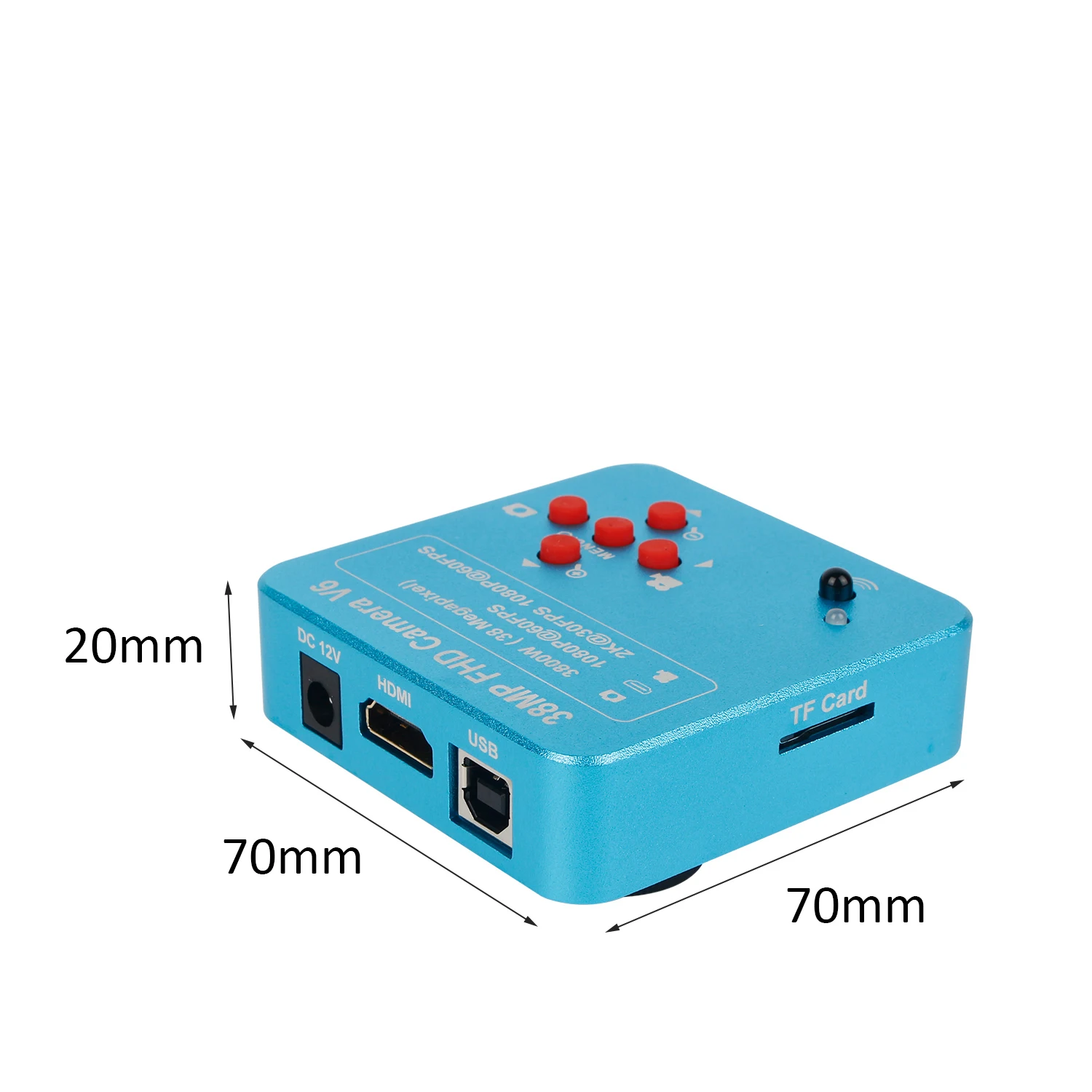

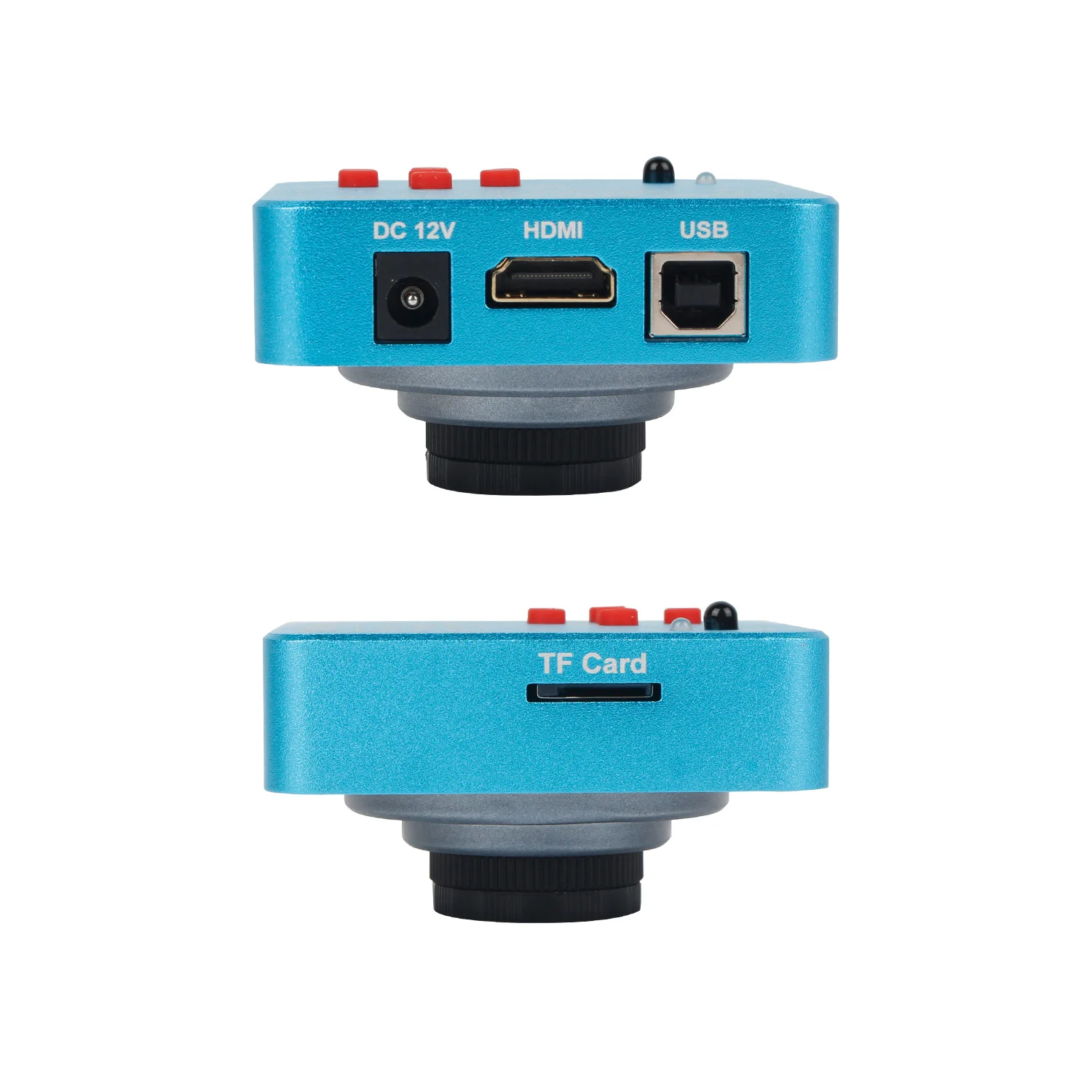

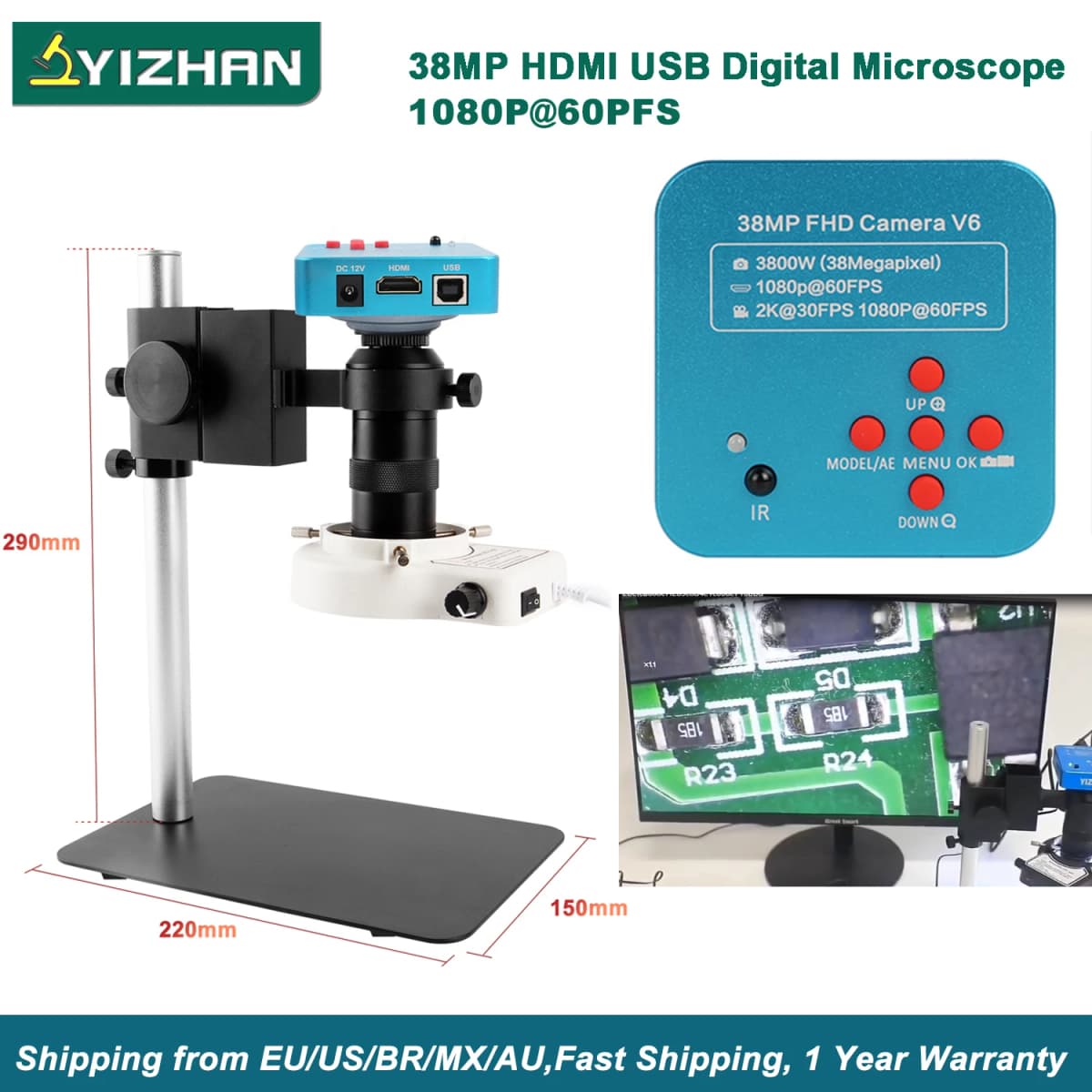

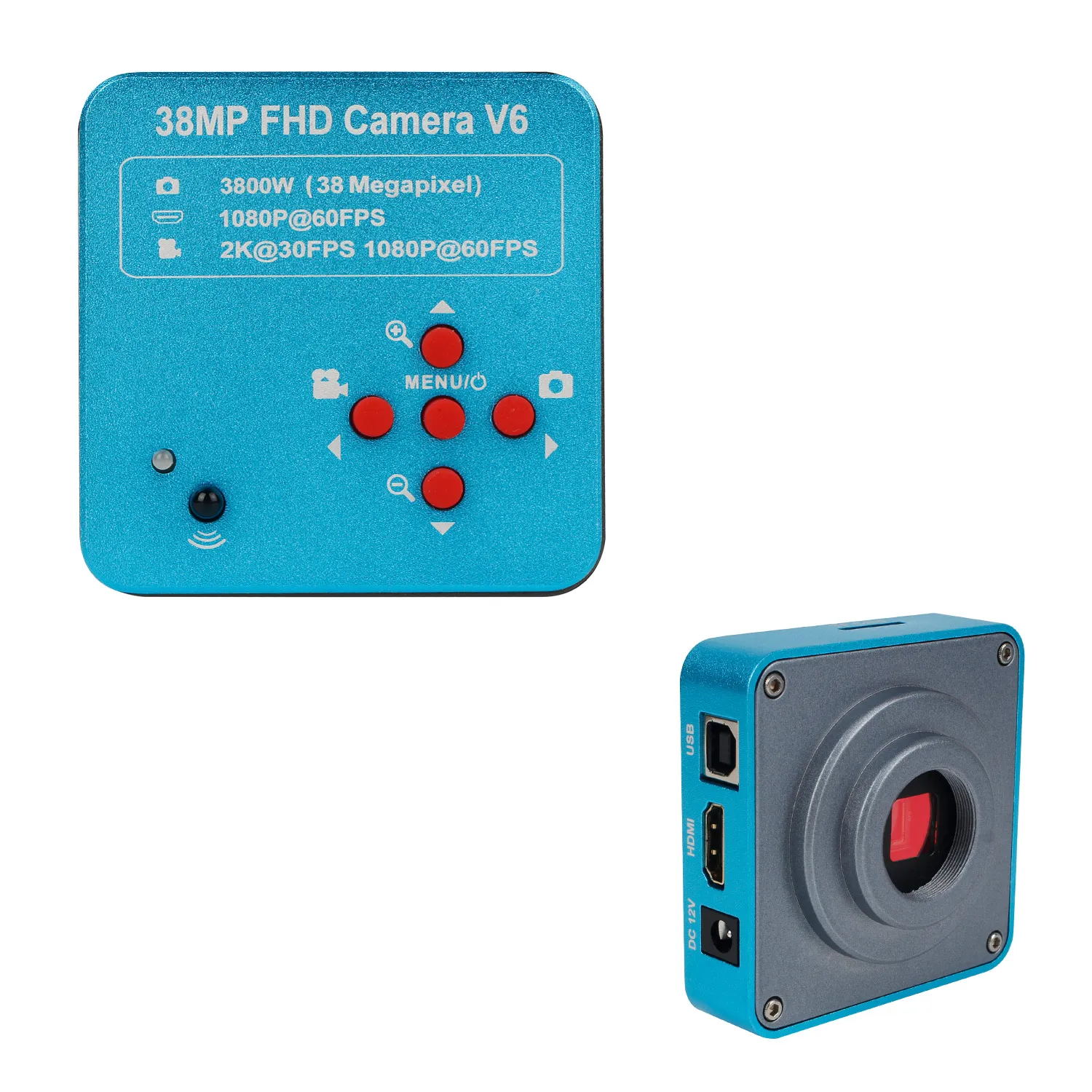

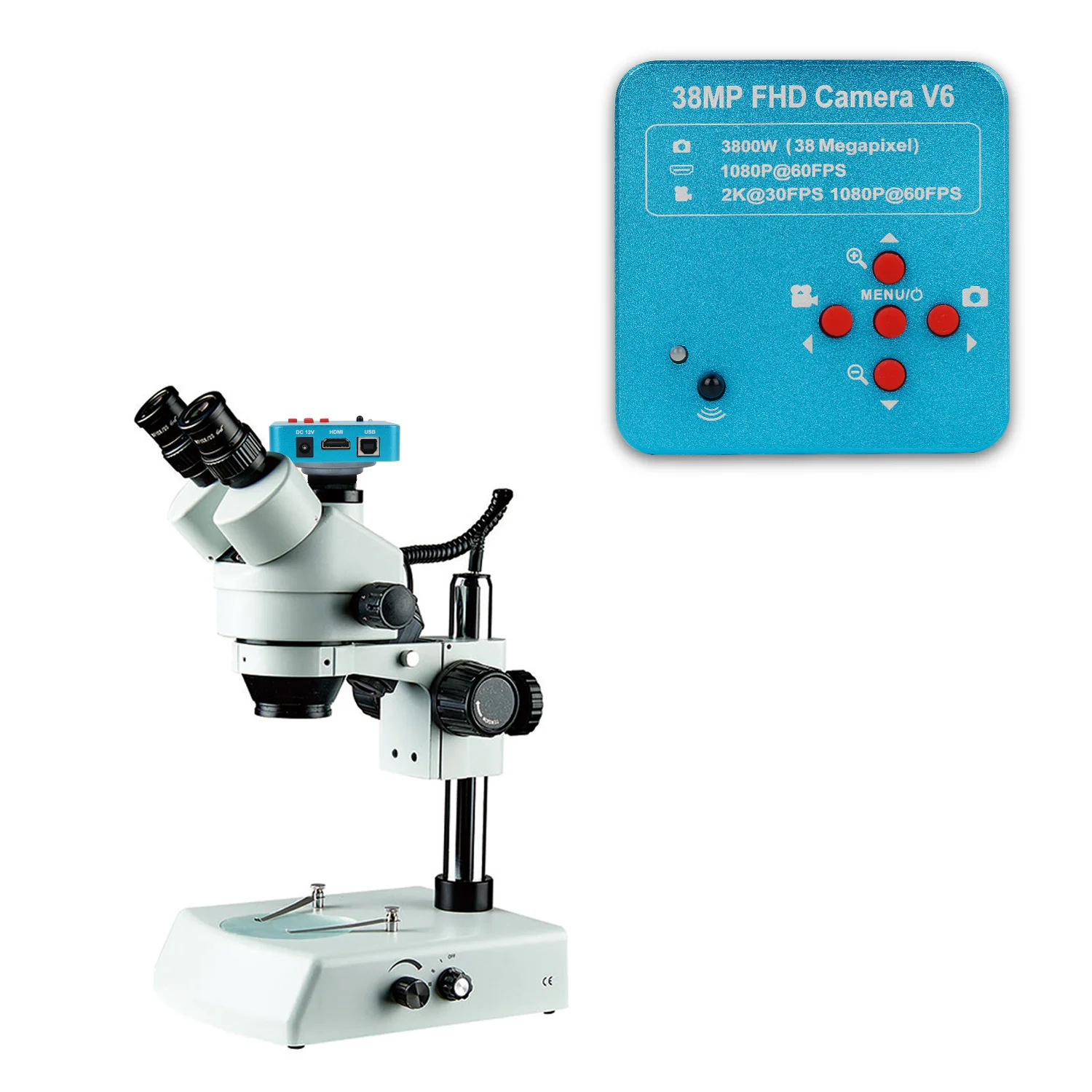

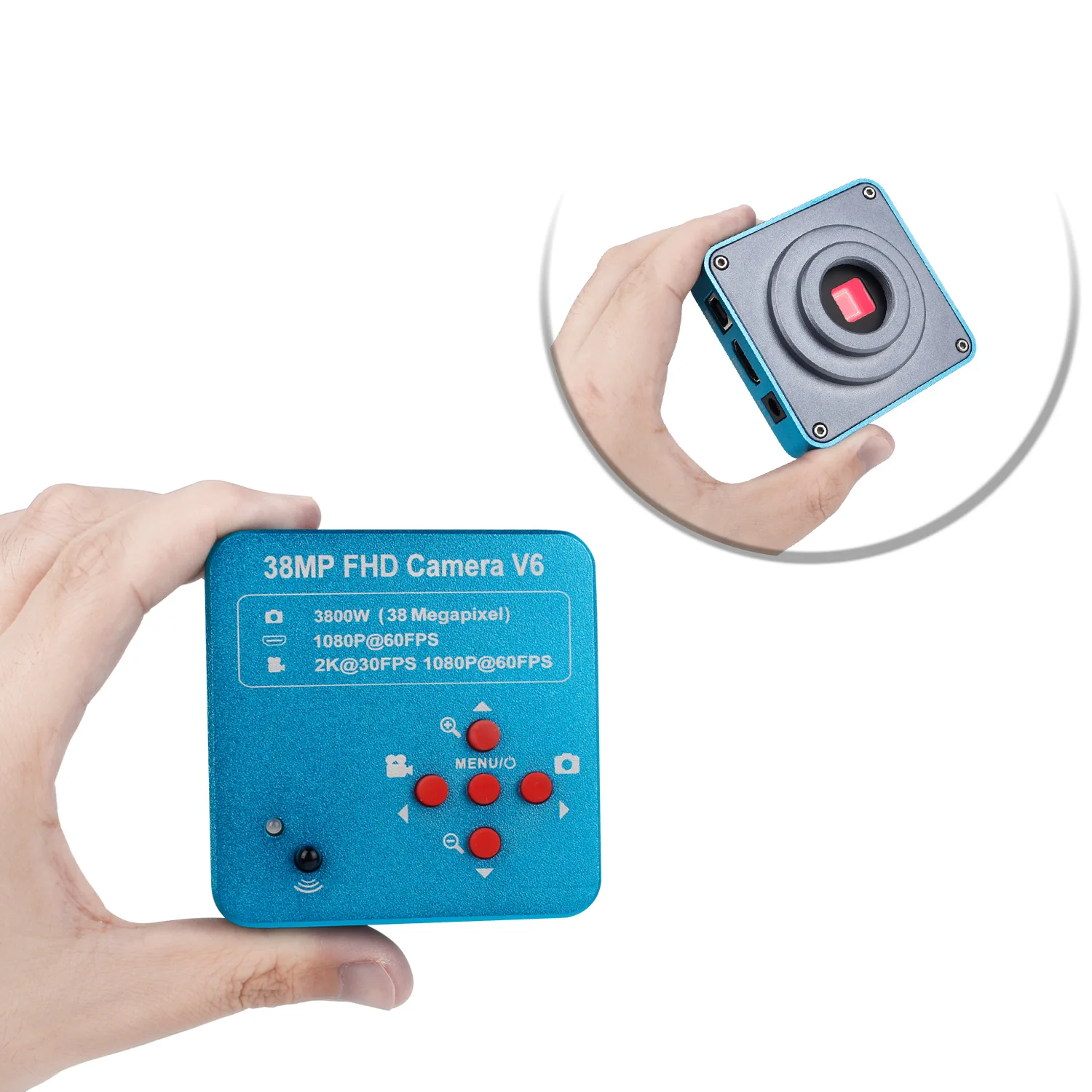

Camera 38mp:

Feature:

The sensor: imx291

Overall dimension: 20*70*70mm

Video Interface:HDMI

USB2.0 (Drive gratis): 1920*1080 @ 30FPS 1280*720 @ 30FPS 640*480 @ 30FPS

Lens:CS

Working voltage:12V

Working current:120mA

Stroomverbruik: MAX 0.15 W 12 V, 0.12A

Optical format:1/2.3"

Pixel size:1.4um*1.4um

Pixel array:38MP(4632*3488)

TV Lines:2000TVLine

FPS of max image:60FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:60dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 5 horizontal and vertical Color / line width adjustable

B/W:allow

Freeze:allow

Output of display resolution: HDMI：1920*1080

HDMI schaal: Ondersteuning 4:3, 16:9, 16:10 scherm

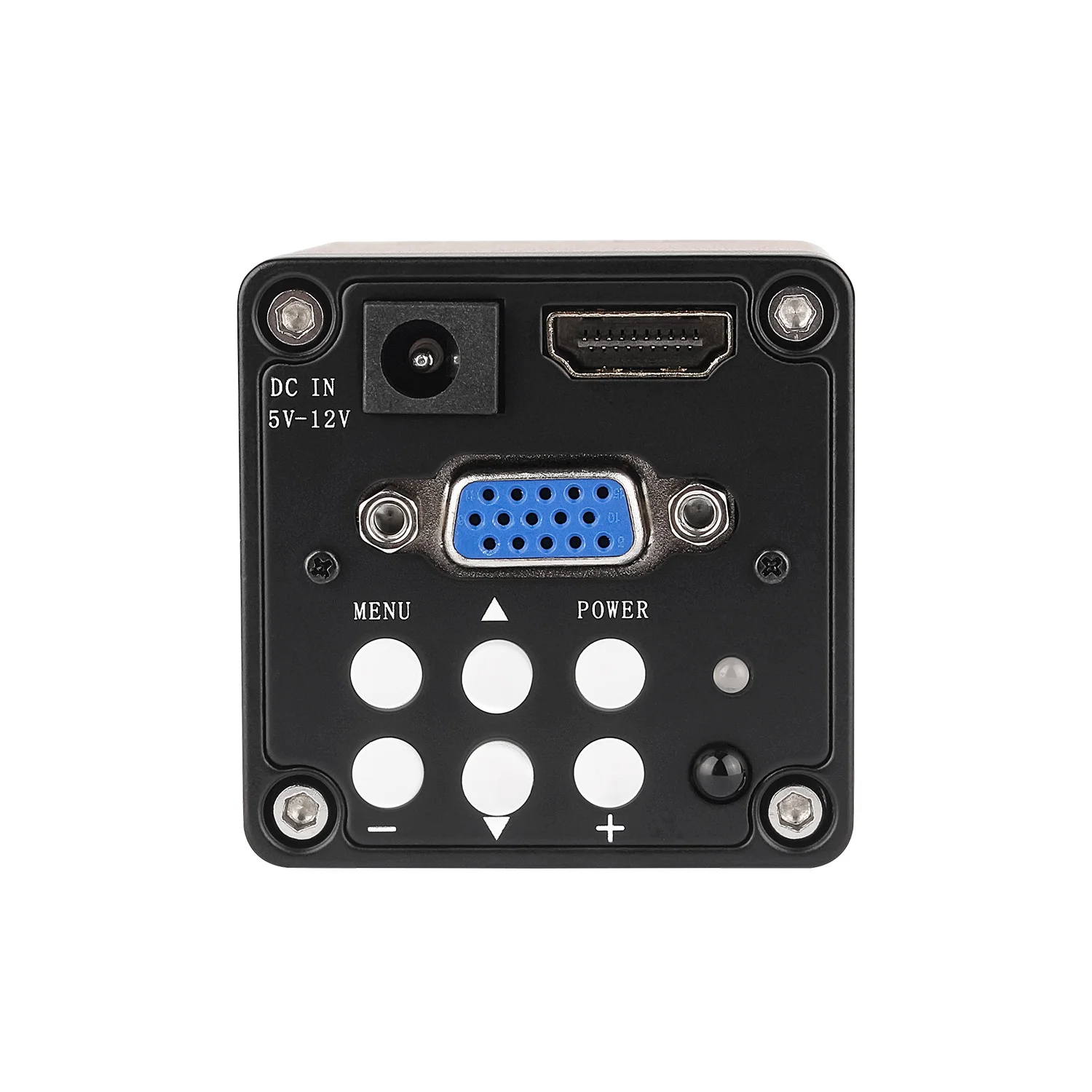

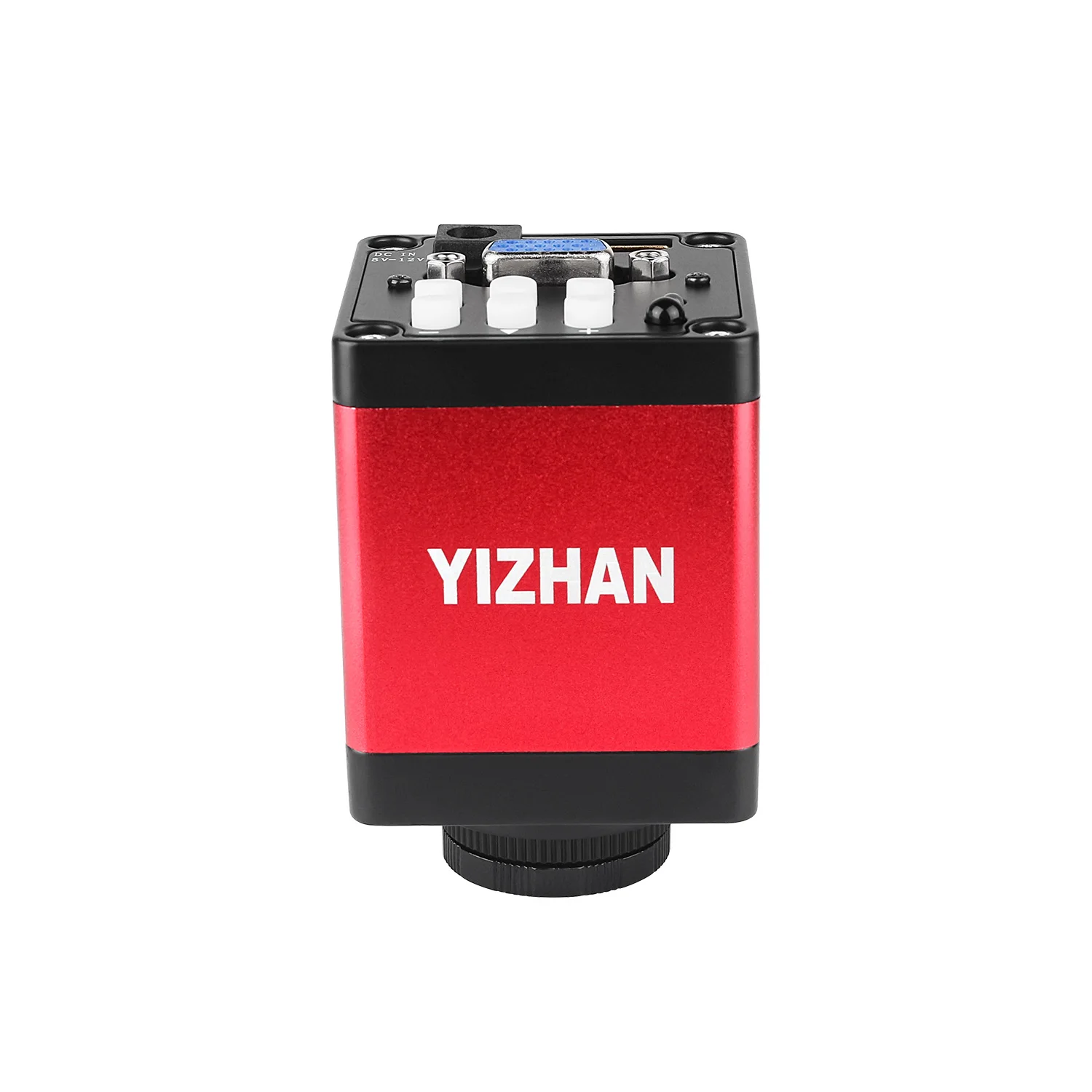

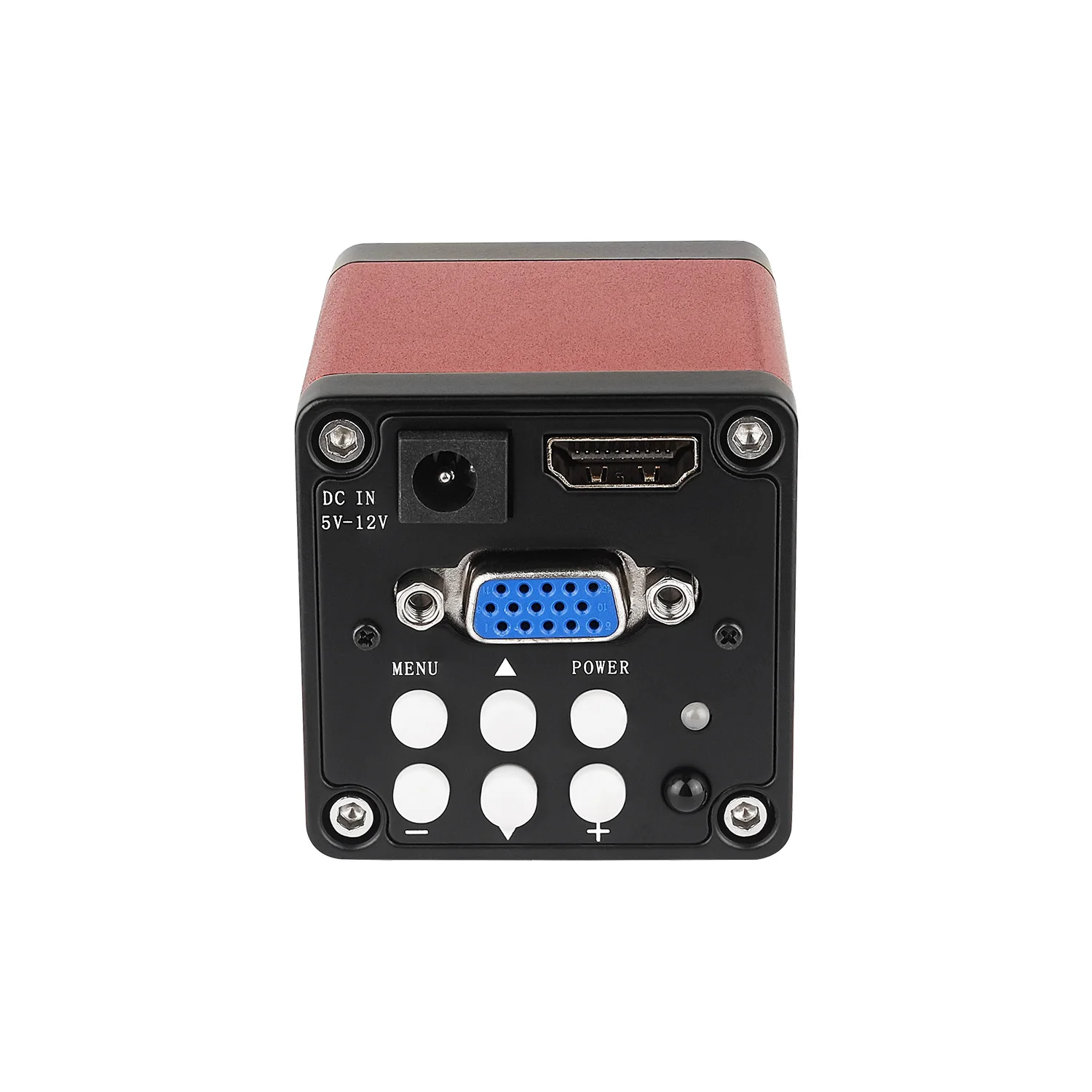

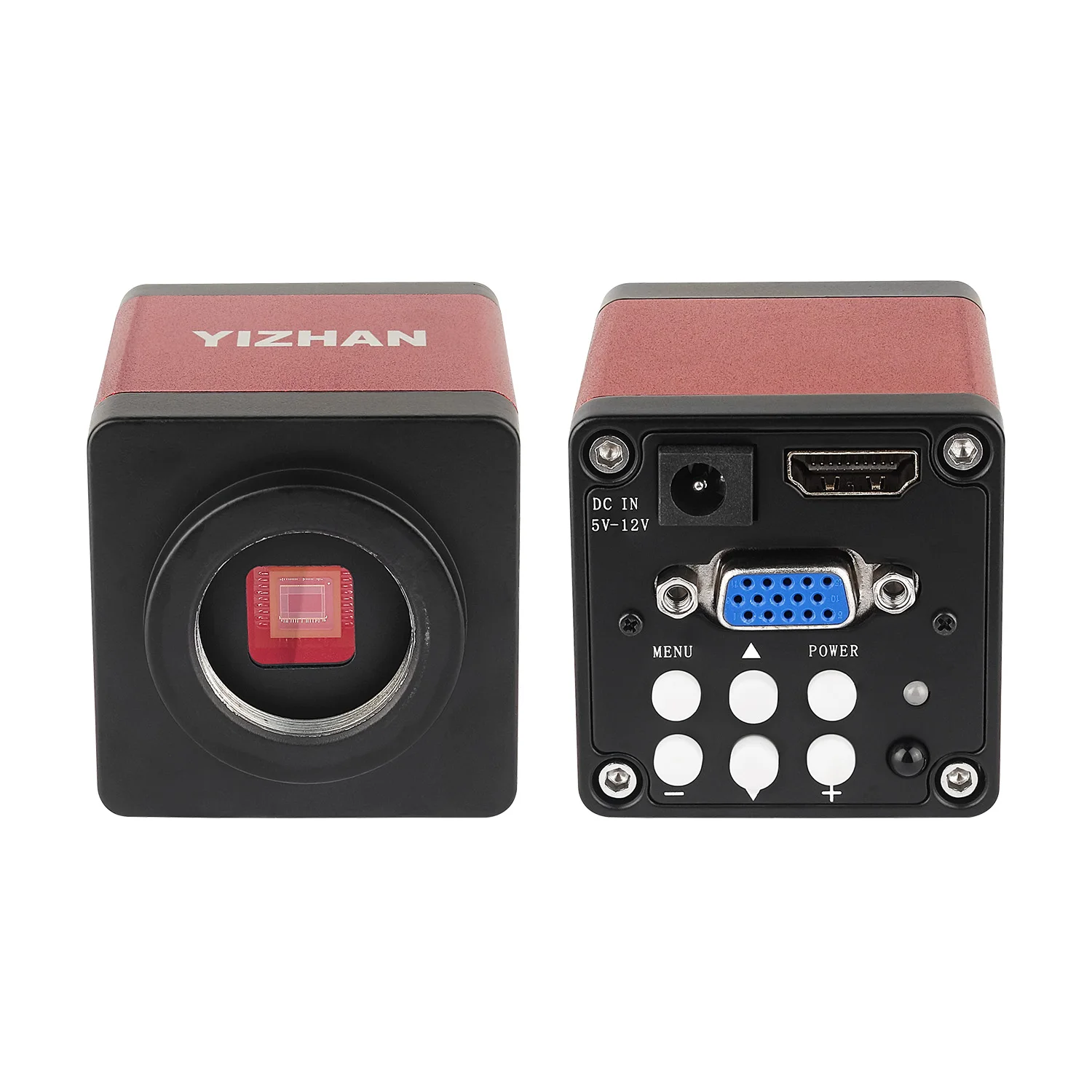

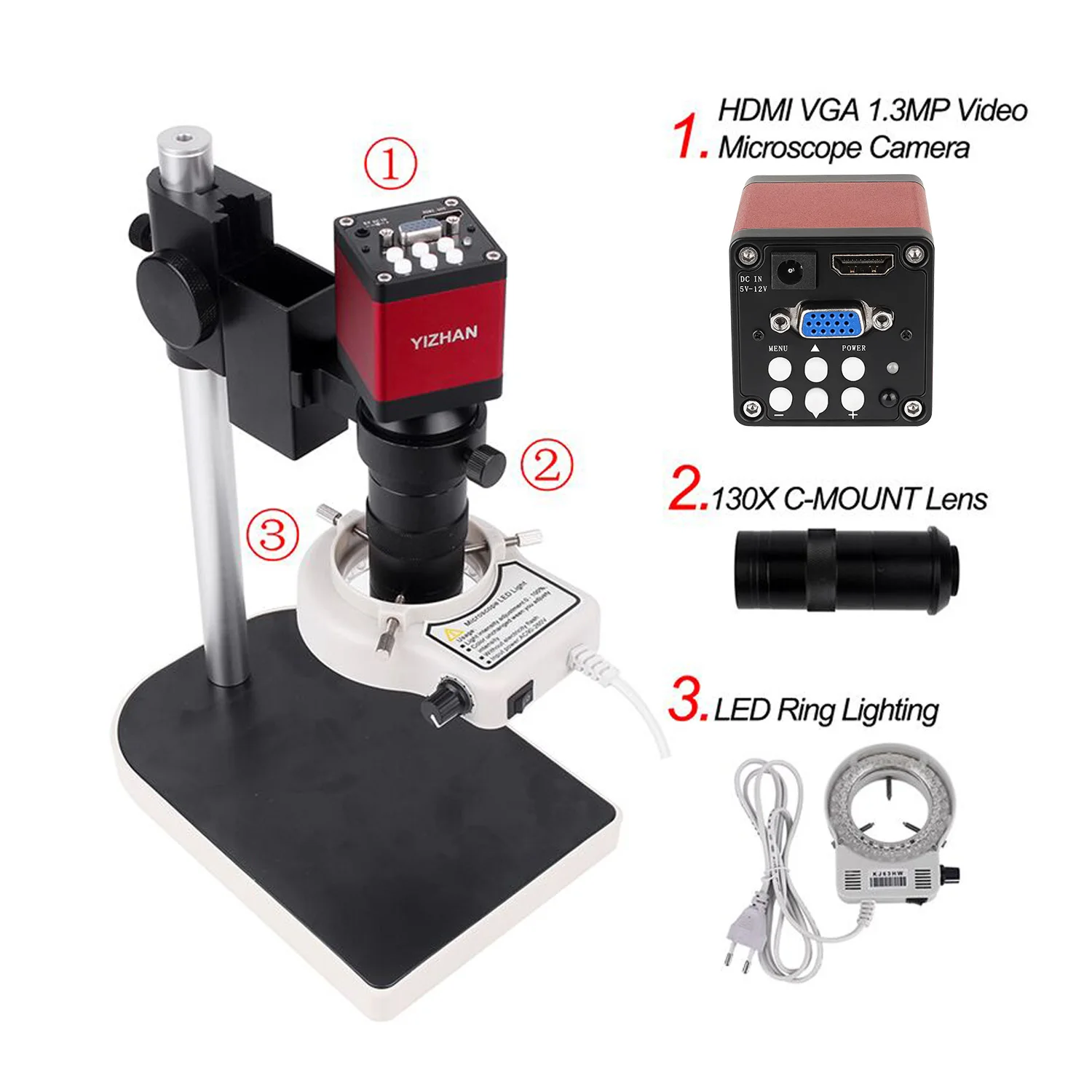

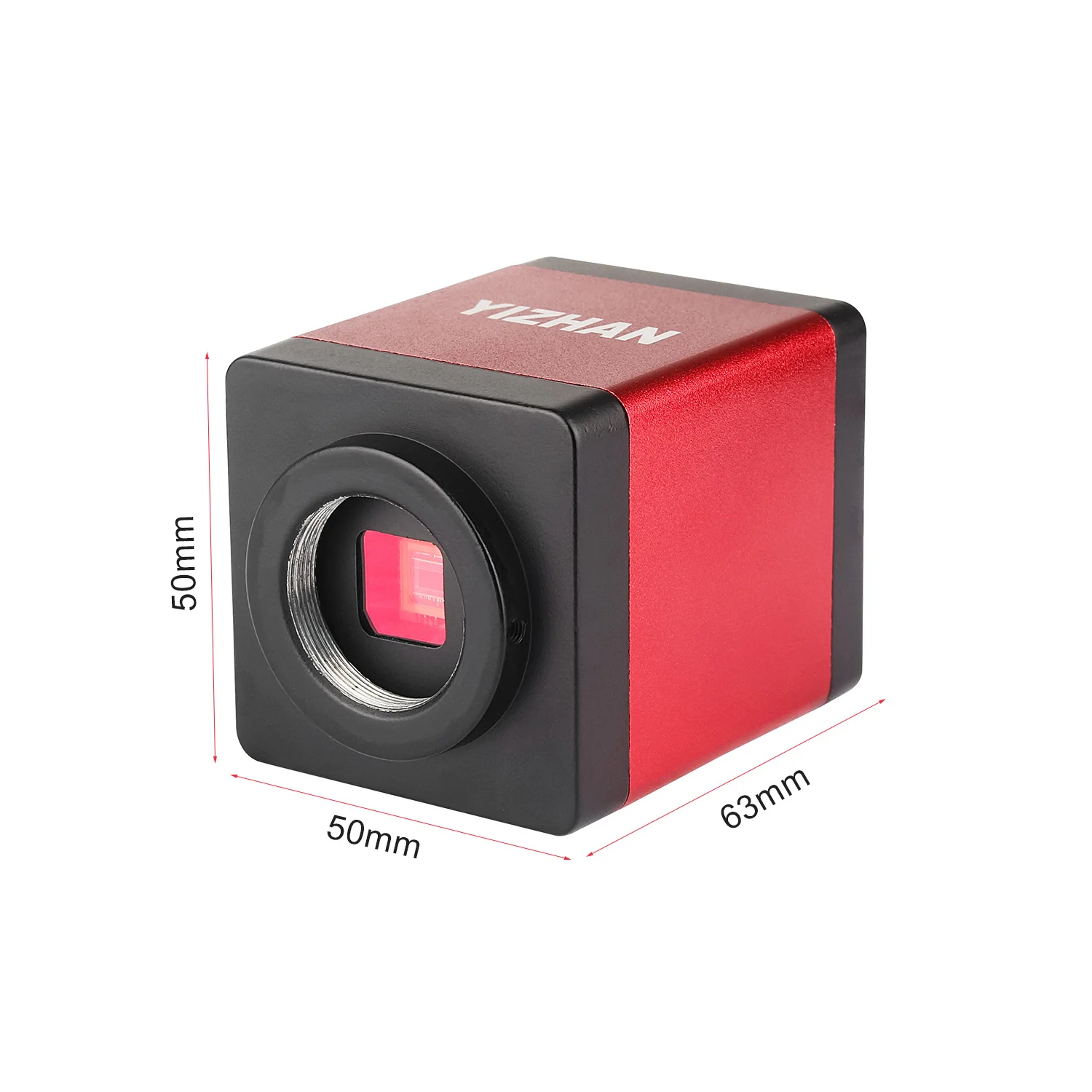

Camera 13MP :

The sensor: gc2053

Overall dimension: 75*50*50mm

Video Interface:HDMI VGA

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/3"

Pixel size:2.8um*2.8um

Pixel array:13MP

TV Lines:1200TVLine

FPS of max image:60FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:65dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution: HDMI：16:9, 4:3 VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)
