Miniware MDP-L1060 DC Electronic Load

Main Features

MINIWARE DC Electronic Load MDP-L1060 is the first programmable intelligent DC electronic load module of MDP (Mini Digital Power System) series. MDP-L1060 has four working modes as constant current (CC), constant voltage (CV), constant resistance (CR) and constant power (CP). It can test 60V 10A, up to 100W load input, and provide over-voltage (OVP), under-voltage (UVP),over-current (OCP), over-power (OPP), over-temperature (OTP), Anti-Reverse (polarity) and other comprehensive intelligent safety protection functions. It is a portable smart solution for various test scenarios of AC/DC power supplies, DC/DC converters, chargers, batteries, adapters and power electronic components

Specifications

Stackable design of MDP series, miniaturized, convenient and easy to use;

2.4G wireless communication, realizing complex remote control and advanced functions through MDP display control module;

4 Working modes: constant current (CC), constant voltage (CV),constant resistance (CR) & constant power (CP);

5 Advanced functions: battery (capacity) test, internal resistance test, factory test, dynamic test & over-current protection test;

6 Major intelligent safety protections: over-voltage (OVP), under-voltage (UVP), over-current (OCP), over-power (OPP), over-temperature (OTP) & anti-reverse protection;

Intelligent fan/wind speed control, efficient heat dissipation, energy saving;

Better accuracy with 4mm three-purpose gold-plated standard input port, XT30 remote compensation input port;

Support programmable loading test

Kindly Remind

Before use please read User Manual

[2.2] Power on/power off: Press and hold both SET and MENU Button

[8/] Firmware Upgrade: Press and hold both SET and RUN/LOCK Button to enter DFU mode

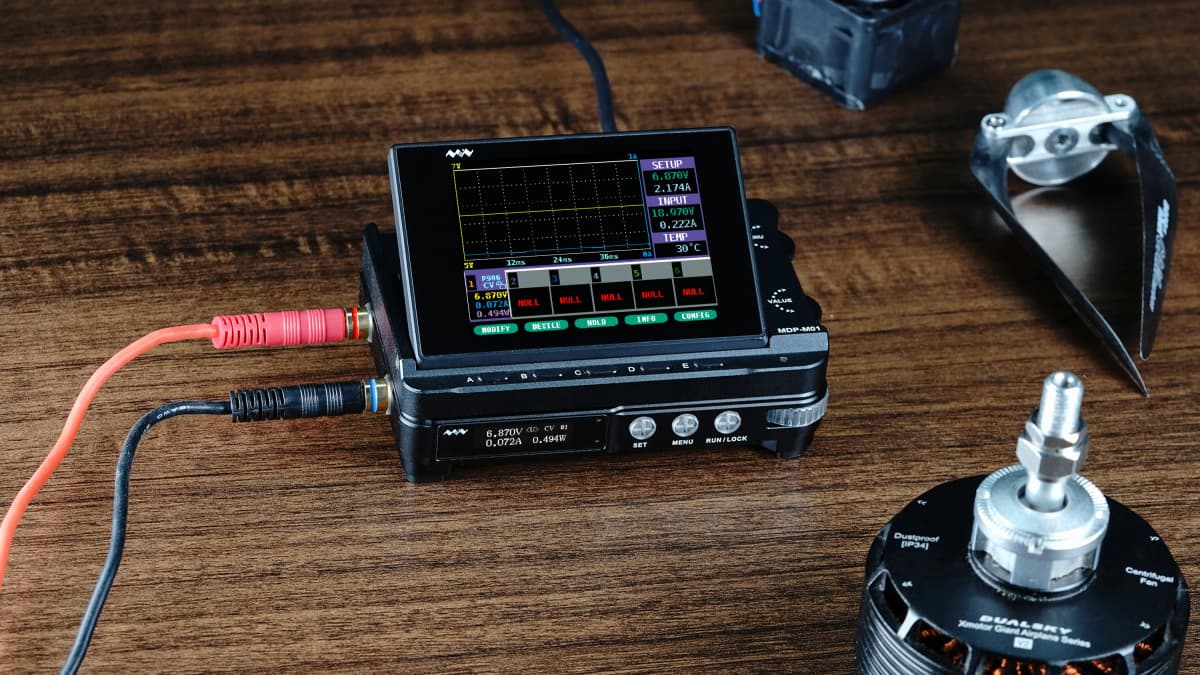

MDP-M01 Display Control Module

Features:

1)Modular design with MDP-M01 Display Control Module support up to 6 channels output when more power supply mode connected to achieve multichannel free combination at the power of 90W per channel

2)2.8 inch TFT screen display the voltage-current waveform and output parameter in real time with dual thumb wheels and 90-degree scrolling screen which is super convenient to monitor and operation

3) DC 4.2-30V 100mA-6A wide range input and max. 30V 5A 90W CC CV adjustable output per channel with input over-voltage protection, under-voltage protection, anti-reverse connection protection and output anti-backflow protection, over temperature protection, over current protection

4)High-speed transient response and over current protection, as fast as 4uS, Extremely low load regulation and intelligent line loss compensation

5) Support positive & negative pressure, series pressurization, parallel current sharing, free combination of collaborative load, and intelligent power allocation

6) Support data record with max. 7Mb recording storage and hours recording time

7）high cost-effective programmable linear DC power supply, featuring indicators, stability, reliability and distinct user interface comparable with professional linear DC power supply

-Input Power: DC4.2-30V(2.7V after Start-up),100mA-6A

-Output: 30V 5A 90W(Max. per channel

-Adjustment Rate: <±0.01(Power), <±0.01 (Load)

-Ripple and Noise: 250uVrms/3mVpp

-Transient Response Time: ≤4uS

-Line Loss Compensation Range: 5mR-100mR

-Date Record: 7Mb Max. Storage and 24 hours Max. Time

-Protection Support:

Input:over-voltage, under-voltage, anti-reverse

Output: anti-backflow, over temperature

MDP-P906 Digital Power Supply

Specifications：
