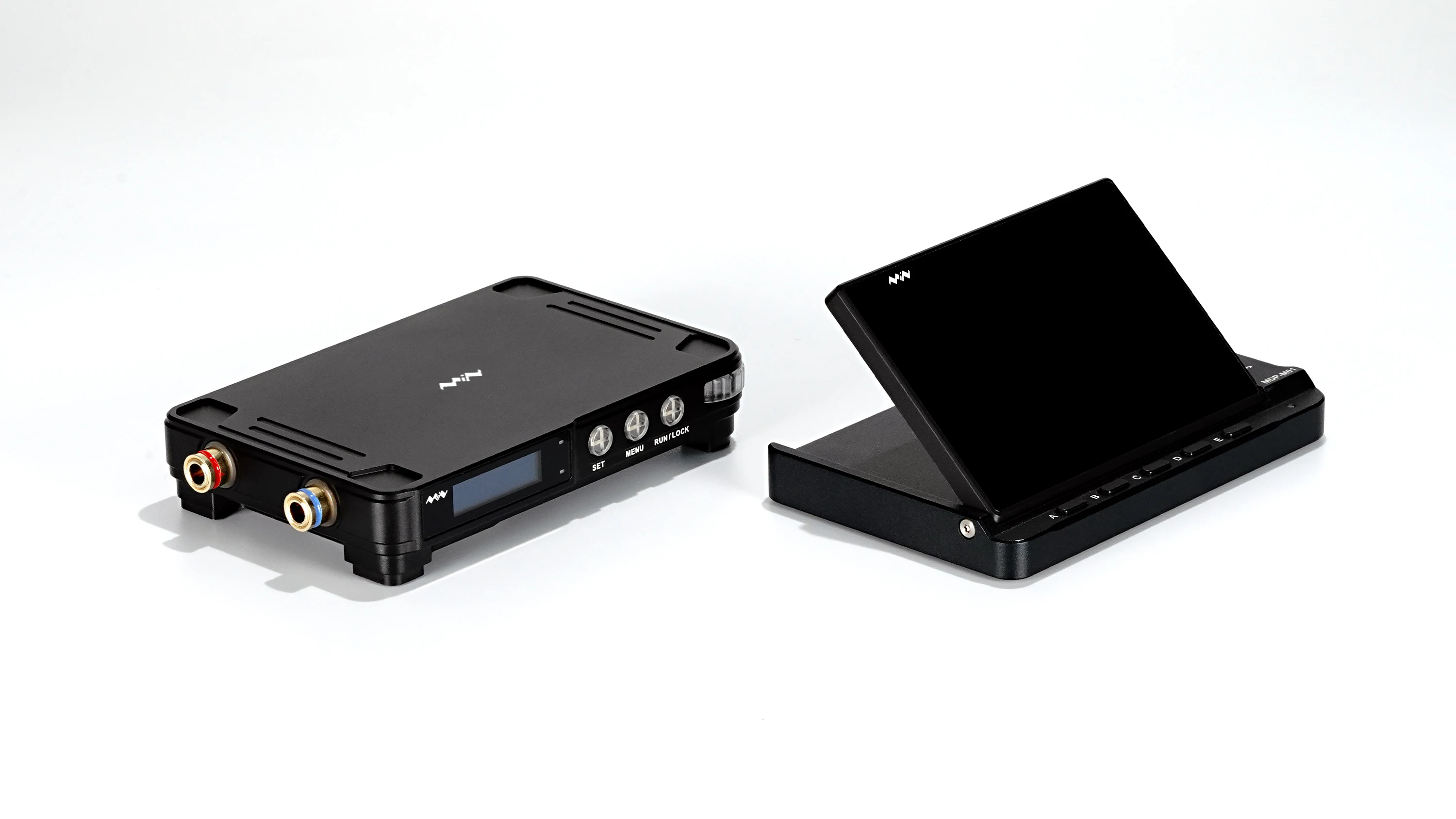

MDP-M01 MDP-P906 MDP-L1060 30V 10A 300W Mini Digital Power System Adjustable DC Power Supply Aluminum Alloy OLED Display

Description:

MDP (Mini Digital Power System) is a system of programmable linear DC power supply based on modular design, capable of connecting up to 6 different modules for use as needed.

For its novel, beautiful and trendy design, MDP won a Red Dot in the Red Dot Award: Product Design 2020.

Applications:

ü Universal tests and teaching experiments in R&D laboratory

ü Maintenance of cell phones, laptops and other digital devices

ü Power supply testing and data logger of RF, microwave circuits and other modules

ü Provide purified power for high-accuracy digital-analog hybrid circuits and Hi-Fi audio devices

ü Performance verification and fault diagnosis of devices and circuits

ü Quality control and quality inspection

ü Emergency power supply for RC models, vehicles and digital devices

Specifications：MDP-M01

Features:

1)Modular design with MDP-M01 Display Control Module support up to 6 channels output when more power supply mode connected to achieve multichannel free combination at the power of 90W per channel

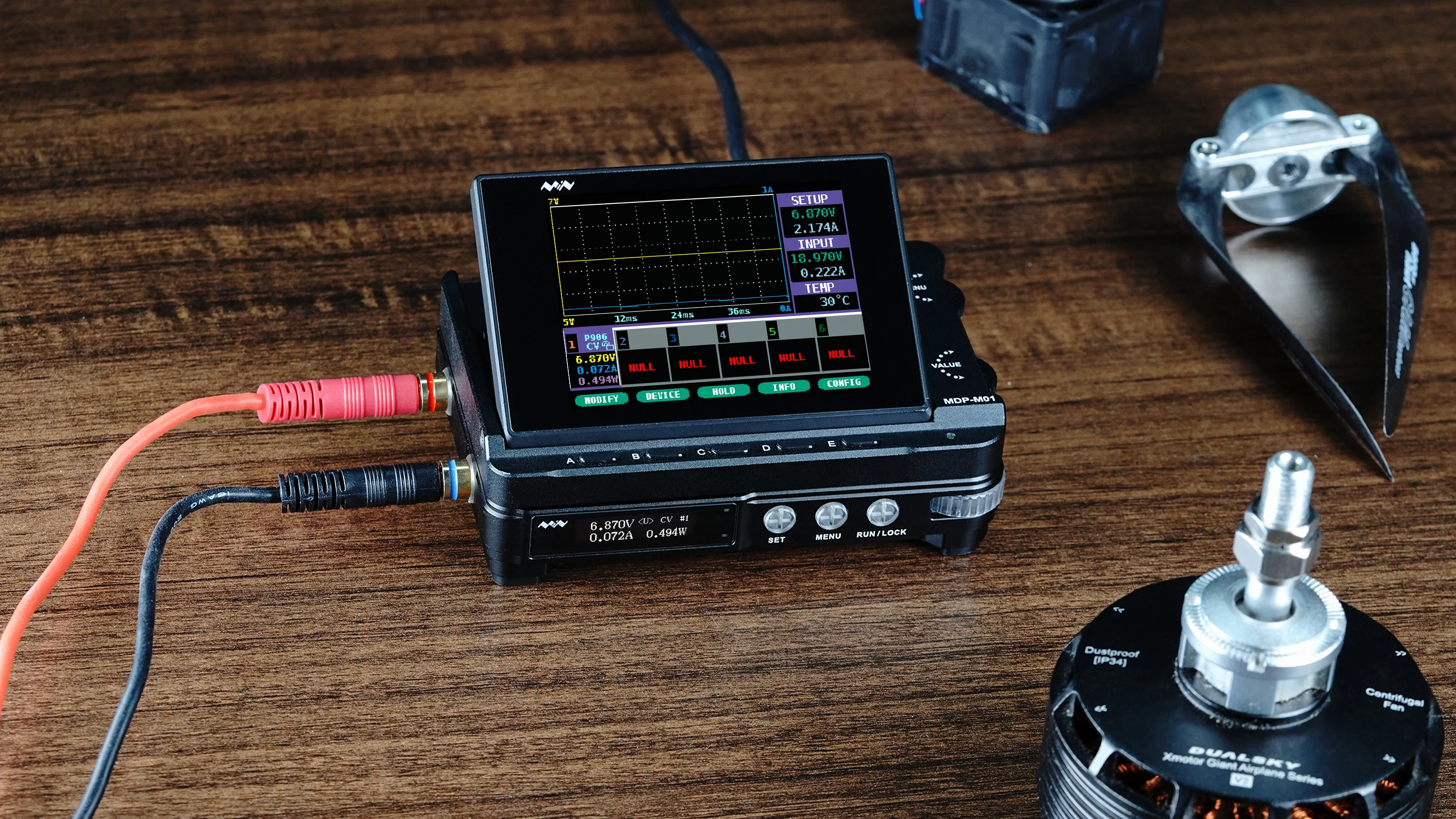

2)2.8 inch TFT screen display the voltage-current waveform and output parameter in real time with dual thumb wheels and 90-degree scrolling screen which is super convenient to monitor and operation

3) DC 4.2-30V 100mA-6A wide range input and max. 30V 5A 90W CC CV adjustable output per channel with input over-voltage protection, under-voltage protection, anti-reverse connection protection and output anti-backflow protection, over temperature protection, over current protection

4)High-speed transient response and over current protection, as fast as 4uS, Extremely low load regulation and intelligent line loss compensation

5) Support positive & negative pressure, series pressurization, parallel current sharing, free combination of collaborative load, and intelligent power allocation

6) Support data record with max. 7Mb recording storage and hours recording time

7）high cost-effective programmable linear DC power supply, featuring indicators, stability, reliability and distinct user interface comparable with professional linear DC power supply

-Input Power: DC4.2-30V(2.7V after Start-up),100mA-6A

-Output: 30V 5A 90W(Max. per channel

-Adjustment Rate: <±0.01(Power), <±0.01 (Load)

-Ripple and Noise: 250uVrms/3mVpp

-Transient Response Time: ≤4uS

-Line Loss Compensation Range: 5mR-100mR

-Date Record: 7Mb Max. Storage and 24 hours Max. Time

-Protection Support:

Input:over-voltage, under-voltage, anti-reverse

Output: anti-backflow, over temperature

Specifications：

Specifications：

MDP-M01 Package Included:

1X MDP-M01 Display Control Model

1X English Manual

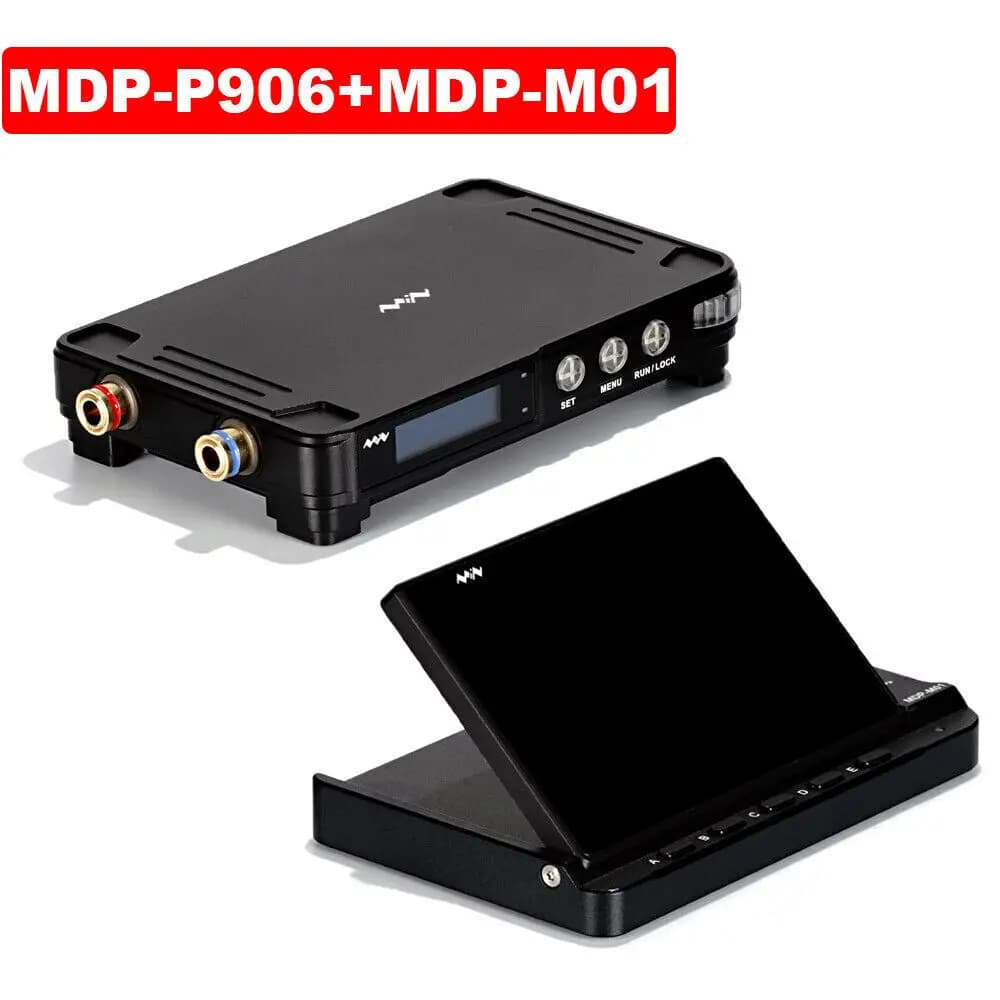

MDP-P906 Package included:

1 x MDP-P906

2 x output cable

1 x user manual

MDP-L1060 Package included:

1X L1060 DC Elctronics Load
