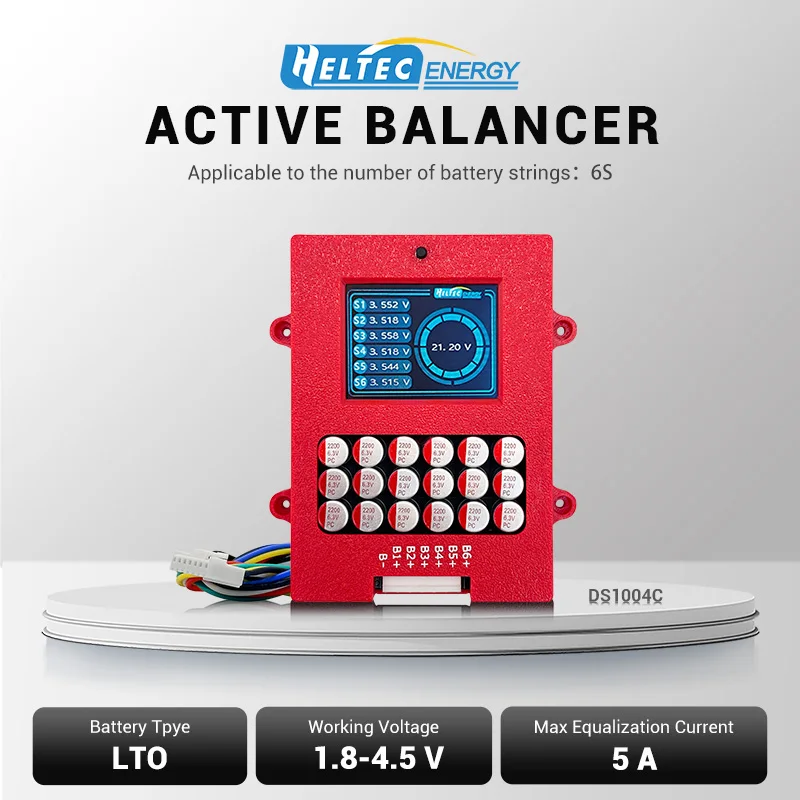

Heltec 6S LTO balancer screen active equalizer balancer lithium titanate car audio battery cell balancing module
124.79$
31.2$
Quantity:
1
Availability:
Out of StockColor
Ships From
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Feture
Applicable string number:6S
Applicable battery type:NCM/LFP/LTO
Operating voltage range:NCM/LFP: 2.7-4.2V LTO:1.8V-2.7V
Balance voltage accuracy:5mV (typical)
Balance mode: Active balance in which the entire battery group
participates in energy conversion at the same time.
Balance current: When the voltage difference is about 1V, the maximum balance current is 5A, and the balance current decreases as the voltage difference decreases. The minimum balance start voltage difference of the instrument is 0.01V
Undervoltage protection sleep voltage: NCM/LFP: 2.7V LTO:1.8V
Static working current :20mA
Working environment temperature: -10℃-60℃
