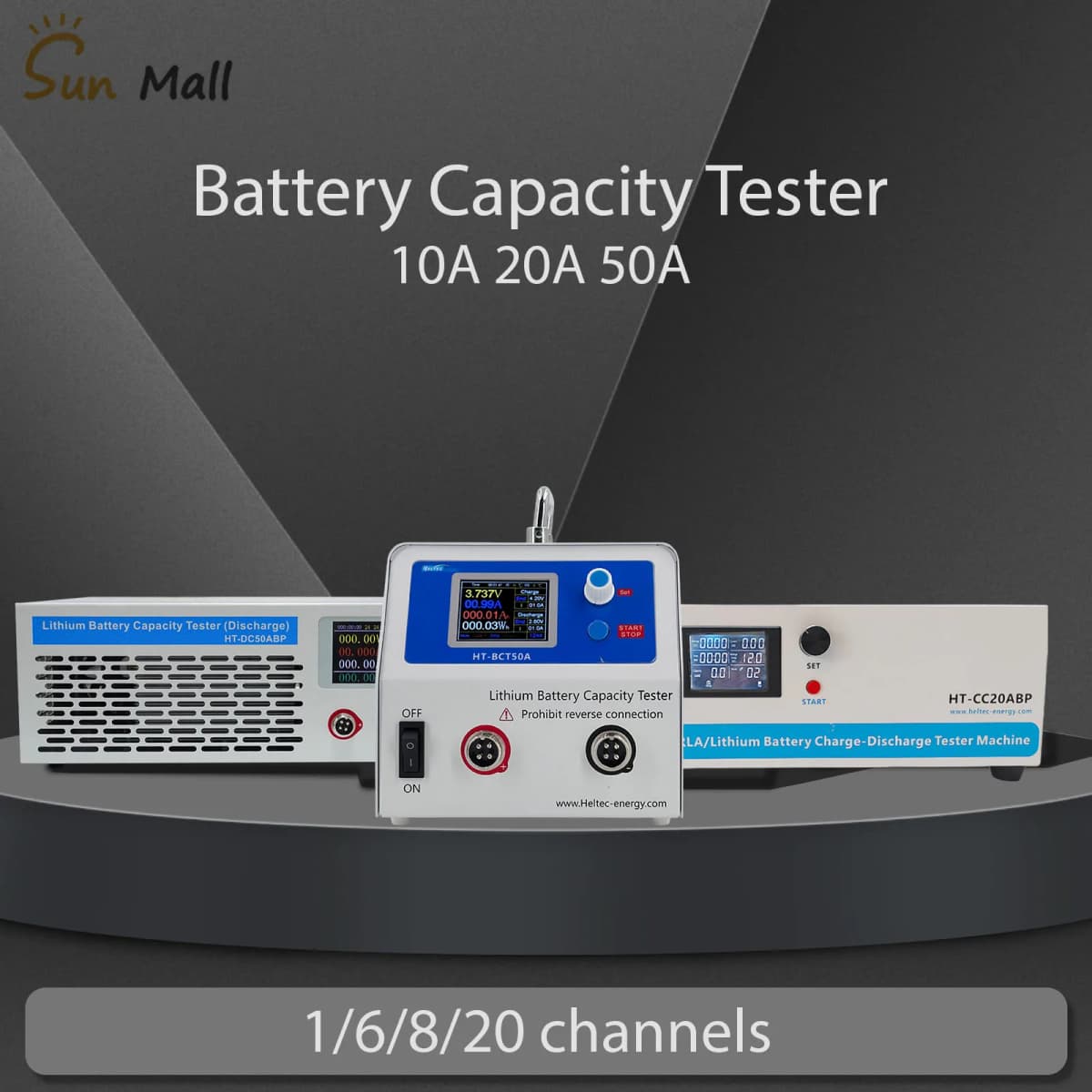

Battery tester, Lithium Ni-MH lead-acid battery capacity test/repair 1/6/8/20 channels charge or discharge Load Tester

Note: Our brand power supply has some stock in the AU/PL/US/RU warehouse. lf you cannot see the option to ship from the overseas warehouse, you can follow the steps in the picture to select the option to ship from the overseas warehouse, (We will automatically equip the corresponding power cord according to your country,Please don't worry）

HT-ED10AC20 20 channel 10A charge dischage battery test machine 5V battery

HT-ED50AC8 8 channel 50A charge dischage battery test machine 5V battery

HT-ED10AC6V20D 6Channel 10A charge discharge test machine 7-23V battery

HT-BCT50A ONE Channel 50A charge discharge test machine 5V battery

HT-BCT10A30V ONE Channel 10A charge discharge test machine 30V battery

HT-CC20ABP ONE Channel 20A charge discharge test machine 99V battery

HT-CC40ABP ONE Channel 40A charge discharge test machine 99V battery

HT-BCT50A4C 4 channel 50A charge discharge test machine 5V battery

HT-DC50ABP ONE Channel 50A discharge test machine 5-120V battery

10 Channel fixture Used for 20 channel capacitance testing and maintenance equipment（HT-ED10AC20）

HT-ED05AC8V20 8 channel 5A charge dischage battery test machine 2-20V battery

HT-ED10AC20

HT-ED50AC8

Product parameters

Input power supply: AC200V~ 245V@50HZ /60HZ 50A

Input power: standby power of 80W;

Full load power 3200W;

Allowable temperature and humidity: ambient temperature<35 degrees;

Humidity<90%

Number of channels: 8

Channel voltage resistance performance: AC1000V/2MIN with no abnormalities

Each channel parameter:

Maximum output voltage: 5V

Minimum voltage: 1V

Maximum charging current: 50A

Maximum discharge current: 50A

Measurement voltage accuracy: ± 0.02V

Measurement current accuracy: ± 0.02A

Applicable system and configuration of upper computer software:

WINDOWSXP and above systems have network port configuration

HT-ED10AC6V20D

HT-BCT50A

HT-CC20ABP

HT-CC40ABP

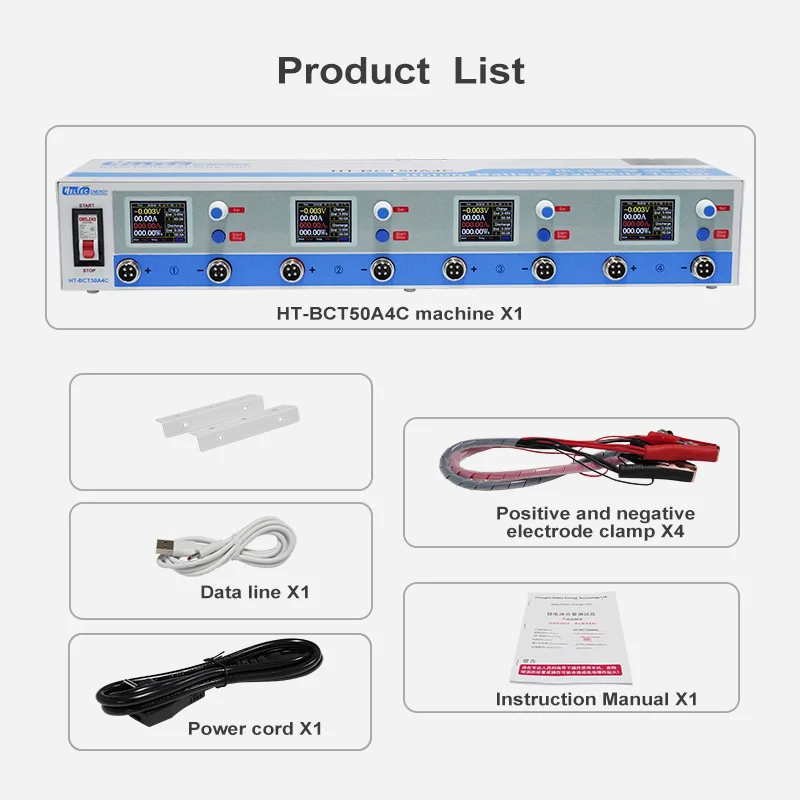

HT-BCT50A4C

HT-DC50ABP

HT-ED05AC8V20
