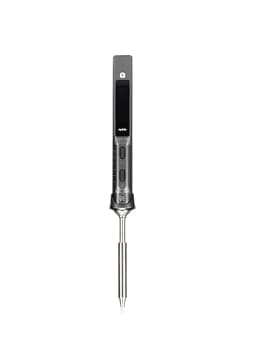

Miniware TS101 Soldering Iron Electric 65W Temperature Programmed LCD New Upgraded TS100 With Soldering Tip Set

1. On the basis of TS100, TS101 is upgraded and optimized in performance and functions to improve user experience. The TS101 master's overall appearance is sharp and tough, with a larger 128 *32 pixel OLED screen that displays more heat data. The classic A-B key operation continues the TS100 operation habit and reduces the user learning cost. The insert end of the soldering iron head of the controller is fixed with a ball screw. There is no need to loosen the hexagonal screw before inserting and removing the soldering iron head.

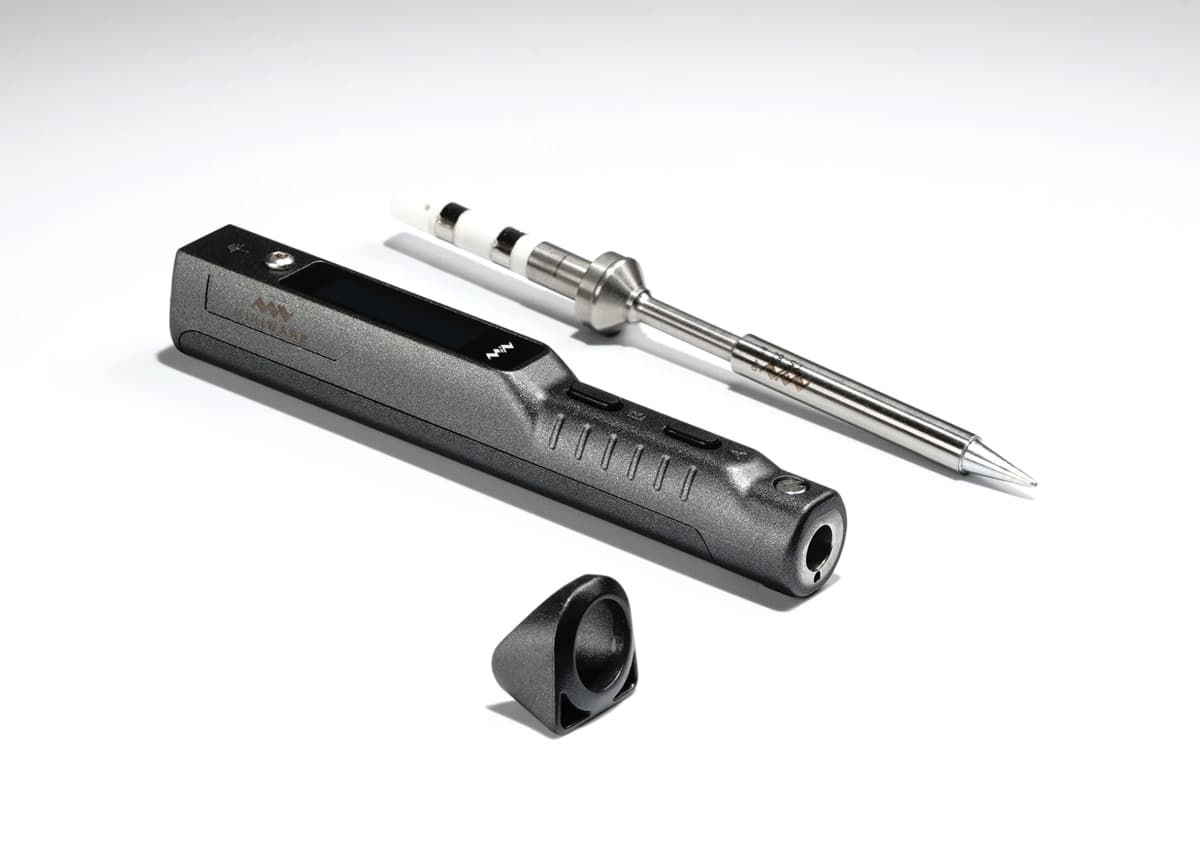

2. A new handy and practical accessory - a cat-like non-slip cap that not only acts as a simple stand to support the iron and prevent it from rolling, but also can be used for finger non-slip and _ removing the soldering tip.

3.TS101 soldering iron adopts DC and PD dual power input. The power range of the popular DC5525 interface has been extended to DC 9-24V (up to 65W). The USB-C interface replaces the original Micro USB interface for firmware upgrades and is used as a standard PD power input up to 45W. The temperature adjustment range is also optimized to 50-400℃ to adapt to more application scenarios.

4. In terms of intelligent operation, TS101 menu Settings are more detailed, and the newly added "Boost" heating function can heat up quickly in a short time to meet the welding requirements of special scenarios. TS101 and TS100 use the same soldering tip, so your existing TS100 tip can continue to be used for this upgraded version of the soldering iron

Package list

TS101 Controller Gray*1

Soldering Tip *1（Option）

USB-C Silicone Cable*1

User Manual*1
