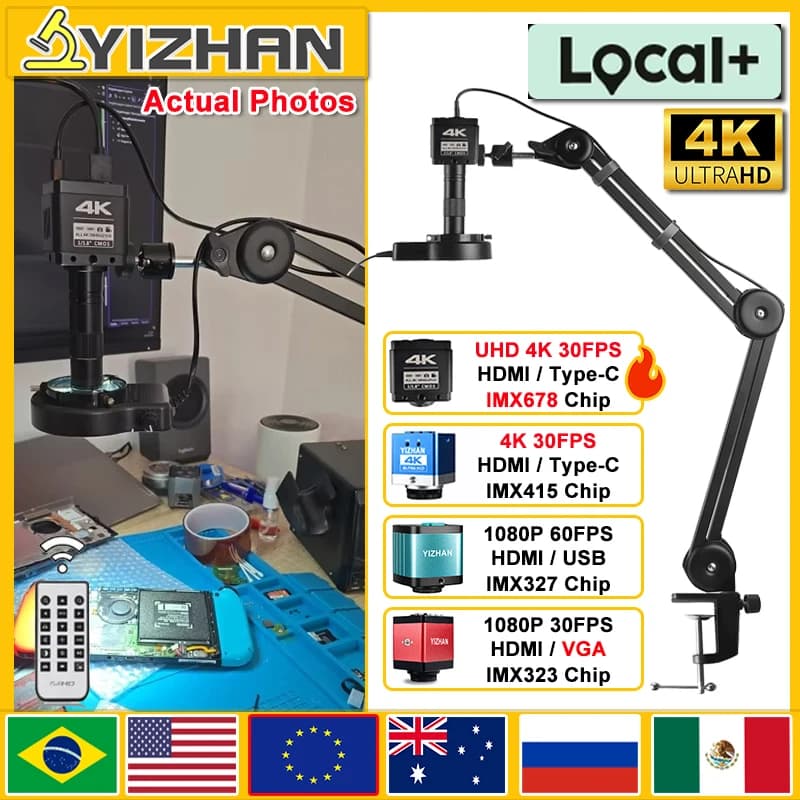

YIZHAN UHD 4K 30FPS Digital Microscope for Electronics IMX687 HDMI/Type-C Camera 150X Adjustable Lens Microscopio Tools Set

4K 60MP Camera Live Video Demonstration

Your Packing List As Below

1* Microscope camera (4 model choose)
1* 150X Lens
1* Led ring light
1* Clamp top folding bracket (2 options available)
1*Original outer box
1 * Instruction manual

The four cameras are different, and the main differences are as follows

Clamp top folding bracket (2 options available)

Recommend using a camera： 4K 60MP

Interface: HDMI+TypeC
Dimensions: 42*42*46mm
Photosensitive size: 1/2.7"
Power supply: 12V/USB
HDMI output resolution: 4K @30FPS / 1080P @60FPS
USB-PC output resolution: 4K @30FPS / 1080p@30FPS
Photo resolution: 60MP (10368*5888)
Video resolution: 4K @30FPS / 1080P @30FPS
Menu language: 11 languages
Movable crosshairs: supports 32 horizontal and vertical lines, color/line width adjustable
Lens interface: CS
Working current: 190mA
Effective pixels: 4K (3840*2160)
Scanning method: progressive
Shutter type: electronic shutter
Dynamic range: 69dB
Signal-to-noise ratio: 40dB
White balance mode: one-time white balance/manual/automatic
Reduction of reflection adjustment: adjustable
Black and white: allowed
Negative film: allowed
Mirror image: allowed
Freeze screen/thaw: allowed
Adjustable image brightness/contrast/sharpness/saturation: allowed

Camera Packing List
1*XHU4012
1*HDMI cable
1*Type-C cable
1*EU/US Plug
1*Remote control
1*Instruction manual

Type-C Connects to PC Photo \ Vide \ Measurement Data Analysis

After installing the ImageView program on your computer and connecting it to your computer through your Type-c camera
It can achieve image capture, video recording and high-precision multi-type measurement
The data is stored in the SD card and can be named twice

ImageView download URL: https://drive.google.com/file/d/19ZvEU5O9uayVsi1dgsJTA-08-XyHPPEW/view

HDMI Connected Display Check/Snap/Record

The camera is connected to the display via HDMI, and the camera is powered by Type-c
It can achieve image capture, video recording
The data is stored in the SD card

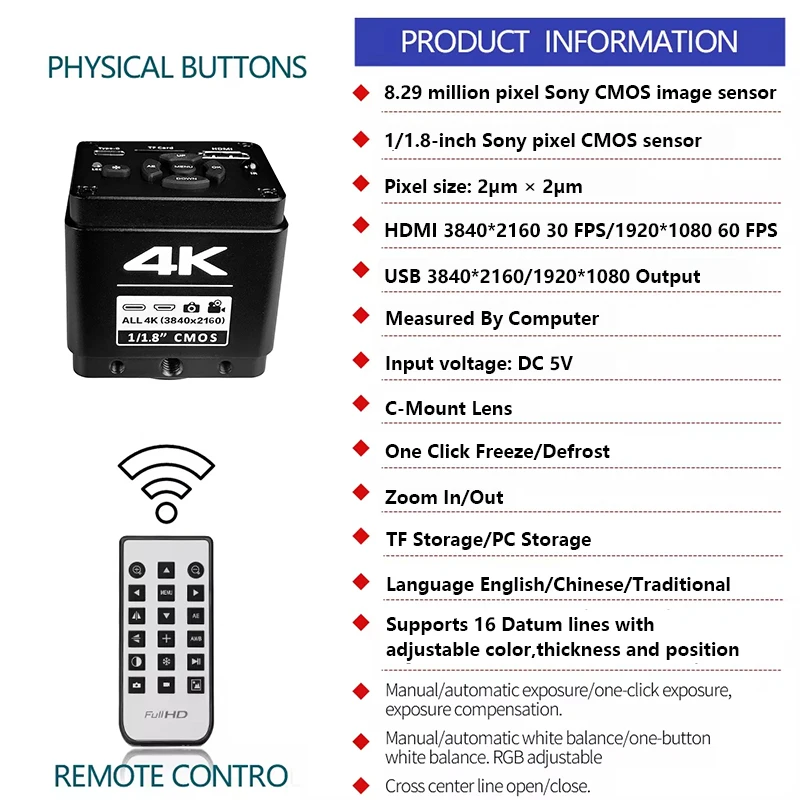

4K UHD HDMI USB IMX678 Camera Description:

◆ Employs an 8.29 million pixel Sony CMOS image sensor;
◆ Employs a 1/1.8-inch image sensor;
◆ HDMI 3840*2160 30fps/1080P 60fps image output;
◆ USB 2.0 driverless output 3840*2160 30fps image output;
◆4K video recording;
◆4K photo capture;
◆One-click freeze/thaw function;
◆Electronic zoom function;
◆Supports manual/automatic exposure, exposure compensation value adjustment;
◆Supports manual/automatic white balance, red, green, and blue adjustable;
◆Provides 16-line drawing function, line color, thickness, and position adjustable;
◆Provides center crosshair display/disable;
◆Supports TF card storage, maximum support 64GB;
◆Supports remote control operation, shake-free and clearer images;
◆Supports Chinese and English menu languages (English by default);
◆Supports saving settings parameters when powered off;
◆Rugged metal casing;

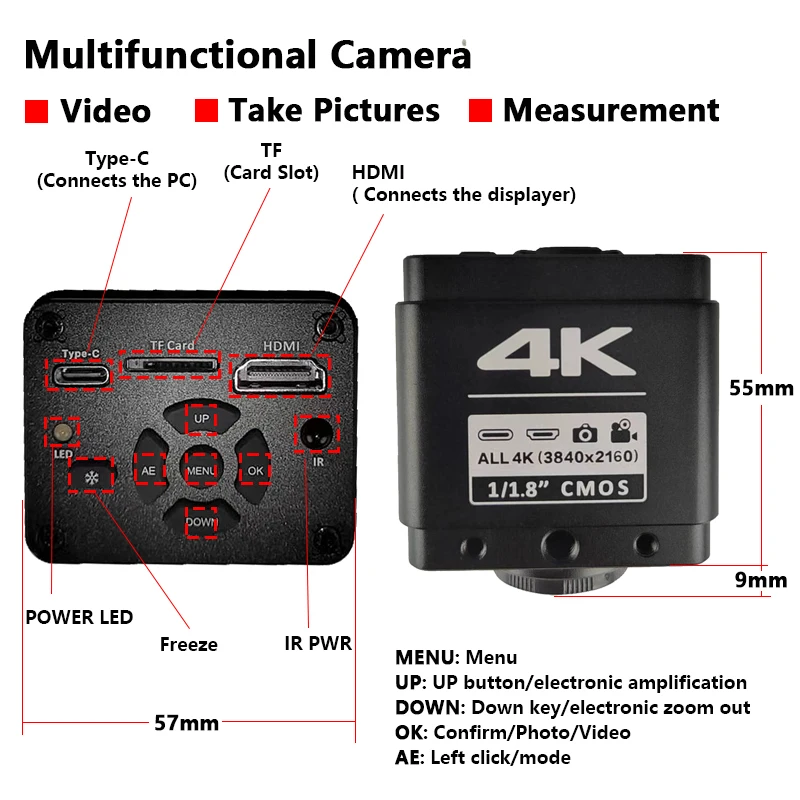

4K UHD HDMI USB IMX678 Camera Specifications:

Sensor: 1/1.8-inch Sony 8.29MP CMOS sensor
Pixel size: 2µm × 2µm
HDMI output: 3840*2160 30fps / 1920*1080 60fps
USB Output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens Interface: C/CS
Exposure: Auto/Manual
Exposure Compensation: Supported
White Balance: Auto/Manual, supports R, G, B adjustable
Storage: Maximum support 64GB
Input Voltage: DC 5V
Swipe Lines: Supports 16 straight lines, color, thickness, and position adjustable
Center Line: Supported
Menu Language: English/Chinese/Traditional
Remote Control: Supported
Packaging Dimensions: 145*130*70mm

4K UHD HDMI USB IMX678 Camera Packaging Includes:

1*XH3011 Camera
1*US/EU Plug
1*HDMI Cable
1*Type-C Cable
1*Remote Control

4K 48MP HDMI USB IMX327 Camera Description:

◆Adopt 2 million pixel imported Sony CMOS image sensor;
◆Adopt 1/2.8 inch image sensor, the viewing angle is wider than 1/3 inch;
◆HDMI 1080P 60 frames image output;
◆USB2.0 driver-free output 1080P 30 frames of image output;
◆4K video recording;
◆Maximum 4800MP photo taking, JPG format, photo size 4608x3456;
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 8-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking photos, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

Sensor: 1/2.8-inch imported Sony CMOS image sensor
Size: 2.9µm × 2.9µm
HDMI output: 1920*1080 60FPS
USB Output: 1920*1080/30, 1280*720/30, 640*480/30, 320* 240/30 (MJPG)
Camera interface: C/CS
Exposure: Auto/Manual
Exposure compensation: Support
White balance: Auto/Manual, RGB adjustable
Storage: Maximum support 64GB
Input voltage: DC 5V-12V
Line: Support 8 straight lines with adjustable color, thickness and position
Center line: Support
Menu language: English/Chinese
Remote control: Support remote control operation
Model: XHU4002
Color: Blue
Net weight: 250g
Gross weight: 450g
Product size: 60*60*70mm
Packaging size: 145*130*70mm
Output interface: HDMI USB
Resolution: 1920*1080P
Remote control: Yes

1*XHU4002 microscope camera
1*adapter
1*HDMI cable
1*USB communication interface cable
1*remote control
1*instruction manual

HDMI connects to the display:

1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available

USB connection to computer：

1. Install the ImageView on your computer
2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.

Software download URL: https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?pli=1

13MP HDMI VGA IMX323 Camera Description:

◆Using 2 million pixel back-illuminated CMOS image sensor:
◆Using 1/3 inch image sensor;
◆HDMI/VGA 1080P 30 frames image output;
◆Support manual/automatic exposure/one-key exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance/one-key white balance, red, green, blue adjustable;
◆Provide 8 line drawing functions, line color, thickness, position adjustable;
◆Provide center cross line display/off;
◆Support Chinese and English menu language (default English); 10 languages
◆Support shutdown setting parameter saving;

Sensor: SONY IMX323
Dimensions: 75*50*50mm
Video interface: HDMI VGA
Lens: CS
Operating voltage: 12V
Operating current: 150mA
Optical format: 1/3''
Pixel size: 2.8µm*2.8µm
TV lines: 1200TV lines
Maximum image frame rate: 60FPS
Scanning mode: progressive scan
Shutter mode: electronic shutter
Dynamic range: 65dB
Radio signal-to-noise ratio: 45dB
OSD language: English/Chinese
AWB mode: one-time white balance/manual/auto
HDR: adjustable
Cross line: supports 8 colors/line width adjustable
Black and white: allowed
Negation: allowed
Mirror flip: supports left/right/up/down
Freeze: allowed
Compare: allowed
Manually set brightness, contrast, sharpness, saturation: allowed
Output display resolution: HDMI: 16:9, 4:3 VGA: 1920*1080P or above
Remote control: yes
Features: remote control function

1*XVH2003 microscope camera
1*power cord
1*remote control
1*instruction manual

VGA Connecting monitor：

1. Unable to use computer software.
2. Unable to record video or take photos, only freeze images.
3. Live image display.

150X 28mm Lens Specifications:

Installation diameter: 28mm
Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification 0.15-2X (approximately 1-150X on the display)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Size: 99mm (length)
Weight: 100g
Applicable camera size: 25mm

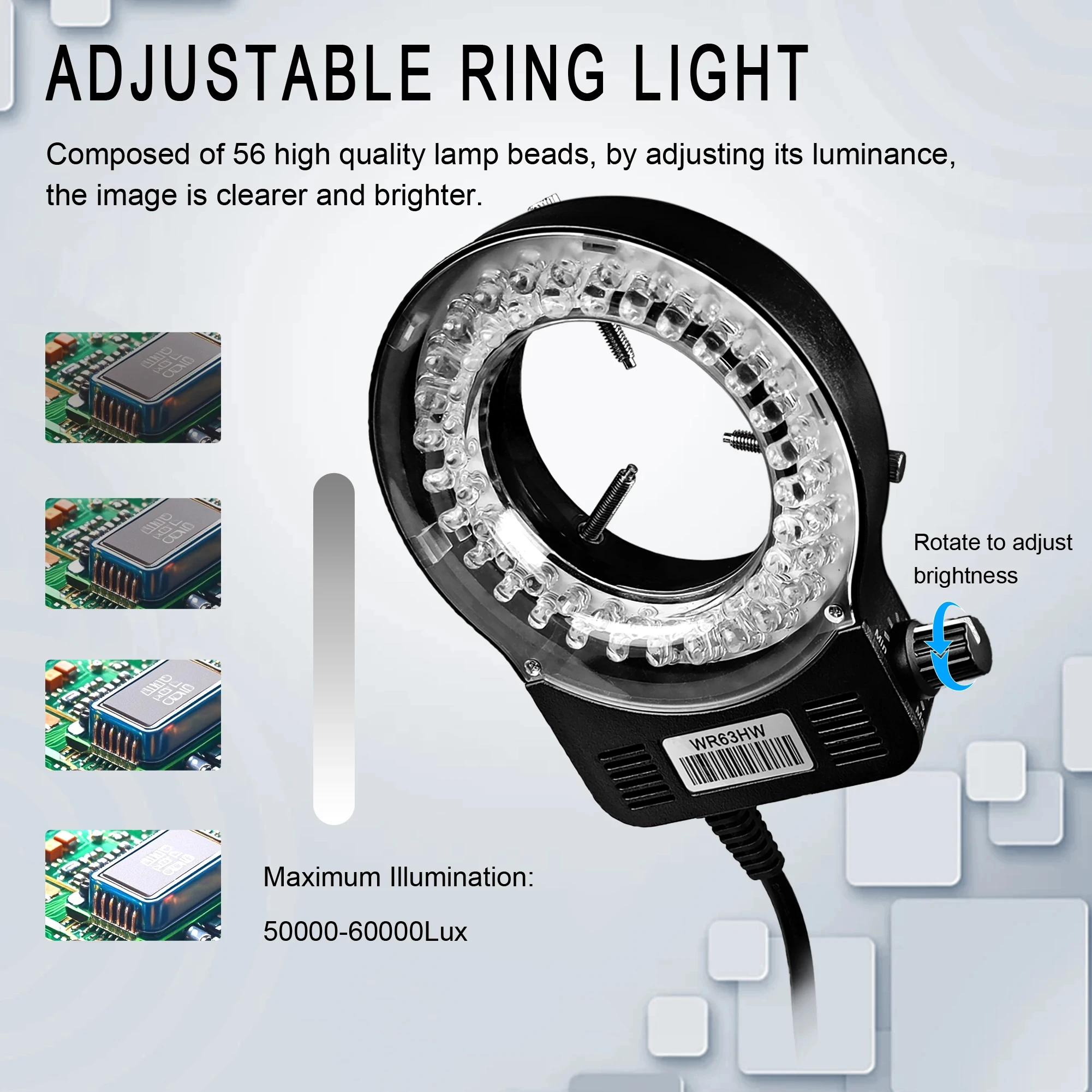

Ring Light Specifications:

Material: Plastic
Color: Black/White
Size: 100mm
Weight: 240g
Model: WR63HW
Power: 4.5W
Power input: 110V-220V
Output voltage: DC12V/1A
Number of LEDs: 56
Working life: 100,000 hours
Color temperature: 6500K
Effective distance: 50-300mm
Inner diameter: 63mm
Outer diameter: 97mm
Light color: White light

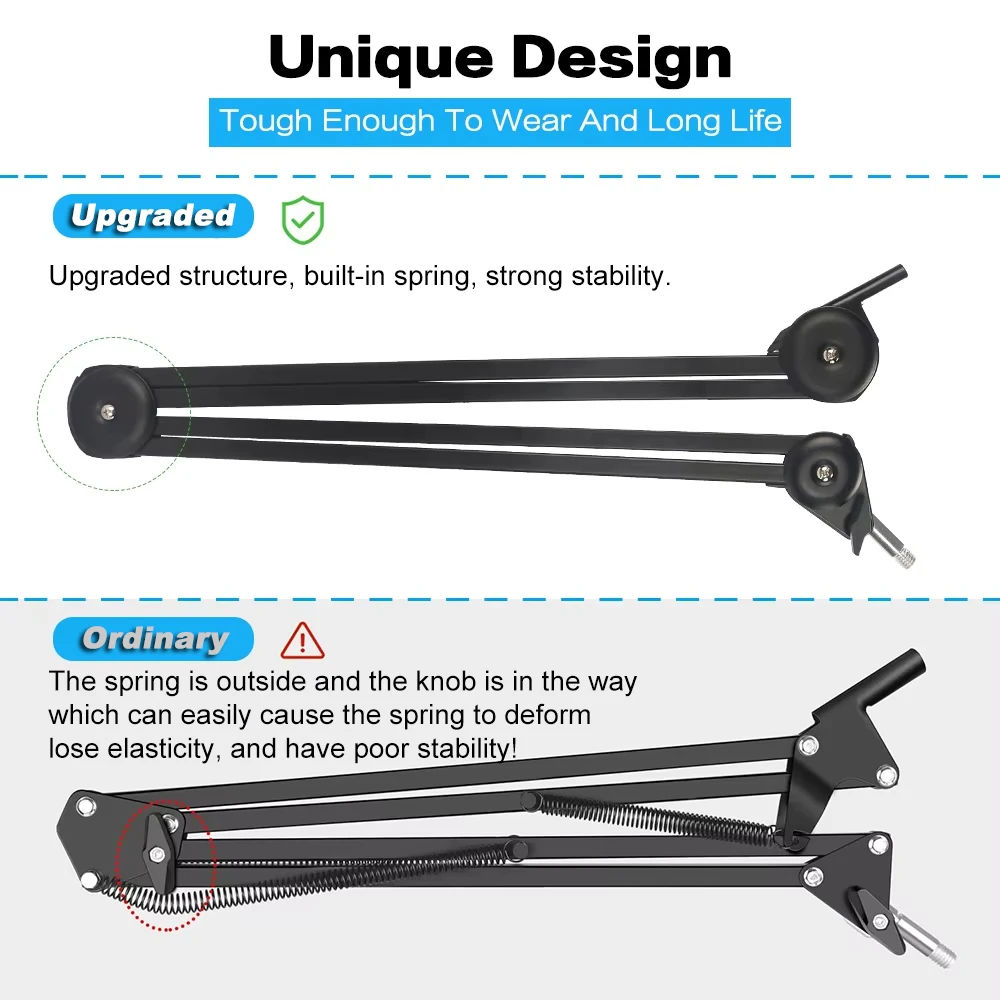

Upgraded Bracket Description:

【Enhanced Flexibility】Experience a whole new level of flexibility in digital microscopy with our upgraded flexible arm stand. With its comprehensive adjustability, including 360° rotation, 135° extension, 180° movement, and 270° metal adapter, you can easily position your microscope for optimal viewing angles and precise imaging. This makes it the perfect companion for soldering PCB boards, providing the flexibility and precision required for complex work.

【Sturdy and Reliable】Rest assured that our stand can withstand the weight of your microscope, providing a stable and secure platform for your valuable equipment. Its rugged construction ensures durability and long-lasting performance, even under extended use. Trust in the reliability of our stand and feel free to support your microscope with the stability and security you need for precise observation and experimentation.

【Easy Storage and Setup】Designed with convenience in mind, our stand offers easy storage and setup options. When not in use, simply fold the stand and store compactly to save valuable space in your lab or workspace. When you are ready to start your microscopy tasks, the setup process is quick and easy, ensuring that preparation time is kept to a minimum. This streamlined approach allows you to focus more on your microscopy tasks, maximizing efficiency and productivity.

【Precise Positioning】Experience unparalleled microscope positioning accuracy with the advanced adjustable features of our stands. Whether you need to fine-tune the height, angle, or direction of your microscope, our stands offer maximum flexibility to meet your specific needs. This level of precision ensures optimal conditions for detailed inspection and imaging, allowing you to confidently and accurately capture every intricate detail.

Ordinary Bracket Specifications :

Material: aluminum alloy
Size: 34*32cm
Weight: 540g
Maximum bottom installation size: 50mm
Function: microscope bracket, microphone live broadcast bracket, mobile phone bracket
