YIZHAN 60MP 48MP 4K Electronic Digital Microscope For Soldering 1080P HDMI VGA USB Industrial Camera 150xLens FoldBracket Remote

HD digital microscope, the bracket can be rotated Lifting to suit your needs, while the lens supports 1-150 continuous zoom. It can definitely be a fine helper for your daily work. QC inspection, Education purpose inspection, Print industrial, Industrial inspection, PCB material, Jewellery & stamp collection, Textile Industrial, Biological inspection

Video microscopes are easy to operate and widely used.
1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

Package list

1* Corresponds to camera set
1* 1-150x zoom lens
1* LED Light
1* Folding bracket/Optional ordinary style bracket and enhanced style bracket

60MP 4K HDMI USB Camera / YIZHAN-4011

Sony Chip: IMX415L

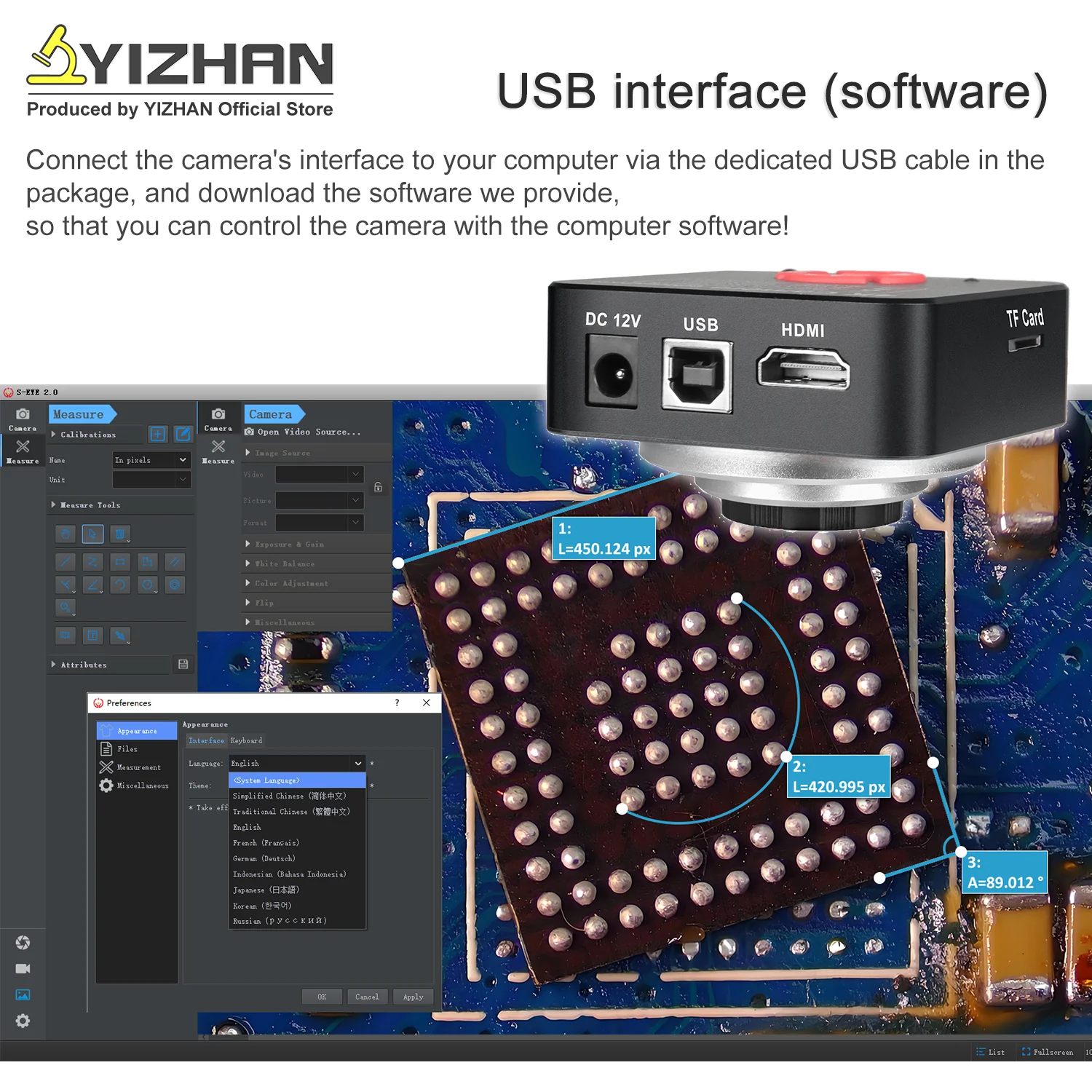

Video Interface：HDMI USB-PC TF Card
Record：4K/1080p
Photo：Max 60MP(10368x5888)/4K
HDMI:4K/1080p
USB:4K/2K/1080p
Lens:CS
working voltage:12V
working current:190mA
optical format:1/2.7"
pixel size:1.5um*1.5um
scanning mode:progressive
shutter mode:electronic shutter"
dynamic range:69dB
S/N radio:40dB

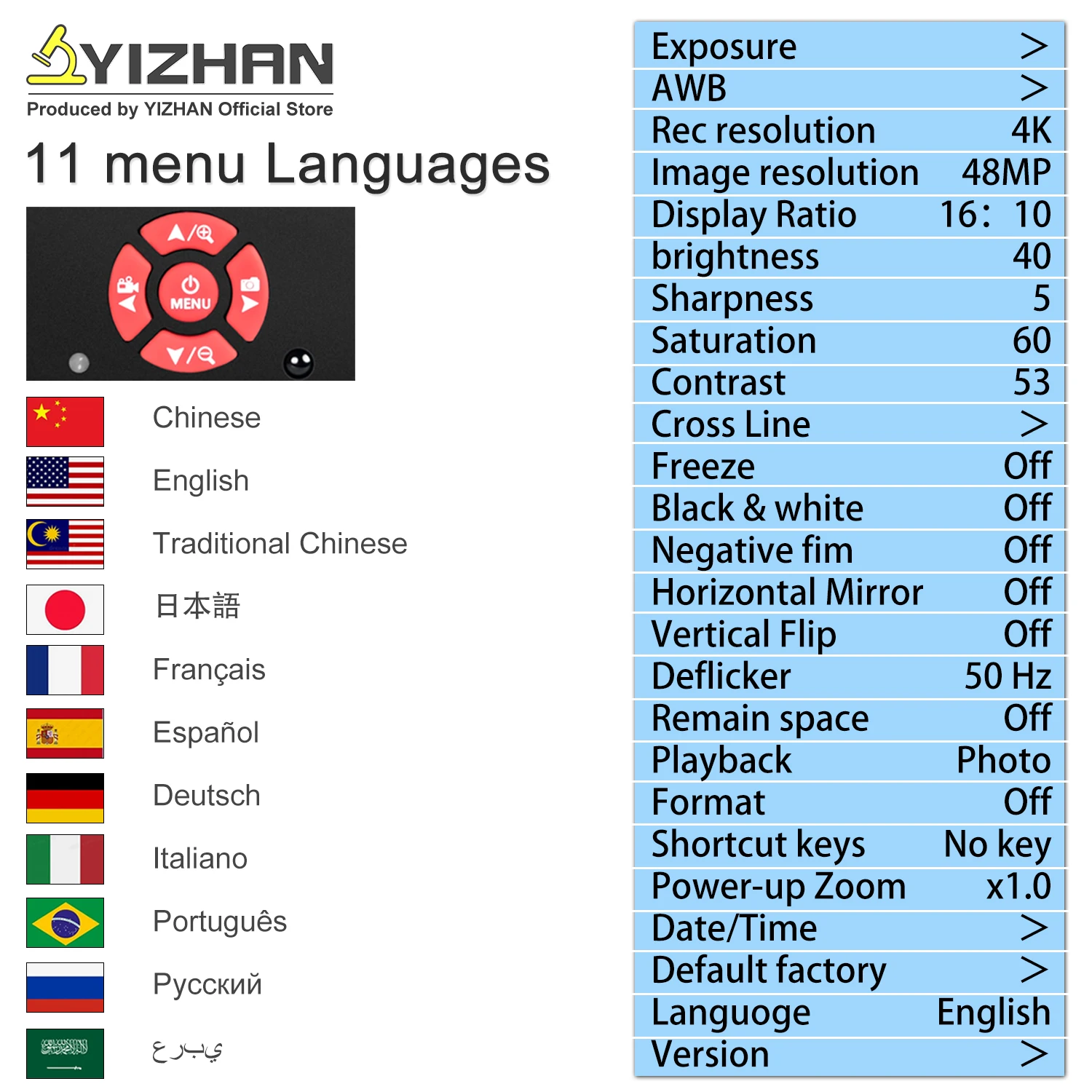

OSD language:11 languages: Chinese/English/Traditional Chinese/Japanese/French/Spanish/German/Italian/Portuguese/Russian/Arabic
AWB mode:One-shot white balance/manual/auto
Cross:Support 4 groups: 32 horizontal and vertical lines
line:Color/line width adjustable"
B/W:√
negative:√
mirror flip:√
Freeze:√

Packing List of camera set:
1* Camera body
1* Power adapter
1* HDMI cables
1* USB cable
1* Remote control (no battery due to logistics requirements)

48MP ALL 4K HDMI USB Camera / YIZHAN-4003

◆Sensor: 1 / 2.8 inch ,Sony imx415 megapixel CMOS sensor the perspective is wider than 1 / 3 inch;
◆HDMI：1920*1080P 60FPS image output ；
◆TYPE-C：1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
◆4K video recording;
◆48 Million photos, JPG format,
◆5x electronic magnification!
◆One-click freeze / thaw function;
◆A 48-megapixel photo recording and a 1080P video recording;
◆automatic exposure / one-click exposure, exposure compensation value adjustment;
◆automatic white balance / one-key white balance, red, green, blue adjustable;
◆Provide 16 line drawing line function, line color, thickness, adjustable position;
◆Provide the center cross-line display / close;
◆Support for TF card storage, up to 64GB support;
◆Support remote control operation, take photos without shaking the image clearer;
◆OSD language:English, Spanish, Portuguese, Japanese, Russian, Italian, French, Arabic, Chinese
◆Support the shutdown setting parameter saving;
◆Aluminum alloy shell processed by CNC fine milling technology;
Pixel size:2.9µm × 2.9µm
HDMI output: 60FPS
Lens interface:C/CS
exposure:Automatic / manual
exposure compensatio:support
white balance:Automatic / manual, support for RGB adjustable
memory Max. support is 64GB
input voltage :DC: 5V
lineation 16 lines, with adjustable color, thickness, and position
centre line:support
telecontroller:Support for the remote control operation
net weight:150g
rough weight:350g
product size:66*66*49mm
packing measurement:145*130*70mm

Packing List of camera set:
1* Camera body
1* Power adapter
1* HDMI cables
1* USB cable
1* Remote control (no battery due to logistics requirements)

48MP 4K HDMI USB Camera / YIZHAN-4002

◆Sensor: 1/2.33 inch ,Sony imx327 megapixel CMOS sensor
◆48 million pixel imported Sony CMOS image sensor;
◆Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;
HDMI 1080P 60 frame image output;
◆USB2.0 driver free output 1080P 30 frame image output;
4K video recording;
◆48 million photos, JPG format,One-click freezing/thawing function;
◆5x electronic magnification!
◆48 megapixel photography and 1080P video recording;
Support manual/automatic exposure, exposure compensation value adjustment;
Support manual/automatic white balance, red, green, blue adjustable;
◆ Provide 8 line drawing functions, line color, thickness, position adjustable;
Display/close center cross;
Support TF card storage, up to 64GB;
Support remote control operation, take photos without jitter image more clear;
◆ Support Chinese and English menu language (default English);
Support shutdown setting parameters save;
◆ Strong metal shell;
Pixel size : 1.335µm × 1.335µm
HDMI output : 1920*1080 60PFS
USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Camera interface : C/CS
Exposure : Automatic/manual
Exposure compensation : Support
White balance : Automatic/manual, RGB adjustable
Storage : Supports a maximum of 64GB
Input voltage : Dc 5v-12v
line : Supports 8 straight lines with adjustable color, thickness and position
Center line : Support
Menu language : English/Chinese
Remote control : Support remote control operation
Net weight : 250g
Rough weight : 450g
Product size : 66*66*49mm
Packing size : 145*130*70mm

Packing List of camera set:
1* Camera body
1* Power adapter
1* HDMI cables
1* USB cable
1* Remote control (no battery due to logistics requirements)

13MP HDMI VGA Camera / YIZHAN-2003

The sensor: Sony imx323
Pixel array:13MP
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English, Spanish, Portuguese, Japanese, Russian, Italian, French, Arabic, Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

Packing List of camera set:
1* Camera body
1* Power adapter
1* HDMI cables
1* Remote control (no battery due to logistics requirements)

1X-150X Zoom C-mount Lens:

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g
