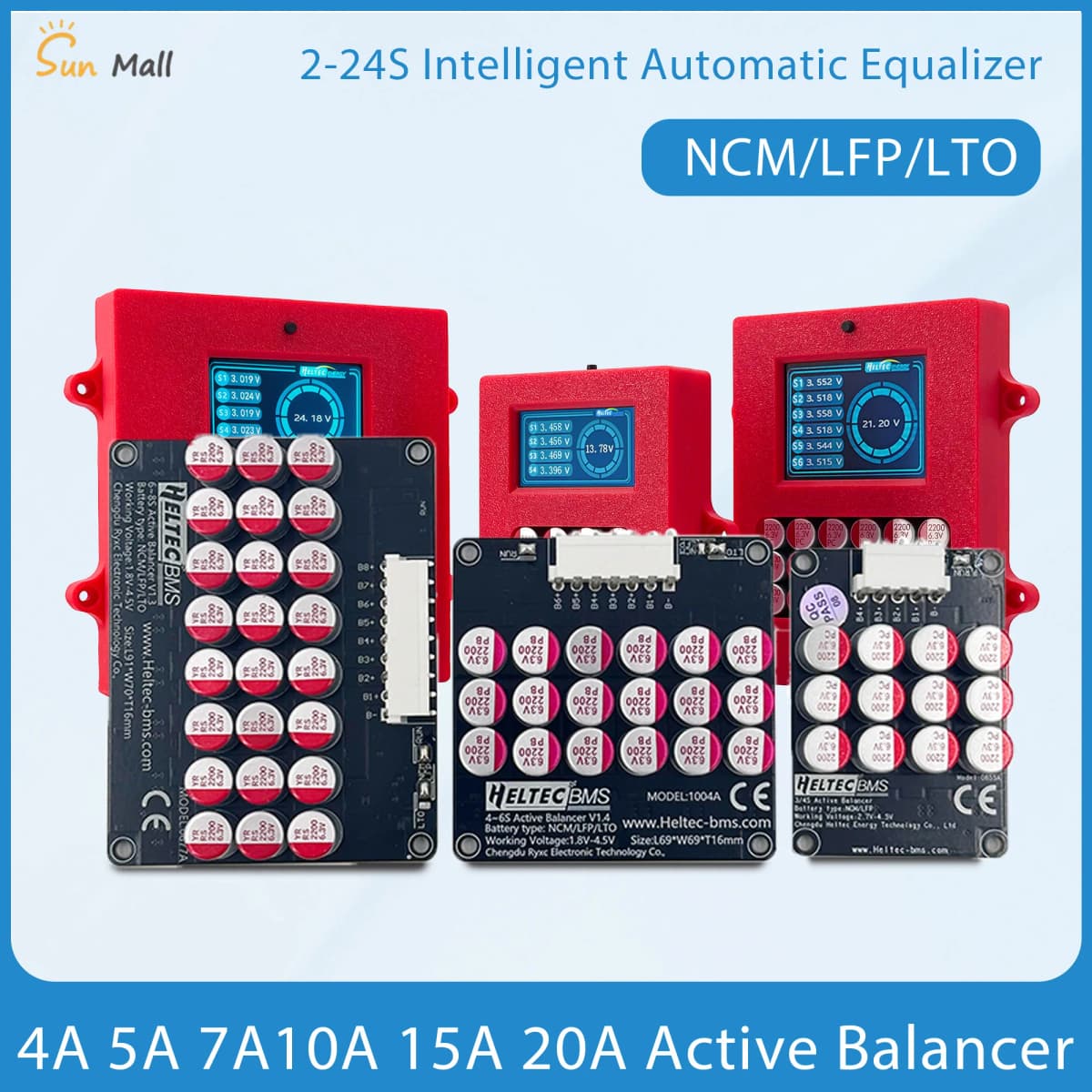

Active Equalizer Balancer4A 5A 7A 10A 15A 20A 4S 12S 24S Cells Balancer Lifepo4 Lipo LTO Battery Energy Capacitor Lithium Pack

5A Capacitor Balancer

Feature

Working voltage: 1.8V-4.5V

Suitable for ternary lithium, lithium iron phosphate, lithium titanate.

Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB

Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep switch, sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!

The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.

With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.

LTO Only means that this edition is only applicable to lithium titanate. The indication without LTO applies to ternary lithium and lithium iron phosphate.

for all means suitable for ternary lithium, lithium iron phosphate, lithium titanate

Connection

Smart Balancer

PRODUCT PARAMETERS

Please refer to the manual for detailed parameters. Only part of the parameters are shown here

Product Model: HT-24S04EB/10EB/15EB/20EB

Number of applicable strings: 2-24S

Cascade: cascaded support

Overall Dimensions:

04EB: 140*128*22mm

10EB: 142*155*28mm

15/20EB: 313*193*43mm

Weight: 470g/810g/2530g

Battery Type: NCM/LFP/LTO

Operating range of individual cell voltage: 1.5V-4.5V

Under-voltage protection sleep voltage: 1.5V-4.2V

Equilibrium method: Time-shared single-channel transfer, point-to-point energy transfer

Balanced current: 1A-4A/10A/15A/20A

Battery Equalizer Repair Instrument

HTB-J24S04A/HTB-J24S07A

It is a discharge Equalizer . Generlly used to battery pack about 50Ah

but can not work with a charger to realize the discharge balance function

just can discarge to the lowest voltage of the battery

but you can charge your battery firstly

Feature

Power supply: DC12V 4A

Single channel voltage measurement range: 1-5V

Single channel voltage display accuracy: 0.001V

Single channel voltage acquisition accuracy :±(0.05%+0.003v)

Single channel voltage operating range: 2.0-4.5V

Adjustable balance current: 1A-4A/1A-7A(The smaller the voltage, the larger the impedance, the smaller the balance current)

Applicable battery type: ternary lithium, lithium iron phosphate and other battery voltage between 2.0v-4.5v

Operating temperature: 0°C-50°C

Working humidity: 20%-80%RH

Working environment: no corrosion, explosive and damage insulation gas and conductive dust
