BSIDE HX1 Thermal Imaging Camera Handheld Industrial -20-550C HD Resolution PCB Pipe Inspection Fire Safety Thermal Imager

BSIDE HX1 Thermal Imager NEW Camera Laser Thermographic HD Resolution For Circuit PCB Repair Pipeline Detection Medical

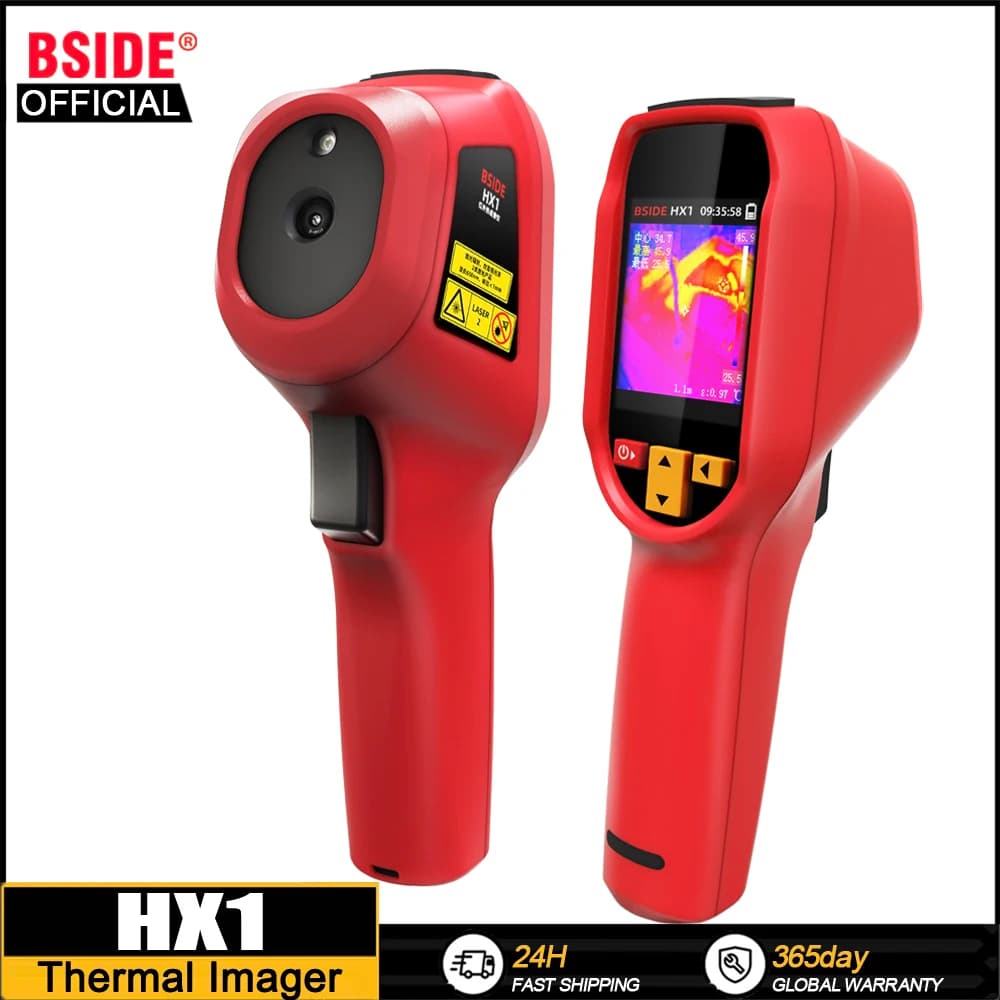

BSIDE HX1 is new handheld thermal imaging camera that combines temperature measurement and imaging.

2.4-inch screen，15 pseudo color modes , Thermal image resolution: 240*240Px, Infrared Thermal Imager Pixels: 96x96(25Hz Frame rate), Uses cutting-edge image stabilization technology;

High-accuracy High/Low temperature alarm Adjustable emissivity Data storage and export Temperature analysis of stored pictures is possible.

The body adopts double injection molding process Durable.

Main features of HX1

IR resolution: 240 × 240
Screen: 2.4 inch LCD screen
Frame rate: 25Hz
15 pseudo color modes
Temperature measurement range: -20 °C~550 °C
High and low temperature alarms: image, buzz, LED flashing
Laser Indicator/LED Illumination Laser Indicator/LED Illumination
Emissivity: 0.01~1
Storage: 4GB built-in TF card
Adjustable emissivity
Power supply: 2500mA lithium battery
Three-proof design: IP54/1.5m anti-drop
The bottom design has screw holes for use with a tripod.

Sensor type: Vanadium oxide microbolometer
IR resolution: 240 x 240
Response band: 8-14 μ m
Frame rate: 25Hz
NETD：< 60mK @ 25 °C

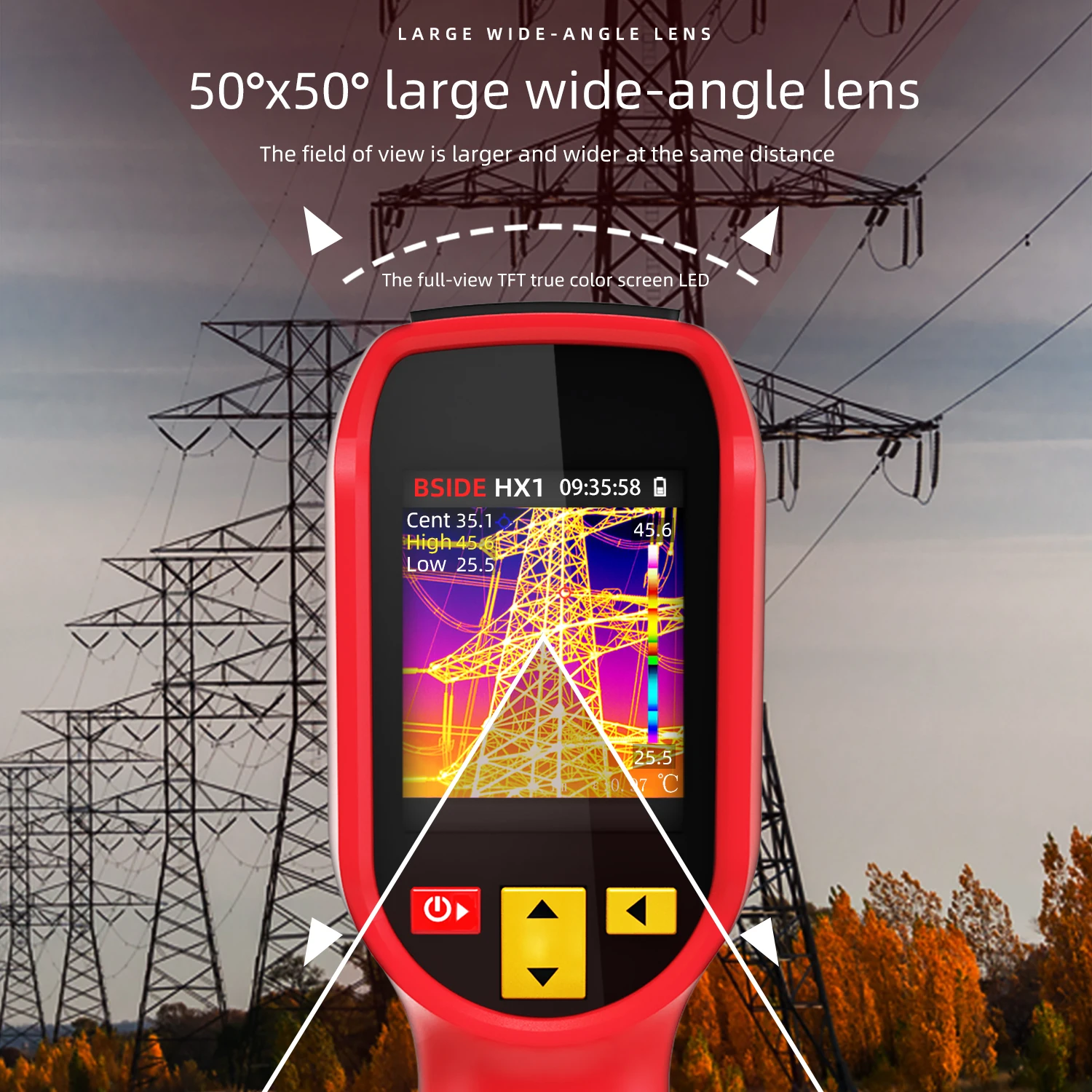

Field of view (FOV): 50°H×50°V/72.1°D
Spatial resolution (IFOV): 8.89mrad
Focal length of imaging lens: 1.35mm
Temperature measurement focal length: 0.3m~3m adjustable

Temperature measurement range: -20 °C to 550 °C
Temperature accuracy: ± 2 °C/± 2% (maximum reading)
Temperature measurement unit: °C/°F/Kelvin
Temperature measurement resolution: 0.1°C
Emissivity: 0.01~1.0 adjustable

Temperature measurement display: central point temperature measurement, high and low temperature tracking

Color Palette: White Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Dark Sepia, Color 1, Color 2, Iron Red 1, Iron Red 2, Fire and Ice, Rain, Green Hot, Red Hot, Dark Blue

Display: 2.4 inch TFT LCD screen
Display resolution: 320 x 240px

Buttons: Power button, Up button, Down button, Back button, Trigger button.

Laser indication: Yes
Storage: Built-in memory card
Number of image files: 30,000
Image format: BPM
Focusing method: Autofocus
High and low temperature tracking: √
Temperature alarm: Screen font color alarm
Battery type: Rechargeable lithium battery (3.7V/2500mAh)
Charging system: Type-C direct charging
Data interface: Type-C USB
Illumination/Laser Instruction: √
Protection Rating/Fall Protection Rating: IP54/1.5m
Dimensions (L x W x H): 193.4 x 59.4 x 77.4 mm

Package Includes:

1 x HX1 Thermal Imaging Camera.
1 x Charging Cable.
1 x Instruction Manual.
1 x User Manual.
1 x Color Box.
1 x Warranty card (12 months)
