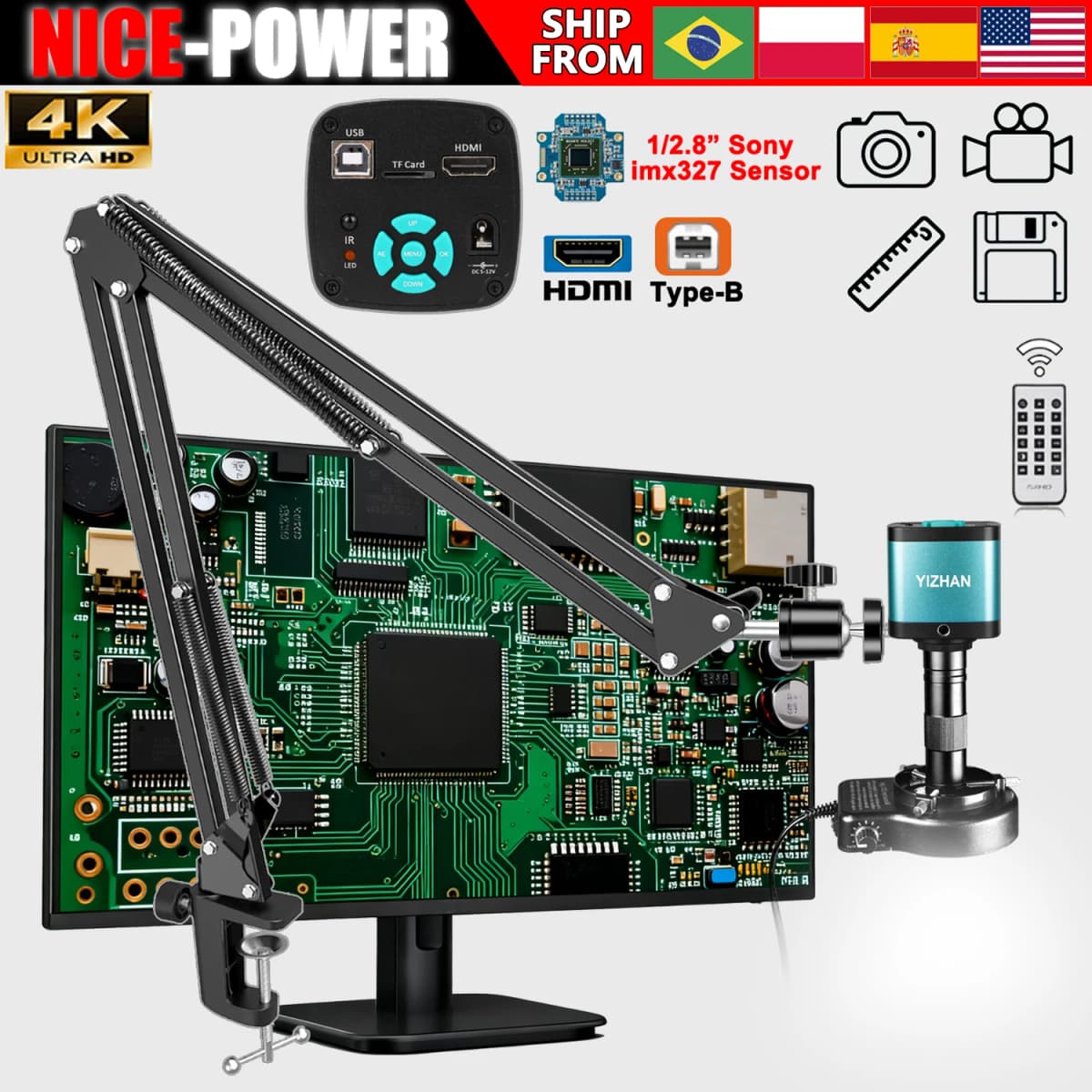

NICE-POWER 150X Digital Microscope 4K 60MP/48MP/13MP HDMI Type-C/USB Industrial Video Microscope Camera For PCBA Inspection

4 camera options to choose from

8 sets to choose from

We will arrange suitable plugs based on your order address, and you can also leave a message, friend.

List of packing：

1 * Microscope camera （4 model options available）
1 * 150X Microscope lens
1 * LED light
1 * Folding bracket
1 * Instruction manual
1 * Type-C cable （opcional）
1 * HDMI cable （opcional）
1 * Power cord
1 * C port to CS port adapter ring （opcional）
1 * opcional Free Software (not included in the package, please contact customer service for assistance)

Sets B 4k 60mp camera video

Software download address:

Please note: Using a microscope requires sufficient light source and should not be used in the dark.

Camera models that can use the software are:
Type A, Type A1, Type C, Type C1, Type E, Type E1

https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing

NOTE：
Different pixel quality and output interface for you to choose:
Interface options: USB/HDMI/VGA
Pixel quality can be selected: 13MP/48MP (4K)/60MP(4K)
The number of frames transmitted per second: 30Fps/60Fps
Please pay attention to the picture and the parameter description in the packing list when purchasing!

Applicable scenarios: mobile phone repair/computer repair/watch repair/jewelry repair/various circuit board repair/various motherboard repair/any scene that needs to be enlarged can be used!

Sets A Camera :4K 48MP HDMI + USB ,1: Connect Display Via HDMI，can not by USB/Type-C, 2:Connect computer /Notebook computer via Type-C /USB,can not via HDMI

Product features
◆ 48 million pixel imported Panasonic CMOS image sensor;
◆ Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;
HDMI 1080P 60 frame image output;
◆USB2.0 driver free output 1080P 30 frame image output;
4K video recording;
◆48 million photos, JPG format, photo size 4608x3456;
One-click freezing/thawing function;
◆48 megapixel photography and 1080P video recording;
Electronic zoom function;
Support manual/automatic exposure, exposure compensation value adjustment;
Support manual/automatic white balance, red, green, blue adjustable;
◆ Provide 8 line drawing functions, line color, thickness, position adjustable;
Display/close center cross;
Support TF card storage, up to 64GB;
Support remote control operation, take photos without jitter image more clear;
◆ Support Chinese and English menu language (default English);
Support shutdown setting parameters save;
◆ Strong metal shell;

The sensor:1/2.33 inch Panasonic 48 megapixel CMOS sensor
Pixel size:1.335µm × 1.335µm
HDMI output:1920*1080 60PFS
USB output:1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Camera interface:C/CS
Exposure:Automatic/manual
Exposure compensation:Support
White balance:Automatic/manual, RGB adjustable
Storage:Supports a maximum of 64GB
Input voltage:Dc 5v-12v
line：Supports 8 straight lines with adjustable color, thickness and position
Center line：Support
Menu language：English/Chinese
Remote control：Support remote control operation
Net weight：250g
Rough weight：450g
Product size：66*66*49mm
Packing size：145*130*70mm

SetS B Camera: 4K 60MP HDMI +USB, 1: Connect Display Via HDMI，can not by USB/Type-C, 2:Connect computer /Notebook computer via Type-C /USB,can not via HDMI

This camera has multiple functions such as photography, video recording, and computer measurement. It supports HDMI and Type-C synchronous output and can be directly used with a monitor or computer.

◆Adopt 8.3 million pixel imported Sony sensor;
◆Adopt 1/2.8 inch image sensor, the viewing angle is wider than 1/3 inch;
◆HDMI 3840*2160/30 frame image output;
◆TYPE-C 3840*2160/30 frame image output
◆4K video recording,4K photography
◆4K electronic zoom function
◆One-click freeze/thaw function;
◆Measured precisely by computer software
◆48 million photos, JPG format, photo size 8000x6000;
◆48 million pixel photos and 1080P video recording;
◆Support HDMI+Type-c synchronous output;
◆Support manual/automatic exposure/one-click exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance/one-click white balance, red, green, blue adjustable;
◆Provide 16-line function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking photos and clearer images;
◆Support remote control operation, no shaking photos and clearer images;
◆Support 11 language,such as English, French, German, Italian, Spanish, Russian, Portuguese etc.
◆Support shutdown setting parameter saving;
◆Mental shell processed by CNC precision milling technology.

Sets C: 13MP HDMI +USB ,Please note that the monitor can only be connected through HDMI/VGA interface and cannot be connected to a computer

Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)


Package include
1 x Camera Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x Camera remote
1 x Hard copy

Set D Camera : 13MP VGA：Please note that the monitor can only be connected through the VGA interface and cannot be connected to a computer

Feature:
Overall dimension: 70*50*50mm
Video Interface:VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/2.7"
Pixel size:3.0um*3.0um
Pixel array: 1920*1080
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:60dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution:1920*1080/1600*1200/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)

Package incluede
1 x Camera Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x LED ring lamp holder
1 x Link line
1 x Hard copy

150X C mount Lens

1X-150X Zoom C-mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Installation diameter: 40/50mm
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

Clamp type folding bracket

Material: aluminum alloy
Size: 34*32cm
Weight: 540g
Maximum bottom installation size: 50mm
Function: microscope stand, microphone live broadcast stand, mobile phone stand

Upgrade the folding bracket

Flexible Stand, Remote Control:The digital microscope adopts the latest upgraded stand, this stand is very flexible and stanble, 4 parts of the stand can be adjusted at different angles. You can choose the most suitable position for you to observe the samples more clearly. The video microscope can be controlled by remote control, but this function is only available in HDMI output mode.

Bright LED Light

The industrial microscope is equipped with a bright LED ring light, the ring light consists of 56 bright LED beads, the color temperature of the light is 6500K-7000K. The ring light can be adjusted to adjust the brightness, and its maximum illuminance is 60,000 Lux. The ring light enables the video microscope to get clearer pictures and videos when working.
