YIZHAN Electronic Microscope For Soldering 48MP/13MP HDMI TYPE-C VGA Video Industrial Inspection Microscope Camera 150X Lens

13MP Camera Video

Scope of application

1. Zoology, biology, botany, entomology, histology, mineralogy, archaeology, geology and dermatology.
2. In the textile industry, it is used in the inspection of raw materials and cotton wool fabrics.
3. In the electronics industry, it is used as operating tools such as transistor soldering, mobile phone electronic maintenance, watch maintenance and inspection.
4. In biological anatomy, applied to local anatomy.
5. In the manufacture of precision parts, it is applied to the device of machine tools, the observation of the working process, the inspection and assembly of precision parts.
6. Surface quality of lenses, prisms or other transparent substances, and quality inspection of precision scales.
7. Cultural relics, books, coins, calligraphy and paintings, the inspection
8. Widely used in textile products, chemical chemistry, plastic products, electronic manufacturing, machinery manufacturing, pharmaceutical manufacturing, food processing, printing industry, colleges and universities, archaeological research and many other fields.

Multiple options available, please note that there are purchase options for both sets and individual cameras. Please purchase according to your needs. Individual cameras do not include bracket lenses and lights

Two different cameras

Recommended for use ： 4K Camera XHU4003 Product features FULL HD Camera Parameter

1/2.8in SONY Chips
4K video Recording(3840*2160)
48 Million PX Photo Output(8000*6000)
TYPE-C 1080@30 Video Output
TYPE-C 1080 Picture Output
Measured By Computer
Input Voltage : 12v/1A
C-Mount Lens
One Click Freeze/Defrost
Zoom In/Out
TF Storage/PC Storage
Language English
Supports 16 Datum lines with
adjustable color,thickness and position.
Manual/automatic exposure/one-click exposure,
exposure compensation.
Manual/automatic white balance/one-button
white balance.RGB adjustable
Cross center line open/close.
Working Distance : 20 mm—700mm
Magnification : 10X-150X (32in displayer)
X-axis Visual Field : 4.2mm-130mm

Connect Display Via HDMI
1. It Can capture pictures and videos and save them on TF cards
2. It can capture up to 8M 8000X6000 HD images
3. 4K (30fps) /1080P(60pfs) MOV video is available

Connect computer via Type-C
1. Install the ImageView on your computer
2. Through the ImageView program, you can get point spacing, parallel lines, vertical lines, line spacing, Angle, circle, radius, radian, rectangle, ellipse, concentric circles, center distance, and other measurement tools.

13MP Camera As Below: XVH2003 Product features

Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

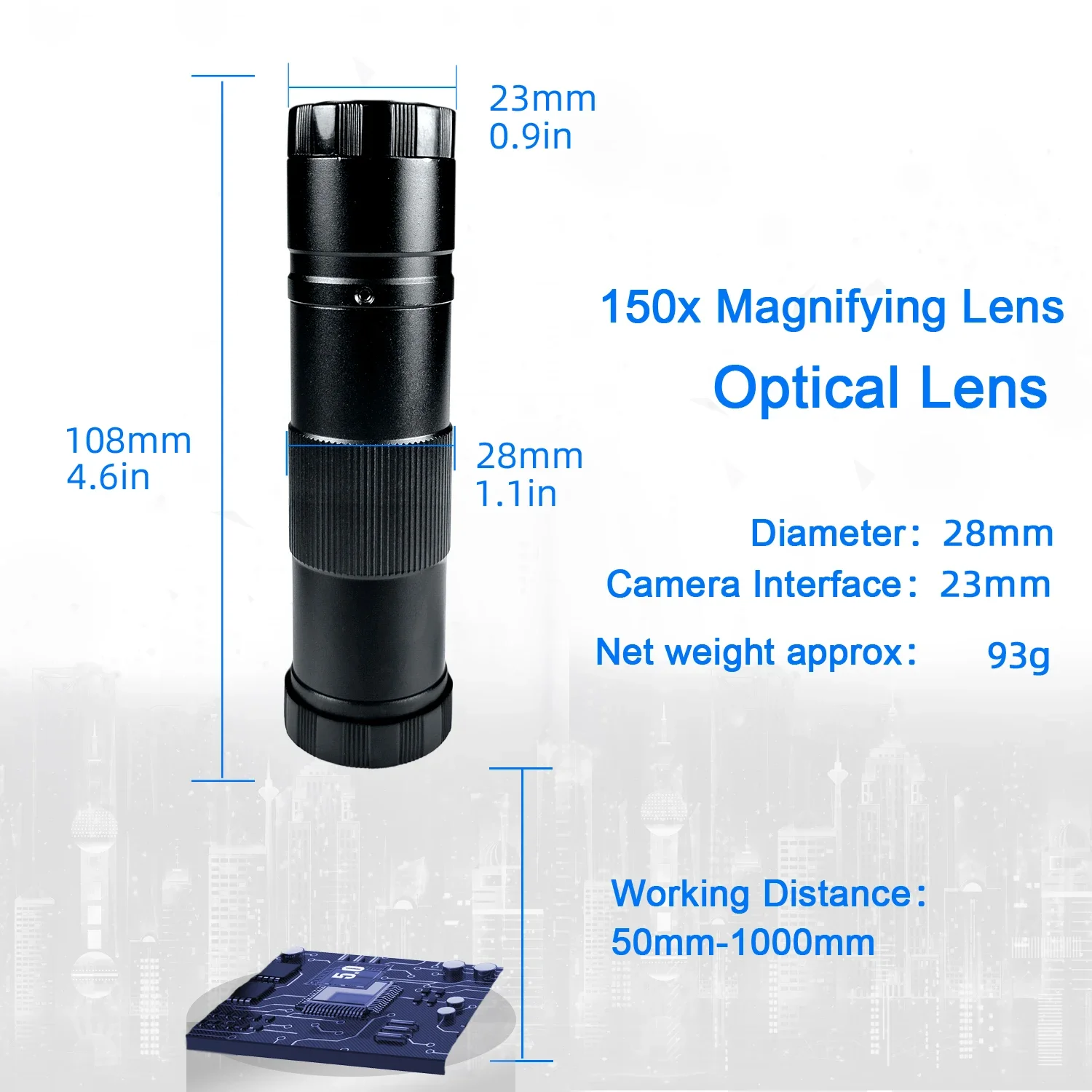

1X-150X Zoom C-mount Lens:

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

Upgrade the folding bracket

Flexible Stand, Remote Control:The digital microscope adopts the latest upgraded stand, this stand is very flexible and stanble, 4 parts of the stand can be adjusted at different angles. You can choose the most suitable position for you to observe the samples more clearly. The video microscope can be controlled by remote control, but this function is only available in HDMI output mode.

Folding Stand Specifications:

Material: aluminum alloy
Size: 34*32cm
Weight: 540g
Maximum bottom installation size: 50mm
Function: microscope stand, microphone live broadcast stand, mobile phone stand

56 bright white LED bulbs：

100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:400mm
