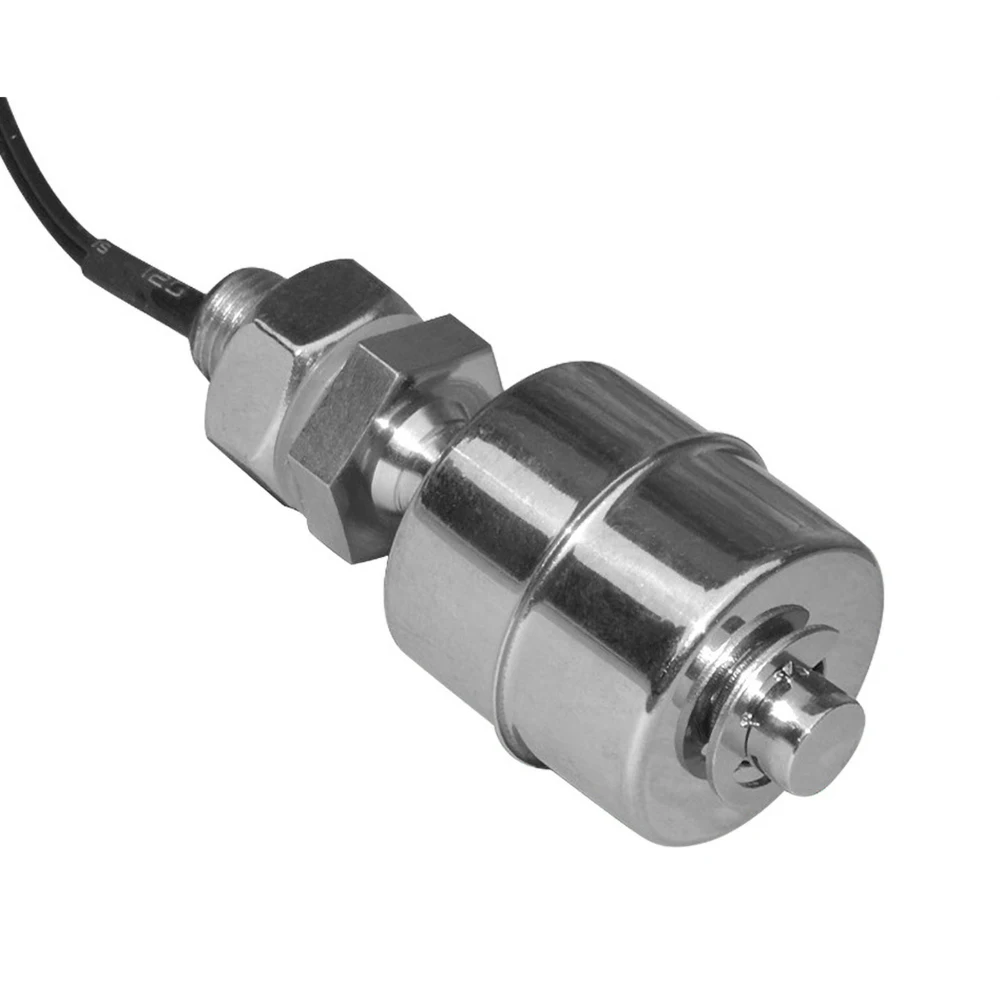

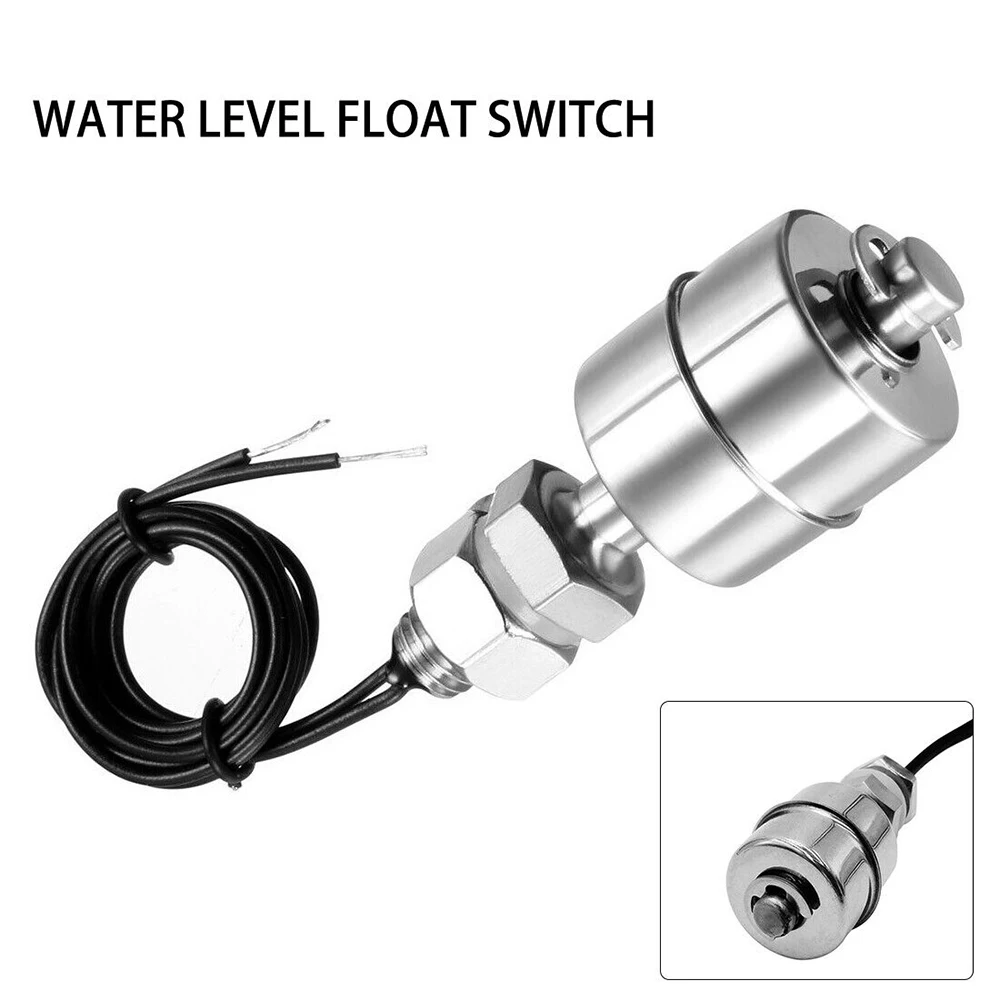

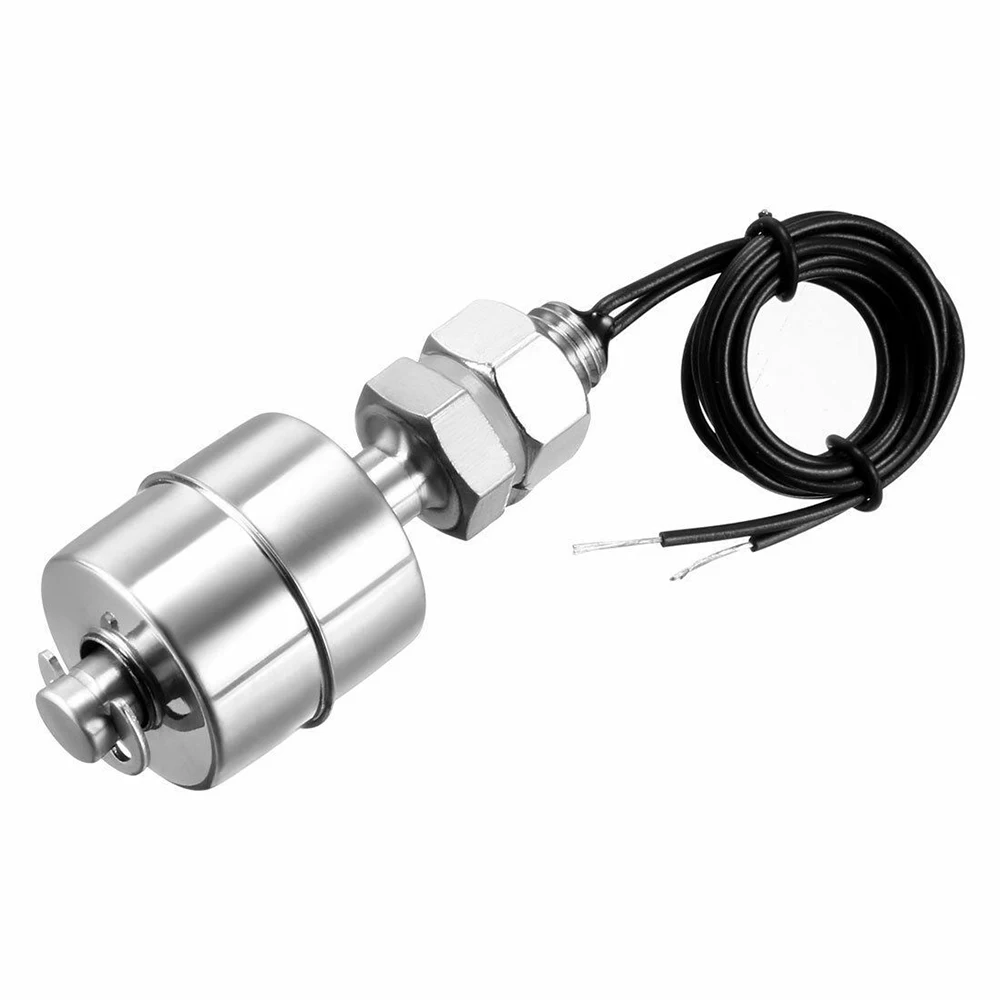

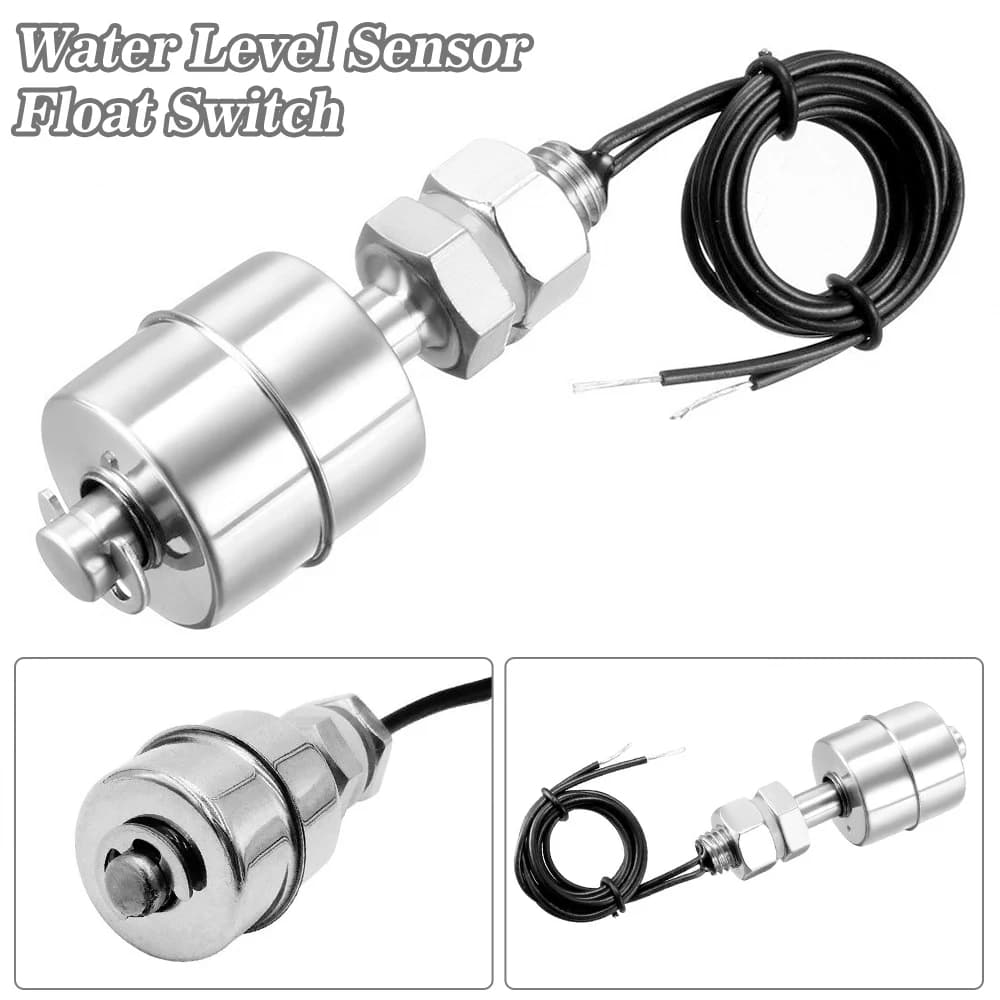

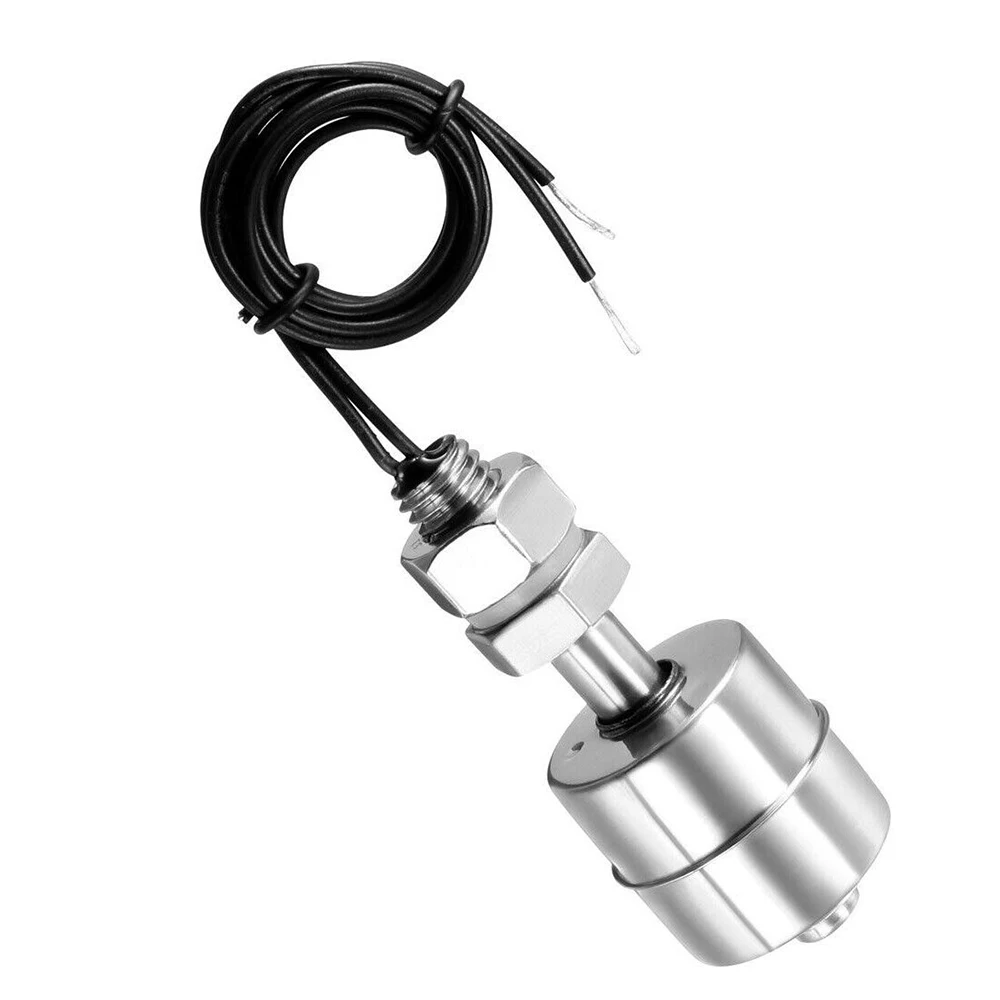

2PCS Float Switch Sensor Vertical Stainless Steel Liquid Water level

Description:

- Multi-point control is available, and the control switch can be customized with the liquid level position.

- The reed switch does not need to be powered separately.

- High reliability, low wiring cost and easy installation.

- The junction box has complete specifications, such as aluminum alloy, plastic, stainless steel and other materials.

- The finished material is made of stainless steel 304, which can be used in high temperature and high pressure places.

- Junction box protection grade IP-65 or above.

- This product can be applied to liquids with different densities, different acids and bases, different pressures and temperatures.

Specifications:

Working voltage: 0-220 (V)

Working current: 1 (A)

Material: 304 Stainless Steel

Working temperature: -30-120 (°C)

Maximum temperature resistance: 150 (°C)

Working pressure: 1.6 (Mpa)

Maximum withstand voltage: 1.6 (Mpa)

Technical Parameters:

Low pressure:

1. Contact capacity: 10W/SPST

2. Switching current: 0.5A

3. Switching voltage: 100VDC

4. Contact resistance:<100mΩ

5. Electrical life: 1 million times

6. Working temperature: -30 ° C ~ 80 ° C

High pressure:

1. Contact capacity: 50w/SPST

2. Switching current: 1.5A

3. Switching voltage: 220VAC

4. Contact resistance:<100mΩ

5. Electrical life: 1 million times

6. Working temperature: -30 ° C ~ 80 ° C

Package including:

2pcs Water Level Switch
