Single/4 Channel 50A Electronic Load Battery Capacity Tester 0.3-5V 1-2000Ah for 18650/NCM/Lipo/LTO/LFP Discharge/Reverse

Note :It needs to be grounded to use, otherwise it will feel a little leakage!!!!!

The shipping list does not include batteries

Feature

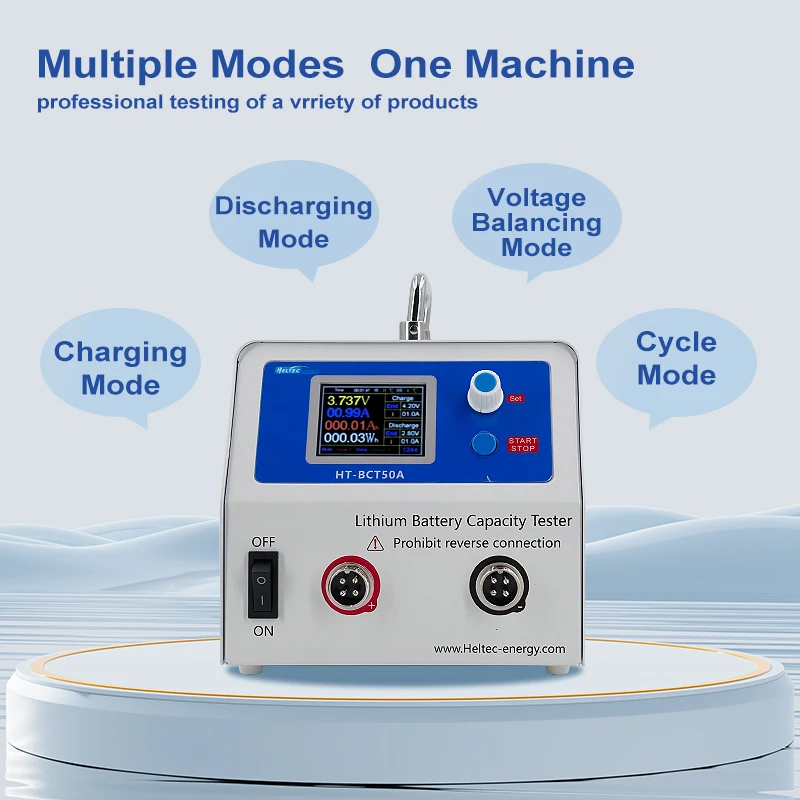

Working Mode: Cycle mode/Single charge mode/Single discharge mode

Detection Channel: Single channel/1.6V-5V/2-1000AH

Charging cut-off Voltage: 1-5V set by yourself

Charging Current: 0.5-50A set by yourself

Discharge cut-off Voltage: 1.6-5V set by yourself

Discharge Current: 0.5-50A set by yourself

Charging Mode: Constant current and Constant voltage

Discharge Mode: Constant current discharge (MOS Tube)

Display Parameters : running time / temperature / voltage / current / capacity / curve

Voltage Accuracy: 0.1% (Calibrable)

Current Accuracy: 0.2% (Calibrable)

Capacity Error: Discharge ±1.5%, Charge ±2%

Heat Dissipation: PWM intelligent temperature control speed regulation fan (Low noise)

Protection Function: Reverse polarity protection, High temperature protection

package list

standard

with fixture

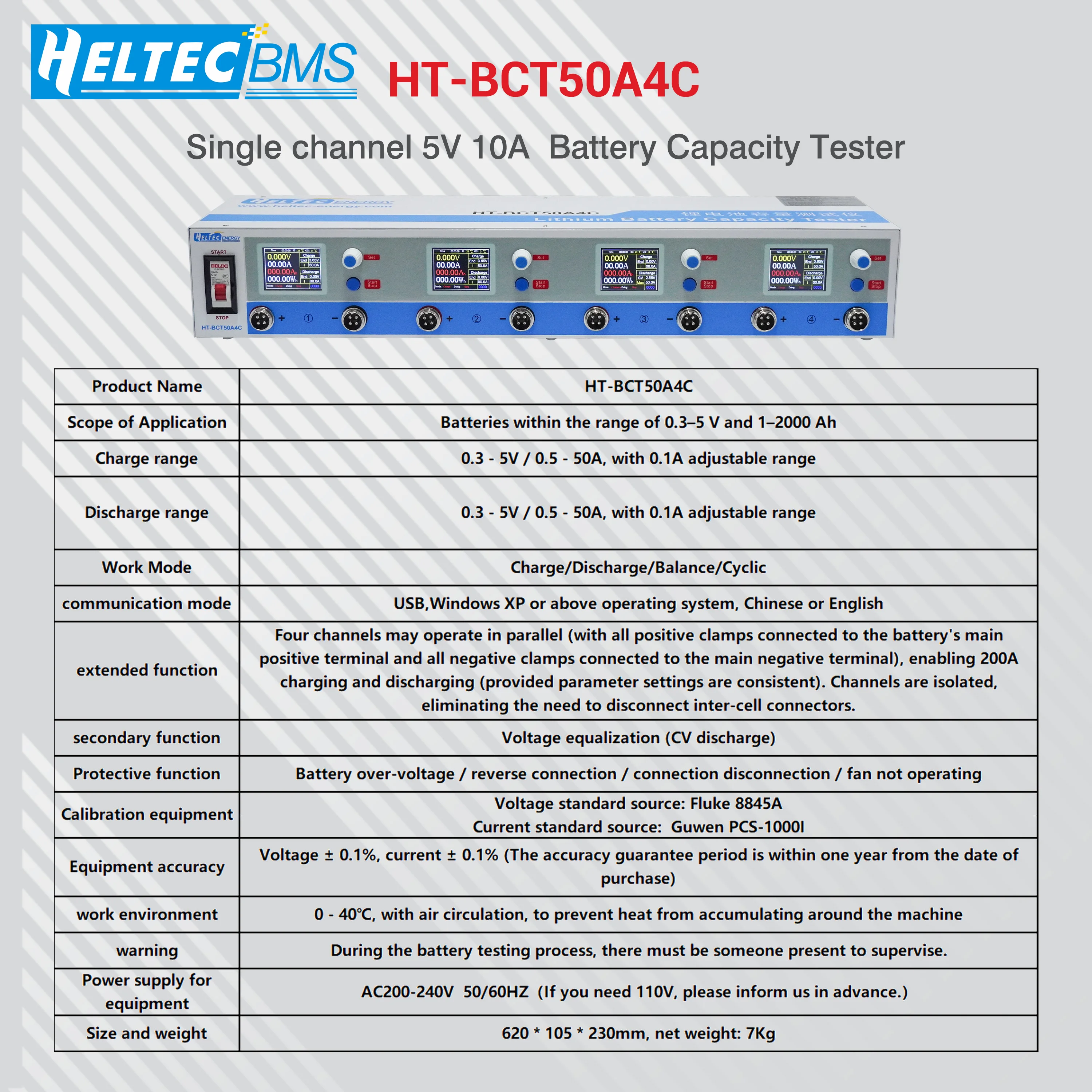

4-Channel Battery Capacity Tester

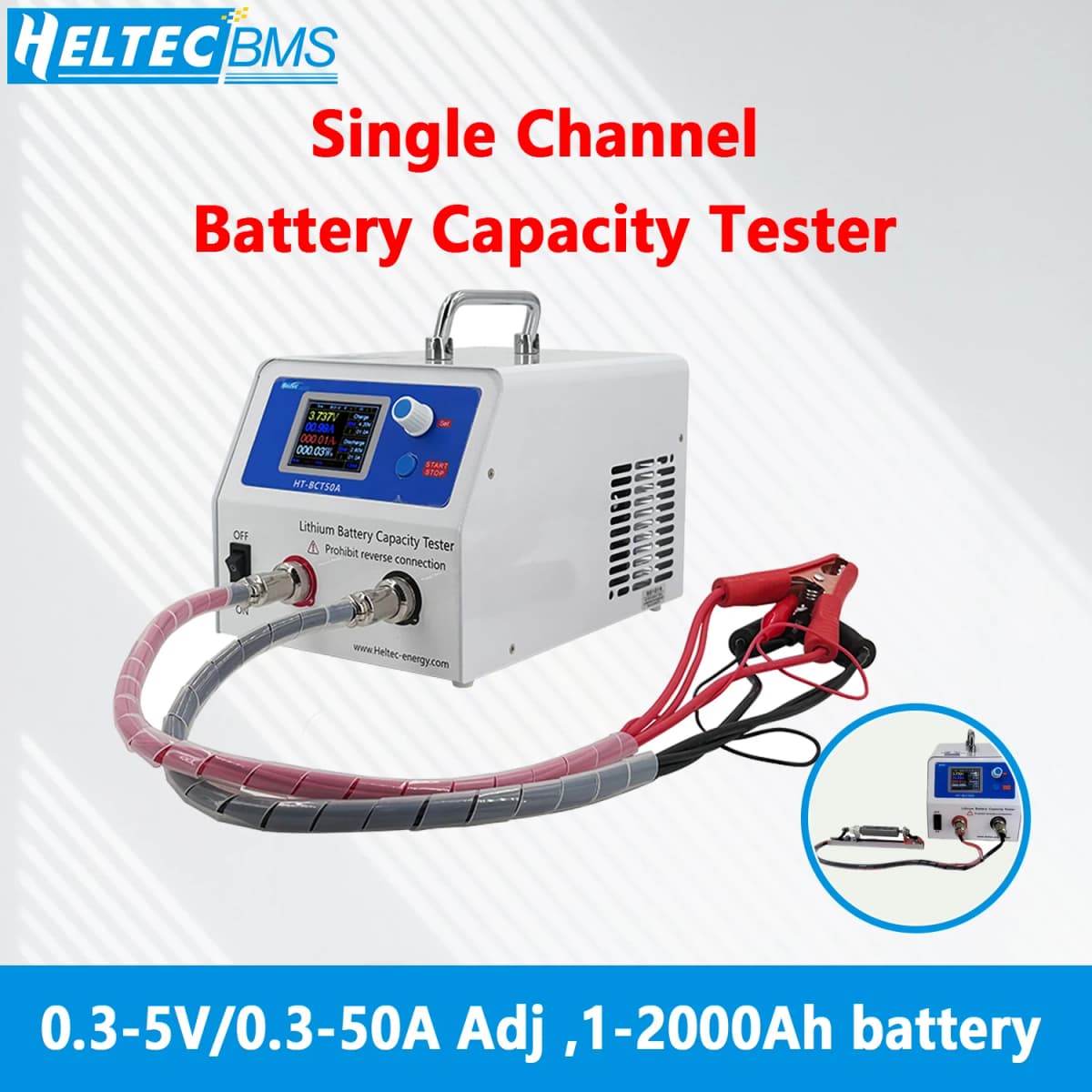

Single channel below 5V 50A--HT-BCT50A4C

HT-BCT50A4C Multi-Channel Battery Capacity Tester, with single channels suitable for

batteries operating within a voltage range of 0.3-5V. The device offers voltage and current

accuracy of ±0.001V/A. It features four functionalities: charge, discharge, cycle, and equalization, catering to diverse testing requirements. Capable of real-time, precise acquisition of battery

voltage signals, it performs data storage and computational processing. Characterised by high

precision, strong timeliness, straightforward operation, and practical reliability.

Attention

1)For batteries with a capacity of less than 10AH, considering the safety of the battery, it is

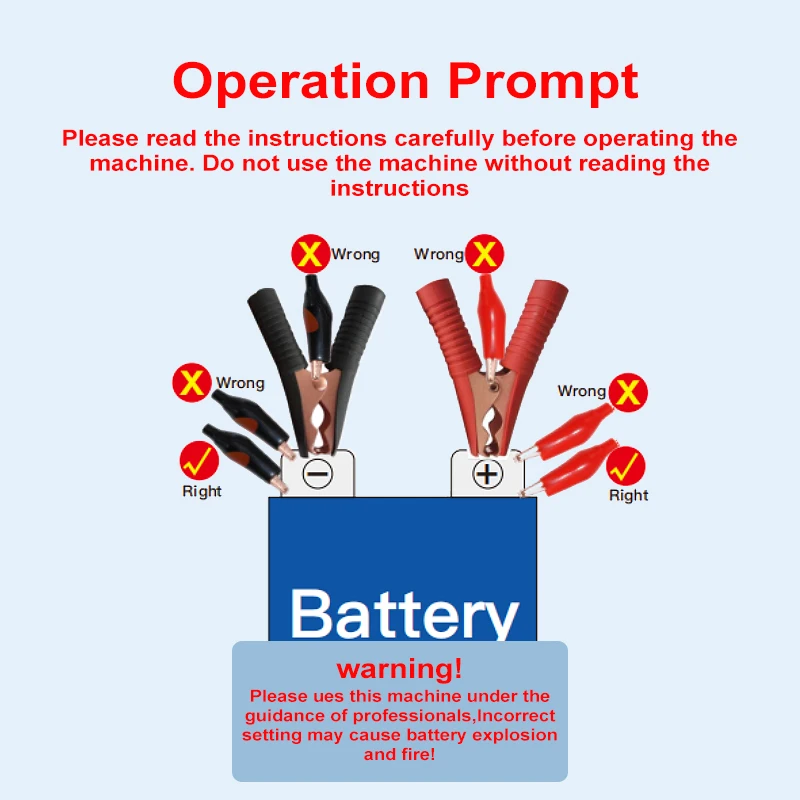

required that the operation setting charging current should be less than or equal to 5A. 2)Only the battery clamps and connection wires that are compatible with the capacity tester must

be used. It is strictly prohibited to extend or modify the matching connection devices. Otherwise, any accidents caused will be borne by the user themselves. 3)During the charging and discharging process of the battery, there must be personnel to monitor

the instrument and the battery. It is strictly prohibited to use it when no one is on duty. 4)There are multiple circuits and components inside the capacity tester. It is strictly forbidden to

disassemble or modify it by yourself. Otherwise, if any accident occurs as a result, the user will be held responsible. 5)The interior of the instrument is composed of precision components. Water or water mist must

not enter the instrument, otherwise it will cause damage to the instrument.The result data will only

be available after the machine has finished running. 6)Data will not be recorded if the operation lasts less than 2 minutes. Data recording will ony start

after 2 minutes of operation (overwriting the previous data).
