LED BDM FRAME Full Set with 4 Probe Pens For ECU Chip Tuning Tool BDM Adapters

LED BDM Frame description part :

Introduction :

This LED BDM FRAME is best bracket For ECU Update /  ECU Brush And Write / ECM Modified and programming / Probe holder .

The newest released LED BDM Frame can work perfectly with KESS / KTAG / KTM100 / FGTECH / BDM100...ECU Chip Tuning Tools.

Let's TakeMED.17.5.2 PCB for VW as example :

------Insert the probe to connect the BOOT and CNF1 on the ECU board

------The tip of the probe is specially designed and scalable.

------Add a LED light to facilitate the case of poor light to see the board clearly,  the LED lights on the picture may be updated at any time, only for more practical.

-----When LED is powered, the whole board can be seen clearly. The 12V Power adapter of ECU device can power for LED , AFTER connect the probe, you can disconnect the power, to the device power supply.

------Updated LED light bar interface is fixed on the acrylic board, for the straight type.

------Jumper for the plug-in, to reduce the trouble of welding the connection cable, easy to connect, and several numbers can be series connection.

Package List :

1pc *Bdm frame with LED

4pc *Connect cable for Probe

4pc *Probe Pens

Metal LED BDM FRAME Stainless Steel Description:

Features:

1. It consists of a Acrylic board, Mesh and 4 Probe Pens.

2. LED works for 12V. After you connect with the probe, disconnect 12V battery for LED, it will work.The probe pin is adjustable.

3. It is the best bracket for ECU Update/ECU Brush and Write/ECM Modified and programming/Probe holder/ aids.

4. It works with KESS, KTAG, FGTECH, BDM100, KTM100, CMD, AIDS, and othe ECU chip tuning tools.

5. It is easy to use, much better than the old bdm frame.

Package List:

1pc x BDM frame

1pc x Bdm frame with LED (Made by a Acrylic board)

4pc x Cable for Probe

4pc x Probe

NEW LED BDM Frame 2in1 description part :

Multi-function car ECU brush test stand：

The upgraded version of the multi-function car ECU brush writing test stand can be installed with a quick programming adapter plate, which is convenient for the user to connect to the ECU's quick programming interface, and realize the ECU brush writing programming quickly and stably. It can be perfectly matched with mainstream devices such as KESS and KTAG.

The upgraded version of the multi-function car ECU brush test stand function can be widely used in car ECU brush write data, tool modification upgrade programming, car key read and write programming, remote control programming, for VVDl programming and other test functions.

New BDM FRAME Set Fit device:

New BDM FRAME Set made from hight quality Plexiglass ,can use on BDM100 programmer , CMD,ETC. )

It works for fgtech and bdm100 programmer . K-tag ECU chip tool ,kess ECU tool ktm100

Product parameters

Product Name: Multi-function car ECU brush test stand

Product size: 248*193*151MM

Product weight: 830g

Probe weight: 49g (49*4)

Total probe length: 230mm

LED lamp voltage: DC 12V

Standard configuration list

1. A main test stand (assembly)

2. 4 copper needles (two red and two black)

3. 4 connecting lines (two red and two black)

4. 4 probes (two fine needles and two thick needles)

5. Power adapter one (12V 500MA)

6. Installation instructions

BDM Frame description part :

Introduction:

*BDM FRAME with Adapters Set made from hight quality Plexiglass

*BDM FRAME with Adapters Setcan be used on ECU Chip Tuning Tool Such As BDM100 programmer, CMD, Fgtech , Kess, Ktag...

*BDM FRAMEFit Both Original FGTECH And Not 100% Original FGTECH

Package List:

1pc x BDM frame

Pins

4pcx Adapters

BDM Frame Display :

NEW LED BDM Frame 2IN1 Display :

Metal LED BDM Frame Display :

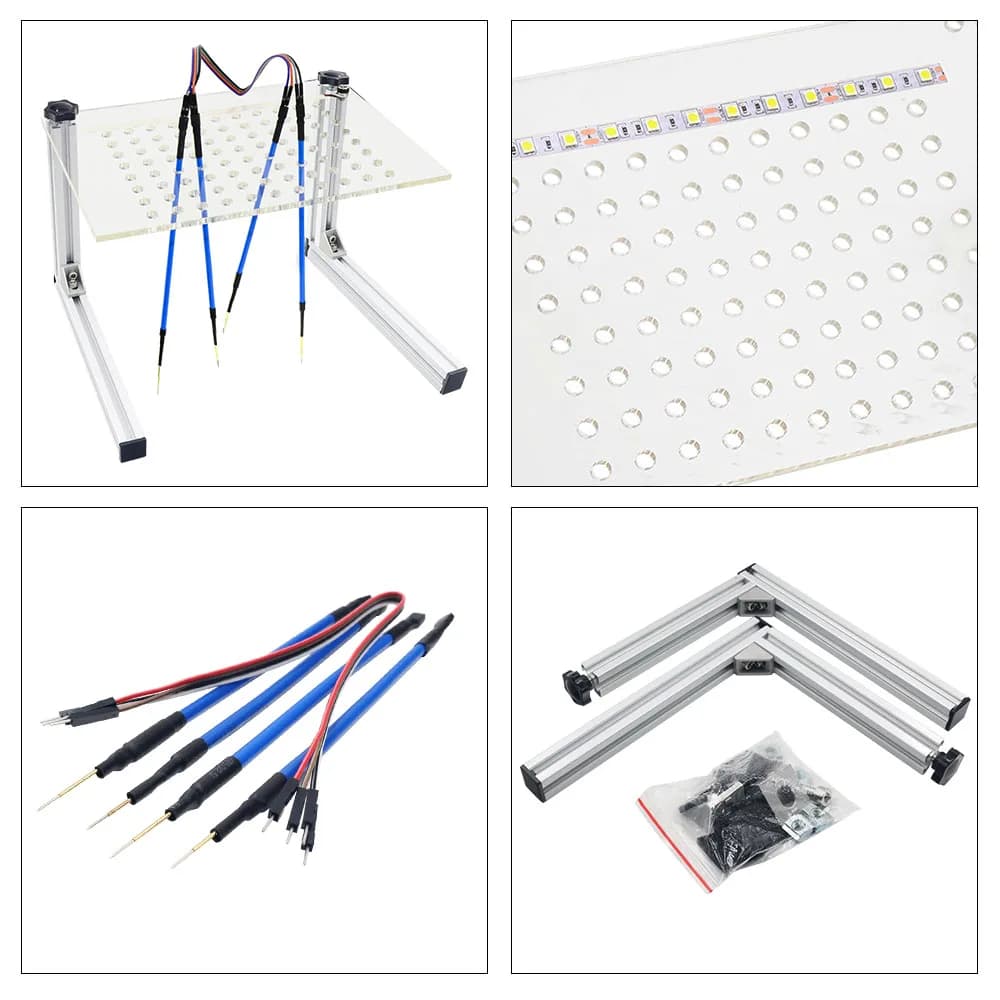

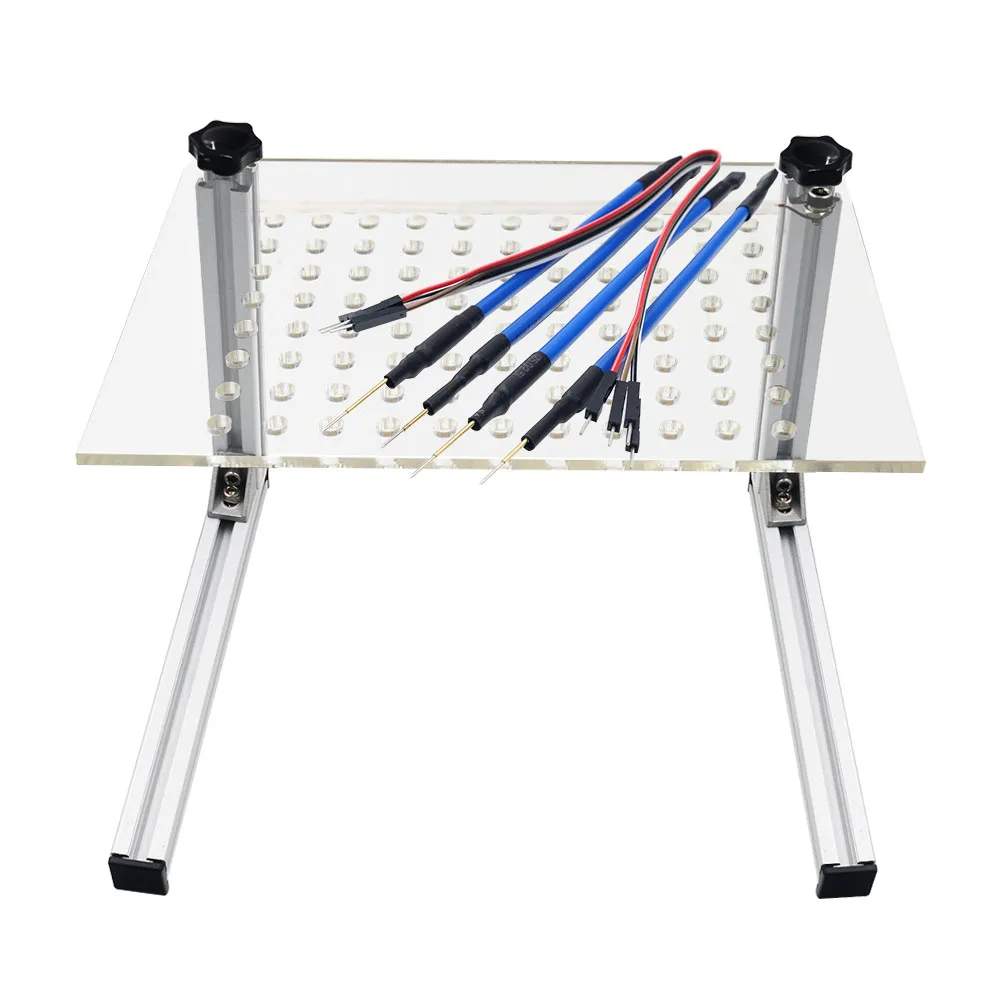

LED BDM FRAME Display :
