BDM Frame with Adapters Set Fit Original FGTECH BDM100 Programmer CMD/ETC

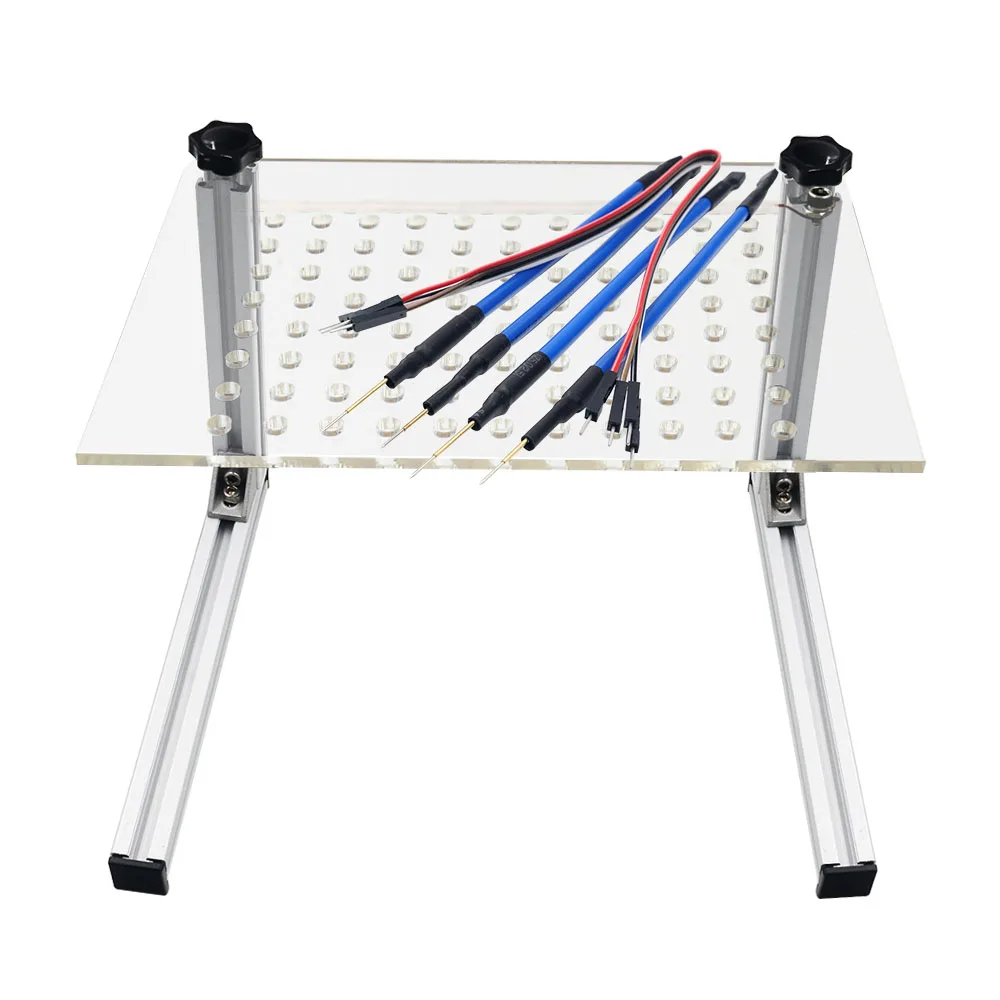

LED BDM Frame description part :

Introduction :

This LED BDM FRAME is best bracket For ECU Update /  ECU Brush And Write / ECM Modified and programming / Probe holder .

The newest released LED BDM Frame can work perfectly with KESS / KTAG / KTM100 / FGTECH / BDM100...ECU Chip Tuning Tools.

Let's TakeMED.17.5.2 PCB for VW as example :

------Insert the probe to connect the BOOT and CNF1 on the ECU board

------The tip of the probe is specially designed and scalable.

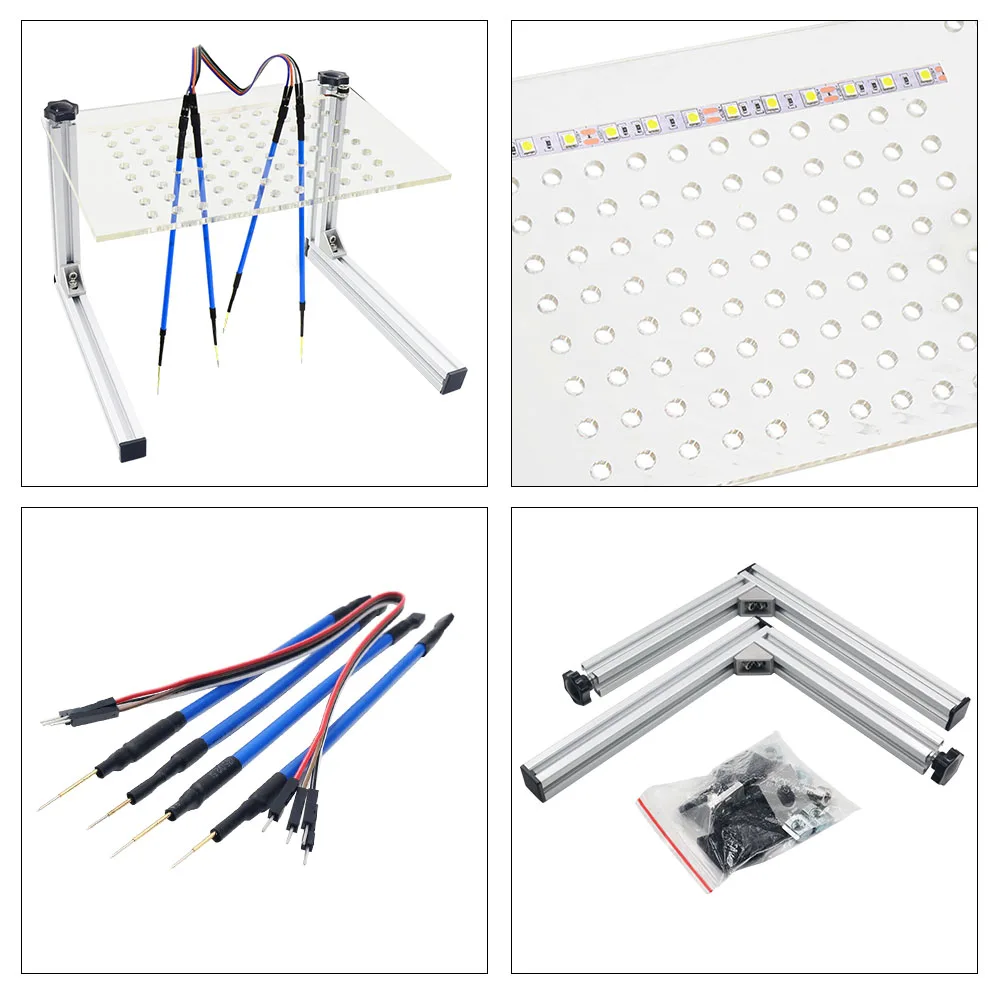

------Add a LED light to facilitate the case of poor light to see the board clearly,  the LED lights on the picture may be updated at any time, only for more practical.

-----When LED is powered, the whole board can be seen clearly. The 12V Power adapter of ECU device can power for LED , AFTER connect the probe, you can disconnect the power, to the device power supply.

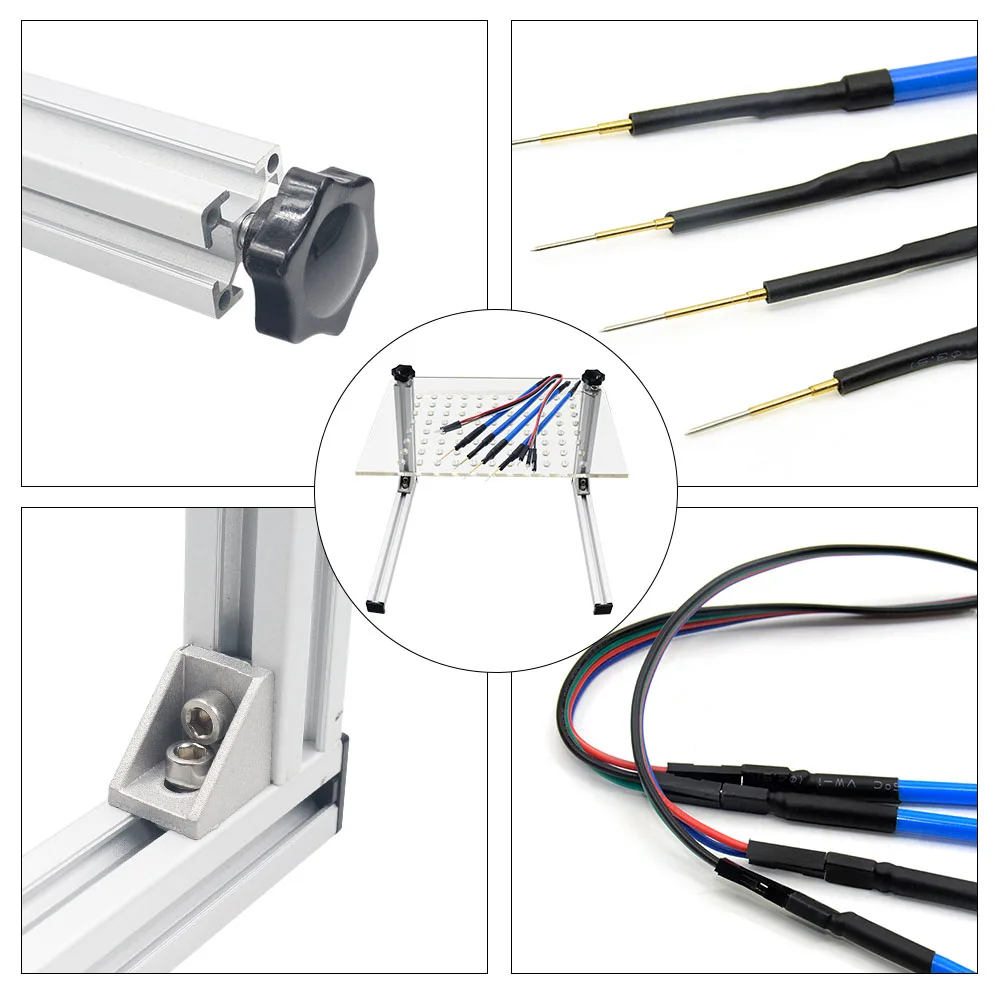

------Updated LED light bar interface is fixed on the acrylic board, for the straight type.

------Jumper for the plug-in, to reduce the trouble of welding the connection cable, easy to connect, and several numbers can be series connection.

Package List :

1pc *Bdm frame with LED

4pc *Connect cable for Probe

4pc *Probe Pens

BDM Frame description part :

Introduction:

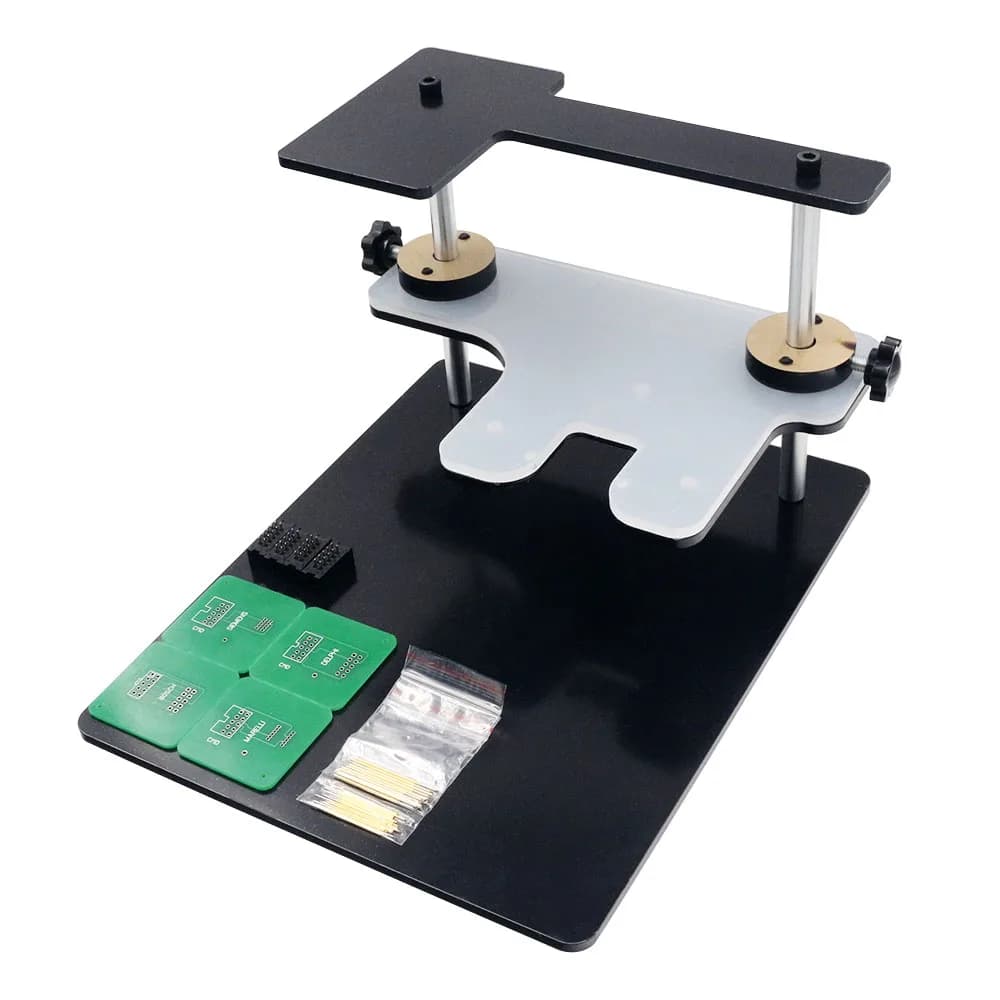

*BDM FRAME with Adapters Set made from hight quality Plexiglass

*BDM FRAME with Adapters Setcan be used on ECU Chip Tuning Tool Such As BDM100 programmer, CMD, Fgtech , Kess, Ktag...

*BDM FRAMEFit Both Original FGTECH And Not 100% Original FGTECH

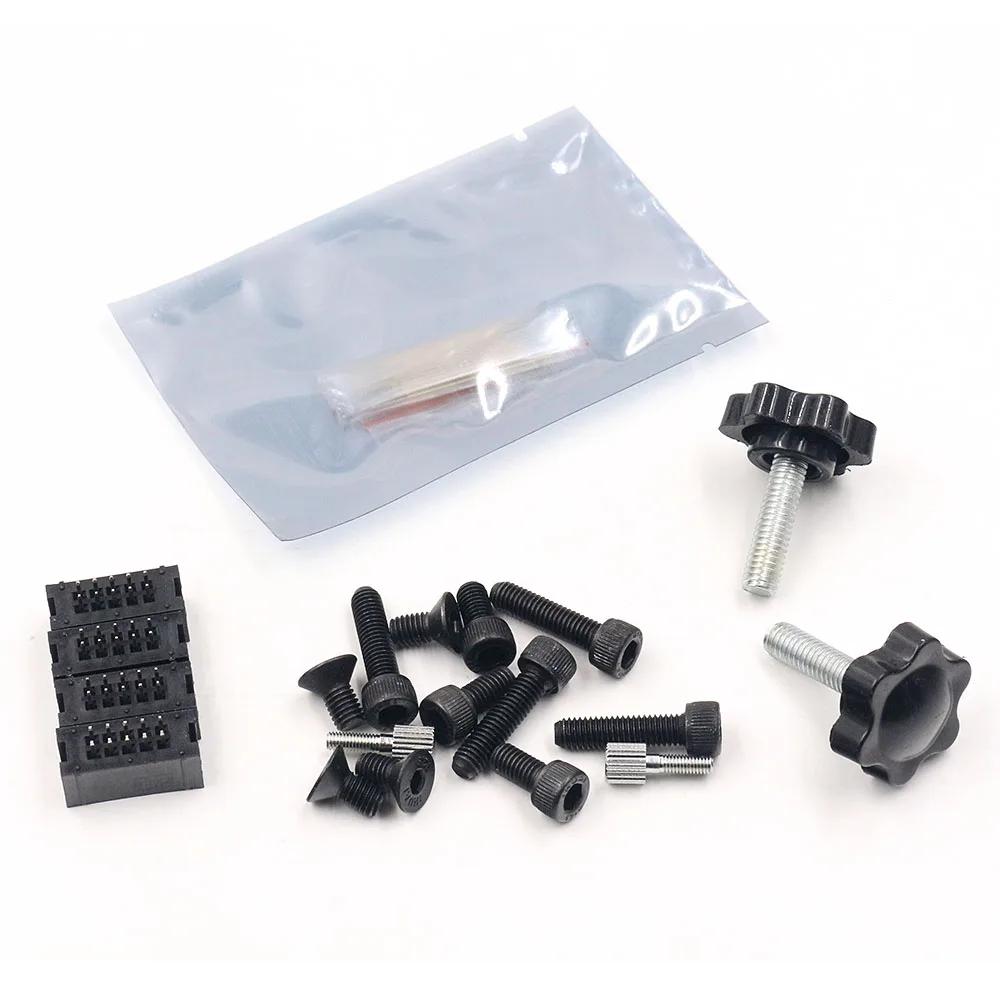

Package List:

1pc x BDM frame

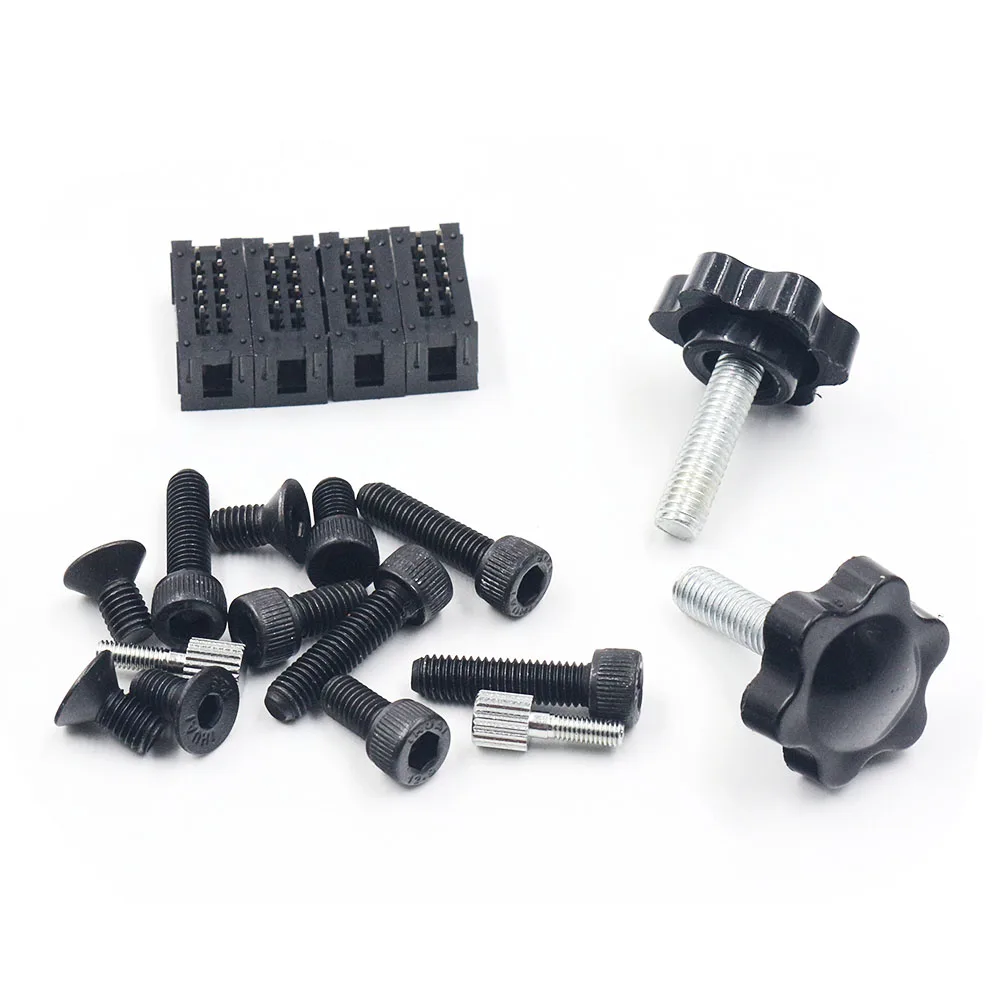

Pins

4pcx Adapters

LED BDM FRAME Display :

BDM Frame Display :
