Huepar 12 Lines 3D Laser Level Green Self-Leveling 3x360° Horizontal & Vertical Osram Cross Line With Hard Case 2 Li-ion Battery

Huepar 12 Lines 3D Laser level Green Self-Leveling 3x360° Horizontal & Vertical Osram Cross Line With Hard Case 2 Li-ion Battery

*Huepar LS03CG 3 x 360 Green Laser Level Specifications:

Color:Green Beams

Laser Class:Class 2 (IEC/EN60825-1/2014), <1mW

Laser Wavelength:505-520nm

Leveling Accuracy:±3mm/10m (±1/9 in. at 33 ft)

Leveling/Compensation Range:3°±1°

Self-leveling Time:3 seconds

Reference Working Distance(100lux):30m / 98ft

Reference Working Distance (with Laser Receiver):40-60m / 130-197ft

Reference Operating Time: About 8 hours

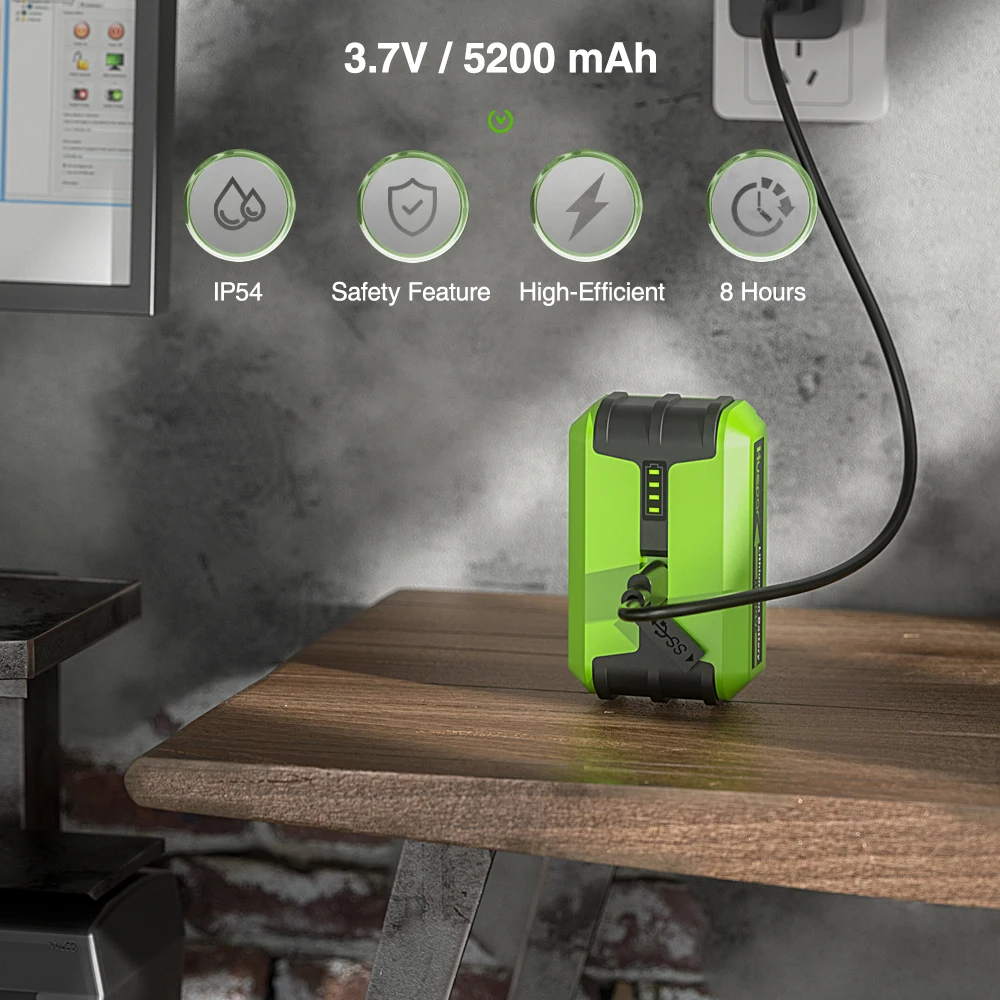

Power Source:3.7V / 5200mAh Li-ion battery

Charging Port:Type-C

Power Adapter:5V=1A

Charging Time:About 5 hours

Female Threaded Size:1/4''-20

IP Rating:IP54

Operation Temperature Range:-10℃ ~ +50℃

Storage Temperature Range:-20℃ ~ +70℃

WARNING:

Avoid direct exposure of the laser beam to the eyes.

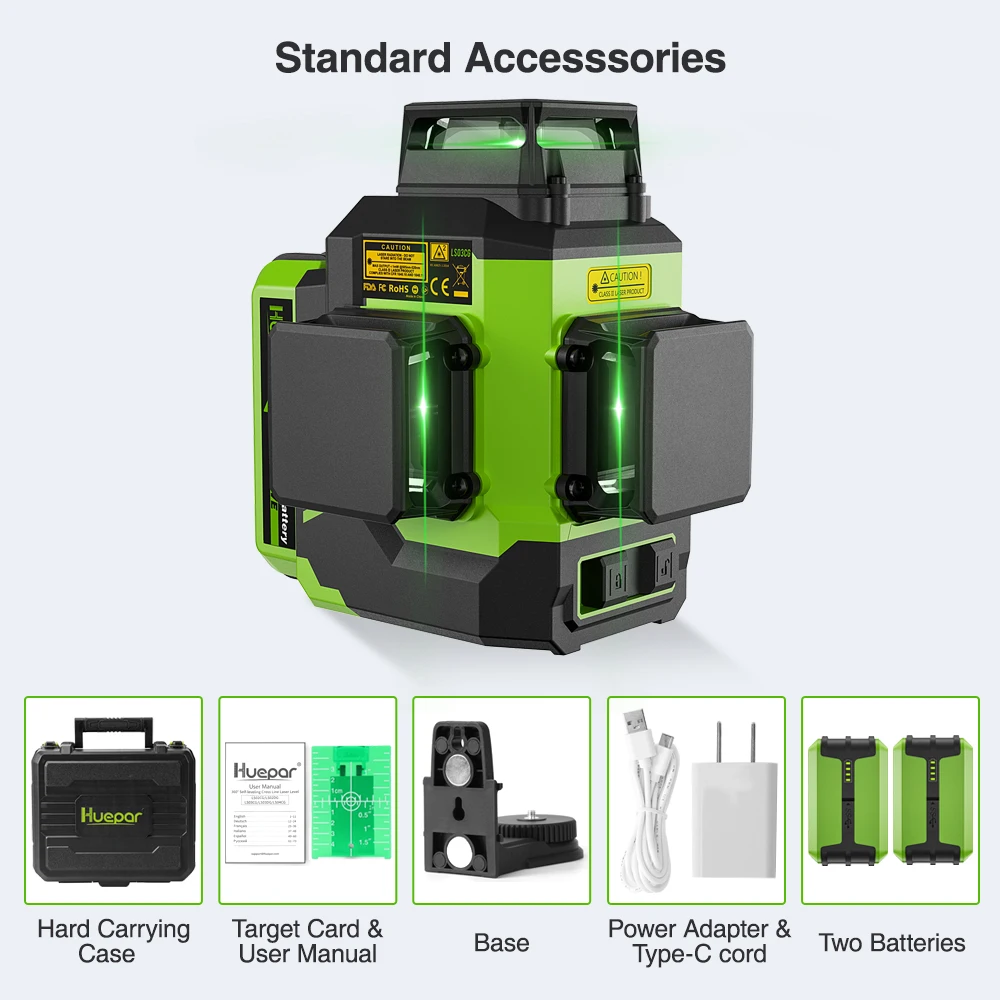

Package Contents:

* 1 x Huepar LS03CG 12 Lines Laser Level

* 2 x Rechargeable Li-ion Batteries(3.7V / 5200mAh)

* 1 x Power Adapter& Type-C cord

* 1 x 360°Magnetic Pivoting Base

* 1 x Green Laser Target Plate

* 1 x Hard Carrying Case

* 1 x Multilingual User Manual

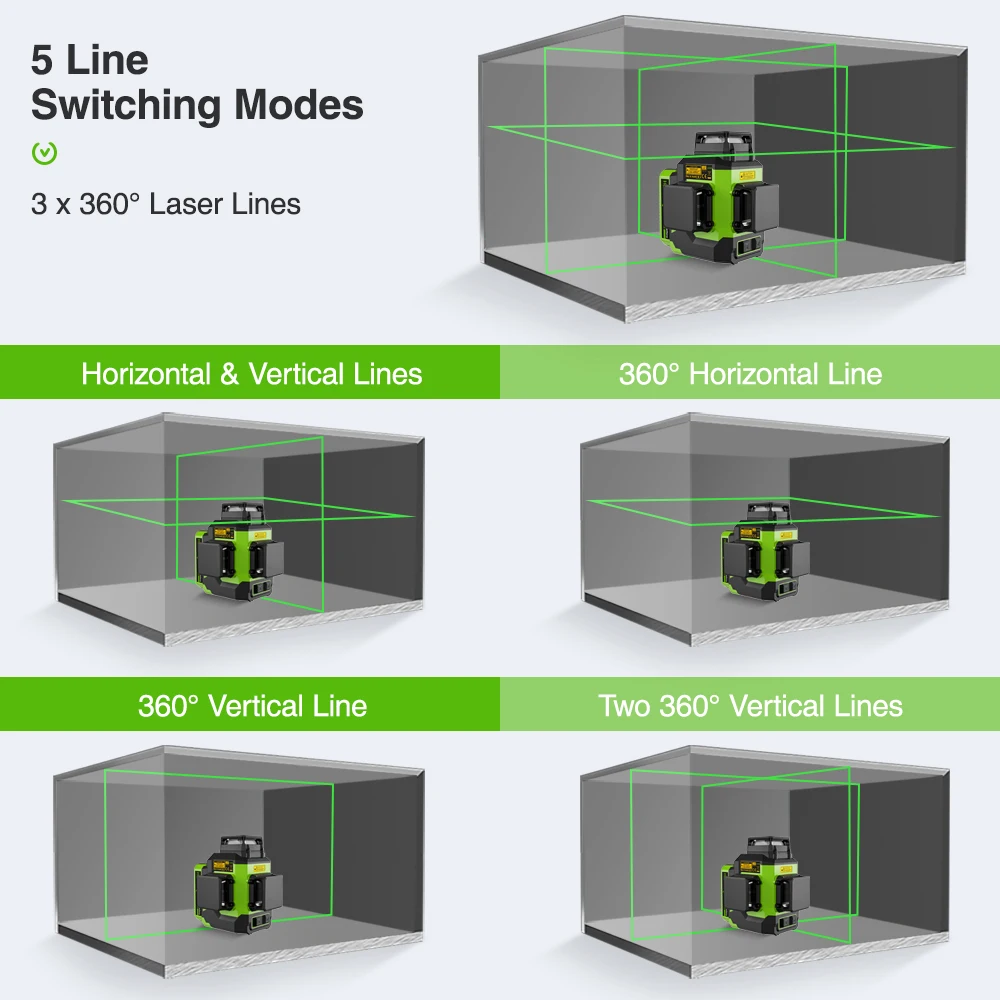

*3 x 360° Multiple Vertical and Horizontal lines to ensure multiple working ways:

● This laser level allows users to line up level, align, square and plumb by generating three 360° laser planes –one horizontal and two vertical lines.● The one 360° horizontal and two 360° vertical laser lines can be selected individually depends on job site applications.● Multiple Line Switching Modes can be Selected Freely Accordingly: 360° Horizontal&360° Vertical Lines mode, 360° Horizontal Line mode, one 360° Vertical Line mode, one 360° Horizontal Line &one 360° Vertical Line mode, Two 360° Vertical Lines mode.

*Self-leveling Mode & Manual Mode

Self-leveling Mode:

When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.

The laser beam will flash and laser tool will beep as well when the tool is beyond self-leveling range ± 3°.

Manual / Tilt Mode:

When the pendulum locked, the laser tool can be placed for alignment at any angle.

The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

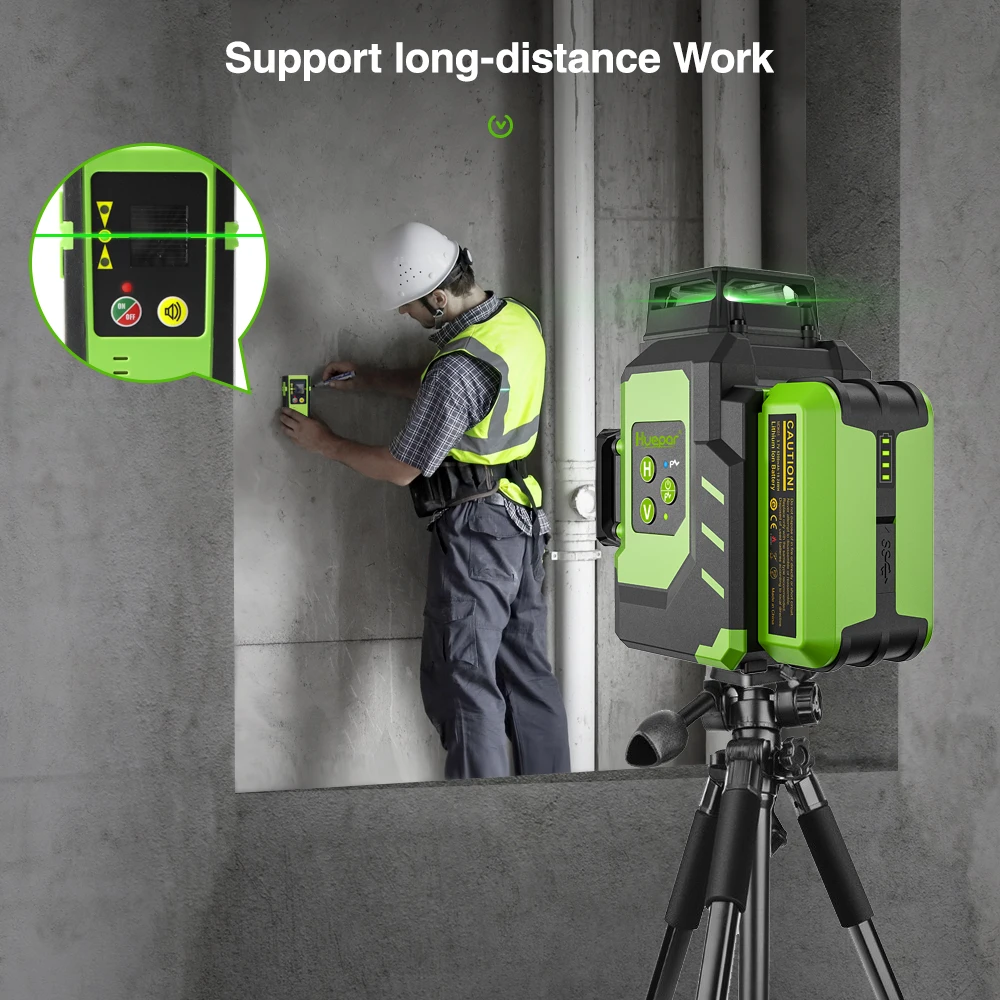

*Pulse Mode (Use with LR-6RG/LR-5RG Huepar Laser Receiver):

Turn ON pulse mode: Slide the pendulum to the Unlocked Position, then press and hold the power button to turn on the pulse mode, the indicator lights up in blue.Application：When the pulse mode turned on, laser tool can be used with a laser receiver to work in brighter condition or a larger working distance.

Note:● When use with a receiver, it’s necessary to turn on the pulse mode● It is compatible with Huepar Line Laser Receiver only.

*360°Magnetic Pivoting Strong Magnet and Multiple ways to set up

1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.*360° Strong Magnetic Pivoting Base:Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.*1/4"-20 and 5/8"-11 mounting thread on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole.

*Replaceable Protective Cover:The laser windows can be removed and replaced with a screwdriver.*Green Target Plate:Increases the visibility of the laser beam.

* IP54 dust/water resistance ensures you work well in hazardous working conditions.

*Wide Applications

Huepar LS03CG Laser tools can help you work effectively in home decoration, wall building, bridge construction, engineering construction, railway construction, etc.
