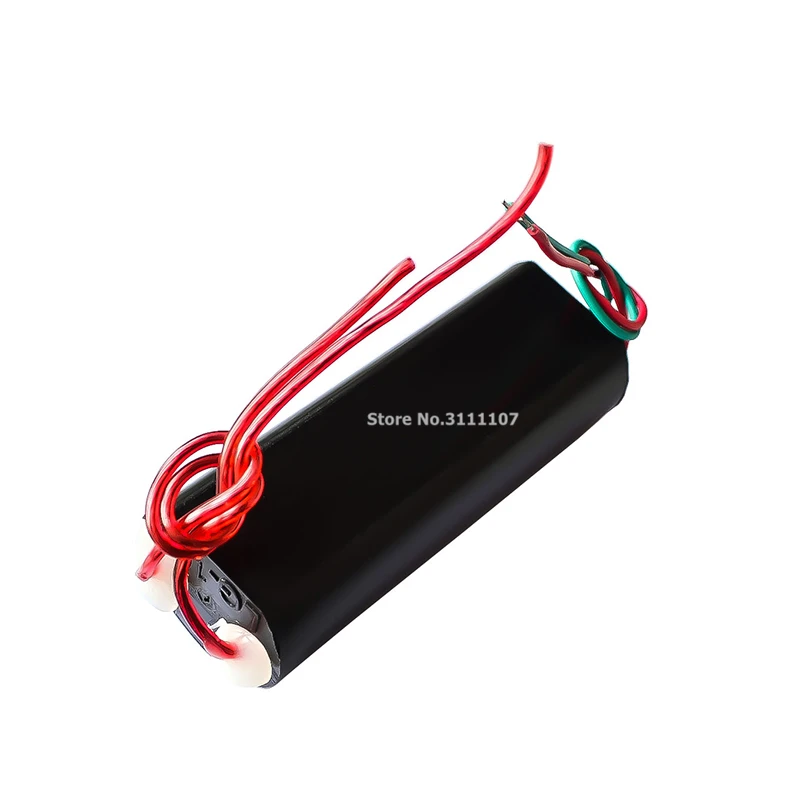

High voltage generator high voltage module voltage inverter transformer booster module 3-6V 400KV

Note: The mousetrap cannot be used, it will short-circuit and burn

This high-voltage module is made using the principle of the Tesla coil. It outputs high-voltage pulses and high-voltage currents. It is small in size, high in efficiency, and simple in the peripheral circuit (just connect the switch and the battery). The discharge intensity is violent.

Input parameters: 3.7-6V 4A Input line length: about 10 cm

Output parameters: 400KV 0.5A Line length: about 8 cm

Regarding the power supply: you can use a single 3.7V lithium battery or two in series, such as 18650 batteries, idle mobile phone batteries (with the protection board removed, the recommended capacity is more than 2000mAh) or nickel-cadmium/nickel-metal hydride battery packs, 4V or 6V lead-acid Battery, etc.

Wiring: The red wire is the positive pole of the power supply. The output is 2 high temperature and high pressure resistant silicone wires
