UBARO EU Standard Wifi Smart Stair Touch Switch Luxury Glass Panel Toggle Button App Control Voice Alexa Google Home 1Gang 2 Way

product description:

1: tempered glass panel wifi smart Stair switches/bedroom switches
2: Standard: EU Standard
3:: Use place: stair switches/bedroom switches
4: Input voltage: AC100-240V 50/60Hz
5: Power supply current: 10A
6: Load: ordinary light: 5~600W/Gang
LED: 5~300W/group
7: Standby power: ≤0.2W
8: Relative humidity: 10% to 93%
9: Working temperature: -20℃~+55℃
7: Certification: CE, RoHS, FCC
10: Wifi standard: 2.4GHz 802.11b/g/n
11: Application: Smart Life/tuya smart
12: Voice Control: Google Home, Amazon Alexa,Yandex Alice
13: Wiring: Neutral line (neutral line) needs to be connected
14: LED indicator: ON-blue OFF-red
15: Mounting box: round or square installation box

Notes:

1:You must cut off the power during installation/repair

2:The product you purchased is the quantity indicated in the picture, if the SKU on the picture is 2pcs, the quantity you buy is 2pcs

3:The functions of the two products are the same. If you want to control your lights from two places, you need to associate them on the mobile APP

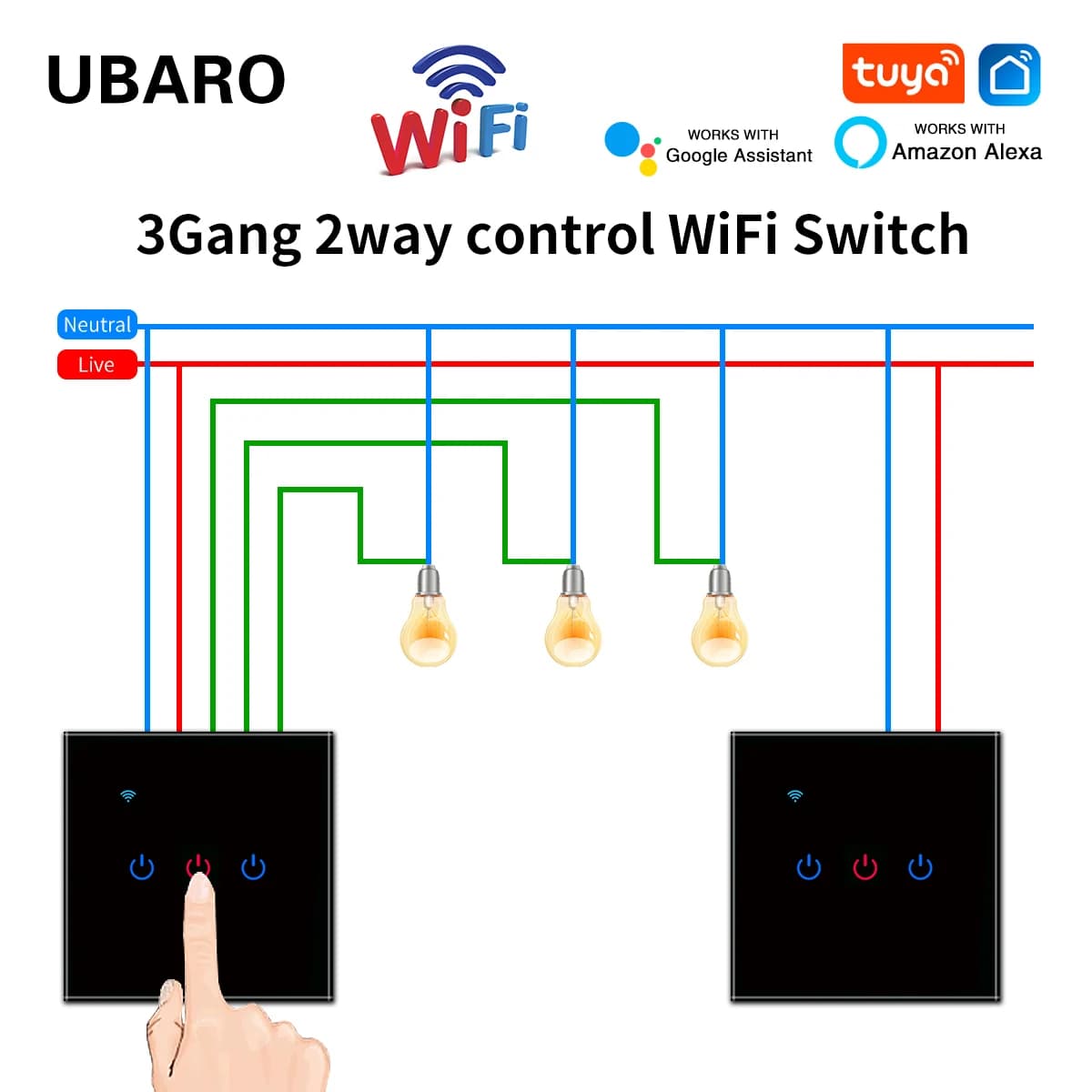

Wiring diagram of multi-control WIFI switch

1. The neutral wire is connected to the 'N' terminal
2. Live wire is connected to 'L' terminal
3. After the installation and wiring, please download the tuya app to add the device
4. After adding the device, perform multi control association settings

Dual control switch mobile phone associated operation

Smart dual control 1 operation step
. Need to have a network of operations and work multi -control
. You need to add the WiFi switch to the tuya app
The signal of the switch and the mobile phone needs to be operated under the same network
. You can control up to 4 groups of multiple control switches for multiple controls.
. Select the switch → click to modify the next step → multi -control correlation →+associated switch → select the addition switch to return the APP homepage

Function

1：The light bulb can be operated wirelessly by mobile phone APP
2：Can set a schedule for switching light bulbs on and off
3：Can control the light bulb by voice, support Google home Amazon Alexa voice device
4：You can share it with your family through the APP

FAQ

Q: Does your Wifi touch switch need a neutral wire to install?

A:Yes, it needs a neutral wire to install.

Q: Does your Wifi touch light switch can work with Ewelink or Home Kit? or Zigbee?

A:Sorry, Our item can’twork with them at present.

Q: Does your Wifi light switch can work with Smart Life/Tuya smart app /Google/Alexa or Yandex?

A:Yes, it can work with them.

Q: Do you offer a 2-way Wifi touch light switch?

A:Yes, we offer a 2-way wifi touch switch, it functions stably. But you must at least buy 2 pieces 2-way wifi switches. ( APP use multi-control association function)

Q: Why does Wifi switch not work when it is connected?

A:First, please check your wiring. Our wiring diagram is in the details. Then check whether the iron plate is installed correctly. Finally, check whether your switch matches. If there is no problem, please contact us and send you video.

Q: Why is Wifi switch offline after working for a period of time?

A:Please check whether the switch or socket needs to be updated. If it is the latest version, please contact us and provide video.

Q: Do they work as 2way if the Wifi router shut down?

A:No, they work as 2way must through wifi. If the wifi signal isn't available, they only work manually and alone .

Q: Does your Wifi touch light switch have a backlight?

A:The blue backlight will be on when the wiring is successful. Allowing you to notice Our touch switch clearly in the dark.and it can be cancelled at anytime.

Q: Can our switches be mounted vertically or horizontally on 86mm/86mm glass panels?

A: Yes, we can mount it in different ways, but you will see small holes. (small hole for opening the glass cover)

Product wiring diagram

1. The device needs to be connected to the live wire and the neutral wire (neutral wire)
2. Equipment dimension drawing
3. Tuya app installation and download

Cheap stairs and bedside dual control switches are here

1:This is a push switch, not a touch switch
2:Live wire and the neutral wire control

Wireless remote control switch

1:single live wire control
2:the main switch and paste switch
3:433 RF remote switch

Product real color picture display

Mobile phone pictures only show product color
