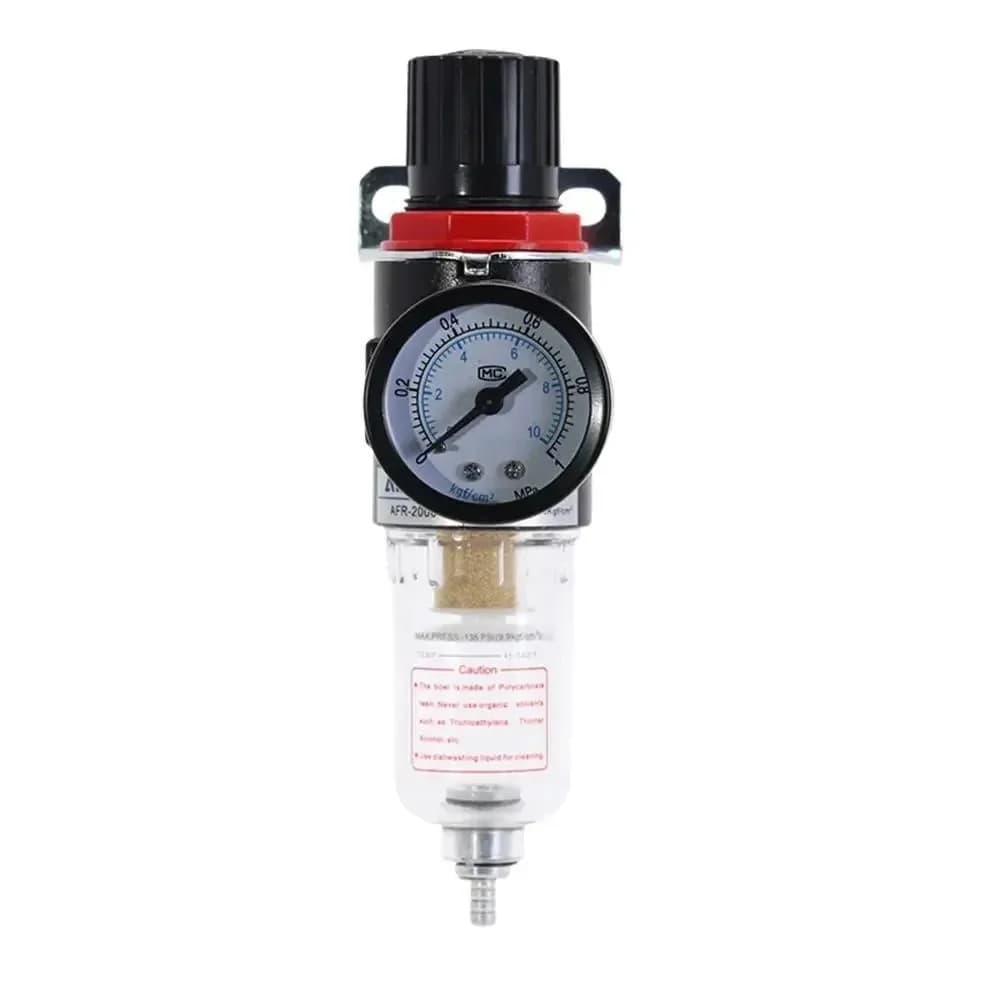

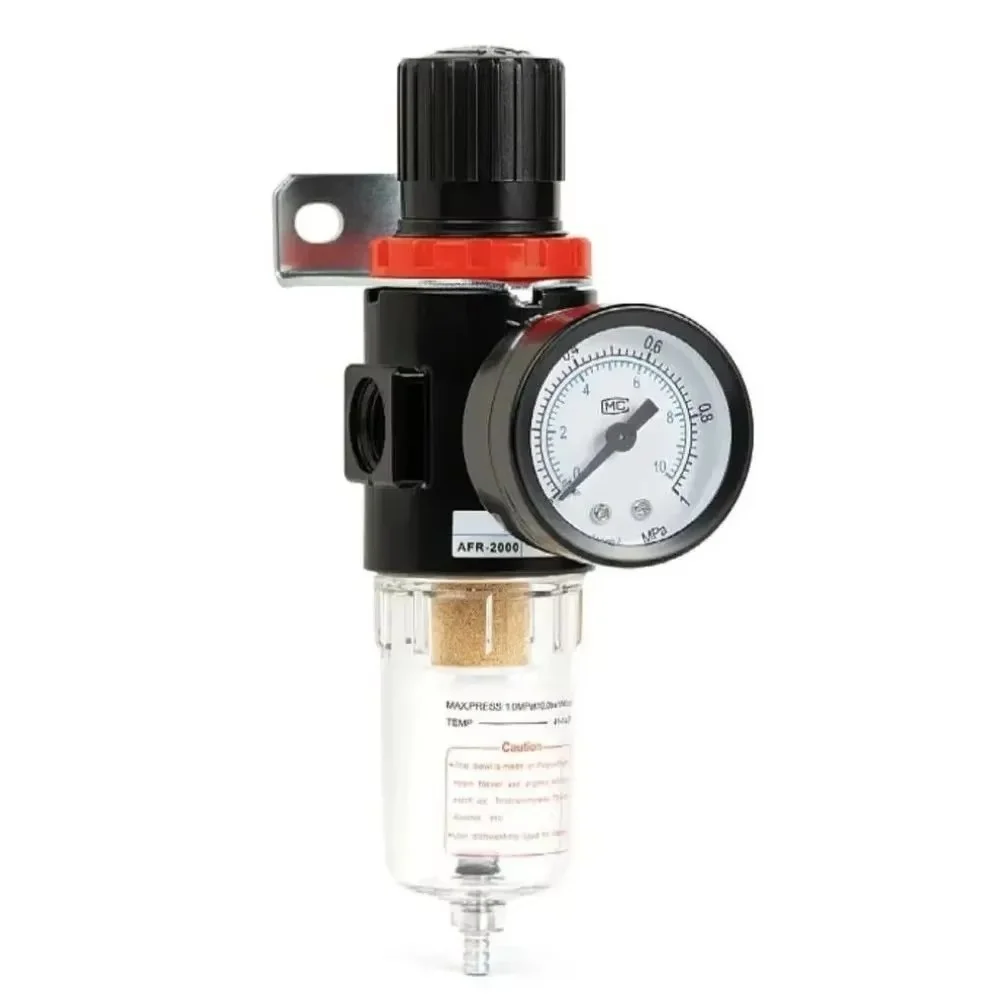

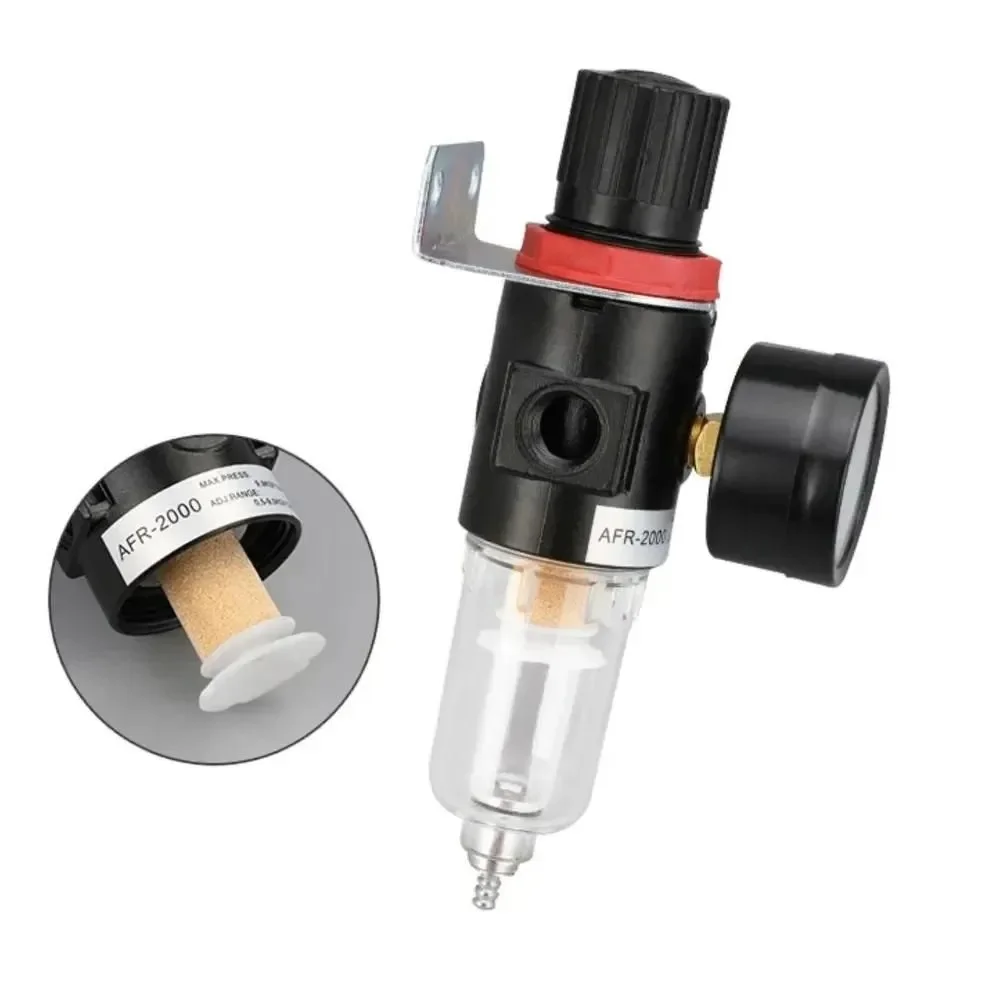

AFR-2000 Pneumatic Filter Regulator Air Treatment Unit Pressure Switches Gauge AFR2000

AFR-2000 Pneumatic Filter Regulator Air Treatment Unit Pressure Switches Gauge AFR2000

Features:

AFR2000 air filter regulator is that adjust The main channel of air pressure to a pressure value what the control device required after filtration through decompression.

No matter the size of the inlet pressure and flow fluctuations, always maintain a stable outlet pressure

Light weight, small size, easy installation and maintenance

Can filter small particles, keep the air clean

If the output pressure is higher than the set pressure, the discharge pressure of the atmosphere to maintain a stable output

Application:air compressors, pneumatic tools and other gas connection installation, effectively filter the air moisture.

Specifications:

Model: AFR2000 (AFR is the model, 2000 refers to the port size)

Material: body (aluminum die-casting products), Yung cup (polycarbonate)

Fluid: Air

Port size: G1 / 4

Filtration precision: 5μm

Operating pressure range: 0 ~ 1.0MPa (manual drain: 0-9.5kgf / cm2, differential pressure discharge: 1.5-9.5kgf / cm2)

Temperature: 5 ~ 60 °

Gauge caliber: G1 / 8

Treatment cup capacity: 15CM3

Length: appox 15cm

Installation and Use :

The direction shown by the arrow on the valve body is installed, which is the direction of the gas flow direction.

Package Included:

1pcs Filter regulator
