Trianglelab Bi-Metal Heatbreak Bimetal Heat Break For V6 HOTEND Heater Block For Prusa I3 MK3 Break 1.75MM Filament Smooth

If you need to send UPS/Fedex/TNT/DHL,please contact us. We need to discuss the freight with you.

The trianglelab has always been concerned about product quality.We are developing products and working hard to improve the quality.We will not abandon our reputation because of many cheap products on the market.It is believed that only high quality products can ensure the quality of your work and bring safety to your work.
Some of our products may be more expensive than others,but please believe in our quality and believe that you will not regret when you receive the goods.

▉NEWS:

Many customers are very impressed with our titanium alloy Heatbreak. They think that the performance of titanium alloy Heatbreak is excellent and it will not be surpassed. But today I would like to introduce a brand new Heatbreak. Its name is "Bi-Metal Heatbreak" It has two components with different thermal conductivity. It is composed of 3 parts. We use a special process to hold them firmly together. You don't need to worry about it being damaged.
trianglelab 450℃-rated Bi-Metal Heatbreak melts filament faster and conducts 60% less heatacross the Break Zone than competing Heatbreaks

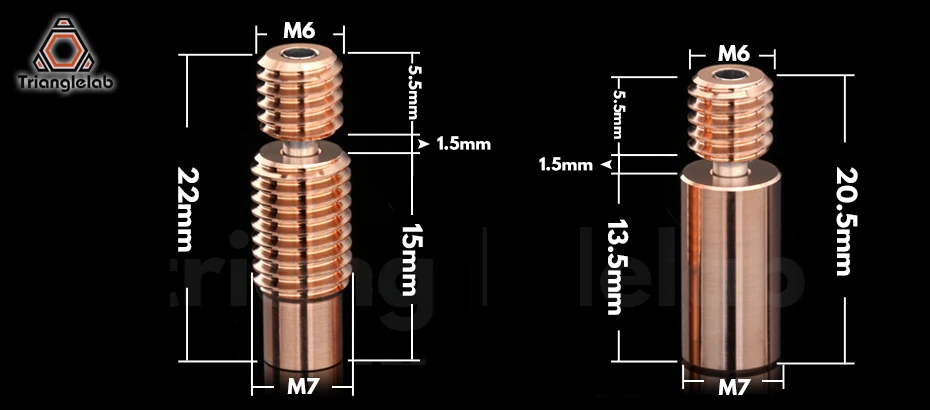

▉Size:

For 1.75mm filament

▉Compatible:

Please note that thesmoothandthreadedversions of Heatbreak aredifferent!
The smooth surface version of HEATBREAK is also the standard size of V6.

♦Bi-Metal Heatbreak(Smooth version):

*Please note: not compatible with SWISS CR-10 HOTNED

Bi-Metal Heatbreak(Smooth version)

Compatible with Ender 2/Ender 3/Ender 3 PRO/Ender 5/Ender 5 PLUS/Ender 5 PRO/Ender 6
Compatible with CR-10/CR-10 mini/CR-10 S4/CR-10 S5/CR-10S/CR-10S PRO/CR-20/CR-20 PRO
Compatible with TronXY X5S/TronXY XY2 PRO/TEVO Tornado/Alfawise U20/Lotmaxx SC-10

♦Bi-Metal Heatbreak(threaded version):

Bi-Metal Heatbreak(threaded version)

Compatible with Heatsink
Compatible with Volcano Heat Block
Compatible with PT100 Volcano Heat Block
Compatible with V6 Heat Block
Compatible with PT100 V6 Heat Block
Compatible with Prusa I3 MK3/MK3S
Compatible with Prusa I3 Bear MK3S

▉What's in the box:

Trianglelab - Bi-Metal Heatbreak X 1(Order Quantity)

▉NOTE:

We found that many customers do not know how to properly install the nozzle.
Remember the core issues in the installation process.
Just make sure your nozzle and HEAT BREAK front end are tight and sealed. Otherwise, the melted consumables will leak along the screw holes.

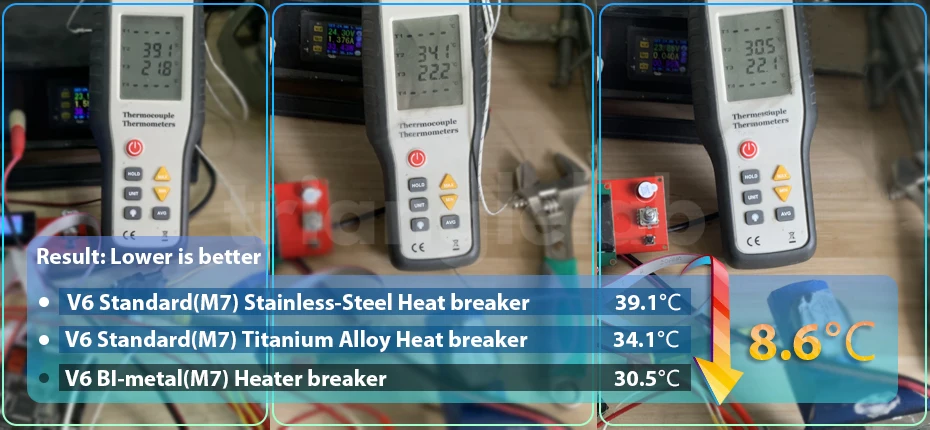

Heatebreaker performance comparison test

prusa I3 MKS3 print head
nozzle temperature 215℃
ambient temperature 22℃
temperature probe depth 40+-0.5mm from top plate of heatsink
cooling fan Noctua NF-A4x10 5V
Read the temperature 15mins after nozzle stable at 215℃
thermal paste was applied in between the heatbreak and heatsink model:shin-etsu 7868 6.2W/m °K
both setup share the same heater block thermistor nozzle and cooling fan
only the heatebreaker and heatsink is diffent

Result: lower is better

. V6 standard(M7) stainless-steel heat breaker39.1℃
. V6 standard(M7) titanium alloy heat breaker34.1℃
. V6 BI-metal(M7) heater breaker30.5℃

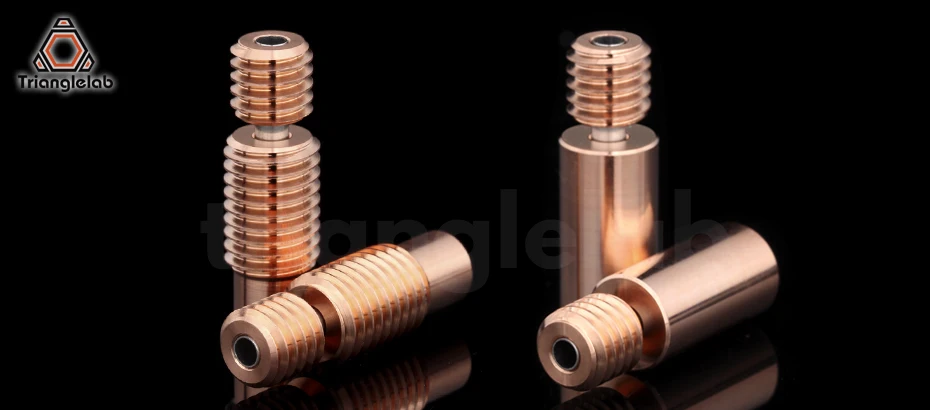

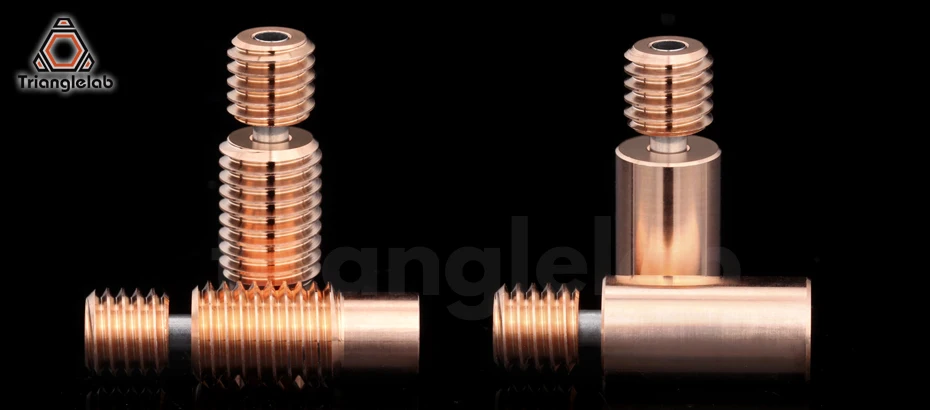

▉Photo display:

Please enjoy the excellent quality of art.

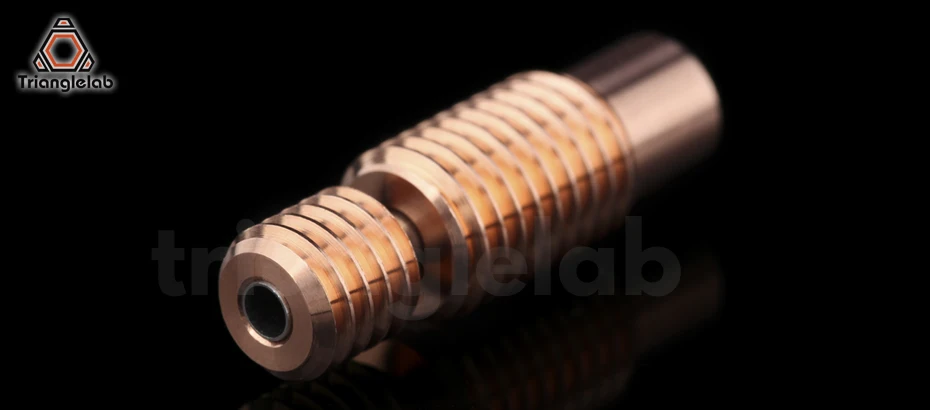

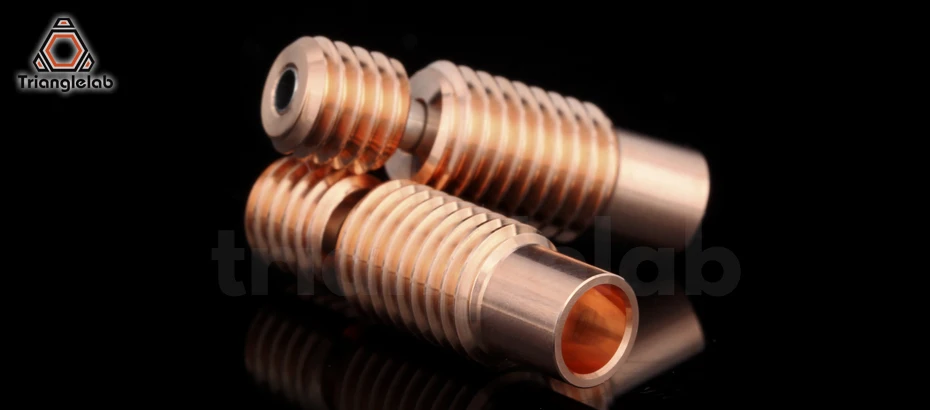

1 Bi-Metal Heatbreak(threaded version):

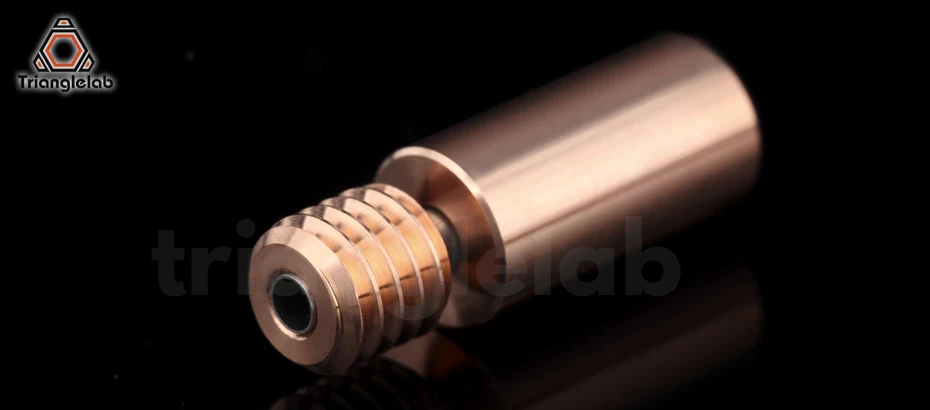

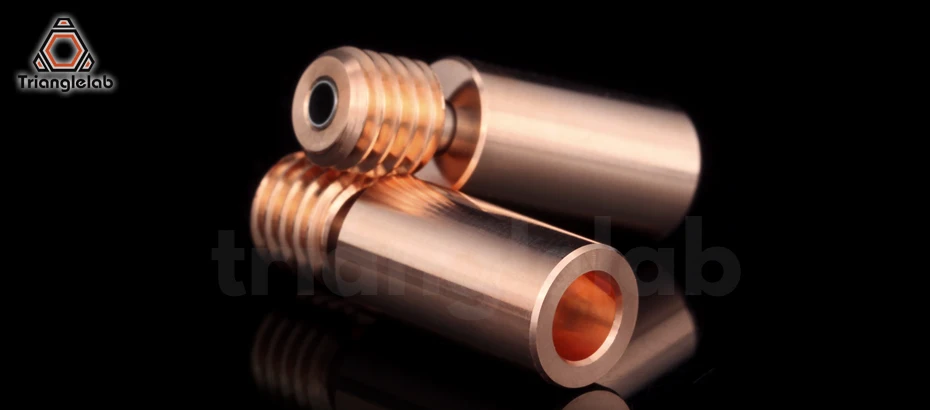

2 Bi-Metal Heatbreak(Smooth version):
