BIQU H2 V2S Extruder Direct Dual Gear Hotend 24V 3D Printer Accessories Titan Extruder For Ender 3 V2 Pro Upgrade H2 V2.0

BIQU H2S Extruder Mounting Kit STL Files -BIQU B1/Ender 3/Ender 3 V2/CR6-SE/Anycubic/Artillery and other printer :

https://www.bigtree-tech.com/help/download

If you want to buy All Metal Heat Break, you can click on this link:

https://www.aliexpress.com/item/1005002207269230.html?

If you want to high temperature printing, you can click on this link:

https://www.aliexpress.com/item/1005004159495140.html?

Introduction:

Extrusion method: Double gear extrusion

Maximum printing temperature: 270℃ (

upgradeable to 500℃

)

Weight: 195g (including heating aluminum block, fan)

Maximum extrusion force: 7.5kg (depending on filaments)

Extrusion capacity (based on existing): 600mm³/min(depending on filaments)

Number of pulses: 932steps/mm for stepper motor drive at 16 subdivisions (mircosteps) (further correction is required)

Recommended motor current: 800mA

Filaments' diameter and tolerance: 1.75±0.05mm

This extruder is suitable for most printer. We have the bracket model file of Ender3, and we are perfecting the models of other printer. If you need the model, you can send us a message.

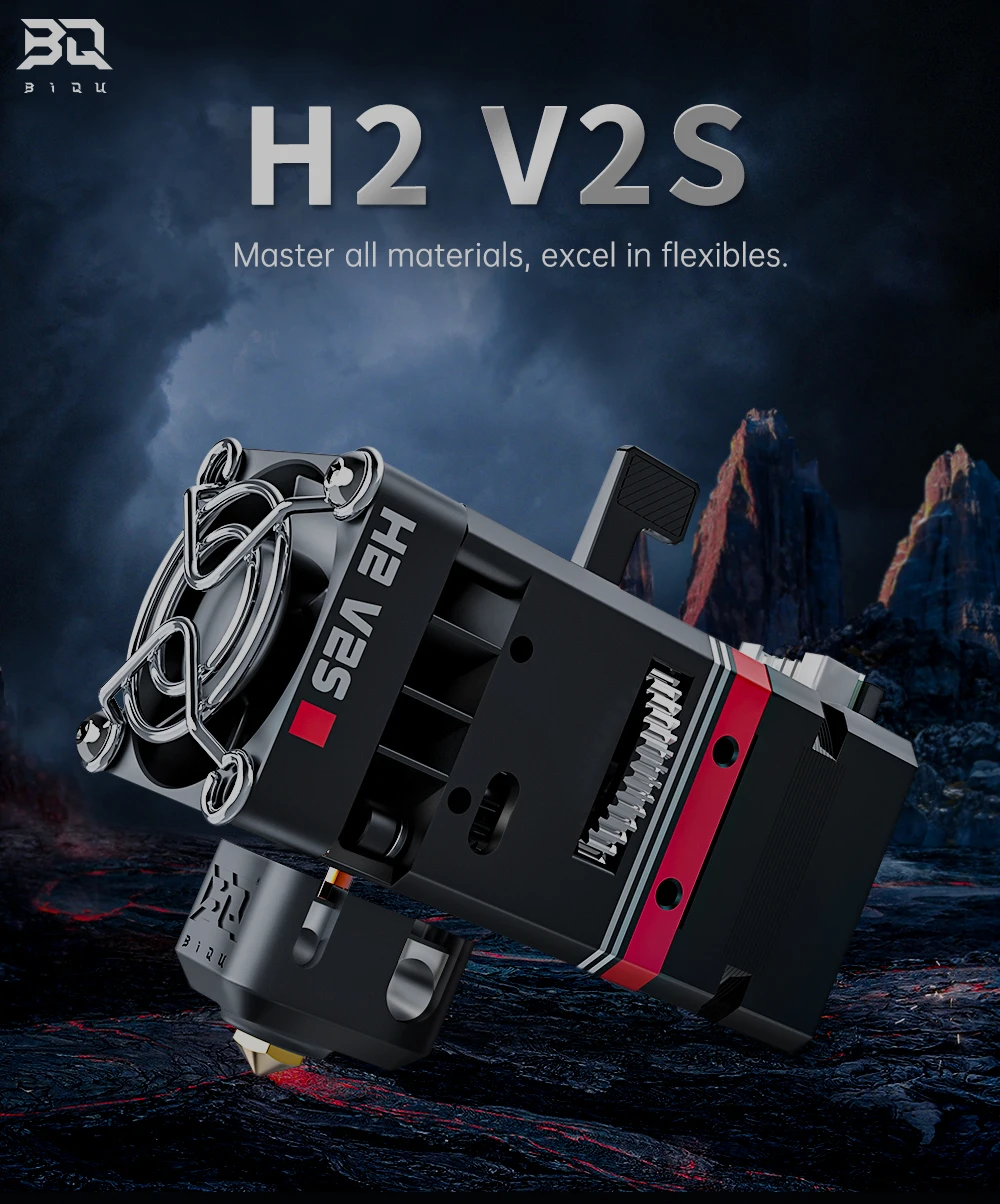

H2 V2S

Master all materials, excel in flexibles

6 Reasons

to choose H2 V2S

Great for Flexible Filaments

Adjust the screw tensioner to accommodate different drivegear tension and improve printing with flexible filament.

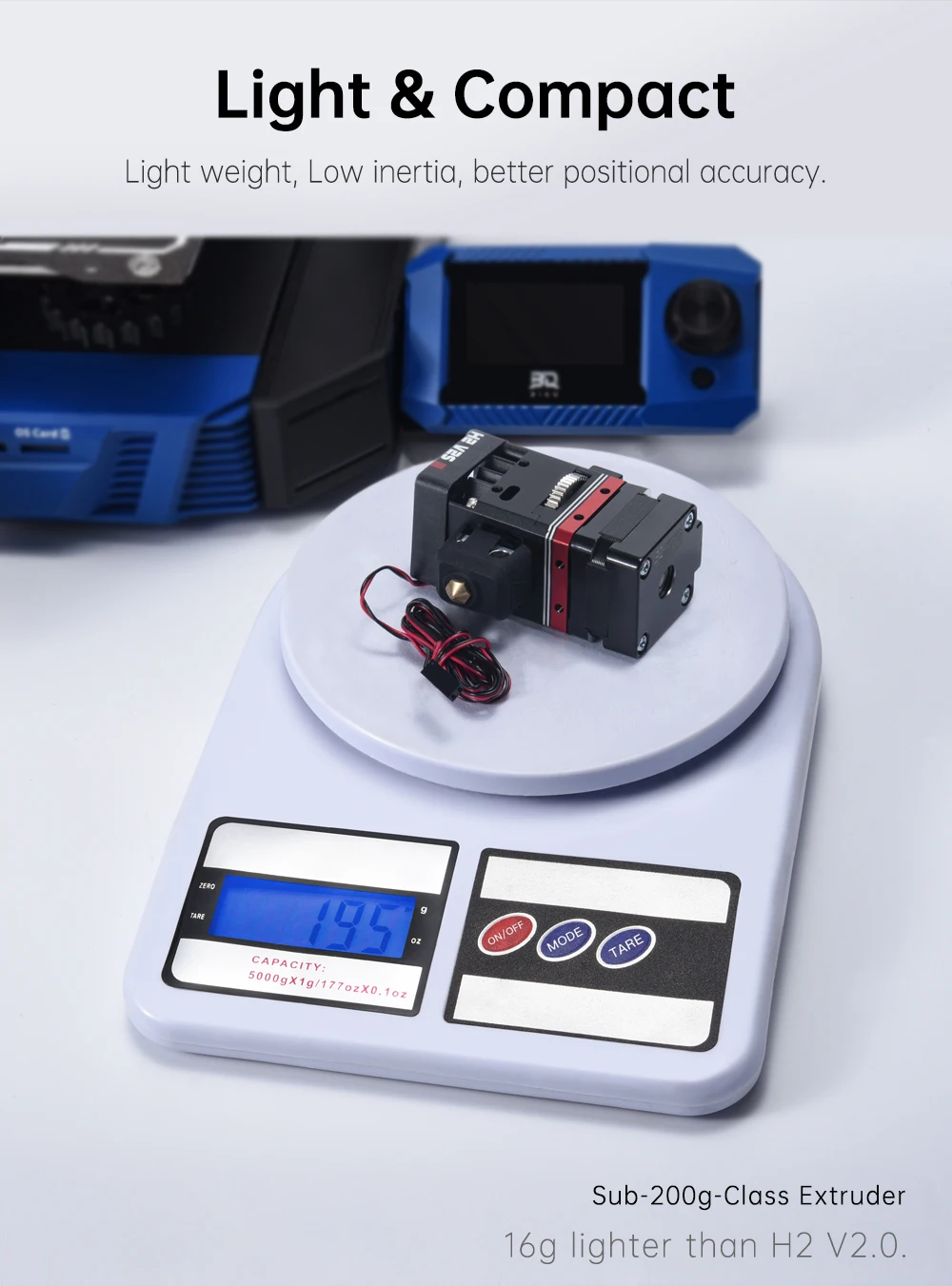

Light & Compact

Light weight, Low inertia, better positional accuracy

High-Temp Printing

Bi-metal heatbreak enables high-temp printingat 270°C with silicone sock for insulation.

Powerful Extrusion System

Dual gear and a gear ratio of 7:1 for exceptionalpushing force

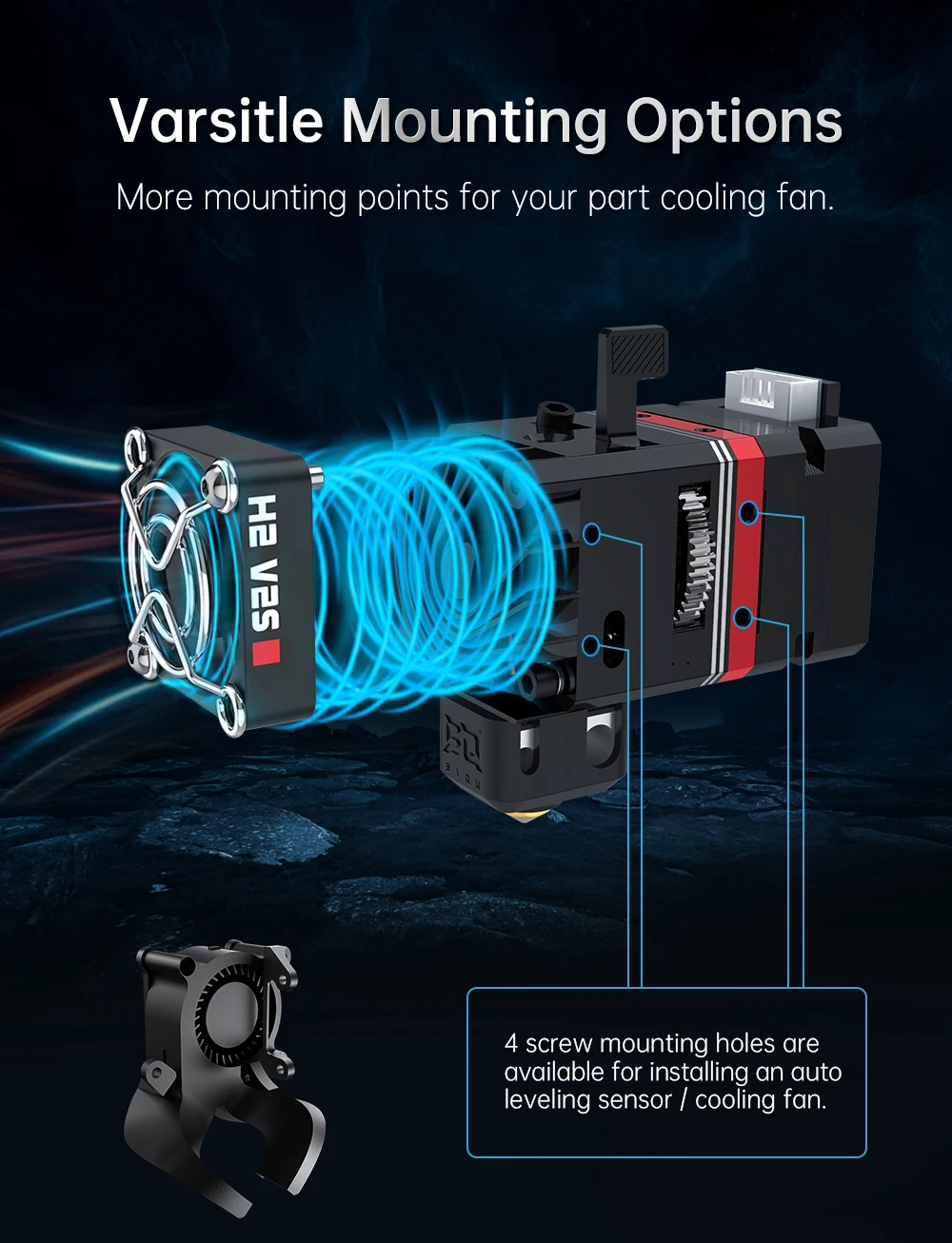

Varsitle Mounting Options

More mounting points for your part cooling fan.

Perfect Compatibility

Easily print ABS,PLA, PVA, HIPS,PET，TPU,etc.

Exquisite Craftsmanship

6061 T6 aluminum alloy body ensures long-lastingperformance even under extreme conditions

Product Dimensions

Specifications

Wide Compatibility

Applicable for most FDM printers

*All images are illustrative, for reference only. Please refer to theactual product because product updates may make the actualproduct slightly different from the illustrations
