LASER TREE 10W High Power Laser Module with Air Assist Metal Nozzle TTL Laser Head for CNC Engraving Cutting Machine DIY Tools

LASER TREE 450nm 80W High Power Laser Head with Air Assist, Metal Nozzle, TTL / PWM Cutting Engraving Laser Module

LT-80W-AA-PRO Features

1.LT-80W-AA-Pro

It has an upgraded nozzle compared to the previous LT-80W-AA. The difference of this nozzle is that it has an advanced hydrodynamic design that makes better use of air pressure. When using the same air compressor, the upgraded version has a faster jet airflow.

2.With the Air Asssit Nozzle

The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

3. Remarkable Cutting Ability

Cutting 8mm bass plywood ,120mm/min ,one pass.
Cutting 5mm bass plywood, 50mm/min, one pass.
Cutting 5mm MDF by 2 passes, 150mm/min , 2 passes.

4.With the Laser Protective Cover

Comes with a removable protective cover. Whether engraving or cutting, use this shield to filter blue light and work without laser glasses, convenient and fast. It's also easy to remove if you don't need it.

5. Widely Compatible Design

LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(If you are not sure if it is compatible, please send us a picture of your machine’s contro board, we will provide you with a connection diagram.)

Powerful Cutting Ability

Maximum material thickness that can be cut

With Air Assist VS No Air Assist

Using air assist helps to cool the material and prevent heat damage, and also helps to remove any debris and fumes generated during the laser cutting process, resulting in a clean cut surface.

Dual-LDs with Beam Compressed Technology

One laser module has two built-in laser diodes.The optical power of each diode is 5W.

With beam combination technology, our laser module is double powerful and the beam quality is as good as a single diode.

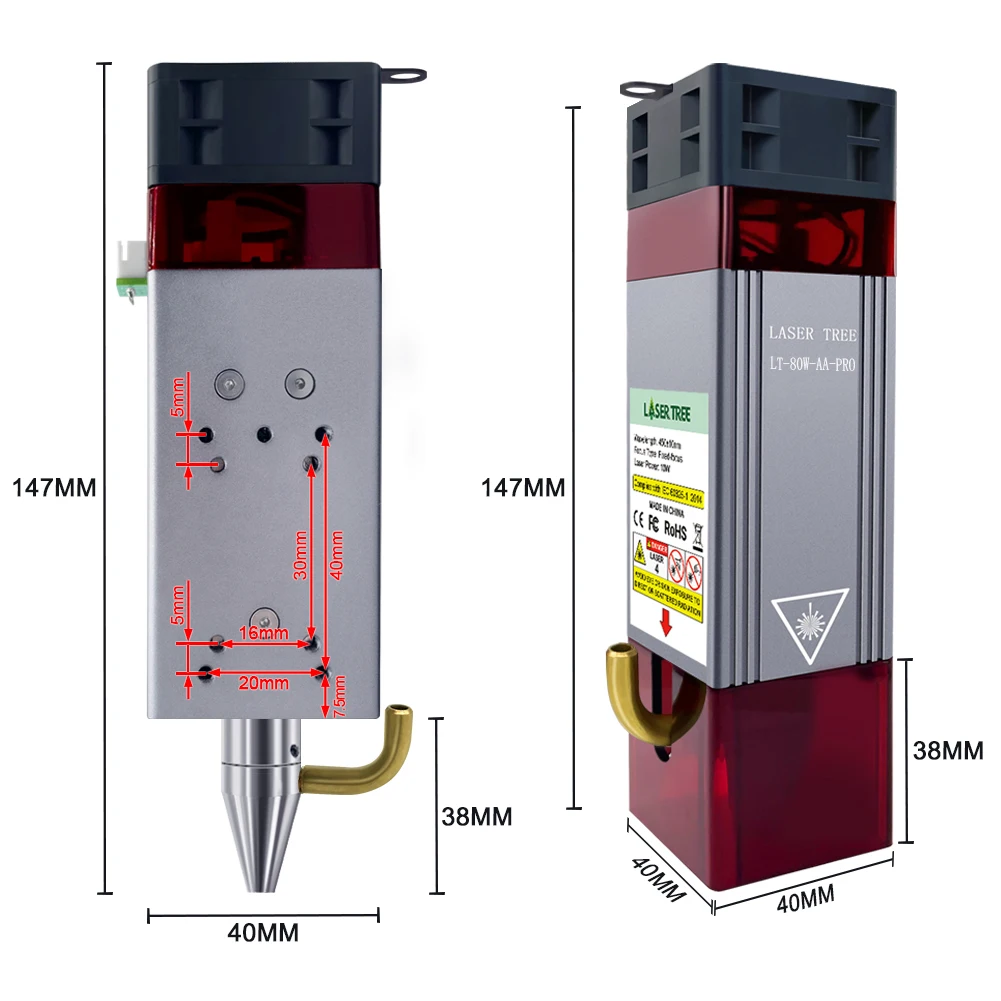

Interface Diameter Size

Air nozzle outer diameter: 6mm; inner diameter: 3.5mm
Air tube outer diameter: 8 mm;inner diameter: 6 mm
Air pump suggestion: Air pressure and capacity: ≥0.027kPa, 27L/min

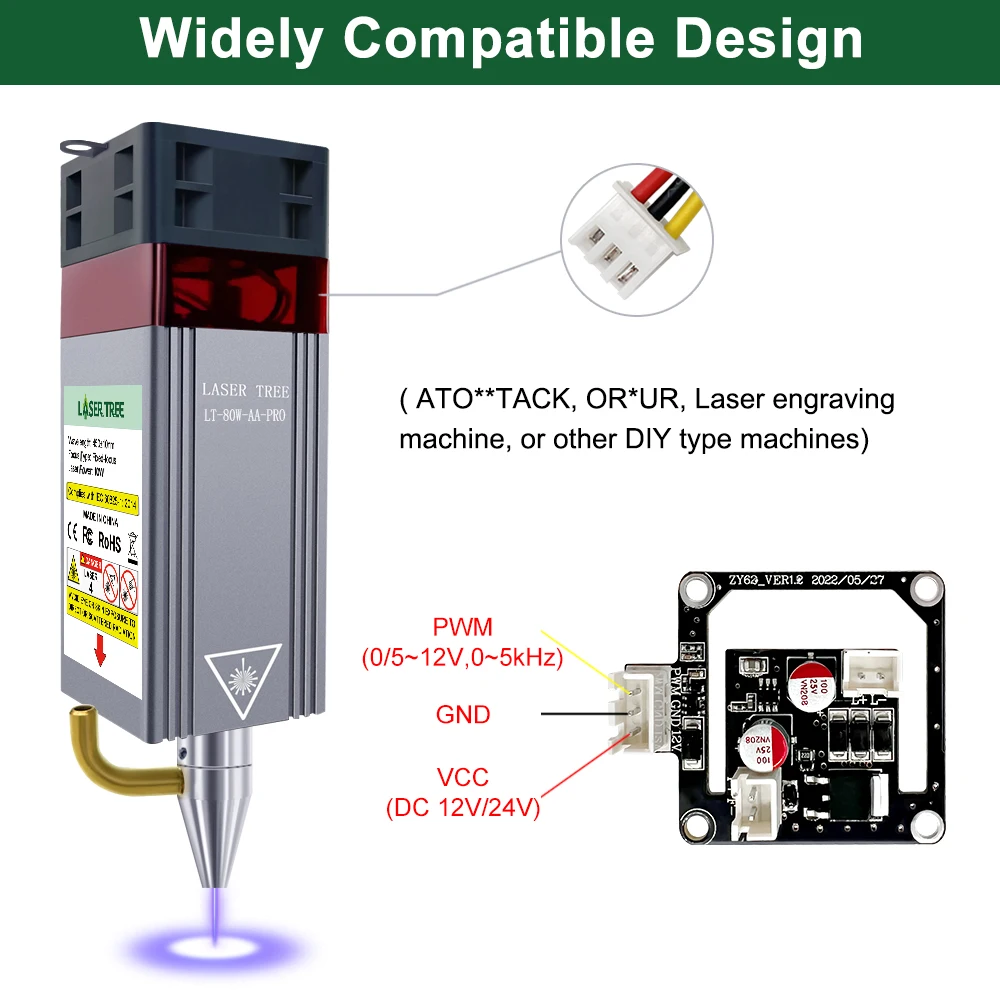

Widely Compatible Design

LT-80W-AA-Pro laser module can be installed on Z*aitu,O*tur,Tw* Trees,S*ulpful9, Xtool, A*omstack and other models of DIY laser engraving machines.

(If you are not sure if it is compatible, please send us a picture of your machine’s contro board, we will provide you with a connection diagram.)

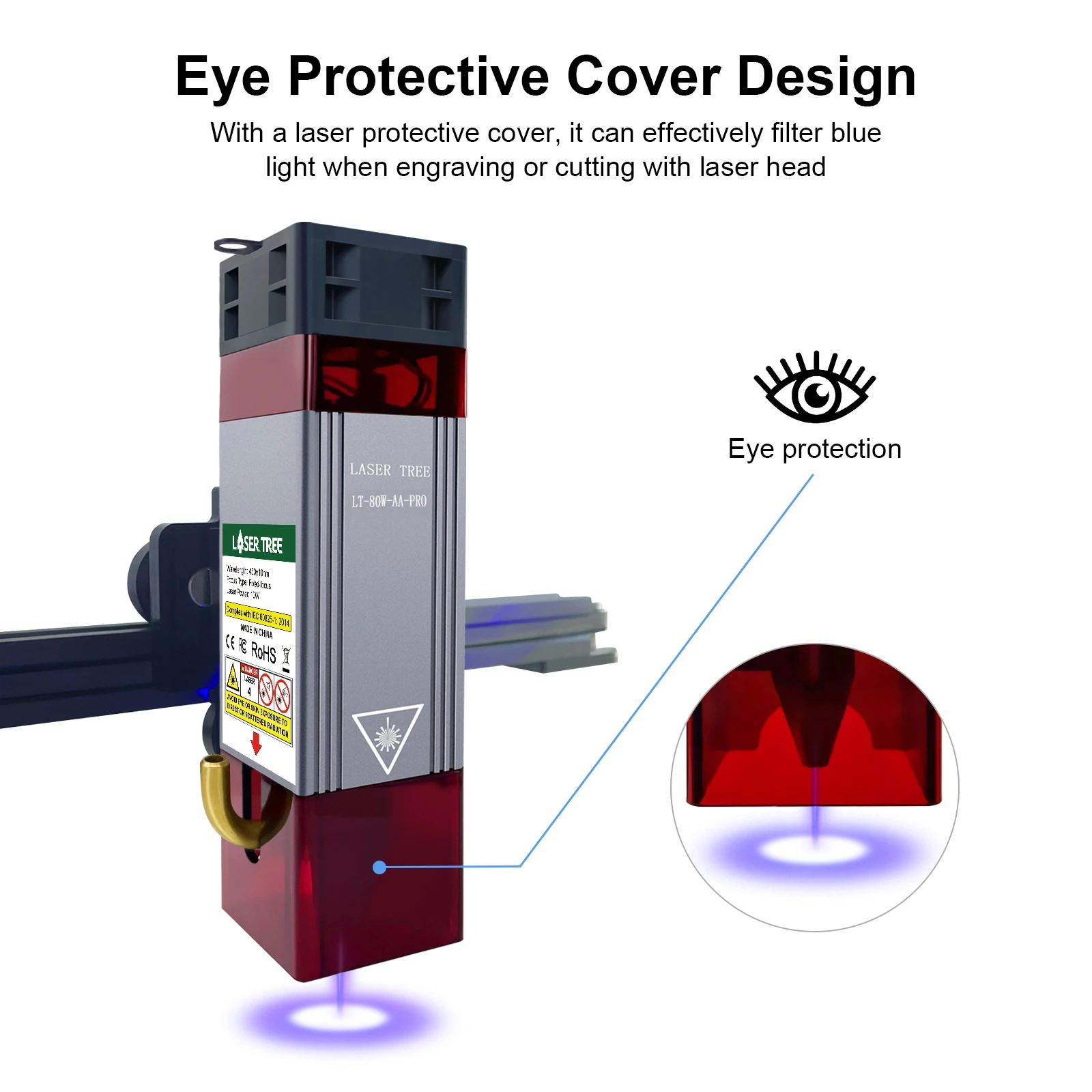

Eye Protective Cover Design

With a laser protective cover, it can effectively filter blue light when engraving or cutting with laser head.

Provide Spare Protection Window Piece

Debris and fumes from the laser cutting process are blown onto the lens, providing a spare lens for better cleaning and replacement.
