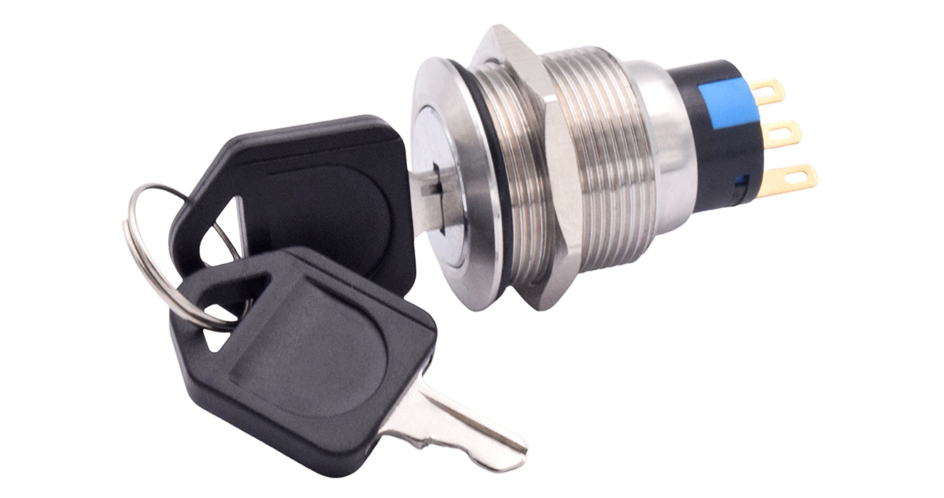

16mm 19mm 22mm Waterproof Metal Rotary Key Selector Switch 2 3 Position Stainless Steel Push Button Lock Switch Latching 1NO1NC

YIDI 16mm 19mm 22mm Waterproof Metal Rotary Key Selector Switch 2 3 Position Stainless Steel Push Button Lock Switch Latching 1NO1NC

Please note that our switch is extraction 0&1: The key can be pulled out when switch both in and off

If need extraction only on 0, feel free to contact us.

Harness Connector with cable for button switch Key switch

Specification:

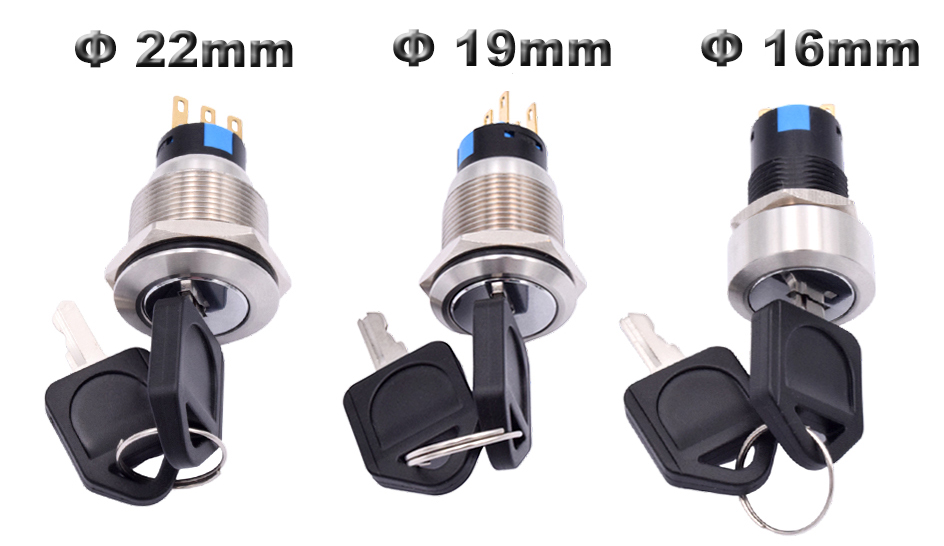

Mounting Hole Diameter: 16mm/19mm/22mm
Material: Stainless Steel
Rating: 3A/250V

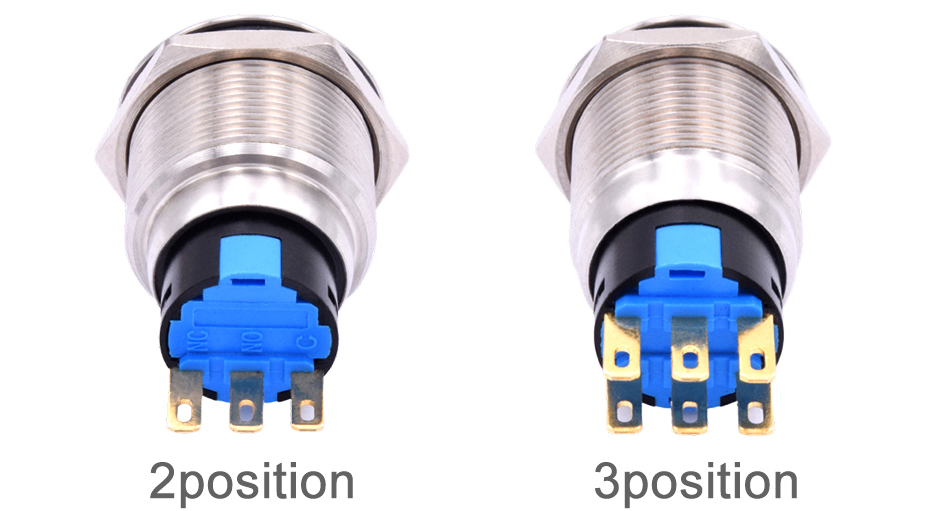

Position: 2 postion(3pins)/ 3 position(6pins)
Switch Function: Latching

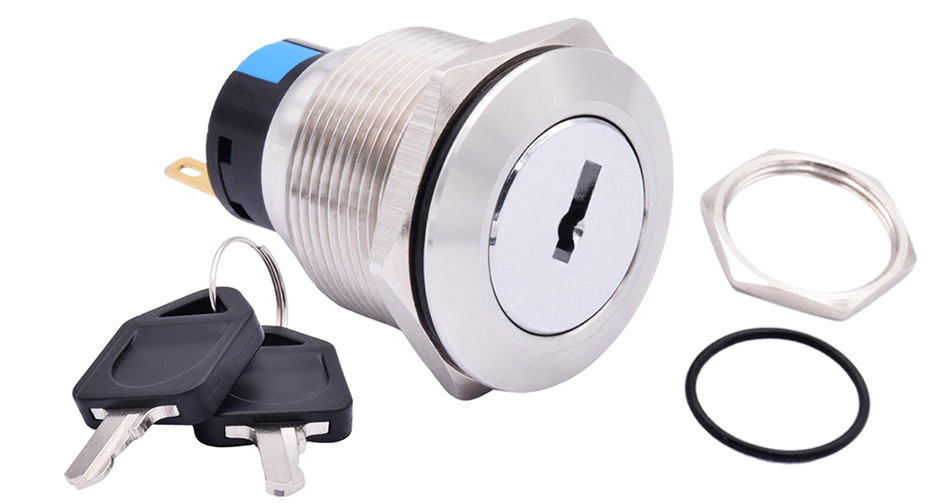

Packing: 1 switch + 2keys + 1 o ring + 1 nut

Note:

Customization service is available, feel free to contact us then.

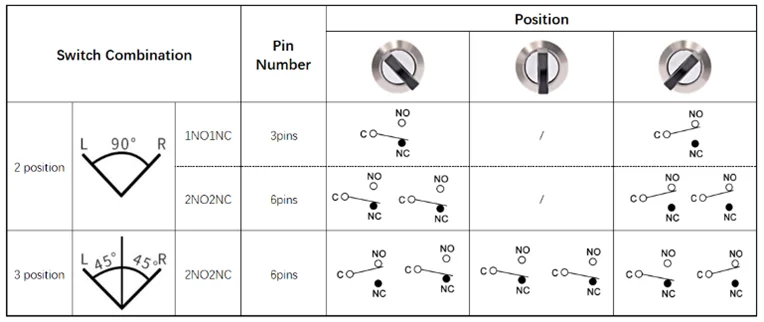

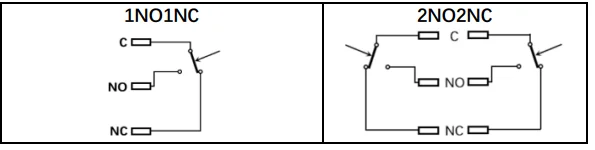

Switch Inner Circuit Diagram

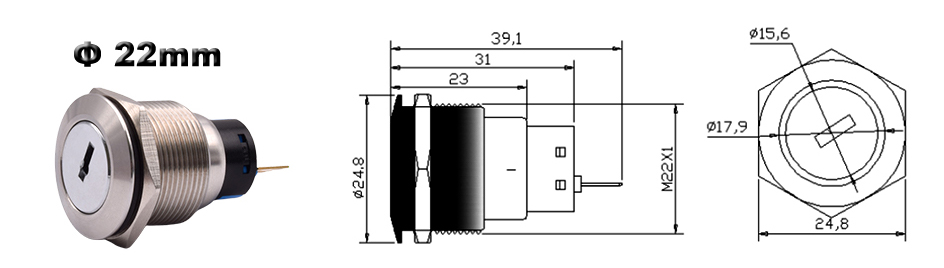

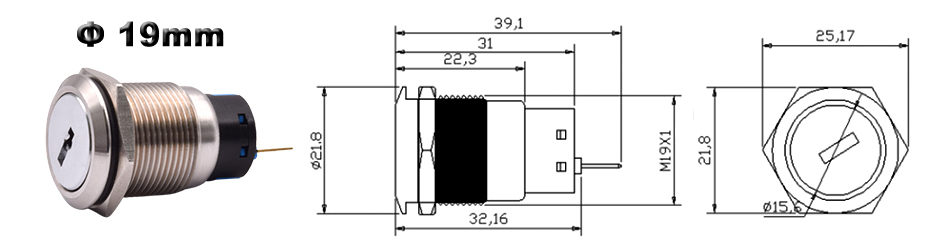

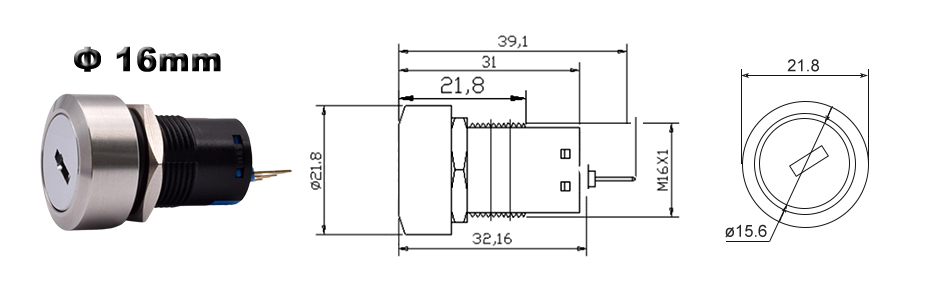

Dimension

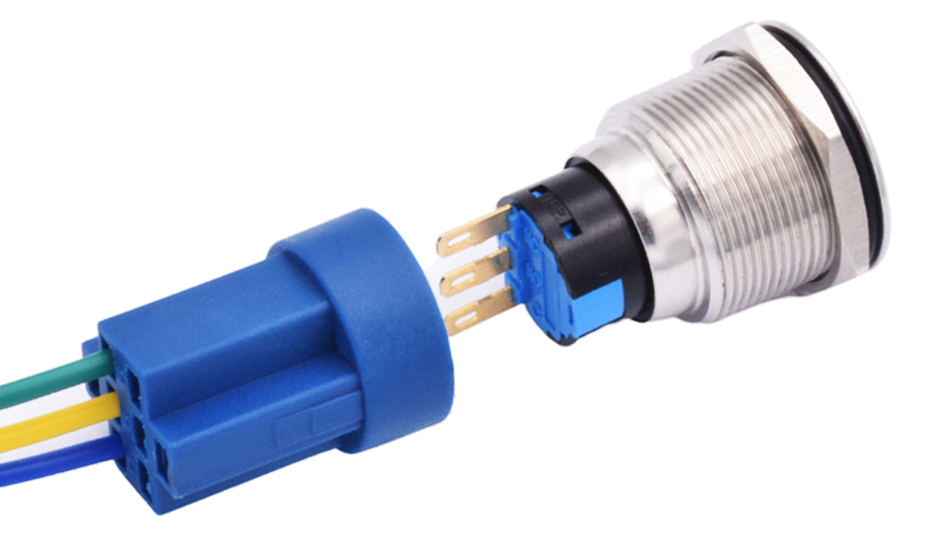

Harness Connector with cable for button switch Key switch

Easier & Fast Using
