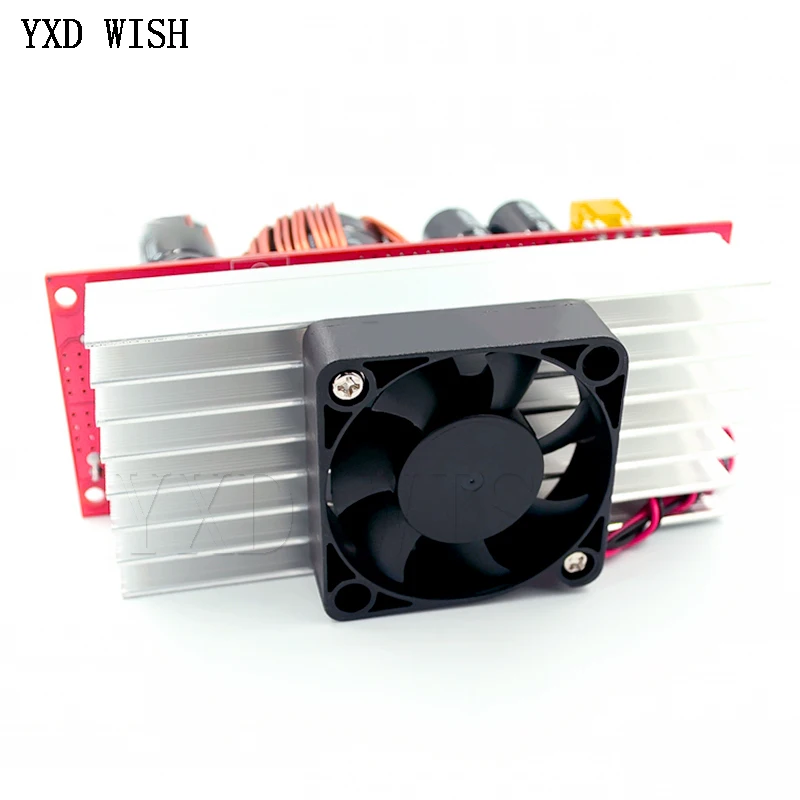

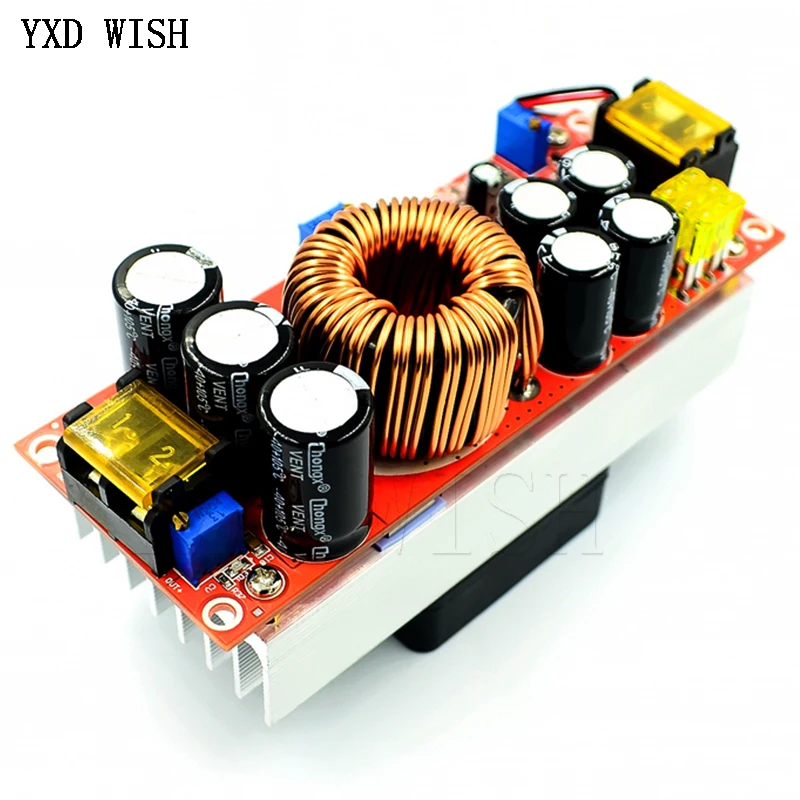

1200W/1800W DC Converter Boost Car Step-up Power Supply Module 20A 40A 20A Voltage Converter CV Boost Converter Regulator

1200W/1800W DC Converter Boost Car Step-up Power Supply Module 20A 40A 20A Voltage Converter CV Boost Converter Regulator

1200W

Specification:

Input voltage: 8-60V

Input Current: 20A

Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)

Output voltage: 12-80V continuously adjustable

Output Current: 20A MAX Over 15A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)

Constant Range: 0.5-20A

Output Power:

Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W,

Enter 36V * 20A = 720W, input 48V * 20A = 960W, input 60V * 20A = 1200W

If you need more power, you can use two modules in parallel, such as the output to 30A, two modules can be used in parallel,

The current per module can be adjusted to 15A.

Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)

Operating frequency: 150KHz

Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure related)

Overcurrent protection: Yes (with reduced flow adjustment, adjustable output current limit, current exceeds the current limit, the output current is automatically reduced to a minimum 5A, vary according to the nature of the load current will be.)

Short circuit protection: Yes (input 20A fuse) double short circuit protection, the use of more security.

Input reverse polarity protection: None, (if necessary, please enter the string into the diode)

Output Counter filling: Yes, for charging plus blocking diode is not required.

Installation: four 3mm screws

Connection: solderless terminals output

Package Contents:

1 x1200W 20A DC Converter Boost Power Supply Module 8-60V 12v Step-up12-83V 24v 48v

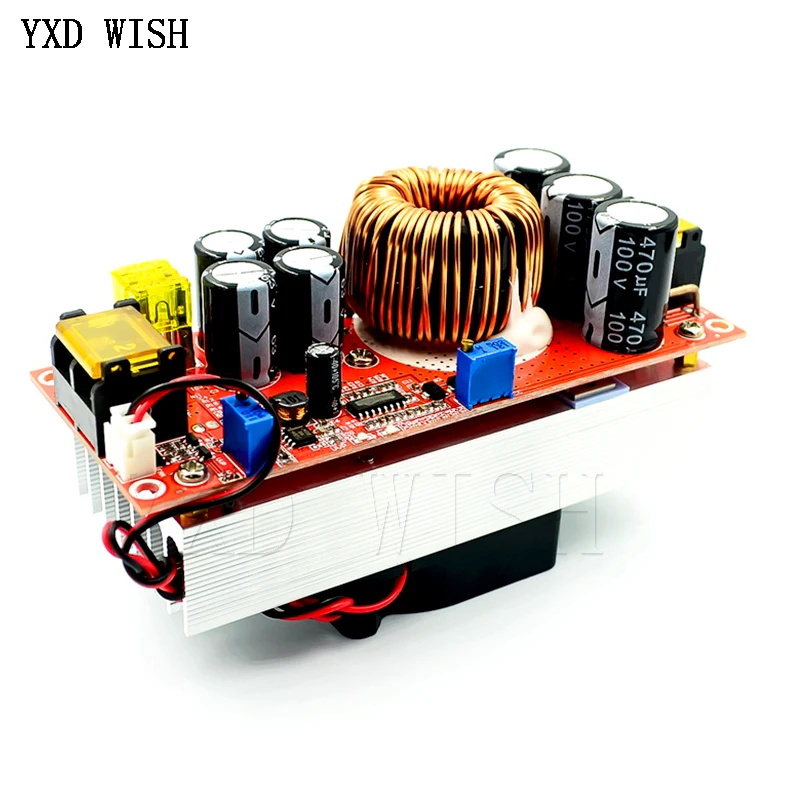

1800W Specification:

Module name: 1800W boost constant current module

Module nature: non-isolated boost module (BOOST)

Input voltage: DC10-60V

Input current: 10-30V input voltage, maximum current 30A

31-60V input voltage, maximum current 25A

Static working current: 15mA (12V liters 20V, the higher the output voltage, the static current will increase)

Output voltage: 12-90V continuously adjustable (default output is adjusted to 19V shipment, please adjust to other voltage values. If you have a multimeter buyer can adjust it)

12-90V fixed output (for volume customers)

Output current: 20A MAX More than 15A, please strengthen the heat dissipation (related to the input and output voltage difference, the larger the differential pressure, the smaller the output current)

Constant current range: 0.8-20A (+/-0.3A)

Input anti-reverse connection: Yes (150A power MOS anti-reverse)

Low battery protection: self-recovery (8-50V adjustable)

Working temperature: -40~+85 degrees (enhance heat dissipation when the ambient temperature is too high)

Working frequency: 150KHz

Conversion efficiency: 92%-97% (efficiency is related to input, output voltage, current, differential pressure. Low differential pressure)

Input overcurrent protection: Yes (input over 35A, automatic protection, power does not boost)

Short circuit protection: Yes (input 30A fuse) Double short circuit protection, safer to use.

Input reverse connection protection: Yes (150A power MOS tube anti-reverse. Can be reversed for a long time)

Output power: = input voltage * 30A, such as: input 12V * 30A = 360W The maximum power when inputting 12V is 360W

Input voltage *30A For example: input 24V * 30A = 720W, that is: the maximum power is 720W when inputting 24V

Power description:

Since the input current is 30A at 10-30V and the input current is 25A at 31-60V, the output power is related to the input voltage. The higher the input voltage, the higher the power.

(Input voltage * input current is equal to the whole machine power) For example, the input 12V*30A power is 360W. The input 24V*30A is 720W. When the input voltage is 36V, the input current is 25A. The maximum power is 900W.
