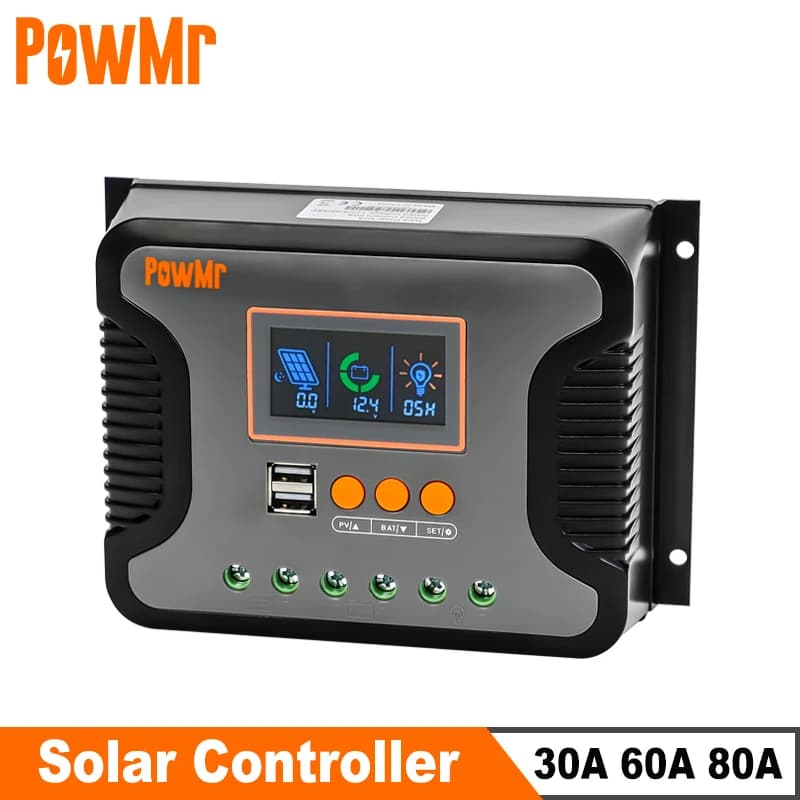

PowMr PWM 80A 60A 30A Solar Charge Controller 12V 24V 36V 48V Lead-Acid Lithium Battery Charger Max PV 100V Dual Control Mode

PowMr PWM 80A 60A 30A Solar Charge Controller 12V 24V 36V 48V Lead-Acid Lithium Battery Charger Max PV 100V Dual Control Mode

Features:

* Compatible with lithium-ion and lead-acid battery, support user-defined batteries.

* Automatic identification of 12V/24V/36V/48V system voltage.

* A variety of protection functions to ensure the normal operation of the device and extend the battery life.

* Natural air cooling heat dissipation, to achieve totally silent operation

* The LCD screen enables real-time monitoring and parameter configuration.

* Small size, light weight, easy and quick installation.

* Built-in 2 USB ports with output of 5V and 2A.

* User friendly setup, fast and easy commissioning via front panel LCD.

Note:

Do not charge Li-iron batteries if the battery temperature is below 0°C.

UPGRADED SOLAR CHARGE CONTROLLER:

Auto detect 12V 24V 36V 48V system, Max PV input voltage 100 volts, Max. Input Power: 720W-2880W;Compatible with lithium-ion and lead-acid battery, support user-defined batteries, Built-in Dual USB output 5V/2.5A (max), charging for your mobile phone, tablet, PC.

3-STAGE PWM Technology:

The controller is equipped with advanced smart PWM technology with high charging efficiency, through three stages charge modes(Bulk, boost, float), fast, efficientand safe battery charge, effectively extend the battery life; combination of solar light control and time control, freely adjust the load enable duration.

14 TYPE BATTERY COMPATIBILITY :

Compatible with various 12v 24V 36V or 48v batteries, such as SEL, USE, FLD, GEL, LiFePO4 and ternary lithium battery; with clear and special icons for various Lithium batteries on the LCD screen, easy select battery type; support user-defined batteries and calibrate battery voltage.

EASY-READ BACKLIT DISPLAY:

Built-in Backlight LCD Screen, real-time monitor and control charging: charging current, generated energy, temperature, battery voltage, and error codes, fast and easy set and commiss parameter; No matter how users switch display screen, it will automatically return to default display screen after no button is pressed for 100 seconds.

MULTIPLE PROTECTIONS:

Equipped with against overheating, automatically stops charging, against output short circuit, against over discharging, against reverse polarity connection and Limit the maximum charging current protection, ensure safe to use; natural convection, cool air heat dissipation, complete silence.
