Servo RC 1/10 High Speed Metal Gears Mini Servomotor 9g 15kg 20kg 25kg 30kg Servo for RC 1/8 1/12 1/10 RC Car

Features:

- High precision Gears.

- High performance digital servo.

- Low noise.

- Large Torque.

Specifications:

Brand：Surpass Hobby

S0009M

Torque: 1.1 kgf.cm at 4.8V; 1.4 kgf.cm at 6V;

No load speed: 0.11s/60 ° at 4.8V; 0.09s/60 ° at 6V;

Product weight: 13.5g (0.47oz);

Boundary dimension: 23 * 12 * 27.3mm (0.92 * 0.48 * 1.07inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 μ s / 333hz;

Motor type: core motor;

Gear type: metal gear;

S0017P

Torque: 1.5kgf.cm at 4.8V; 1.8kgf.cm at 6V;

No load speed: 0.19s/60° at 4.8V; 0.16s/60° at 6V;

Product weight: 15g(0.53oz);

Boundary dimension: 28*13.2*29.6mm (1.1*0.52*1.2 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 μ s / 333hz;

Motor type: DC motor;

Gear type: Plastic gear;

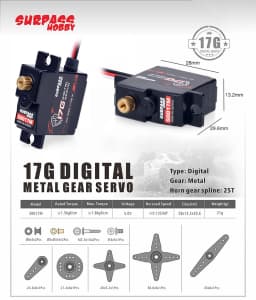

S0017M

Torque: 1.5kgf.cm at 4.8V; 1.8kgf.cm at 6V;

No load speed: 0.23s/60° at 4.8V; 0.20s/60° at 6V;

Product weight: 21g (0.74oz);

Boundary dimension: 28*13.2*29.6mm (1.1*0.52*1.2 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 μ s / 333hz;

Motor type: DC motor;

Gear type: Metal gear;

S0025P

Torque: 2.2kgf.cm at 4.8V; 2.3kgf.cm at 6V;

No load speed: 0.08s/60° at 4.8V; 0.06s/60° at 6V;

Product weight: 20g(1.05oz);

Boundary dimension: 36*15.4*31.1mm (1.41*0.60*1.22 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 μ s / 333hz;

Motor type: core motor;

Gear type: Plastic gear;

Bearing type: 2BB;

S0025M

Torque: 2.2kgf.cm at 4.8V; 3.0kgf.cm at 6V;

No load speed: 0.08s/60° at 4.8V; 0.06s/60° at 6V;

Product weight: 21g(1.05oz);

Boundary dimension: 36*15.4*31.1mm (1.41*0.60*1.22 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 μ s / 333hz;

Motor type: core motor;

Gear type: metal gear;

Bearing type: 2BB;

S0300P

Torque: 3.5kgf.cm at 4.8V; 5kgf.cm at 6V;

No load speed: 0.20s/60° at 4.8V; 0.18s/60° at 6V;

Product weight: 37g (1.3oz);

Boundary dimension: 40.6*20.2*36.0mm (1.60*0.78*1.42 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 μ s / 333hz;

Motor type: DC motor;

Gear type: Plastic gear;

Bearing type: 2BB;

S0600P

Torque: 5.5kgf.cm at 4.8V; 6.5kgf.cm at 6V;

No load speed: 0.18s/60° at 4.8V; 0.16s/60° at 6V;

Product weight: 37g (1.3oz);

Boundary dimension: 40.7*20.2*36.6mm (1.60*0.79*1.44 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 μ s / 333hz;

Motor type: DC motor;

Gear type: Plastic gear;

Bearing type: 1BB;

S0600M

Torque: 7kgf.cm at 4.8V; 8kgf.cm at 6.0V;

No load speed: 0.20s/60° at 4.8V; 0.18s/60° at 6V;

Product weight: 37g (1.3oz);

Boundary dimension: 40.6*20.2*36.6mm (1.60*0.78*1.44 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 μ s / 333hz;

Motor type: DC motor;

Gear type: Metal gear;

Bearing type: 2BB;

S0900M

Torque: 10kgf.cm at 4.8V; 14kgf.cm at 6.0V;

No load speed: 0.21s/60° at 4.8V; 0.19s/60° at 6V;

Product weight: 55g (1.94oz);

Boundary dimension: 36.6*20.2*40.7mm (1.44*0.79*1.60 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520 μ s / 333hz;

Motor type: DC motor;

Gear type: Metal gear;

Bearing type: 2BB;

S1500M

Torque: 15kgf.cm at 6.0V; 23kgf.cm at 7.4V;

No load speed: 0.20s/60° at 6.0V；0.18s/60° at 7.4V

Product weight: 58g(2.11oz)

Boundary dimension:40.4*20.0*38.6mm（1.59*0.79*1.51 inch）

Operating voltage: 6.0~7.4VDC

Working frequency: 1520 μ s / 333hz;

Motor type: DC motor;

Gear type: Metal gear;

Bearing type: 2BB;

S2000ML

Stall Torque: 20Kgf.cm at 7.4V;

No Load Speed：0.2s/60° at 7.4V；

Weight : 58g(2.11oz);

Outside Dimension: 40.4*43.5*20mm;

Working Voltage: 7.4VDC;

Working Frequency:1500μs/333Hz；

Gears Type : Metal Gear

Bearing Type:2BB

S1600BL

Stall Torque: ≥17kgf.cm at 7.4

Operating Voltage: 6~7.4V DC

No Load Speed： ≤0.07 sec/60° at 7.4

Operating Travel Angle : 90° ±10°(1000~2000 us)

Mechanical Limit Angle : 180°±10°（500~2500us）

Weight : 58±0.5 g

Case Material : Metal Casing

Gear Set Material : Metal Gears

Motor Type : Brushless motor

S1600M

Stall Torque: ≥16kgf.cm at 7.4V

Operating Voltage: 7~7.4V DC

No Load Speed： ≤0.08 sec/60° at 7.4V

Operating Travel Angle : 90° ±10°(1000~2000 us)

Mechanical Limit Angle : 180°±10°（500~2500us）

Weight : 58±0.5 g

Case Material : Metal Casing

Gear Set Material : Metal Gears

Motor Type : Coreless motor

S3000BL

Stall Torque: ≥32kgf.cm at 7.4V

Operating Voltage: 6.0~8.4V DC

No Load Speed: ≤0.12 sec/60° at 7.4V

Rated Torque: 7kgf.cm at 7.4V

Operating Travel Angle : 180° ±10°(500~2500 us)

Mechanical Limit Angle : 210°

Weight : 70±0.5 g

Rotating Direction* : CCW（1000→2000μs）

Case Material : Aluminium alloy Casing

Gear Set Material : Metal Gears

Motor Type : Brushless Motor

S2400BL

Stall Torque: ≥25kgf.cm at 7.4V

Operating Voltage: 6.0~7.4V DC

No Load Speed： ≤0.12 sec/60° at 7.4V

Operating Travel Angle : 180° ±10°(500~2500 us)

Mechanical Limit Angle : 210°

Weight : 64±0.5 g

Rotating Direction* : CCW（1000→2000μs）

Case Material : PA+30%GF/Aluminium alloy Casing

Gear Set Material : Metal Gears

Motor Type : Brushless Motor

S2400M

Stall Torque: ≥24kgf.cm at 7.4

Operating Voltage: 6.0~7.4V DC

No Load Speed： ≤0.12 sec/60° at 7.4

Operating Travel Angle : 180° ±10°(500~2500 us)

Mechanical Limit Angle : 210°

Weight : 64±1 g

Rotating Direction* : CCW（1000→2000μs）

Case Material : PA+30%GF/Aluminium alloy Casing

Gear Set Material : Metal Gears

Motor Type : Coreless Motor

S2300M

Stall Torque*:7.4V ≥23 Kgf.cm .6.0V ≥20 Kgf.cm

Operating Voltage:6.0~7.4V DC

No Load Speed* :6.0V ≤0.20 Sec/60°; 7.4V ≤0.17Sec/60°

Operating Travel Angle :180° ±10°(500~2500 us)

Mechanical Limit Angle : 360°

Weight : 70±1 g

Case Material :PA+30%GF, Aluminium alloy Casing

Gear Set Material :Metal gear

Motor Type : DC motor

S2500M

Stall Torque: 7.4V ≥28 Kgf.cm .6.0V ≥22 Kgf.cm

Operating Voltage: 6.0~7.4V DC

No Load Speed : 6.0V ≤0.26 Sec/60°; 7.4V ≤0.22Sec/60°

Operating Travel Angle :180° ±10°(500~2500 us)

Mechanical Limit Angle : 360°

Weight : 70±1 g

Case Material :PA+30%GF, Aluminium alloy Casing

Gear Set Material :Metal gear

Motor Type : DC motor

S7000M

Stall Torque: 7.4V ≥70 Kgf.cm .6.0V ≥50 Kgf.cm

Operating Voltage: 6.0~7.4V DC

No Load Speed : 6.0V ≤0.17 Sec/60°; 7.4V ≤0.16 Sec/60°

Operating Travel Angle :180° ±10°(500~2500 us)

Mechanical Limit Angle : 360°

Weight : 203±0.5 g

Case Material :PA+30%GF, Aluminum middle case

Gear Set Material :Metal gear

Motor Type : DC motor

Package Included:

1 x Surpass Hobby Digital Servo

Note:

Only the above package content, other products are not included.

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
