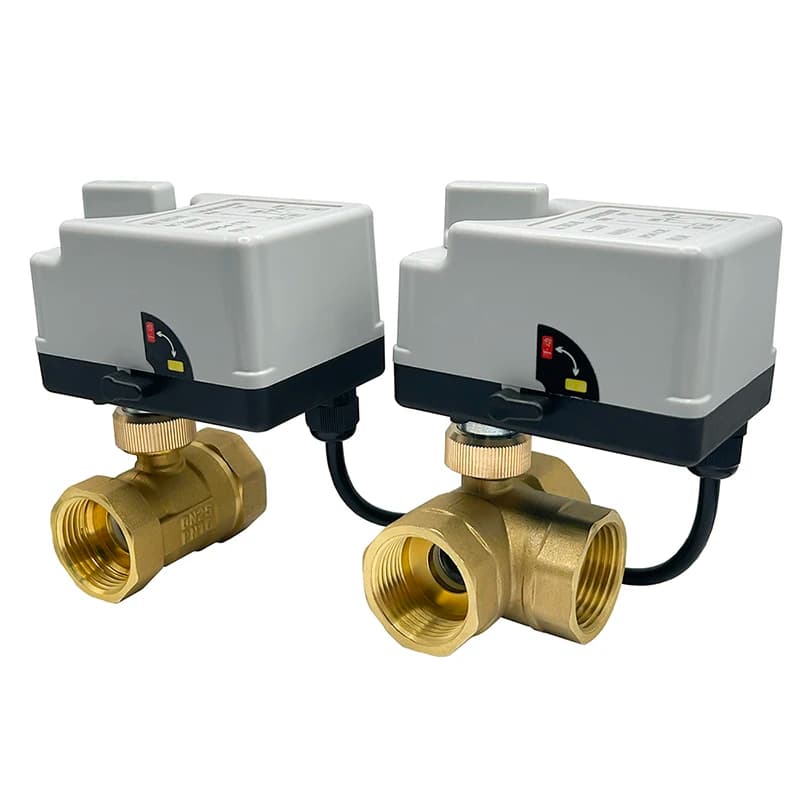

DN15 DN20 DN25 DN50 Brass Motorized Ball Valve 220V 12V 24V 3-Wire 2-Control Electric Actuators with Manual Switch

Dimension: DN15 DN20 DN25 DN32 DN40

Feature: 3-Wire 2-Control

Way: 2 Way /3 Way (3 Way is T type)

Open/Close Time: 8-16 seconds

Maxmum Working Pressure: 1.6 MPa / 232psi;

Medium: Water, Air, Oil;

Voltage: AC220V/DC12V/DC24V

Power: 6W (Only when the valves open and close

Operation: Motor or hand(with manual switch function)

Life Time: 100000 times;

Material: Brass,ABS plastic

Seal Material: EPDM & PTFE;

Enviroment Temperatur :0°~65° in Celsius;

Medium Temperatur: 0°~95° in Celsiu

Protect Class: IP 54

Pay attention to a few points!

1. The valve opening and closing line cannot be charged at the same time, otherwise the motor will be damaged or the work will not be normal!

2. It is not allowed to switch multiple switches in parallel at the same time, otherwise they will be connected in series and abnormal.

3. It is not waterproof and can not be used outside or in humid environment.

This Valve used for heating systems and air-conditioning fan coil systems on-off controlled by the valve and actuator components,actuators driven by a rotary valve ball 90 percent ofmovement.Synchronous motor driven actuator, Built-in limit contacts, enabling the valve in the fully open or fully closed off, the action and stability.

2-way line connection instructions：
Yellow connects the negative pole，Positive pole connected to the blue line valve open, positive pole connected to the brown line valve closed

How to operate manually：First twist the motor side switch to the red area (manual button), then turn the top switch clockwise

Note: If you want to operate automatically, toggle the pointer to the yellow area (automatic button)

3-way line connection instructions：

The yellow wire is the common line, connect to the negative pole（-）

When the L（+） pick the Brown line，A and C are connected,B is blocked

When the L（+） pick the Blue line，A and B are connected，C is blocked

The yellow wire is the common line, connect to the negative pole（-）

When the L（+） pick the Blue line，A and B and C are connected

When the L（+） pick the Brown line，A and C are connected,B is blocked
