7 Inch 1024*600 Screen Display LCD Monitor Driver Control Board Mini HDMI-Compatible For Lattepanda,Raspberry Pi Banana Pi PC

If your graphics card is AMD and there is a screen distortion problem, please don't worry. Set up the graphics card as follows. Here is the setting tutorial:

1.MIRCO USB power supply interface

2.Mini HDMI-Compatibl signal input interface

3.50Pin TTL screen interface

4.Power supply expansion welding interface

When you choose to buy "Only Control Board", please make sure that your screen interface is 50Pin and the resolution is 1024x600. It is not compatible with other specifications of the screen

Product Description:

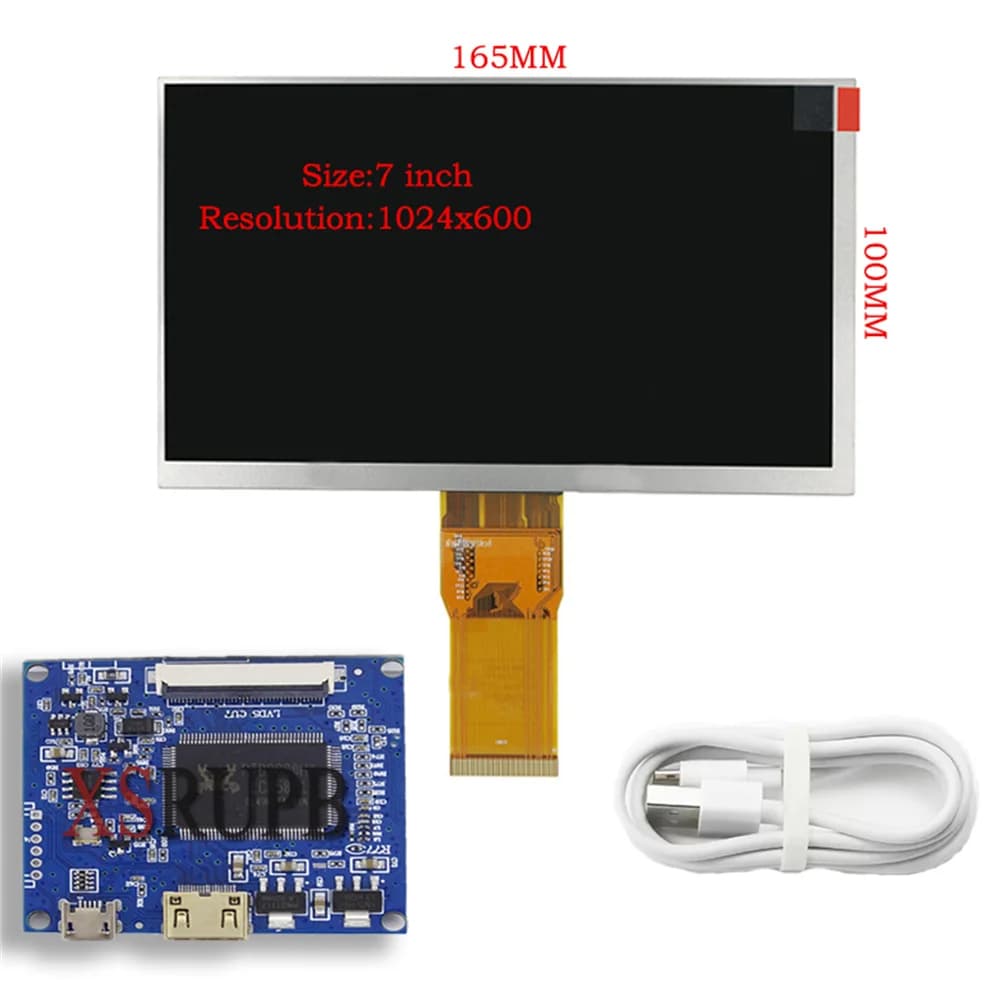

1.Adopts a 7-inch high-definition display with a resolution of 1024x600

1. MIRCO USB power supply interface, 5V standard power supply, need more than 1.5A

2. mini HDMI signal input, and this IC supports HDMI1.2

3.HDMI for high quality MINI gold-plated seat

4.The screen interface adopts high-quality gold-plated connectors

5.The driver board adopts a special circuit design, which can drive the LED backlight within 10V, and supports a maximum current output of 180MA.
