Original Autonics CX6S-2P2 1P2 CT4S-1P2 TCN4H TCN4M TCN4L TCN4S-24R 22R AT8N Temperature Controller PID Thermocouple Input

Original Autonics CX6S-2P2 1P2 CT4S-1P2 TCN4H TCN4M TCN4L TCN4S-24R 22R AT8N Temperature Controller PID thermocouple input

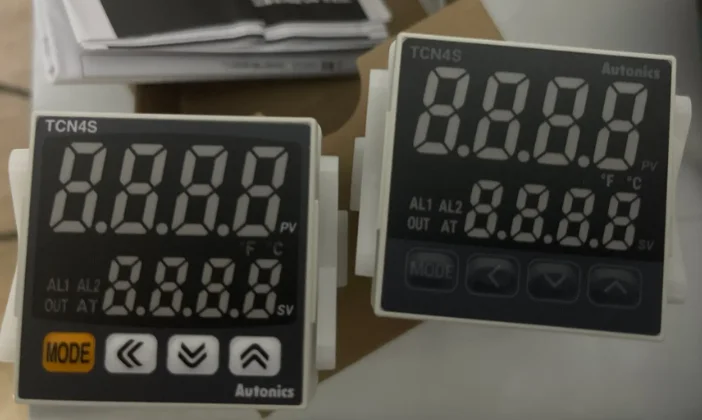

For autonics TCN4S controller, autonics updated the button film. Function is not changed, please note.

Specs:

Display Method:4-Digit 7-Segment LED

Control Method:ON/OFF Control, P, PI, PD, PID Control

Input Specification :Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) ,RTD: DPt100Ω, Cu50Ω

Sampling Cycle:100ms

Control Output:Relay(250VAC~ 3A) or SSR Drive(12VDC ) [ON/OFF]

Option Output: 2 Alarm Output

Power Supply:100-240VAC ,50/60Hz

Dimensions: DIN W48 X H48mm

MAIN FEATURES

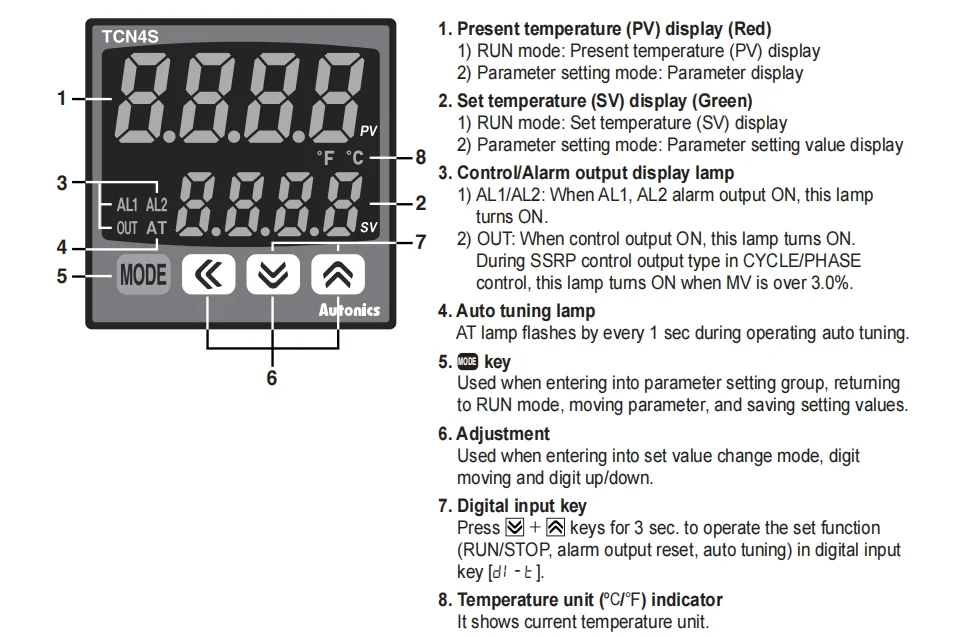

1.Dual Digital Display (PV/SV)

2.100ms High-Speed Sampling Rate And ±0.5% Display Accuracy

3.Switch Between Relay Output And SSR Drive Output

4.Compact Design With Large Display Panels For Easier Reading

PACKING LIST

1 X Autonics TCN4S-24R Temperature Controller

1 X User Manual
