8Mp 4K IMX179 Sensor USB Interface Camera 76 Degree HD 3264 X 2448 Mjpeg Autofocus USB2.0 Mini Webcam Module For Windows Android

8Mp 4K IMX179 Sensor USB Interface Camera 76 Degree HD 3264 X 2448 Mjpeg Autofocus USB2.0 Mini Webcam Module For Windows Android

Support OEM Order, Drop Shipping and wholesale order:

1.Customizable USB Camera Module,DVP Camara Module and MIPI Camara Module;

2.Pixel Optional : 0.3MP，1MP，2MP，5MP，8MP and 13MP;

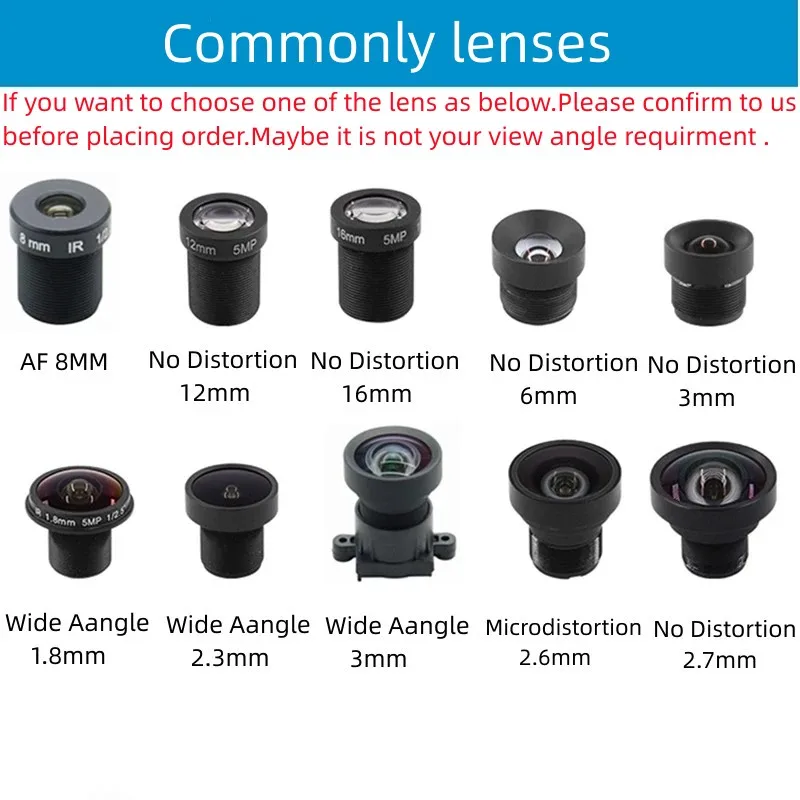

3.Viewing angle Optional:  68°，80°，90°，100°, 120°, 150°, 170° or as  per your request;

4.With 1m USB Cable;

5.Customized logo ≥100PCS

6.Customized packaging ≥100PCS;

7.Graphic customizationb≥100PCS.

Product parameters:

CMOS/photosensitive model: IMX179

Photosensitive size: 1/3.2 inch

Single pixel size: 1.4um*1.4um

With 1m(2/3m optional) USB Cable

Photosensitive signal-to-noise ratio: TBD

USB interface type: USB2.0

Common Resolutions & Frame Rates:

3264*2448/15fps.MJPG

2592*1944/15fps.MJPG

1920*1080/30fps;MJPG

1600*1200/30fps;MJPG

1280*720/30fps;MJPG

800*600/30fps;MJPG

640*480/30fps;MJPG

960*540/30fps;MJPG

Working voltage and current: 5V*110mA-190mA

Adapt to the working environment temperature: 0 to 60 degrees

Storage temperature, humidity: minus 30 to plus 80 degrees

Support system: Microsoft windows2000 sp2/ XP/Vista/windows7/windows8/windows10 etc.

Mac-OSx10.4.8 or above (Compliant with UVC protocol)

Linux,Android, etc. (Compliant with UVC protocol)

Application fields: Express station face camera. Scanning camera. High camera. Mobile OTG. Access control attendance, advertising machine, face recognition. Conference video. Industrial vision. Visual inspection. USB microscope. Express cabinet camera. Smart vending machine camera. Electronic weighing item identification. Dishes identification. USB Raspberry Pi camera. Etc...

Support driver-free protocol: USB Video Class (UVC)

Support OTG protocol: USB 2.0 OTG

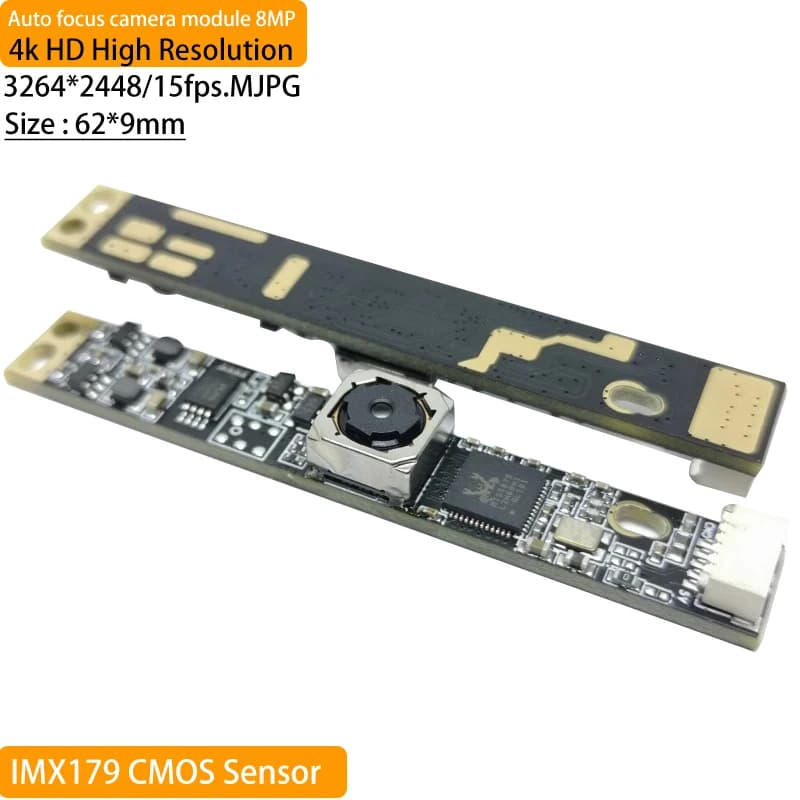

PCB (board frame) size: 60*9mm

Power supply mode: USB BUS POWER (DC 5V)
