1P 2P 3P 4P DZ47 3A-125A AC 230V 400V C Type Mini Circuit Breaker MCB Short Overload Protector Din Rail Mount Breaking Capacity

We can offer OEM service to manfacture the circuit breaker with your logo,

if you need,feel free to contact the seller

Application

C45N series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product is novel in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly and it's installation uses with guide, it's case and items are adopted with high fire-retartant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz, single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case.IEC60898-1

Specificaatios

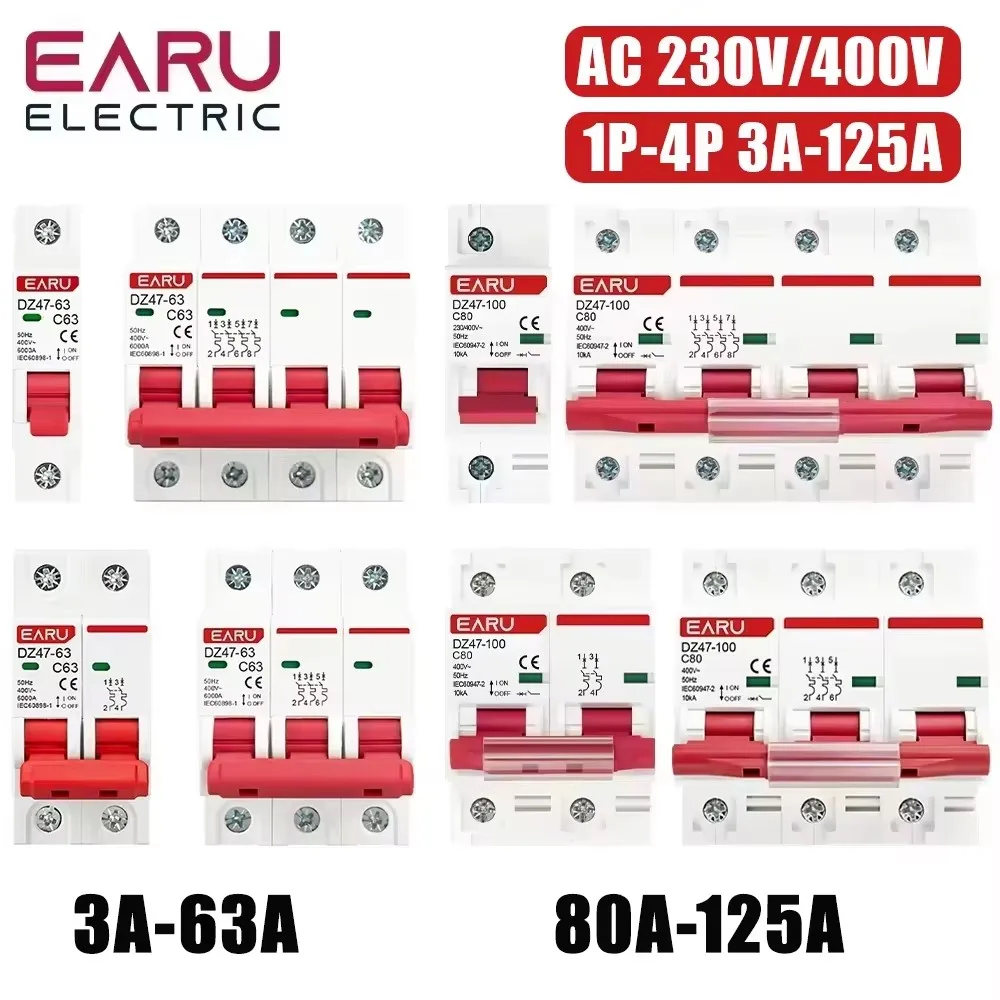

Poles:1P,2P,3P,4P

Rated Current (In) : 3A-125A

Rated Voltage (Ue):1P:230/400V~;2P-4P:400V of 1P:240/415V~;2P-4P:415V

Working Frequency:50/60Hz

Tripping Curves:C

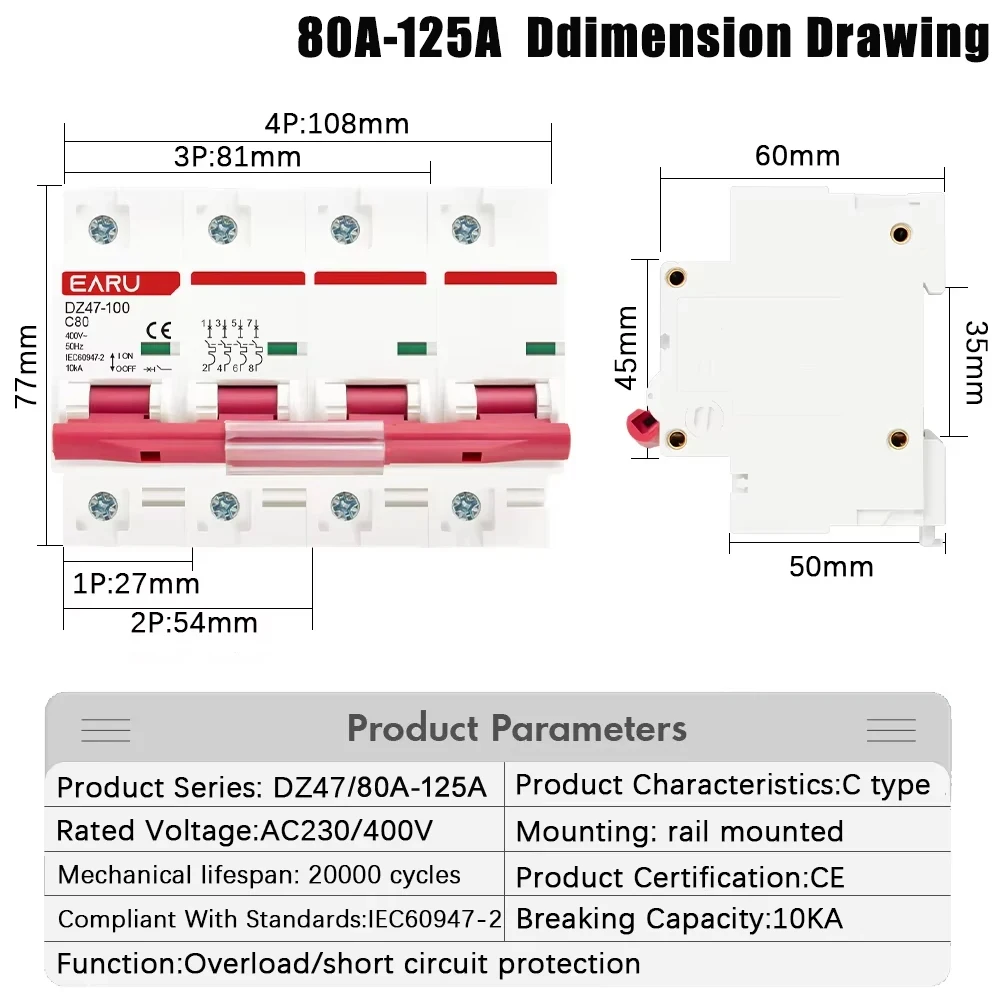

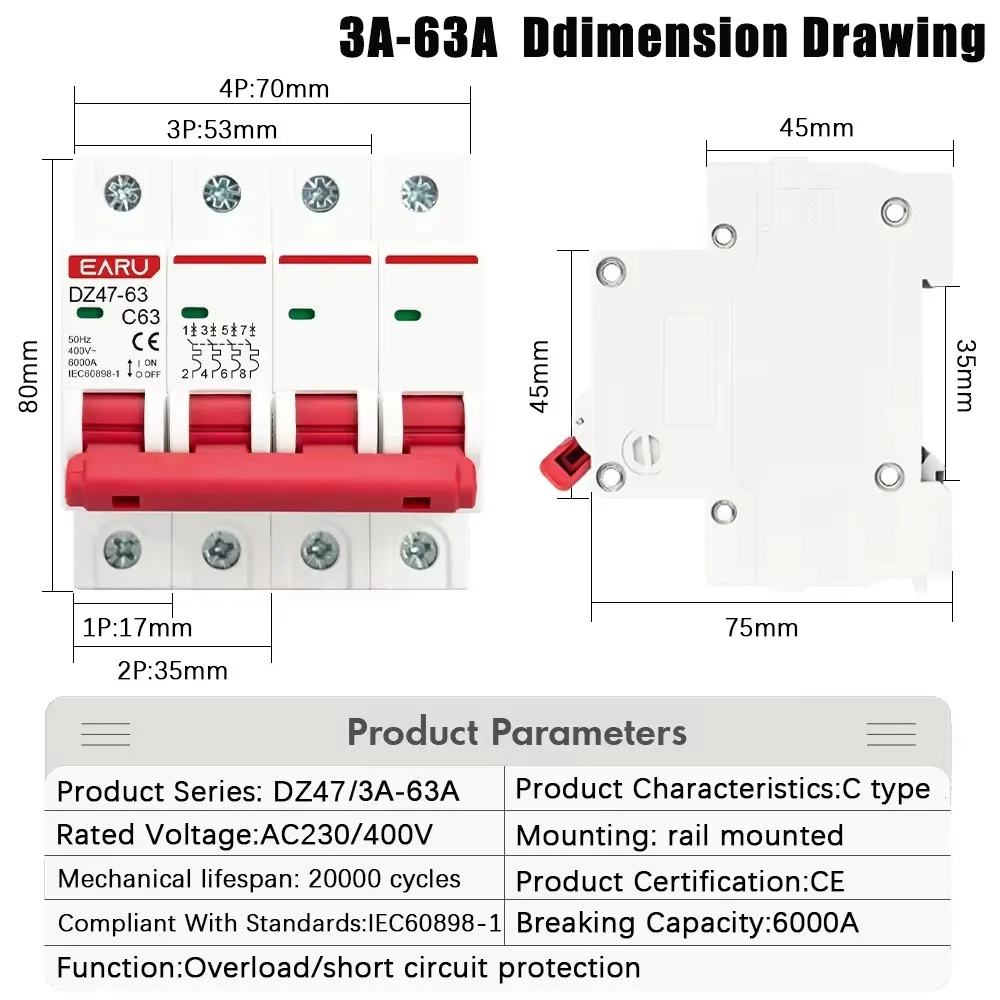

Breaking Capacity:3A-63A 6kA / 80A-125A 10kA

Mechanical Life:20000 time

Electrical Life:6000 time

As Per Instantaneous Release Type:C type (5ln~10ln)
