1.Product Name:

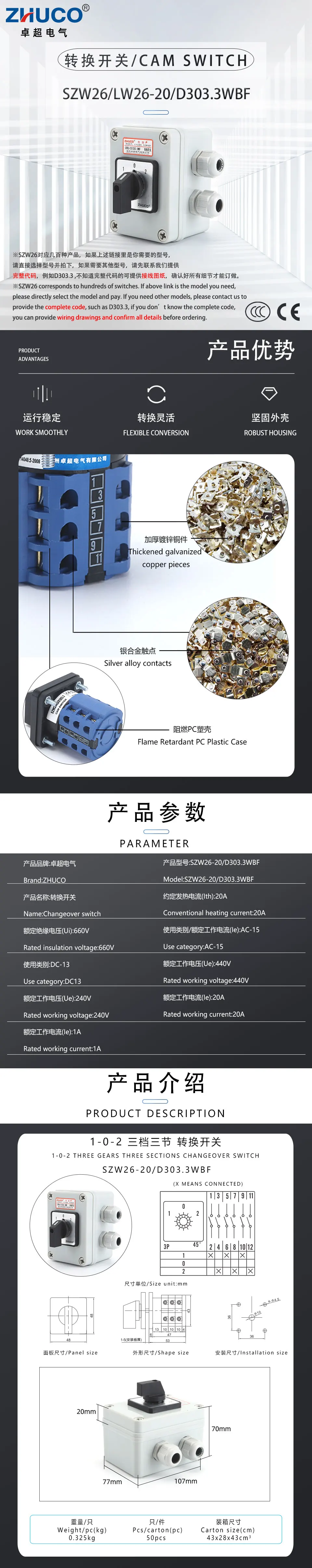

   SZW26/LW26-20/D303.3WBF 20A 3 Phase Universal Rotary Changeover Cam Switch

2.Specification:

   Lacthing Selector ; Ui: 660V, Ith: 20A ;  3 Phase 12 Terminals

   3 Position (1-0-2)

3.Rating :

   AC-15: Ue 440V Ie 20A

   DC-13: Ue 240V Ie 1A

4.which terminal will be connected in different position , please read the wiring diagram as a reference.

  Position 1 : 1-2 , 5-6 , 9-10

   Position 0 : All terminal disconnected

   Position 2 : 3-4 , 7-8 , 11-12

5.Material:

 Flame retardant PC material, high temperature resistance;  Premium copper parts with silver alloy point.

6.Suitable for the thickness between 1mm to 5mm of the mounting board.

7.Ideal choice for electrical wiring in the power switches, speed switches and asynchronous motor for their start-up and reversing, also can make the conversion of the control circuit.

8.Widely used as circuit control switches, test equipment switches, motor control switches and master control switches, signal transfer switches, or change-over switch for electric welding machinery and other equipment.
