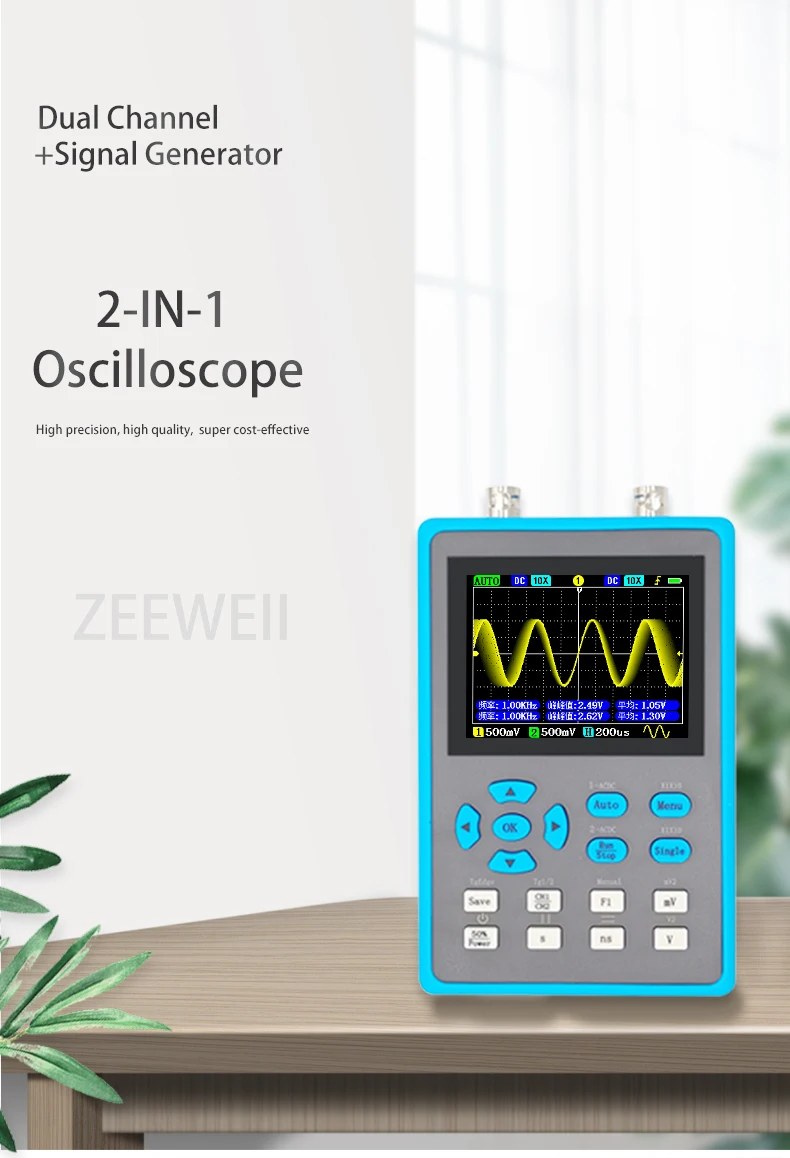

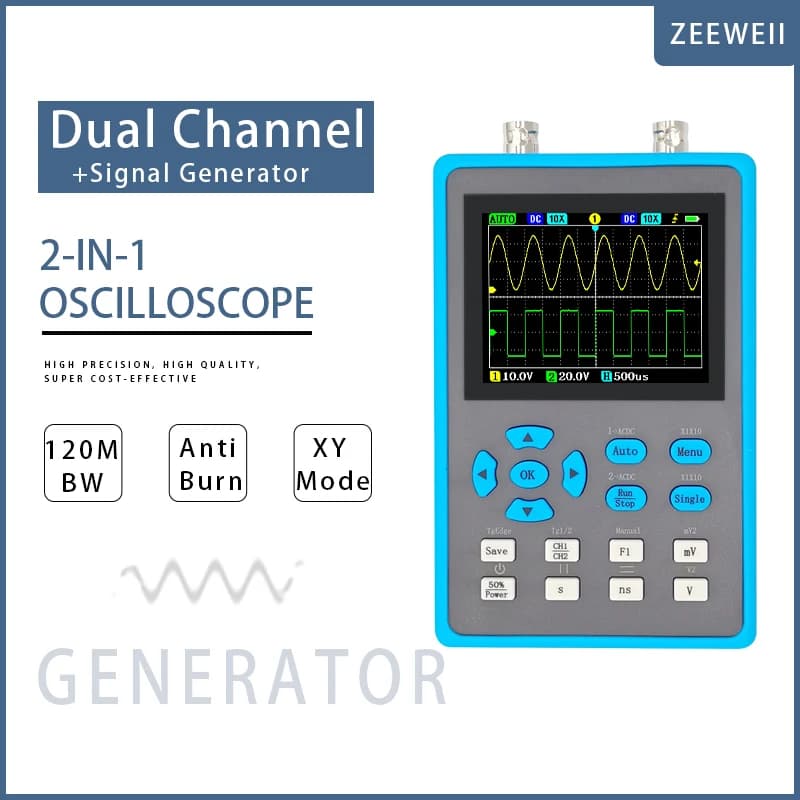

ZEEWEII DSO2512G 2.8 Inch Handheld Digital Oscilloscope 120M Bandwidth Dual Channel Oscilloscope Signal generator XYmode

This DSO2512G 120M bandwidth oscilloscope with powerful functions, like adopt ARM and FPGA chip collocation, also can output Various waveforms of 2.5V amplitude such as sine waves, half waves and so on. Come on and try it, it will not let you down.
​

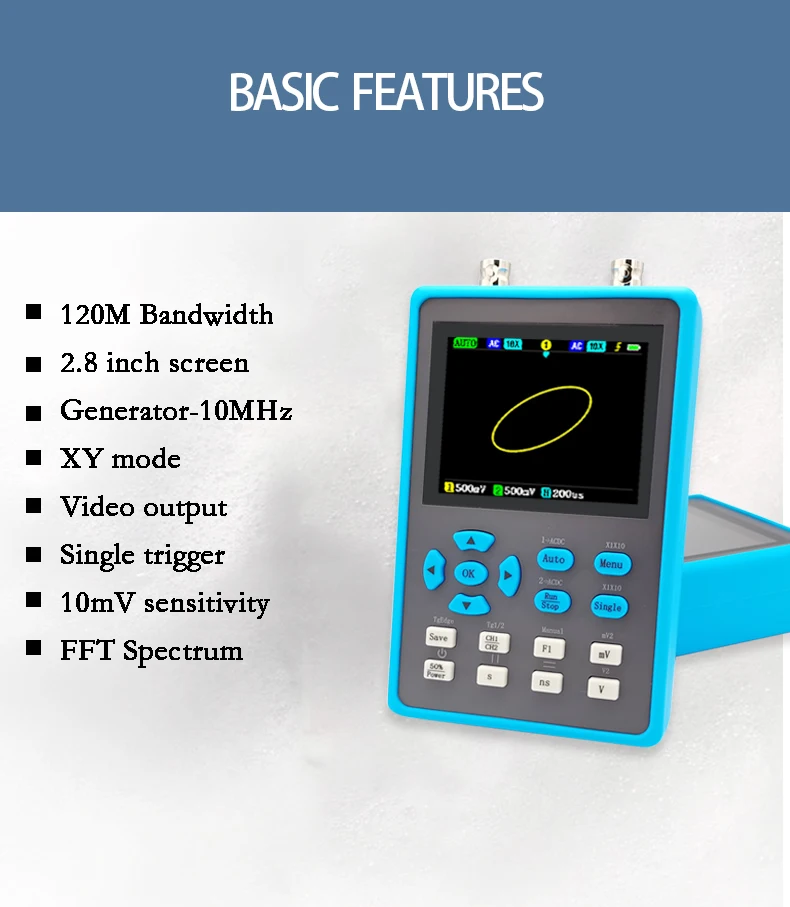

Features:
​Adopts ARM and FPGA chip collocation, provides high-speed signal acquisition and high-speed data processing to give you a smooth use experience and rich functions.
​Wide applications: can be used for such as sin-gle-chip debugging, car maintenance, home appliance maintenance,DIY debugging, electronic competition, power supplys debugging, frequency converter and so on.

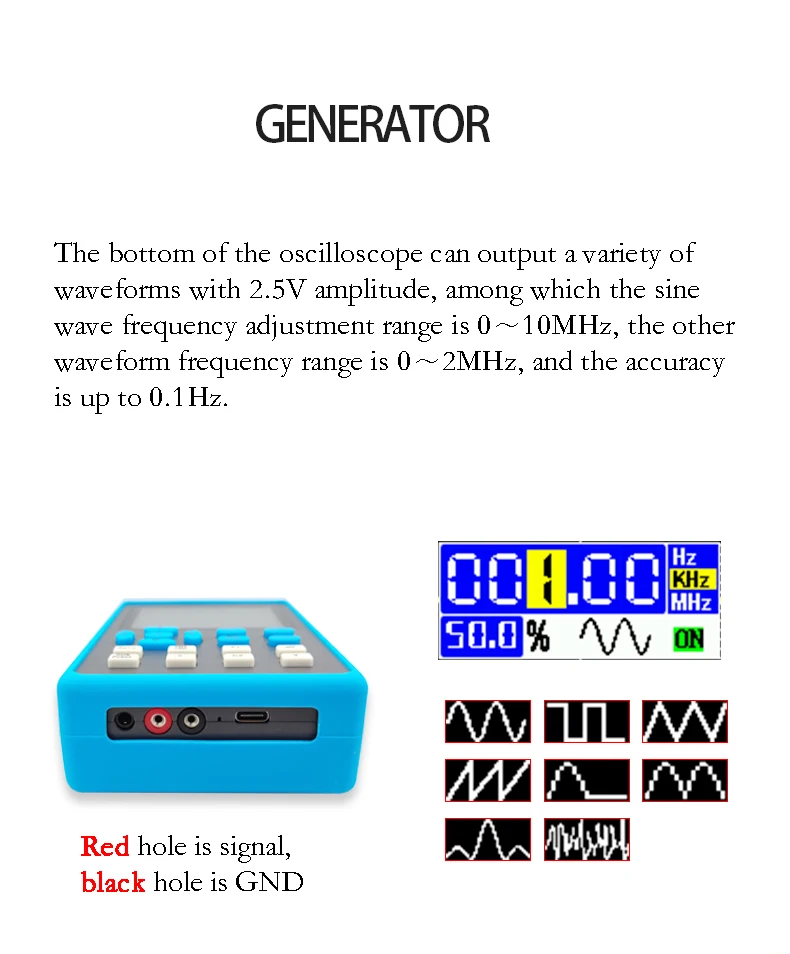

​The bottom of the oscilloscope can output a variety of waveforms of 2.5V amplitude such as sine waves, square waves, trian-gle waves, half waves, singh waves, among which the frequency adjustment ranges of sine waves is 0~ 10MHz, the frequency ranges of other waveforms is 0~2MHz, and the accuracy is up to 0.1Hz. Signal generators are widely used, such as square waves for new probe calibration, driving MOS tube, etc., sine waves can be used for testing audio distortion, etc.
​There are 14 measurement options available: Frequency, P-eak to P-eak, Duty cycle, Amplitude, RMS, Average, Period, +Pulse width, -Pulse width, Max, Min,Top, Base, -Duty cycle.
​

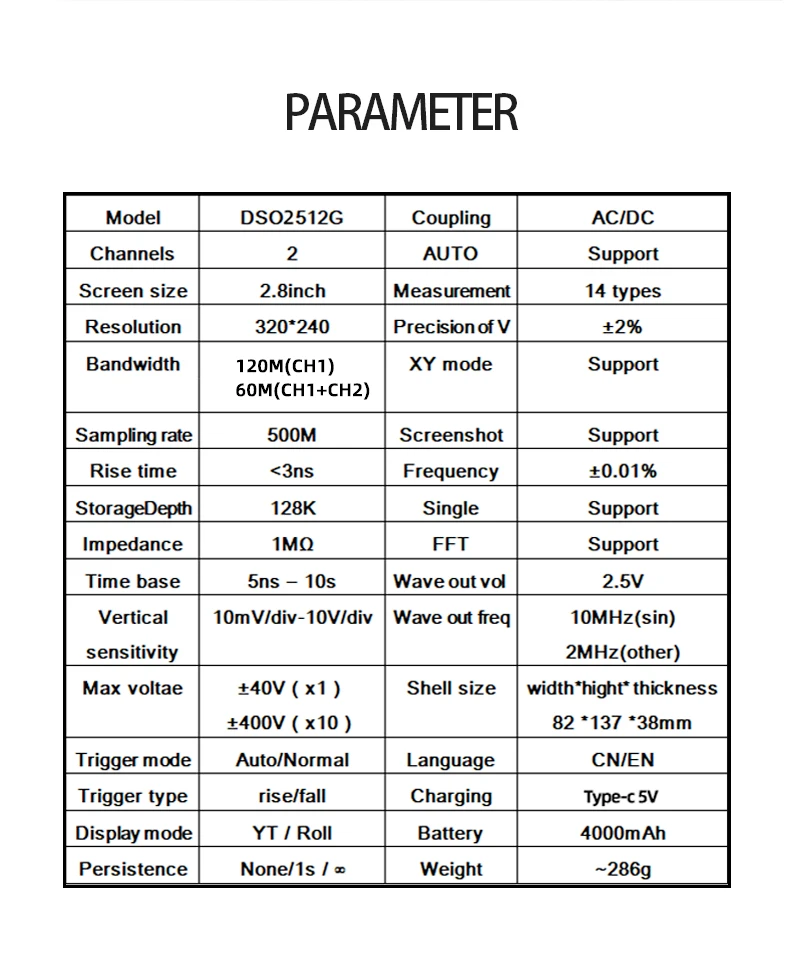

Specifications:
​Material: ABS
​Channels: 2
​Coupling: AC/DC
​Precision of V: ±2%

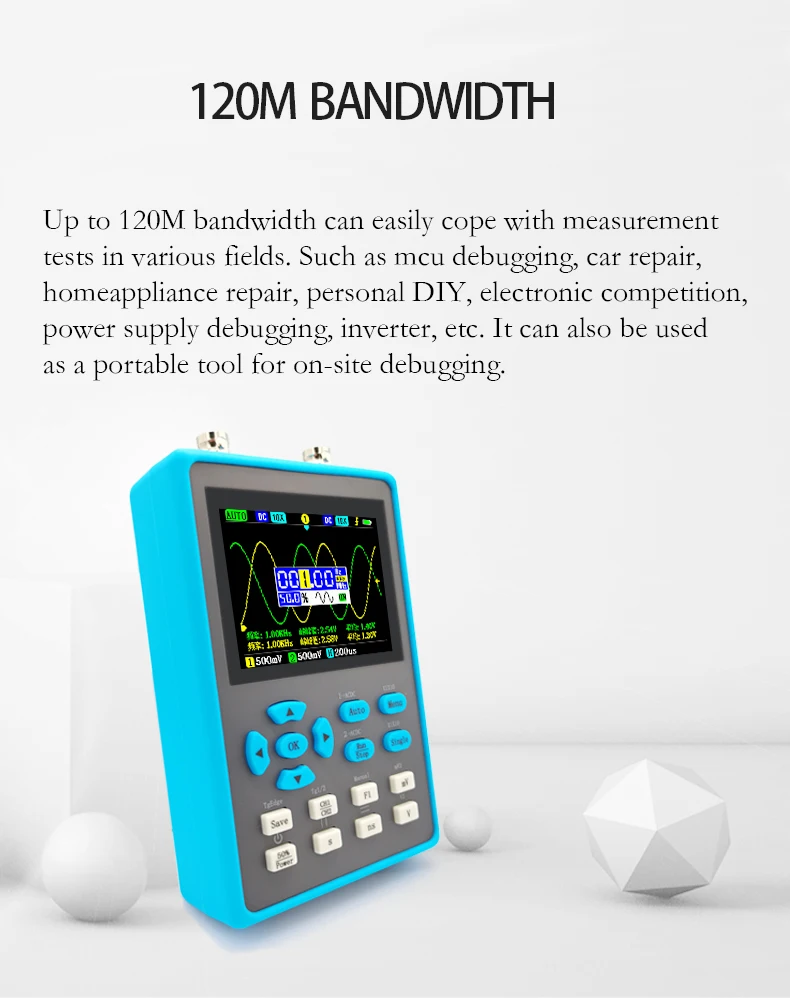

Bandwidth 120M(ch1 only),dual channel mode is 60M.

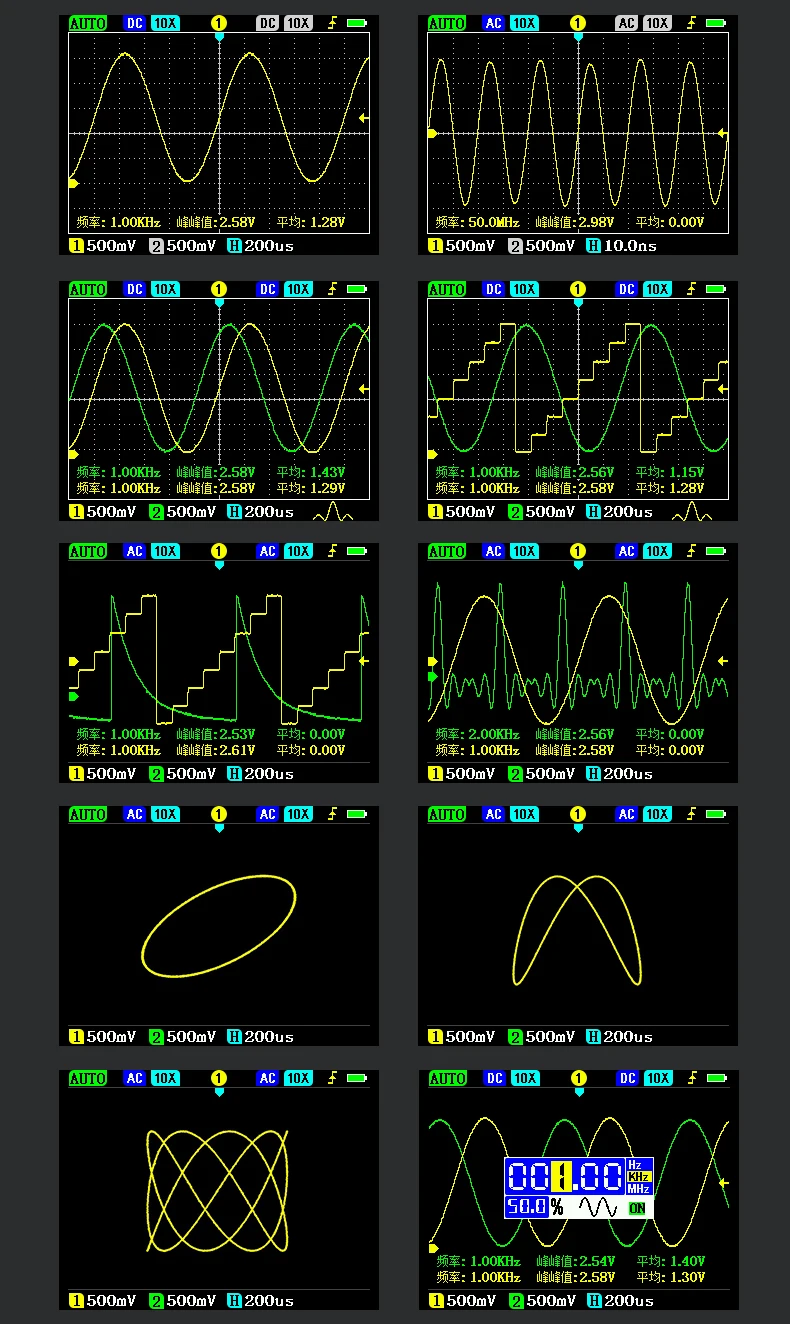

​ XY mode: support
​Sampling rate: 500M

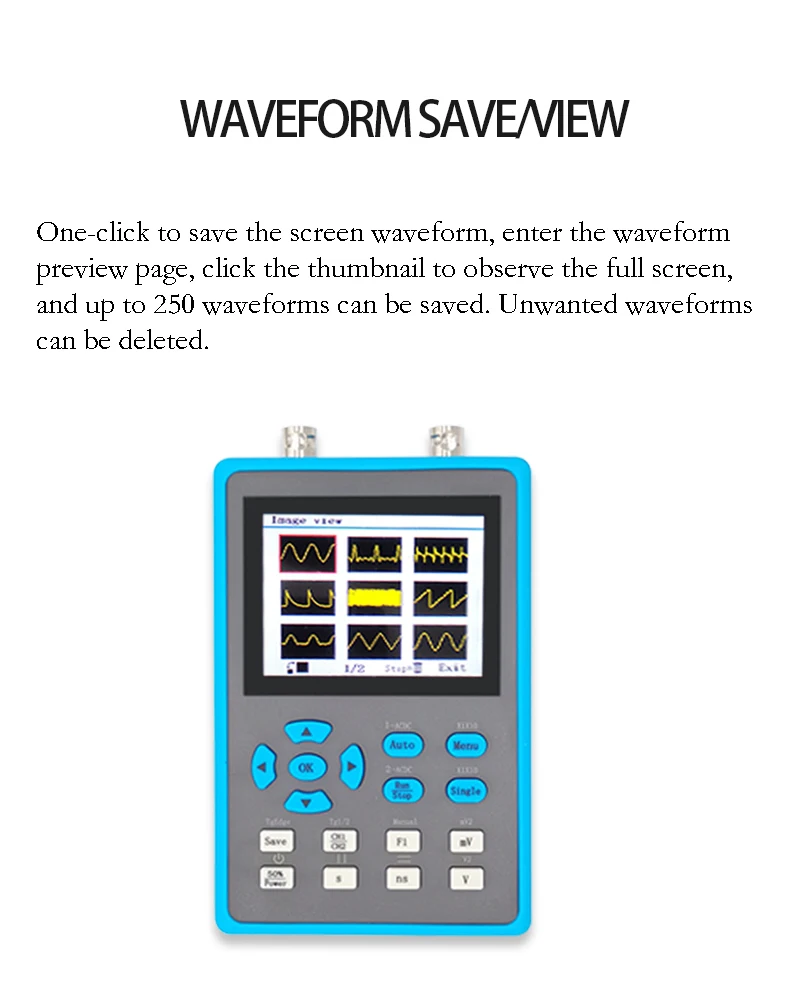

​Screenshot: support
​Rise time: <3ns
​Frequency: ±0.01%
​Storage depth: 128K
​Sin-gle: support
​Impedance: 1MΩ

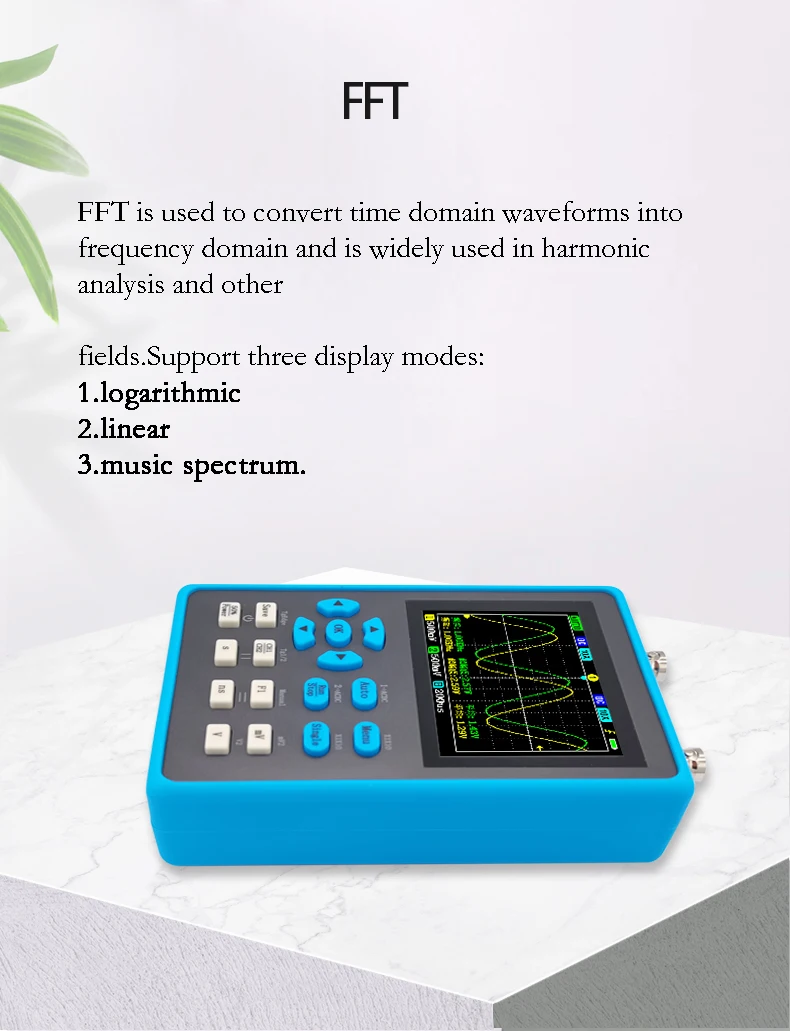

​FFT: support
​Time base: 5ns~10s
​Wa-ve out amp: 2.5V
​Ver sensitivity: 10mV/div~10V/div
​Waves out freq: 10MHz(sin) 2MHz(other)
​Max voltage ±40V(x1), ±400V(x10)

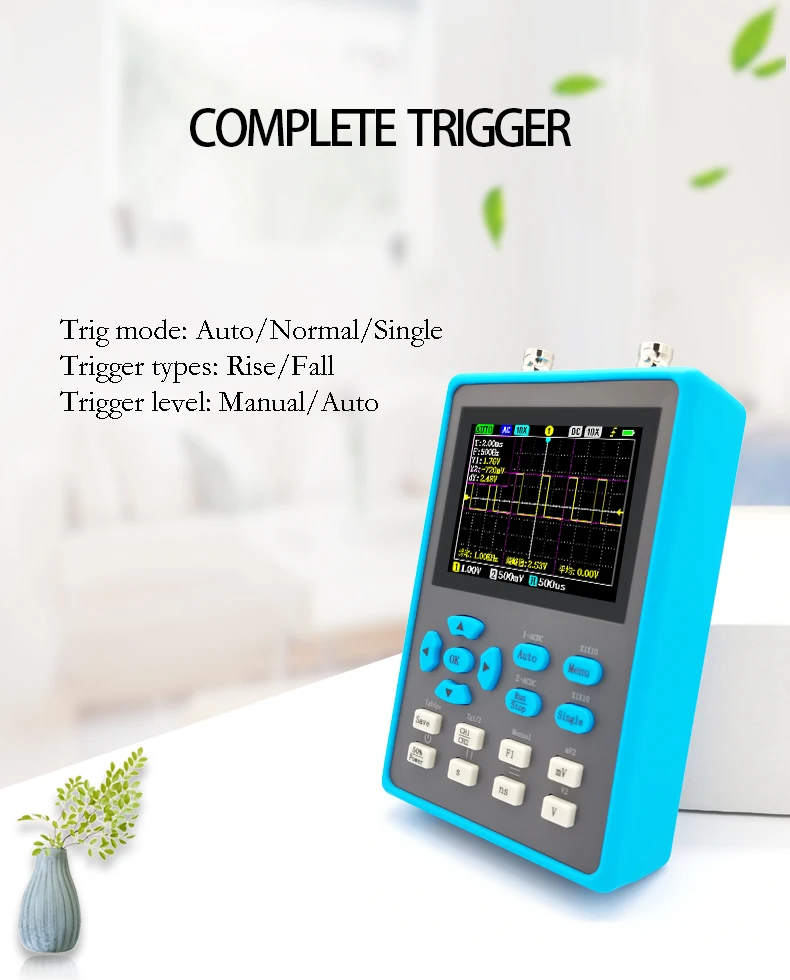

​Trigger type: rise/fall
​Display mode: YT/Roll
​Persistence: None/1s /∞
​Battery: 1 * lithium battery, 4000mAh (included)
​Package size: 210 * 140 * 115mm / 8.3 * 5.5 * 4.5in
​Package weight: 689g / 1.5lb

Product Manual：https://www.mediafire.com/folder/ilmq0c04pt9l7/dso2512g
