2P TUYA APP Zigbee WIFI Smart Energy Power Consumption KWh Meter Circuit Breaker Time Relay Switch Leakage Voltage Protection

We can offer OEM service to print your logo on the circuit breaker,

if you get any need, feel free to contact the seller!

if you get any need, feel free to contact the seller!

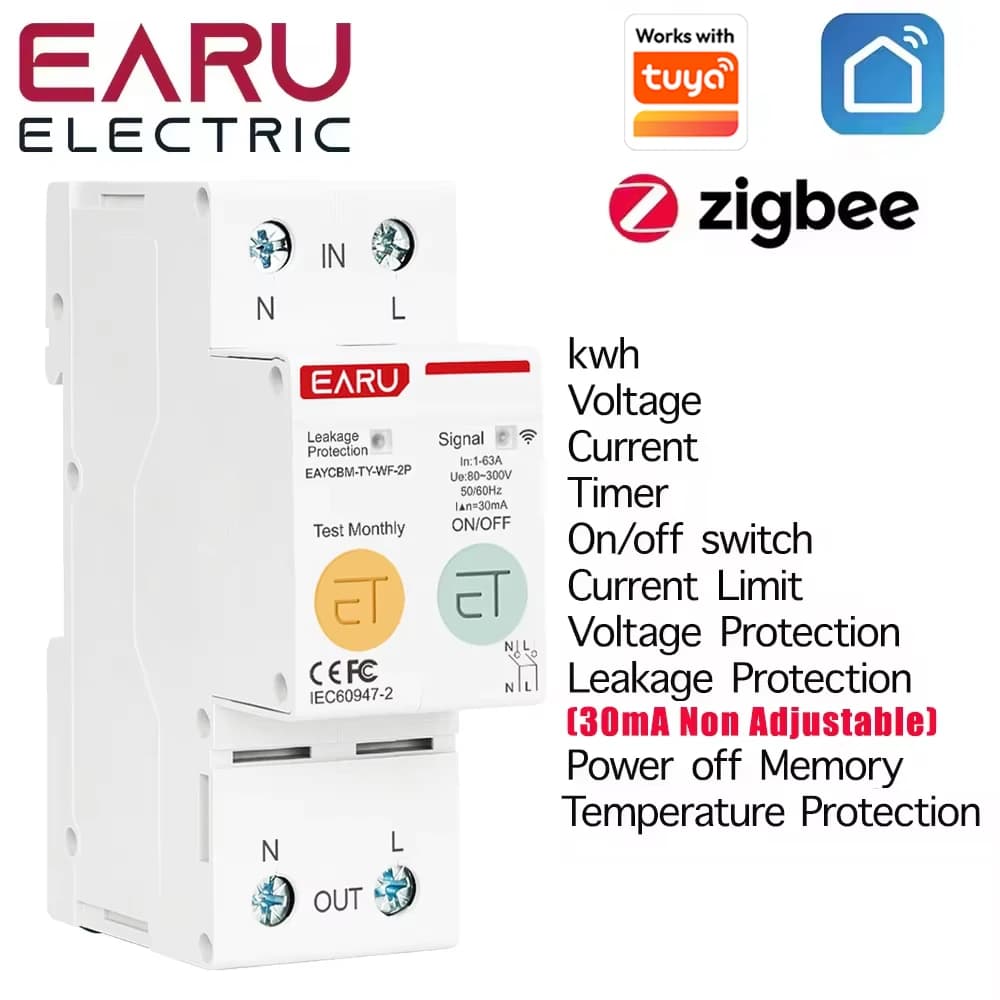

Function:

1. On/off Switch

2. Time Relay Switch

3. Voltmeter

4. Ammeter

5. Power Meter

6.Over current protection 1A-63A (adjustable)

7.Over voltage protection 220-265V (adjustable) (default: 265V)

8.Under voltage protection 76V-240V (adjustable) (default: 90V)

9.Power protection 1-26KW (adjustable)

10.Temperature protection 40-150°C (adjustable)

9. Leakage Protection 30mA(Non adjustable) The app will not display leakage protection

10. Current Limit

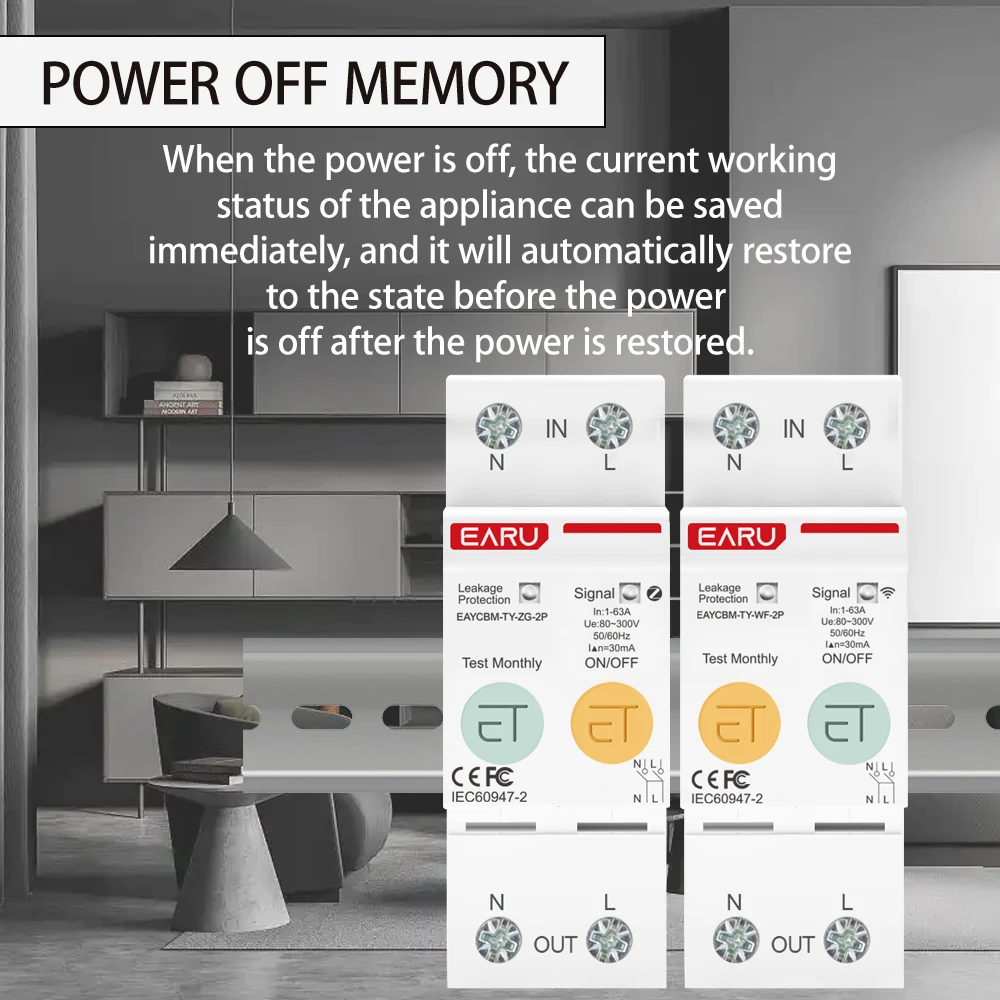

11. Power off memory

Feature

1.Remote control at anytime from anywhere

2.Schedule/Timer/loop timer

3.Energy monitoring,Set power unit price ,can caculate house device power consumption，Download data to sheet

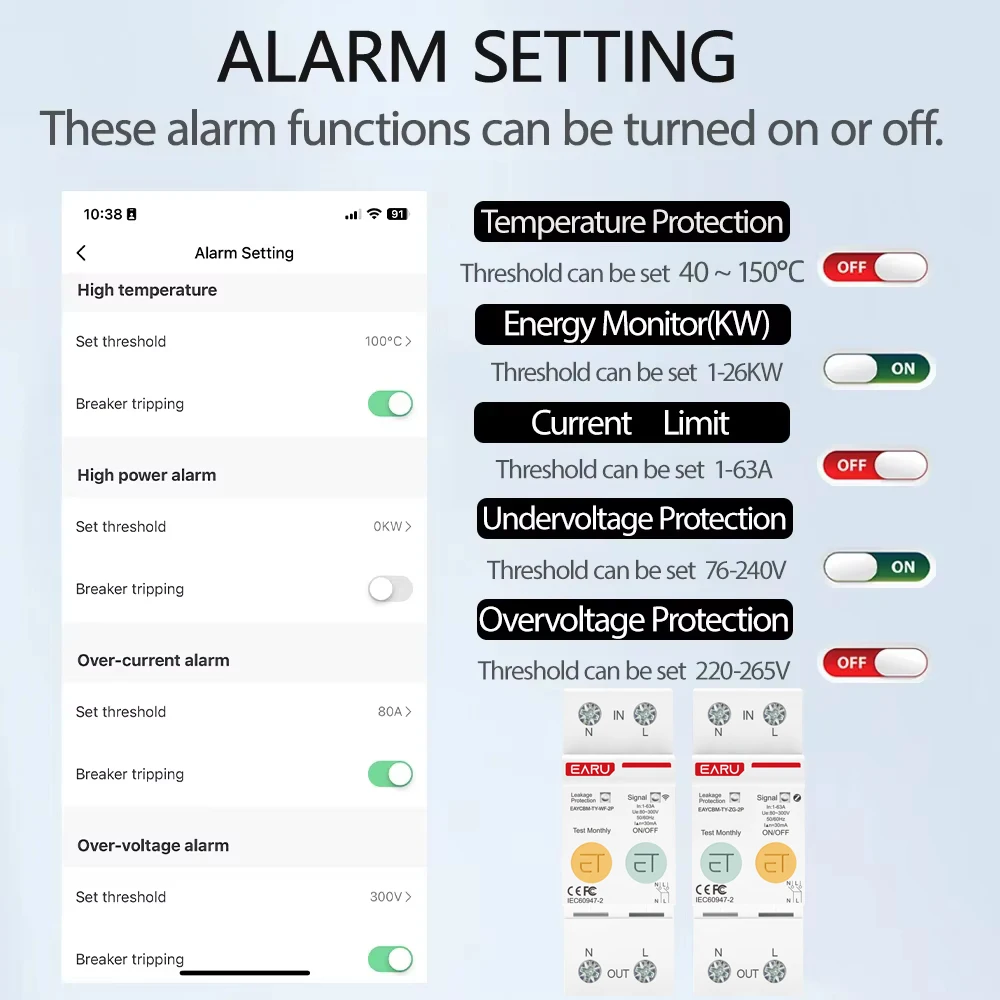

4.Preset power/current/voltage threshold values by app, Once the real-time power/current/voltage reaches the threshold values, The connected electrical appliances will be automatically turned off

5.Working Voltage: AC110-230V

6.Mechanical Life: Over 100000 Times

7.Working Temperature: -25℃-70℃

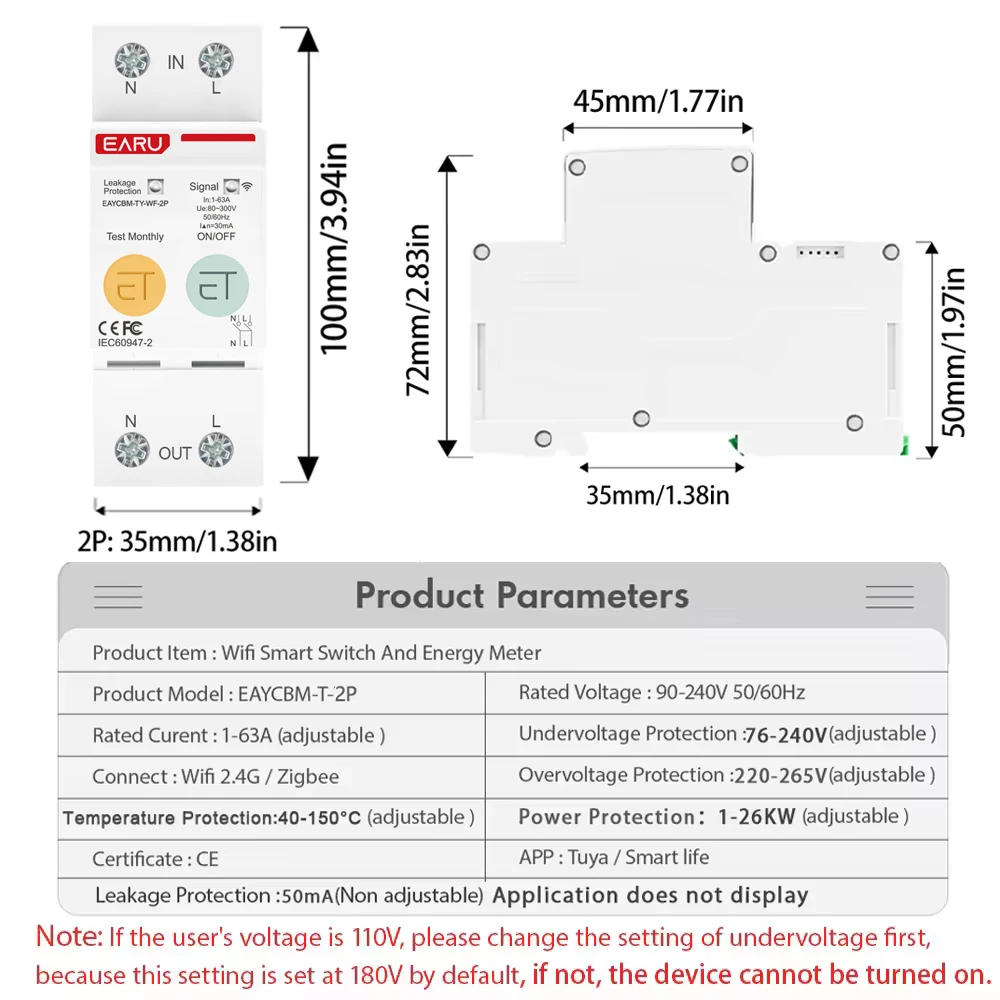

Note: If the user's voltage is 110V, please change the setting of undervoltage first,

because this setting is set at 180V by default, if not, the device cannot be turned on.
