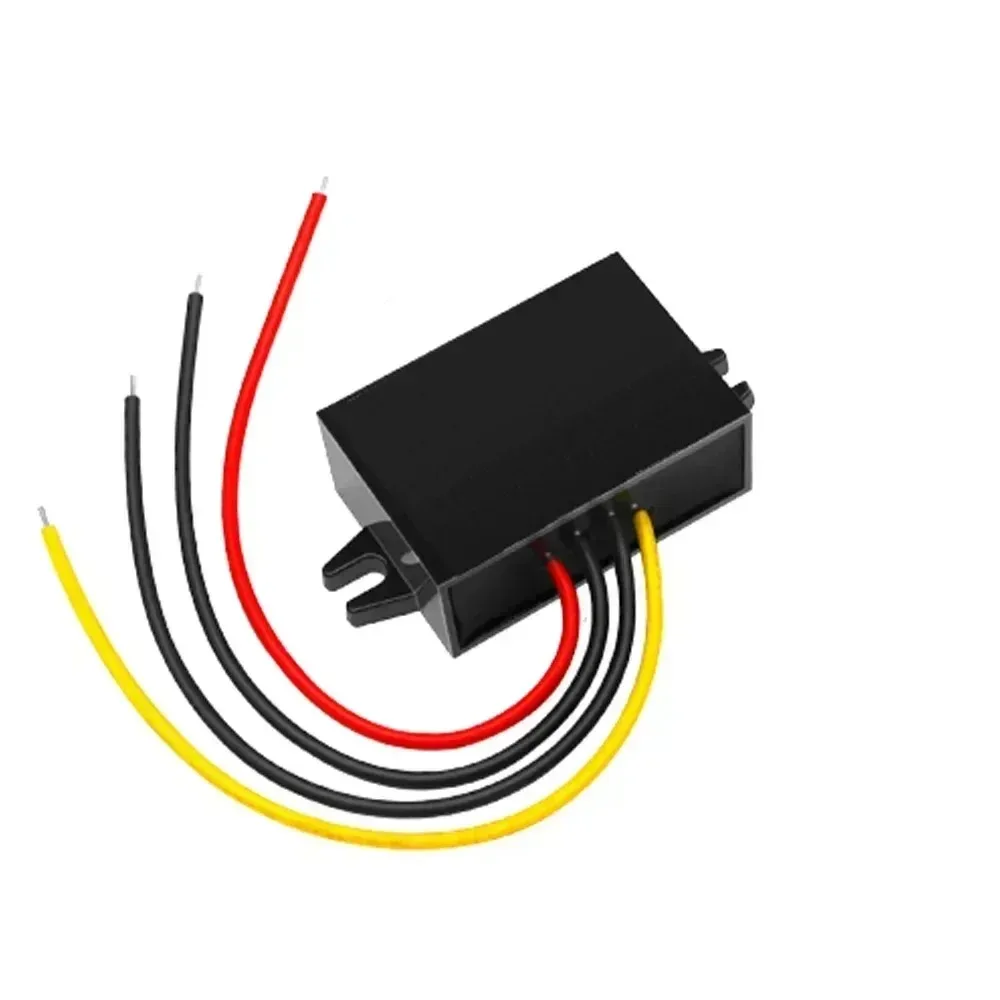

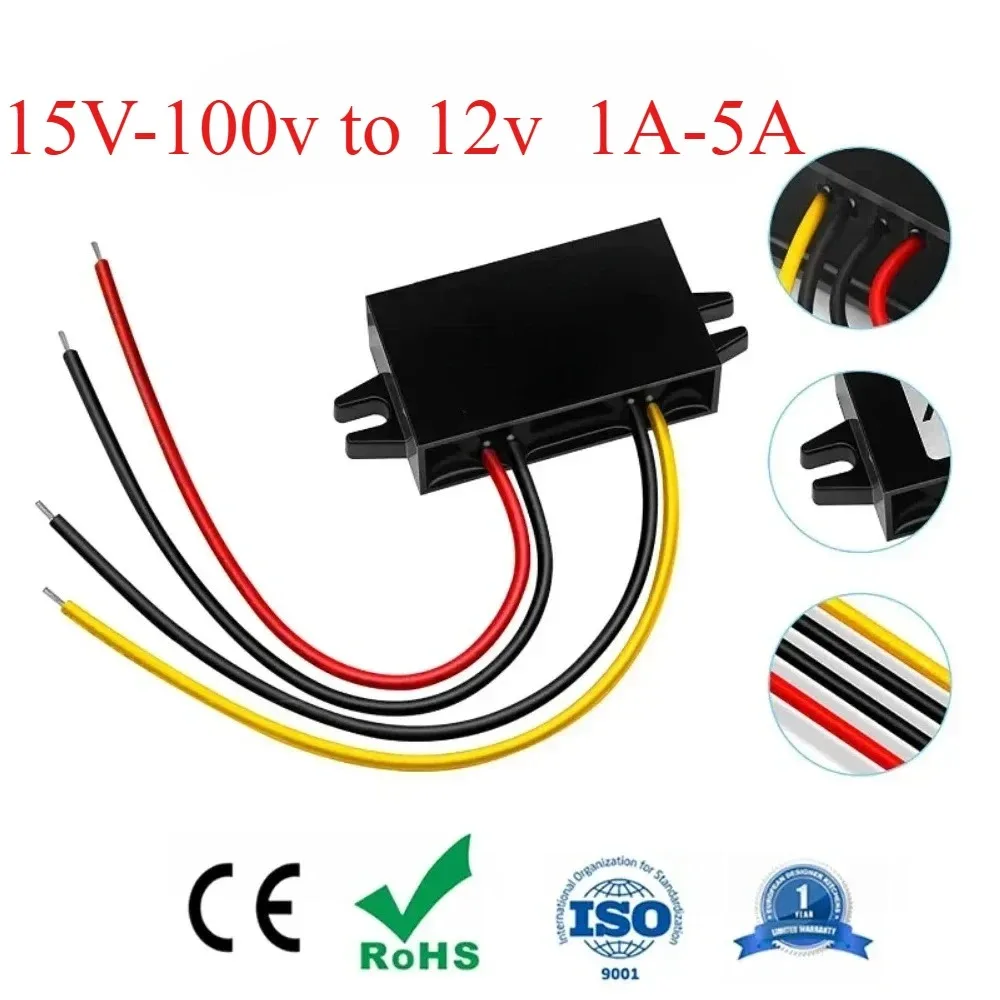

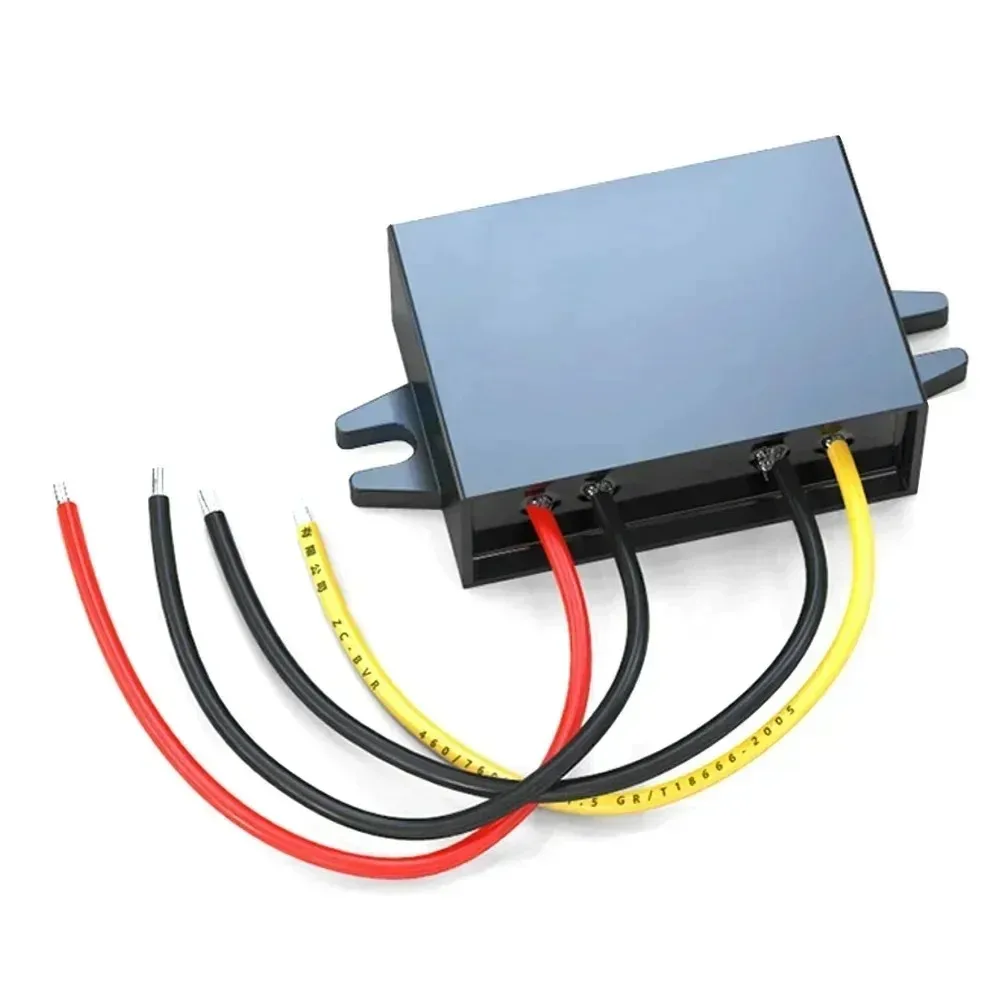

15V-100V 24V 36V 48V 60V 72V to 12V Step Down Buck 1A-5A 12V Voltage Regulator DC Converter Reducer for Golf Cart Car Device

PARAMETER --- DC-DC converter input voltage range is DC 17~90V (24V 36V 48V 72V); output voltage is DC 12V; output current is 5A; output power is 60W.
APPLICATION --- the 12v buck converter module can be used in integrated wiring for monitoring fire alarming system; car radio, audio; bus, minibus, truck display screen, taxi advertising screen; LCD television, LED; solar power generation system; interphone, etc.
PROTECTION --- this BUCK voltage comes with over-current protection, over-temperature protection; adopts potting technology, characterized by waterproof, dust-proof, moisture-proof and shock-proof, can be used in various situations such as car, outdoor, underground, etc.
FEATURE --- the BUCK power module adopts high-integrated chip, stable and reliable; synchronous rectification technology, with conversion efficiency of over 93% and low heat generated.
NOTE --- Leave a margin for the power supply to ensure it can long-term stably working.
DCDC Power Supply Step Down Buck Module Technical Specification:
Input Voltage: DC 17V~90V (24V 36V 48V 60v 72v)
Output Voltage: DC 12V
Output Current: 5A
Output Power: 60W
Conversion Efficiency: >93%
No Load Voltage Range: Set voltage ±3%
Load Regulation: ±3%
Quiescent Power Dissipation: <10mA
Operating Temperature: -25~65℃
Storage Temprature: -40~80℃
Operating Humidity: 10%~90%
Waterproofing Grade: IP67
Over-current Protection: Yes
Over-temperature Protection: Yes
Short-circuit Protection: No

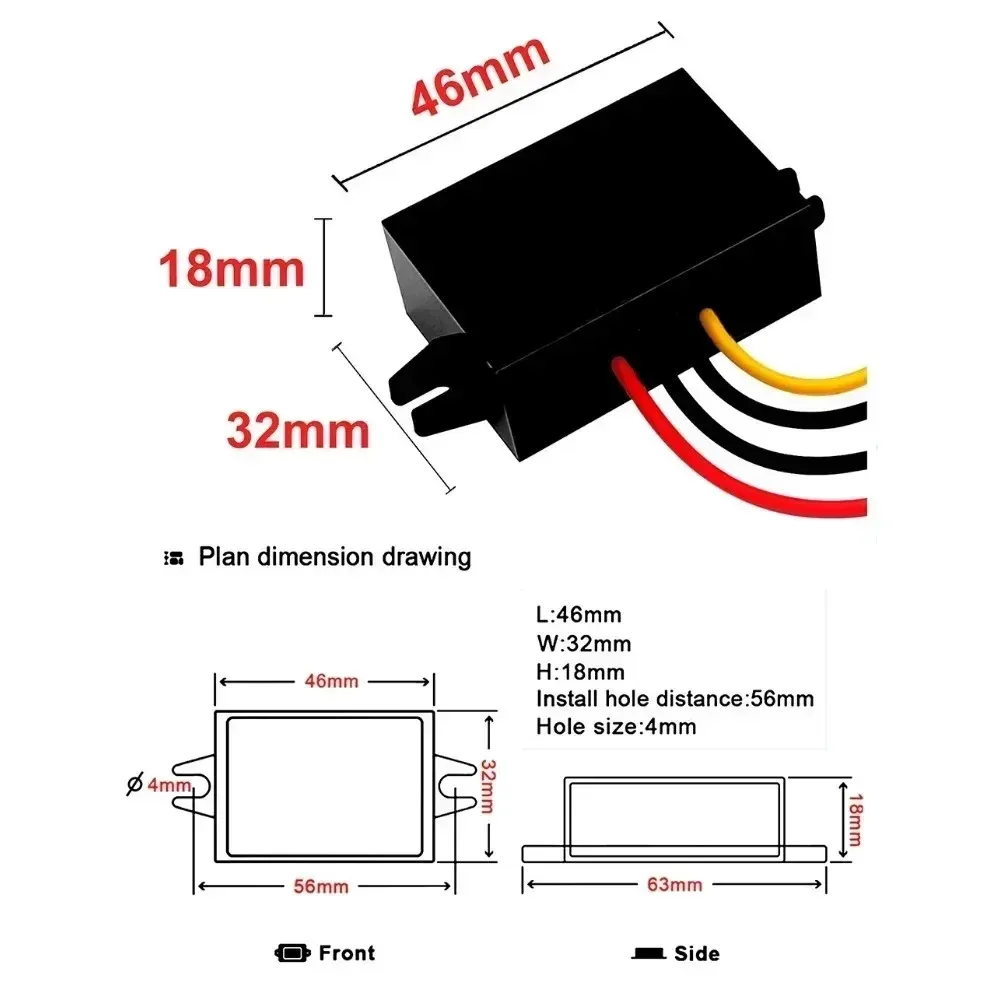

Material:Aluminum shell
Note:

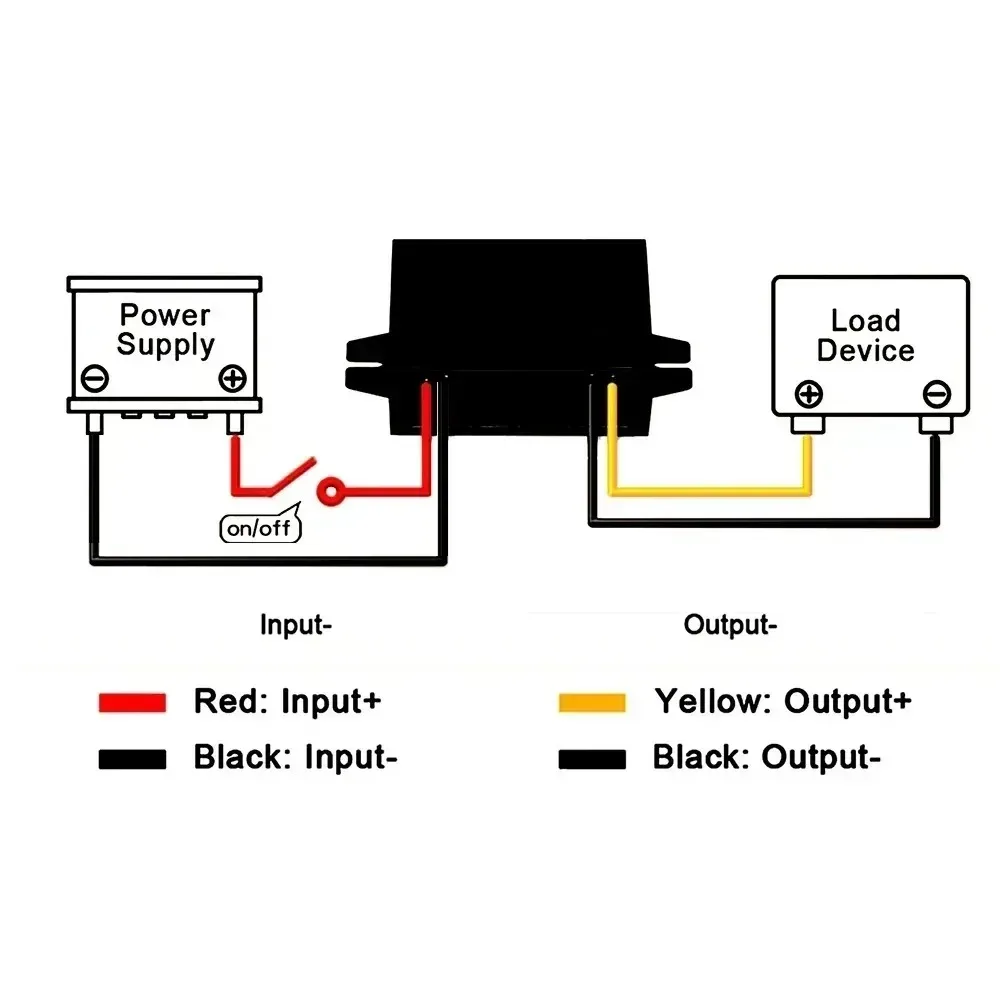

1. Connect the wiring in strict according with the wiring instruction.
2. Use short and thick input & output wire to ensure output enough voltage and power.
3. If there are multiple output wire, do not combine the load.
4. Leave a margin for the power supply to ensure it can long-term stably working.
Package Included:
1x Step Down Buck Module
