RAK Ethernet Module WIZnet W5100S-L  | RAK13800

Request Quote for Custom WisBlock Module

Not sure what WisBlock modules are mandatory and how to select modules?

Check our WisBlock

Documentation

Product Description

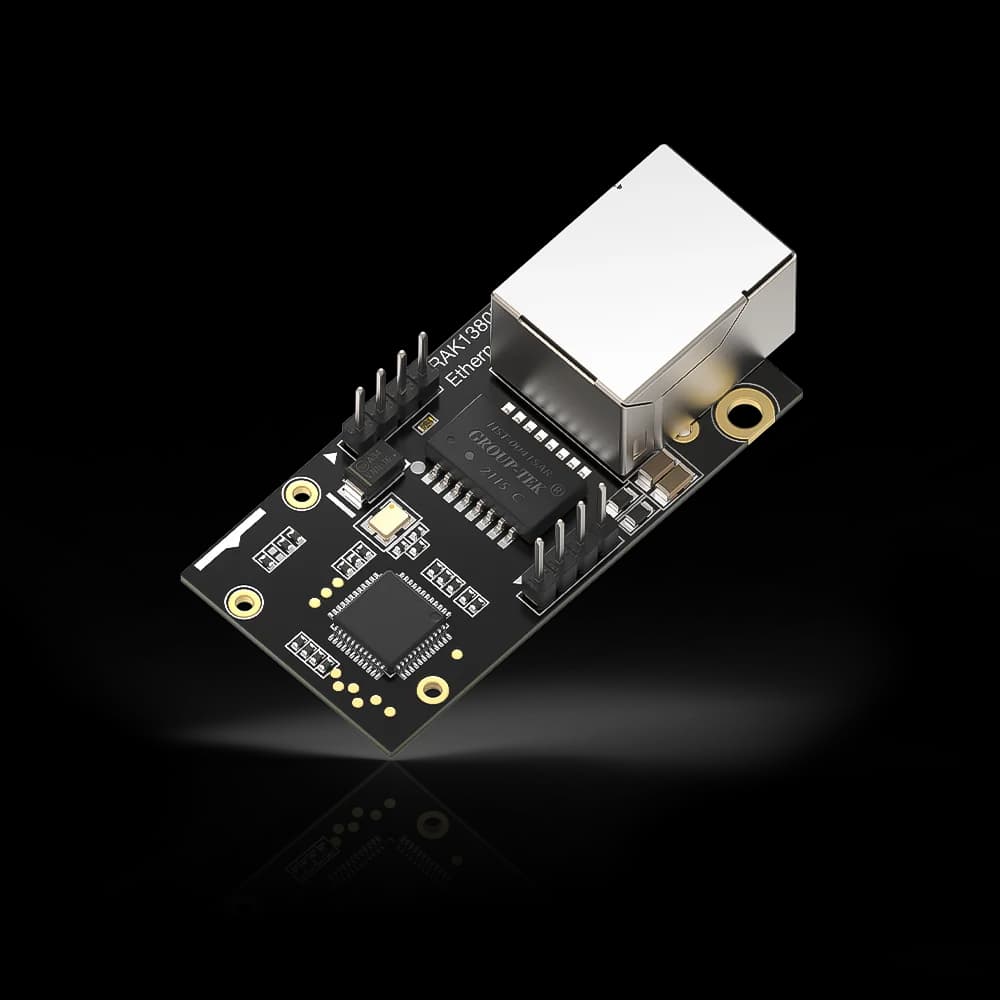

RAK13800 is a WisBlock Ethernet board based on WIZnet W5100S which extends the WisBlock system to have ethernet interface compatibility. It supports 10BaseT and 100BaseT Ethernet transfer speeds. Optional (coming in 2022 Autumn Launc Event) it supports PoE (Power over Ethernet) to supply the WisBlock modules.

Features

Based on WIZnet W5100S-L chip

Support Hardwired Internet protocols

Support four independent SOCKETs simultaneously

Support SOCKET-less command

Support Ethernet Power-down mode & Main Clock gating for power save

Support WOL (Wake on LAN) over UDP

SPI Host Interface

Internal 16Kbytes Memory for TX/RX Buffers

10BaseT/100BaseTX Ethernet PHY Integrated

Support Auto-Negotiation

Support Auto-MDIX only when Auto-Negotiation mode

Network Indicator LEDs

Supply Voltage: 2.97 V ~ 3.63 V

Size: 25 x 50 mm
