433MHZ DC 12V 24V 8CH R----F Wireless Remote Control Switch Remote Control System Receiver Industrial Transmitter 8CH Relay

Note: only have 433MHZ   ，If you nend 315MHZ, please give us the

information in the order, thanks

Receiver

Decode: Learning Code

Control Type: Toggle, Momentary, Latched

Power Supply (Operating Voltage): DC 12V / 24V

Relay: 10A 250VAC 10A 125VAC 10A 30VDC 10A28VDC

Work Voltage Range of Relay: DC 0-28V

State current: ≤6 mA

Sensitivity:-105 dBm

Operating Temperature:-40‘C - 80’C

Size:87 X 77 X 26 mm

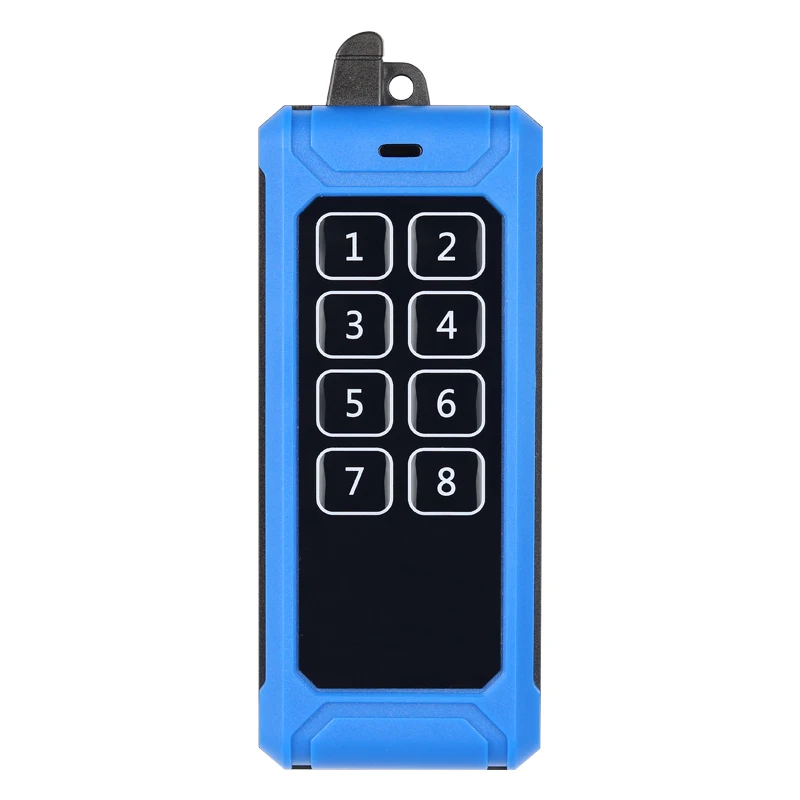

Transmitter

Remote Control Distance:50-500m( Ideal Distance WITHOUT Any Block and Signal Interfere,Could Rise or Fall 10%-90% in Real Situation )

Encode: fixed code 1527

Frequency:433MHZ

Power Supply:DC4.5V (3pcs AAA battery )

3.Function (Original Setting is  Momentary , Change it by yourself.)

1).Toggle/Self-lock :Press 1 button==>on,press the same button again==>off

2) Momentary/Jog:Press and hold==> on, release==>off

3)Latched/inter-lock:press 1 button ==>on,press other button==>off

4.Clear Code and Learn Code

1) Learn

press the learning button 1 time,the learning LED turns on,then press the transmitter key to learn.the learning led flashs and turns off. means learn sucessfully.

2) Clear

press the learning button for 5 seconds,the learning LED flashs and turns off, that means the code has been cleared.

pacote inclued:

A:

1x Transmitter(Not included  batteries)

B:

1x Receiver(with cover)

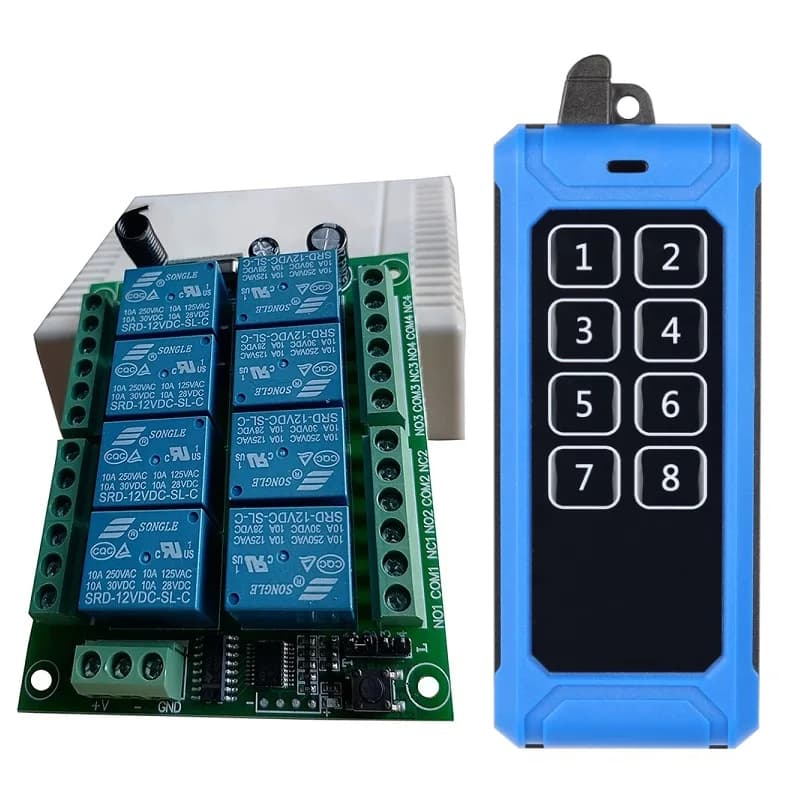

C:

1 x Receiver(with cover)

1x Transmitter(Not included  batteries)

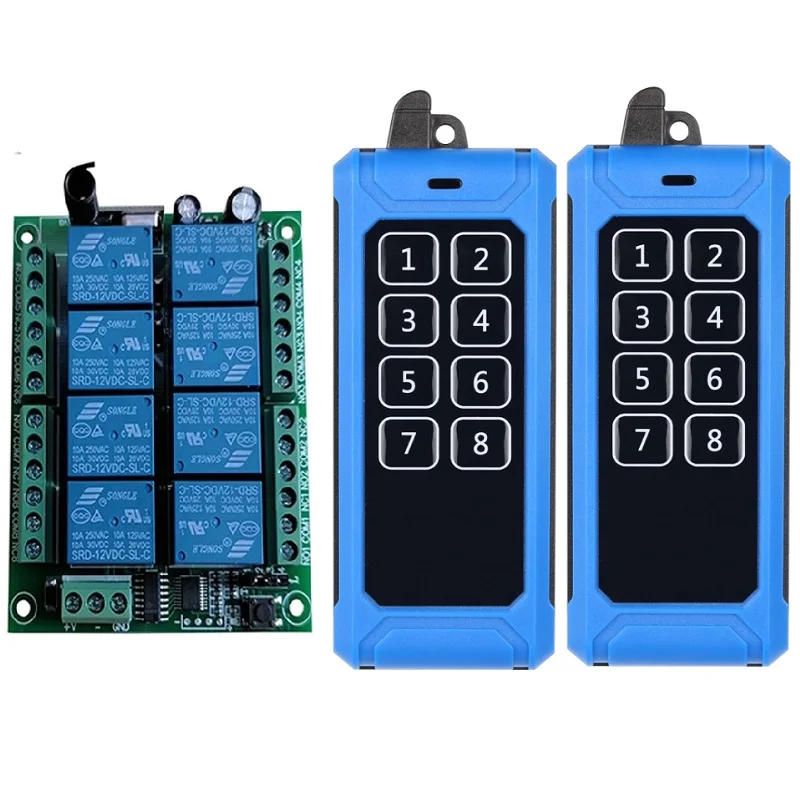

D:

1 x Receiver(with cover)

2x Transmitter(Not included  batteries)
