433MHz 110V 220V Curtain Blind Switch,2 Way Wireless Remote Control Roller Shutter Module Receiver Transmitter,for Motor Gate

Before making an order

1.Both curtain switch and remote are RF types.They need to work together. They cannot use indivually.They cannot work with other products in our store or other brand
2.Working voltage is AC 100-240V,needs L and N line

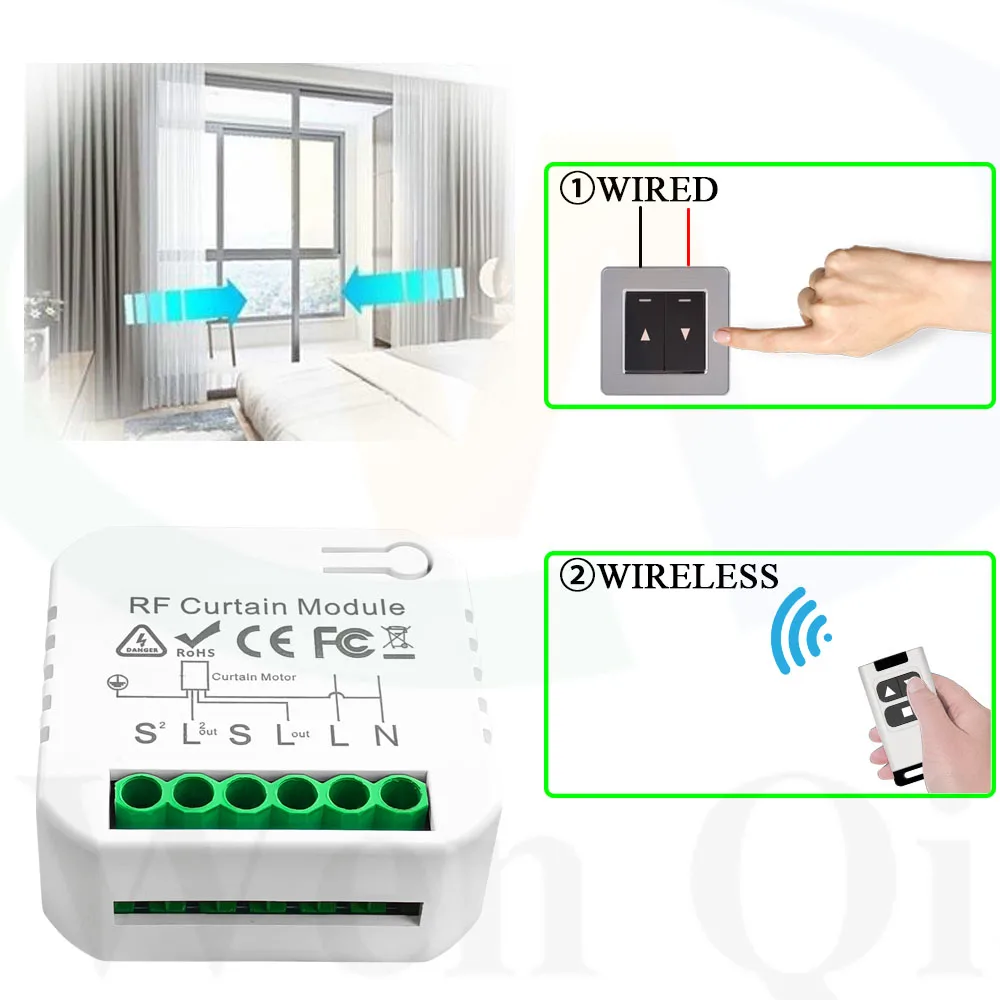

Support two control ways

1.Traditional wall switch wired control
2.Rf wireless remote control(open,pause,close)

Product Application Area

Products can be used to control curtains,motors,roller shutters,blinds.
Products can used indoor, home ,office,market, factory,etc

Work with your home traditional wall switch

Please follow our product manual to connect with your traditional wall switch,then you can control it by pressing buttons

Work with our RF remote control switch

Please set up with our remtoe first, then you can control it wirelessly.It supports 50m in open space

RF support multi control

One switch can be controlled by 5pcs remotes, one remote can control 5pcs curtain switches

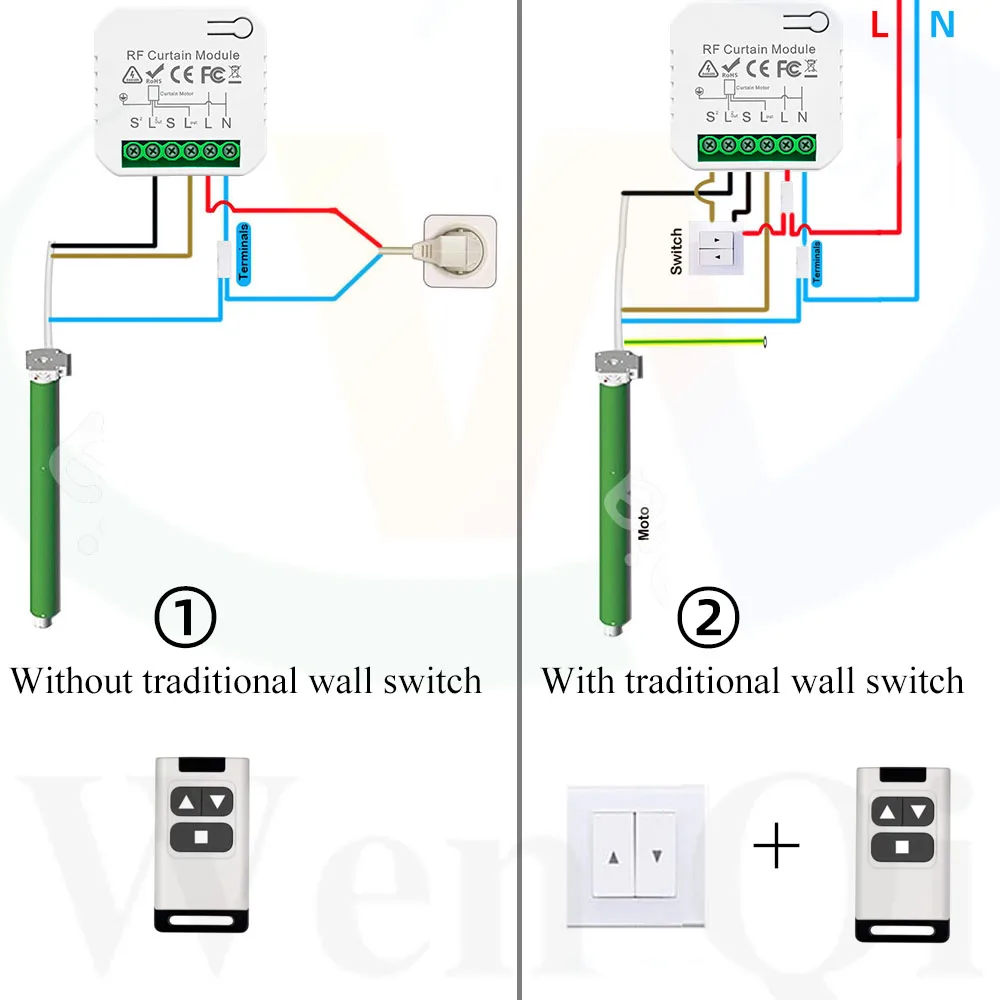

How to connect

There are two connection ways depends on if you have a traditional wall switch or not.Please take a look on this picture

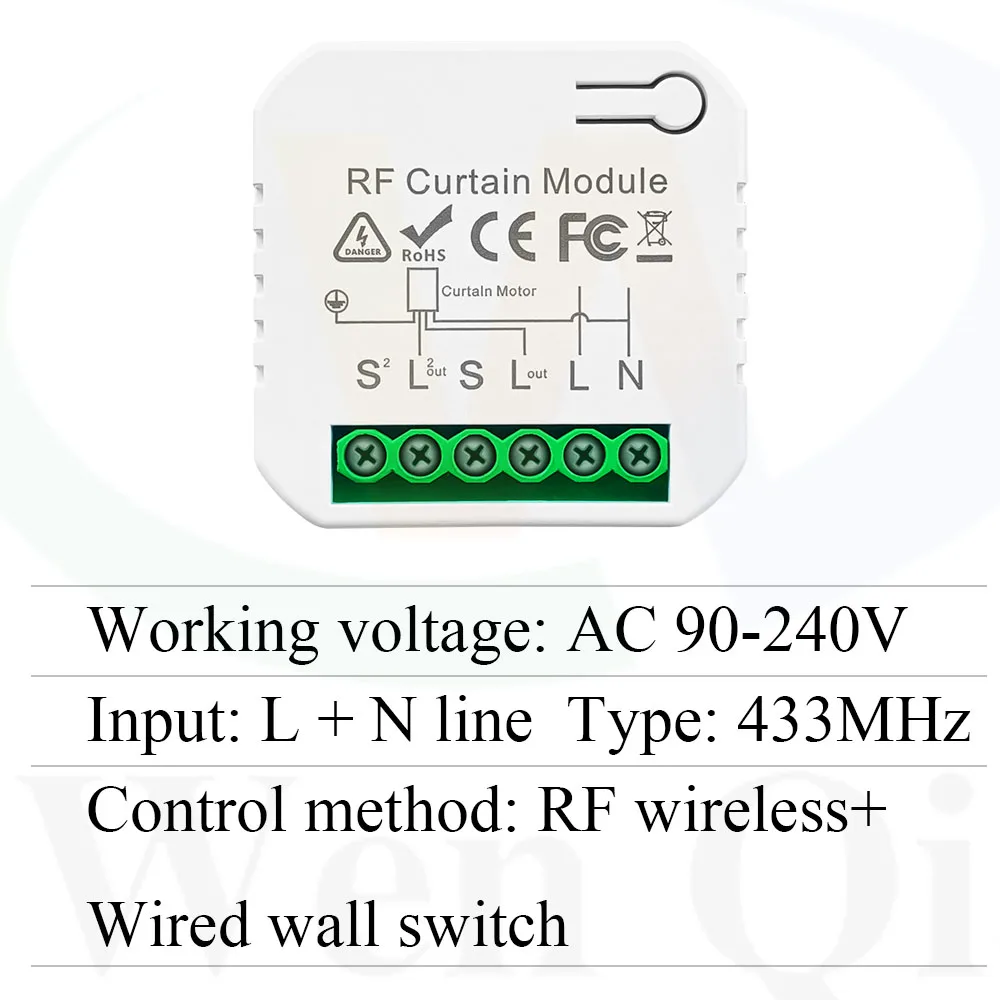

Module parameter

Input Voltage: AC 100V~240V
Size:45*45*20 mm
RF Frequency: 433MHz
Max current: 15Amp
Receiving Sensitivity: >97dbm
Color: White (Outside Shell)
Rf Remote parameter
RF frequency : 433MHz
Size:68*38 mm
Remote distance : up to 50 meters (theoretical distance)
Battery: 27A 12V( Battery Include )
Keychain: Include

How to work in RF way

1:Press and hold the learning button until the Led light flashes once;
2:Press UP remote button 1 time,Succeed.
How to clean RF data
Press learning button 8 times

Questions and Answers

1.Can one module be controlled by multi remotes?
Yes.Of course.One receiver can be controlled by almost 5 pcs remotes
2.Can i use my own remote to control this module? The frequency are same?
Sorry,sir.The remote and module are custom.Please donot use them individually.Also, they cannot work with other brand products
3.Do you have a whole sales price?
Yes,please contact with us.We will give you the best price.

The products are all producted by our own factory , Our factory can support OEM and ODM, welcome to consult.

On this product detailed page, there is a demonstration video for your reference. *If you do not understand clearly. Please send us a message to let us know. We will do our best to service each of our customers. Enjoy your shopping!*
