HiLink Original 20W 5V/9V/12V/15V/24V Single StepDown AC DC Power Supply Module HLK-20M05 HLK-20M12 HLK-20M24

HiLink Original 20W 5V/9V/12V/15V/24V Single StepDown AC DC Power Supply Module

HLK-20Mxx

Product Features

1. Ultra-thin, ultra-small, the industry's smallest volume
2. Global universal input voltage (90 ~ 265Vac)
3. Low-power, green, no-load loss <0.1W
4. Low ripple, low noise
5. Good output short circuit and overcurrent protection and self recovery
6. High efficiency, high power density
7. Input and output isolation voltage 3000Vac
8. 100% full load aging and testing
9. High reliability, long life design, continuous working time is greater than 100,000 hours
10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement
11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water anddust to meet IP65 standards
12. Economic solutions, cost-effective
13. No external circuit to work
14. 1 year quality guarantee period

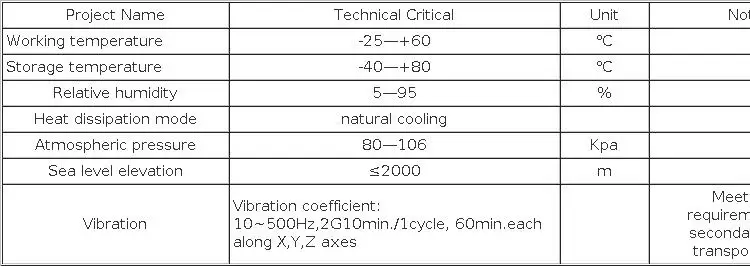

Environment condition:

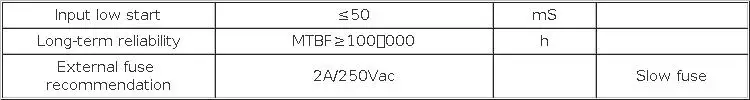

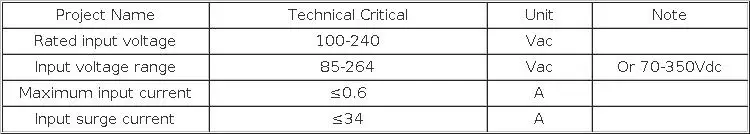

Electrical Characteristics:

20W series standard output

Dimension or Size

Safety and electromagnetic compatibility:

The input design adopts UL certification 1A insurance

The PCB board is made of double-sided copper clad foil, and the material fire resistance grade is 94-V0 grade

Safety standards comply with UL1012,EN60950,UL60950
