0.56 LED Digital Ammeter Voltmeter Panel DC 100V 10A AC 220V 500V 600V Calibrate Reading Red Green Blue Volt Amp Meter Gauge

YIDI 5/10pcs 0.56 LED Digital Ammeter Voltmeter Panel DC 30V 100V AC 220V 500V 600V Calibrate Reading Red Green Blue Volt Amp Meter

A. Ammeter Voltmeter DC 0-100V 0-10A

Specification:

Mounting Hold Size: 46 x 27mm
Input Voltage: DC 4-30V
Detection Voltage: DC 0-100V
Detection Current: 0-10A
Refresh Rate: 350mS/Time

Packing: 1 PC Ampere Voltage Meter + 2 Set Cables

Wiring Way

B. Voltmeter

Specification:

Mounting Hold Size: 46 x 27mm
Input Voltage: DC 4.5-30V / AC 30-500V
Detection Voltage: DC 4.5-30V(2 cable) / DC 0-100V (3 cable)/ AC 30-500V (2 cables)/ AC 0-600V (3 cables)
LED color: Red/ Green / Blue
Cable Length: 19.5cm

Packing: 1 PC Voltmeter + 1 Set Connection Cable

Marking:

DC 4.5-30V old type can not calibrate the reading.

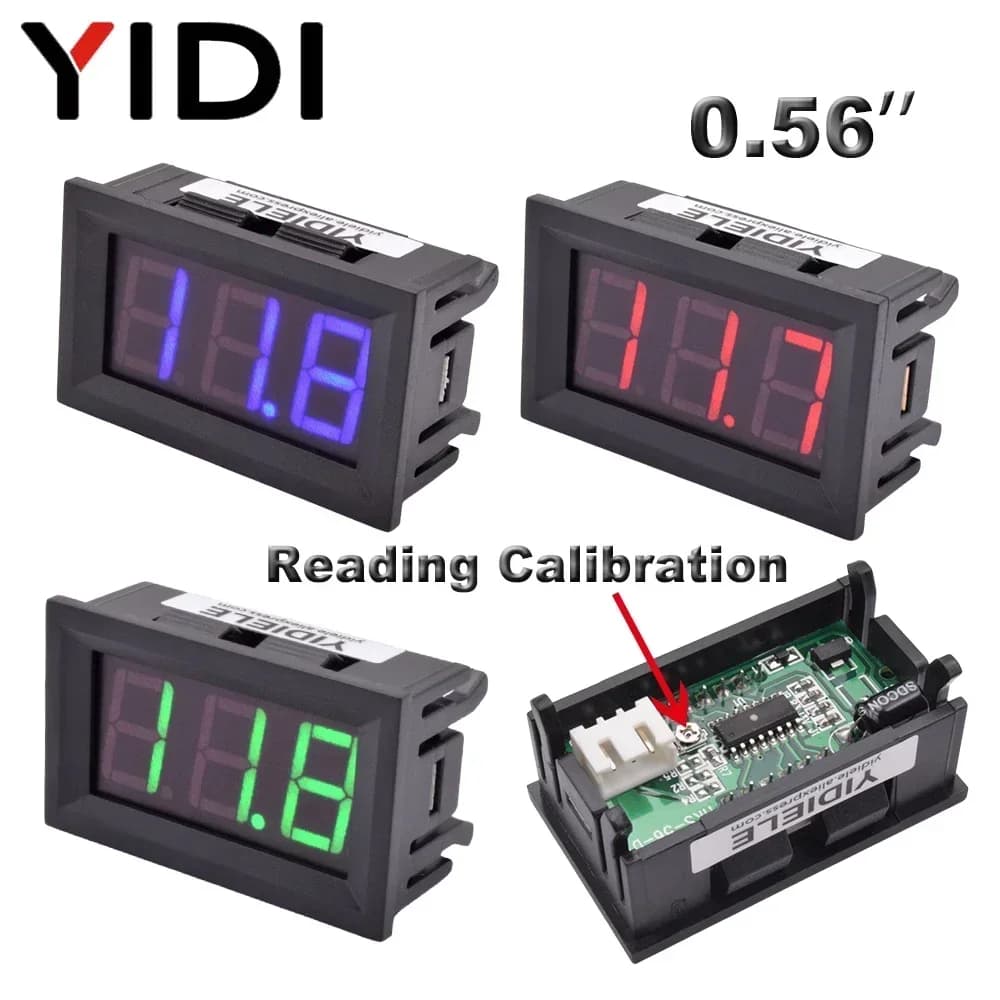

Others all have the resistor to calibrate the reading.

For the item of 30-500V AC, can not work with SCR Voltage regulator. If need to work with SCR Voltage Regulator, choose the item of 0-600VAC

Wiring Way

1. DC 4.5-30V Voltmeter

2. DC 0-100V Voltmeter

3. AC 30-500V Voltmeter

4. AC 0-600V Voltmeter
