Xmeye Smart Dvr Nvr 4/8/16 Channels 5MP-N 1080P Video Surveillance Recorder Audio Over Coaxial Motion Detect For CCTV Cameras

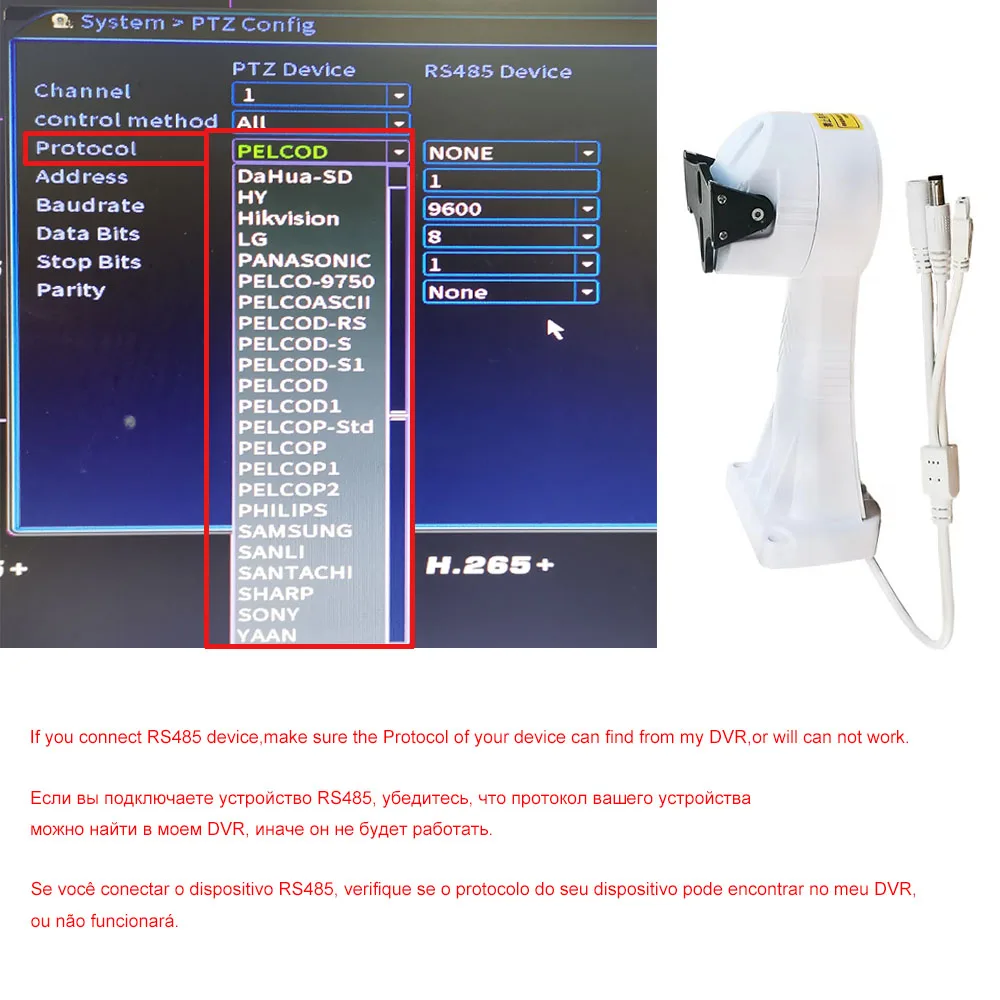

The DVR all support RS485,but not for all type of RS485 device,must canfind the protocol in my DVR

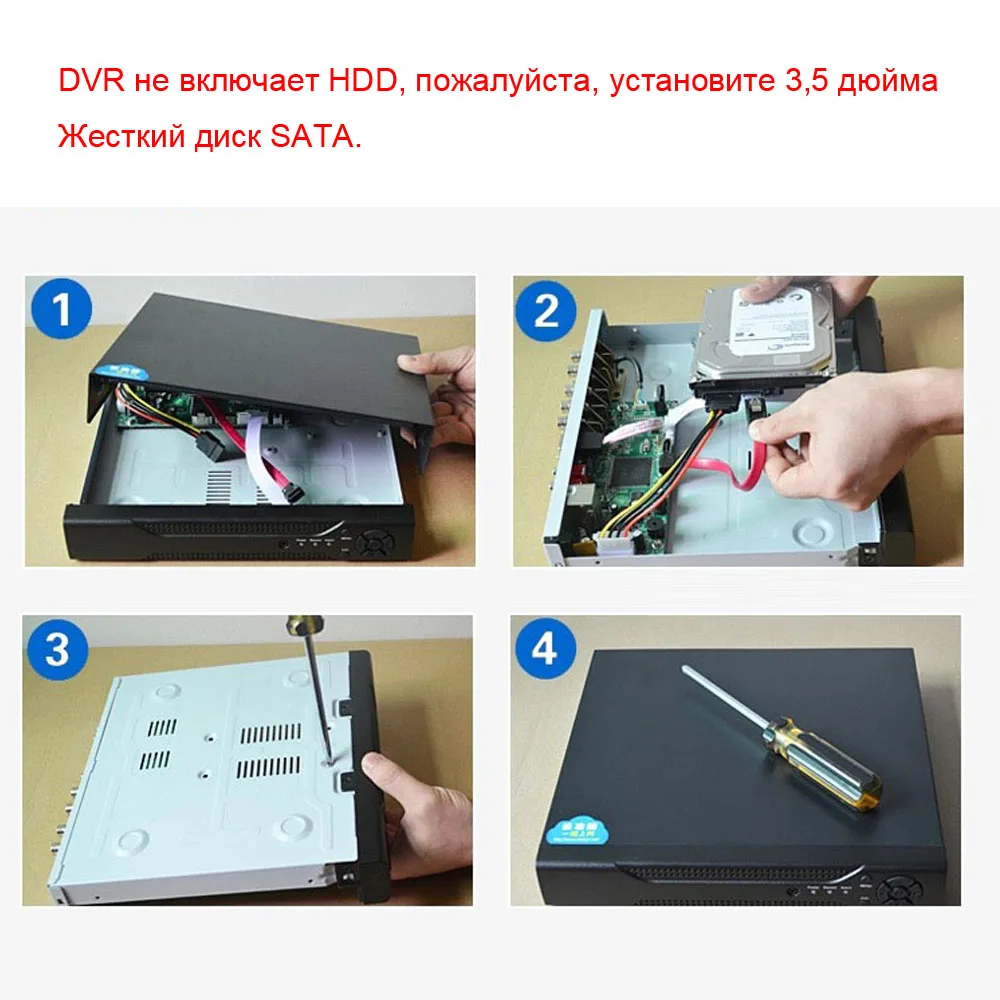

DVR not include HDD

2.the DVR display resolution is default 1024*768.If you use a monitor to connect this device, please make sure it can withstand 1024*768 resolution input. or the monitor will show black screen after it display first time the Boot logo(will show "out of range" or "input not supported")

Please note:

1.please use at least 12V2A power adapter connect this board,power adapter is very important,make sure your power adapter is in good quality. if you connect with 3T or 4T HDD,please better connect with DC12V3A or 12V5A power adapter.

3.You need to ensure that your monitor resolution can support my device resolution output or support adaptive mode, or you can try to not adapt to the monitor, directly connect to the network, and then use CMS or APP: xmeye to search for the device and use it. You can also tell us the resolution of your monitor before you make order, and we will adjust the resolution output for you.

4. Please be careful during operation and take anti-static measures to avoid damage to the circuit. For each product, we will test and shoot a video before shipping, confirm that there is no problem before shipping. We are not liable for damages deemed to be caused by improper operation.

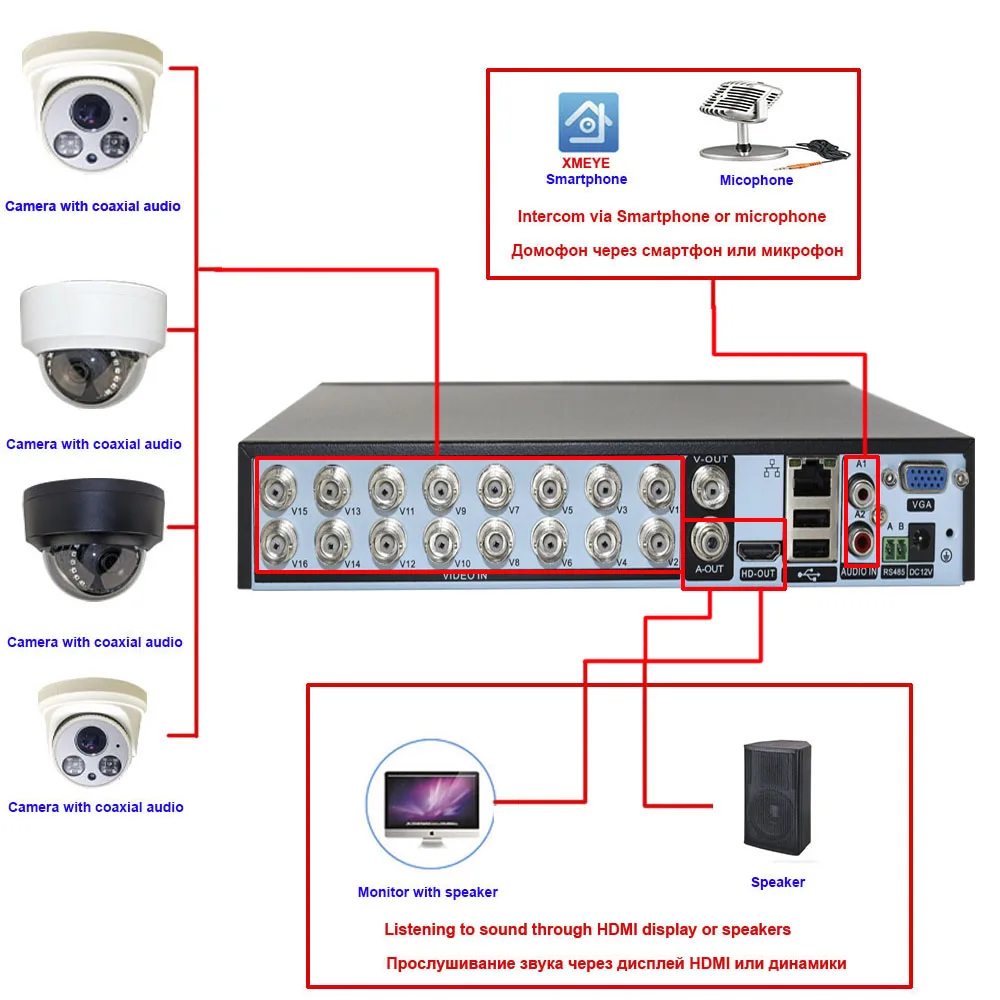

What is Audio over coaxial function

1.it is a function that the coaxial audio camera connect to coaxial DVR only by BNC cable,then can transfer sound and can hear sound from smartphone.No need add sound pick up device.

2.you can add one speaker,or add a HDMI monitor which built in speaker,then you can hear sound,

3.you can add a microphone or use smartphone,connect App of the DVR and talk.

4.must make sure your camera support Coaxial audio and must work for Xmeye coaxial audio dvr,some brand coaxial audio camera not work for this DVR,

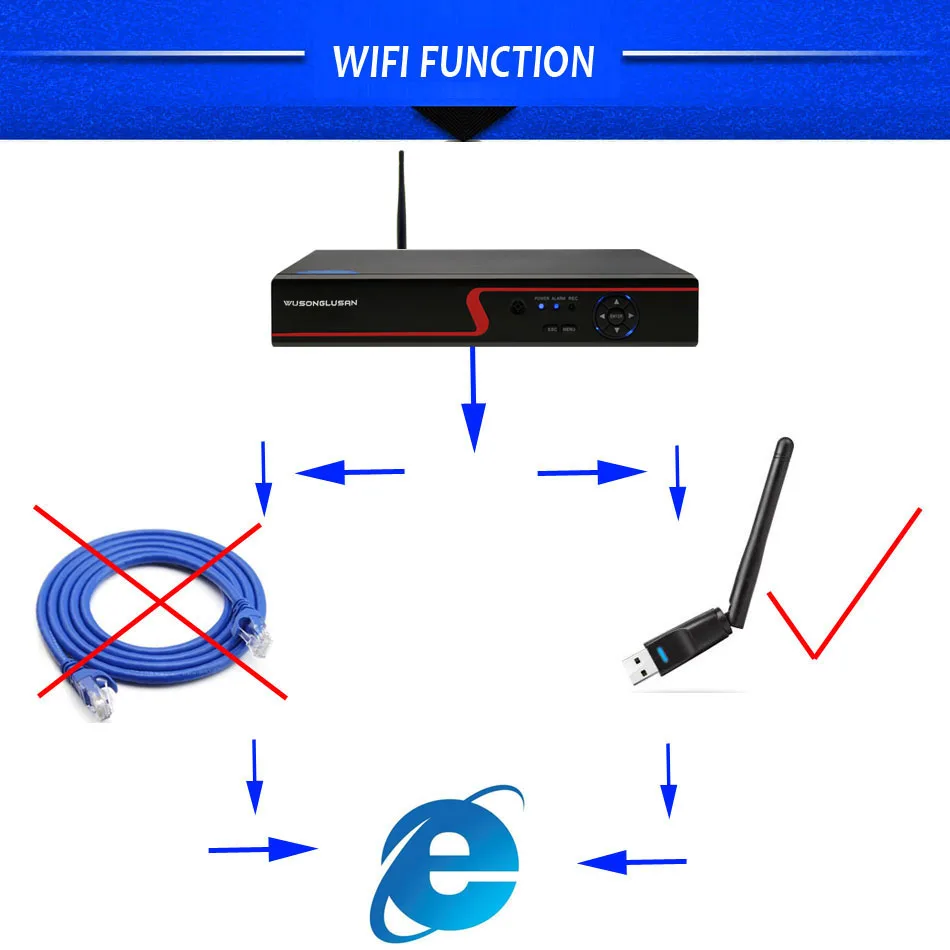

The DVR support Wireless connect internet

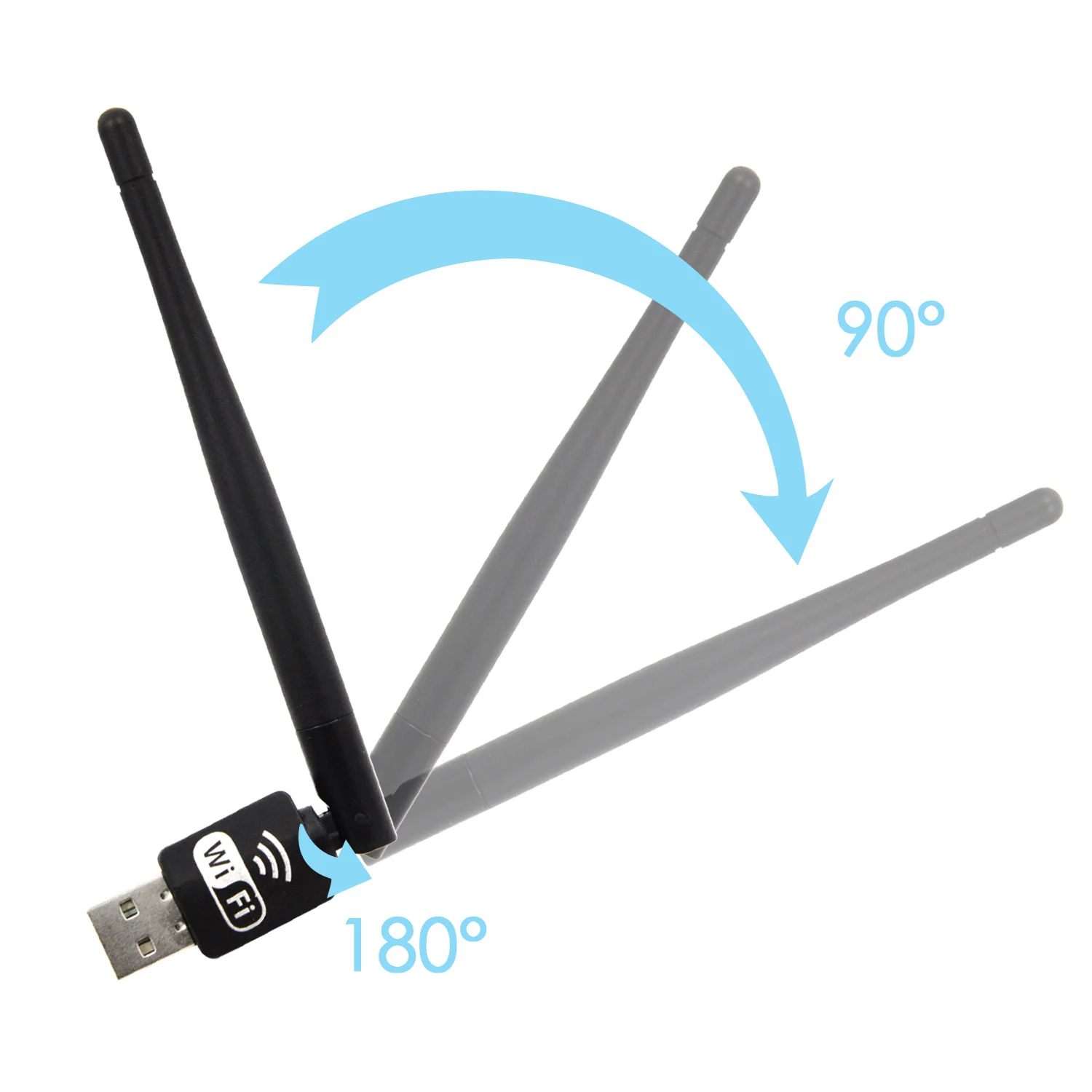

but must connect with suitable wifi adapter,if you need wifi adapter,you can buy from US by click the below picture.Wifi signal must 2.4G,not support 5G

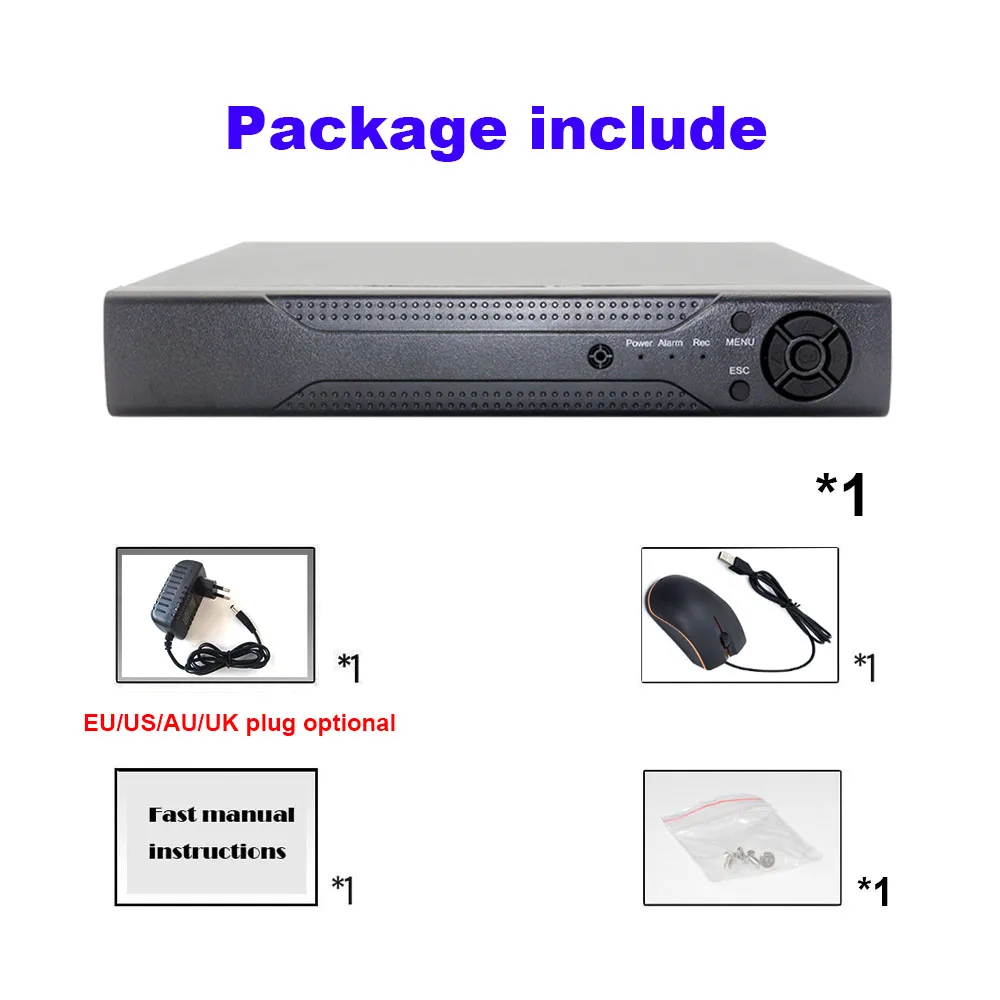

Parcel include:

1*DVR
1*Mouse
1*screw bag for hard disk

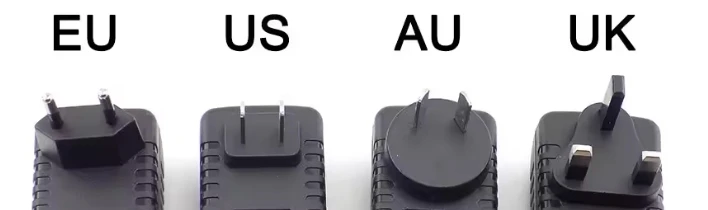

1*12V2A Power adapter. If you connect with 3T or 4T HDD,please better connect with DC12V3A or 12V5A power adapter.)

The Dvr Retail Box is General packaging box, the contents of the box may not be completely consistent with this product, if you mind the box, please do not buy，we not accept any dispute about it.

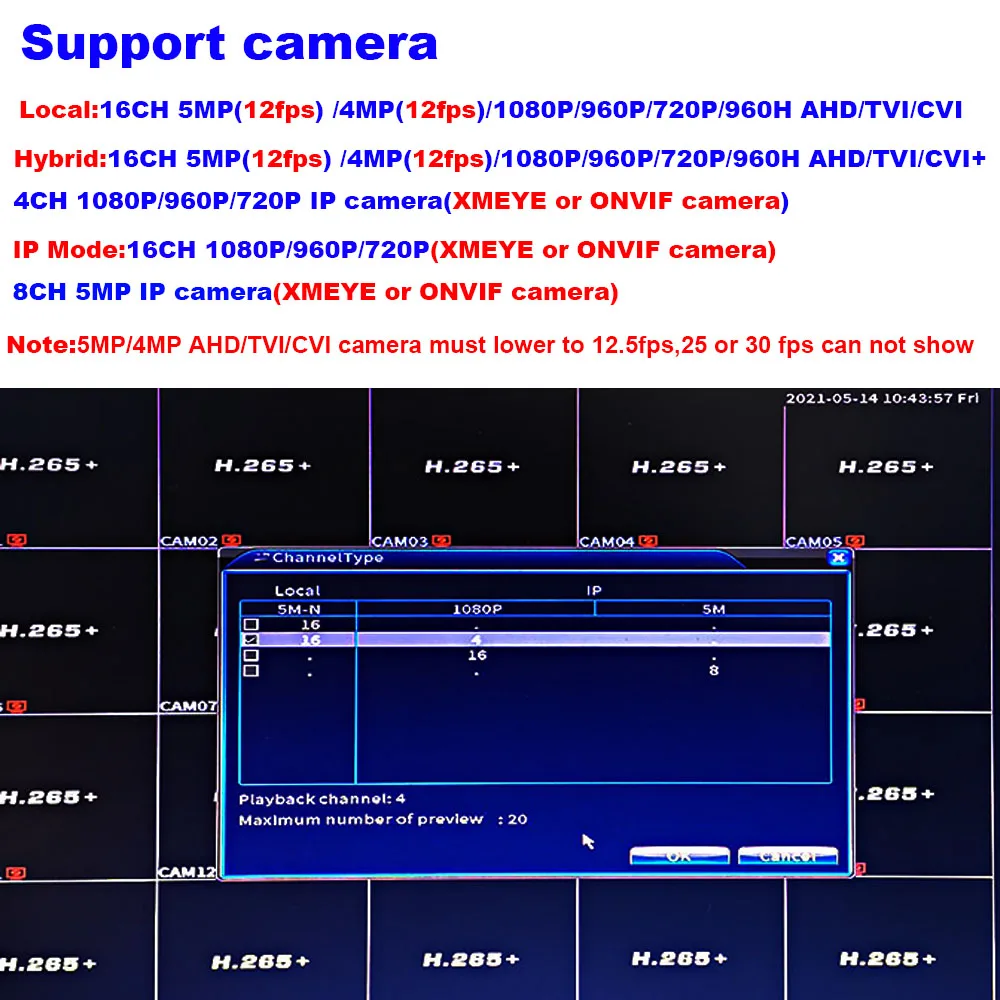

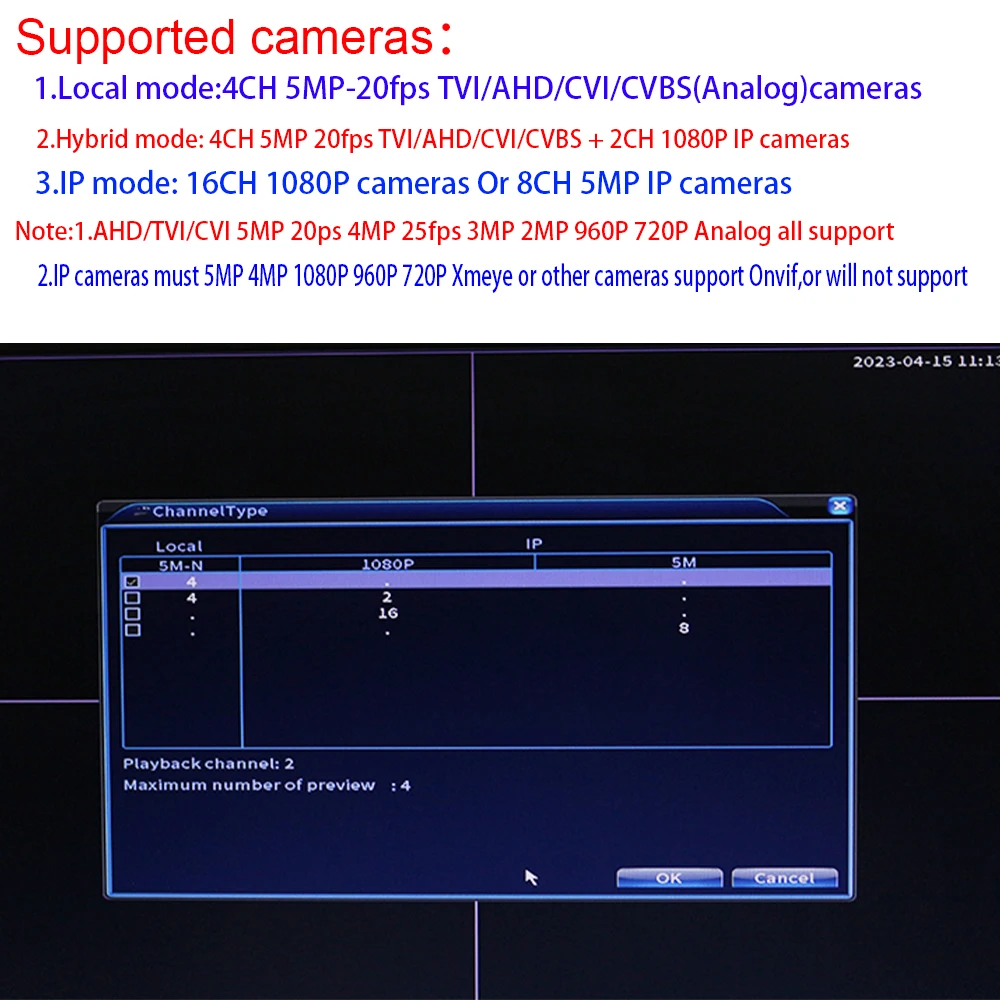

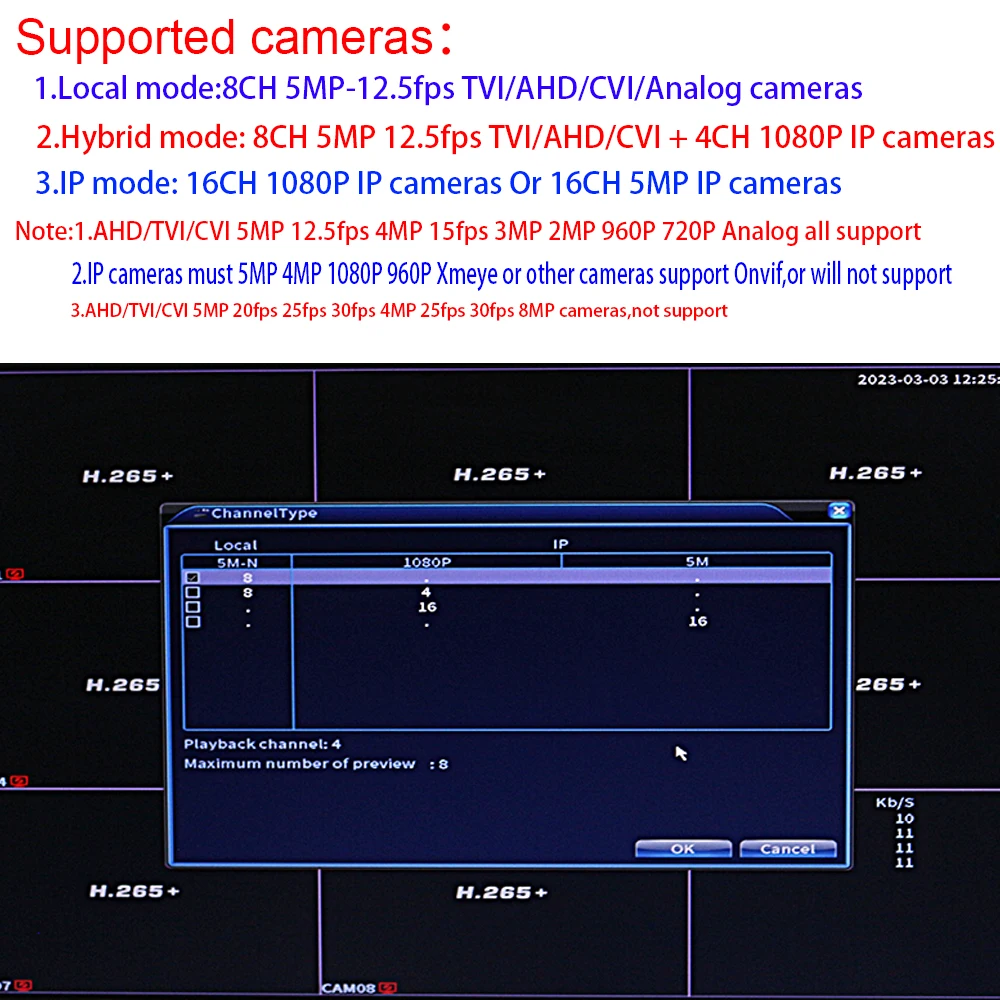

Channel type

4CH 5M-N

8CH 5M-N

16CH 5M-N

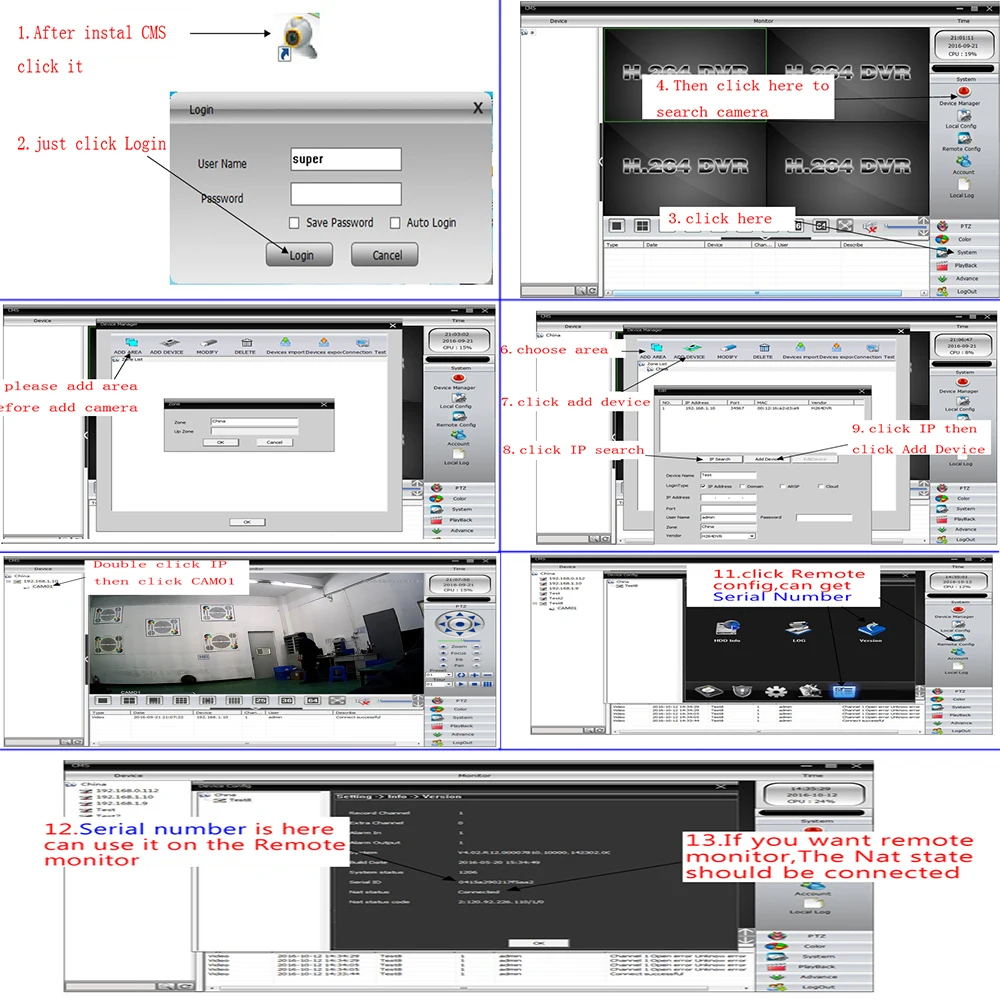

How to use it by computer

if you need CMS,can ask US to send

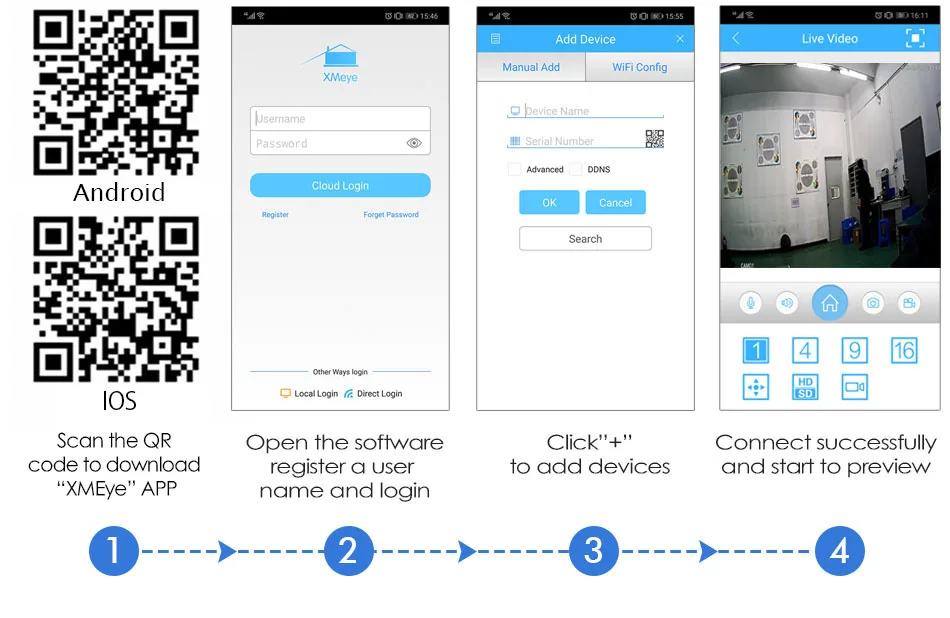

How to use it by Phone
