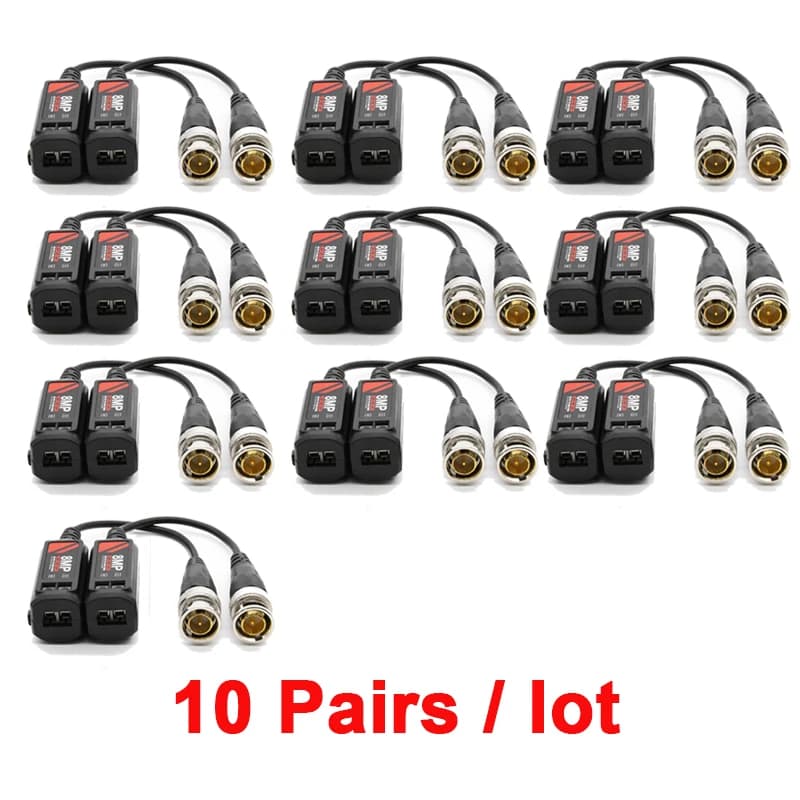

10pairs Twisted BNC CCTV Video Balun Passive Transceivers Support AHD/CVI/TVI 8MP 4K Camera Cat5e/ Cat6 UTP Cable Connectors

10pairs/20PCS 8MP 4K Video Balun Accessories Passive Twisted Pair Transmitter Coax converter BNC Connector Coaxial to UTP RJ45

One package contains : 10Pair(20PCS) / lot

Product Description

It’s a HD-AHD/TVI/CVI twisted pair transmitter, can simultaneously transmit 4pc analog hd signals by a network cable (twisted pair), transmission distance is farther than the coaxial line, convenient to wiring, it is very suitable for middle distance video surveillance, such as office building, community, school and hospital etc.. also it is the first products choice for installer!

Key features

1.Compatible with AHD/CVI/TVI signals;
2.Real time transmission, no delay;
3.Passive design, requires no additional power supply;
4.Transmission distance:
720P/960P/1080P≤400M
3MP/4MP/5MP≤250M
8MP≤200M
5.Built-in lightning surge protection;
6.Super-strong anti-interference
7.RJ45 Jack for UTP cable;
8.Stackable Design, extend one channel to multi-channel;
9.Small size and easy installation, cost-effective

1.Effective transmission:300m
2.Compatible with AHD / CVI / TVI / CVBS
3.No power supply required
4.Transmission stability

Anti interference transmission:Pal, NTSC, SECAM can be transmitted withoutadditional power supply More stable video signal transmission

Gold Plated pure,copper contact core:Pure copper contact core can ensure more stable video image transmission and low loss

Screw connector:Screw type wiring port, screw fixed design, stable installation and convenient use

PVC raw material wire,Reject low-quality recycled materials and adopt new flame-retardant, anti-oxidation, sun proof and anti-aging PVC plastic materials

Assembled type : The transmitter can be spliced together for use,with small occupied space and convenient use.
