RF-Nano for Arduino Nano V3.0, Type C Nano Board ATmega328P CH340 Integrate NRF24L01+2.4G Wireless Compatible With RF24 Library
8.38$
1.19$
Quantity:
1
Availability:
Color
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Product description:

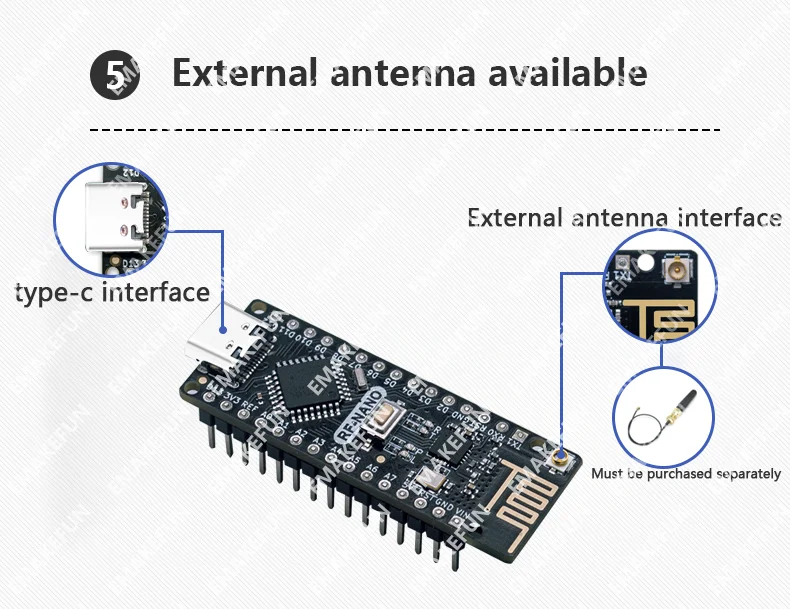

RF nano is a 2.4G wireless development board developed by emakefun based on the official standard Arduino Nano V3.0 motherboard integrated with nrf24L01+wireless chips. Its size and pins are fully compatible with the standard nanoV3.0 development board, directly compatible with the RF24 open source library, and can be set for power consumption, transmission rate, channel, and other settings. It supports Mixly, Mblock5, and Magicblock graphical programming; Optimize the transmission distance of the onboard antenna to reach 30m, and use an IPEX patch antenna base on the board to achieve a transmission distance of up to 100m using an external antenna.
Product parameters:
RF-NANO
Processor : ATmega328P-AU
Operating voltage :5V
Recommended VIN input voltage :6V to 15V
Digital IO Pins :22 (6 of which are used as PWM output)
Analog input pin :8 (A0~A7)
IO pin DC current :40mA
5V pin current: 1000mA at VIN input
3.3V pin current: 50mA
Flash memory :32KB(of which 0.5KB is for boot loader)
SRAM: 2KB
EEPROM: 1KB
USB to serial port chip: CH340G chip with external crystal oscillator
Working clock :16 MHZ

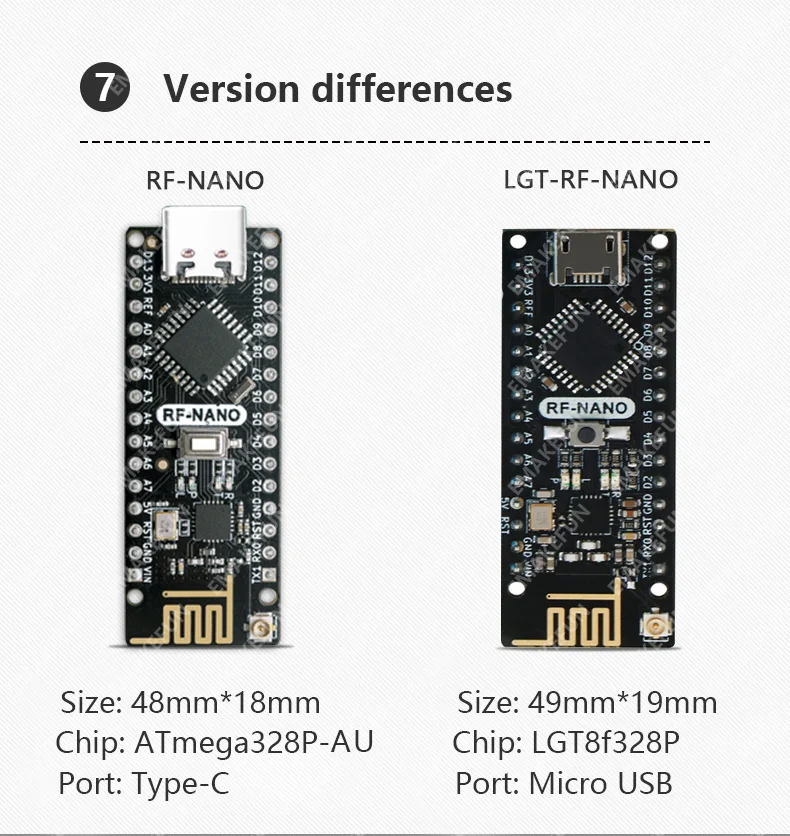

LGT-RF-NANO
Processor: LGT8F328P-AU
Operating voltage :5V
Recommended VIN input voltage :6V to 15V
Digital IO Pins :22 (6 of which are used as PWM output)
Analog input pin :8 (A0~A7)
IO pin DC current :40mA
5V pin current: 1000mA at VIN input
3.3V pin current: 50mA
Flash memory :32KB(of which 0.5KB is for boot loader)
SRAM: 2KB
EEPROM: 1KB
USB to serial port chip: CH340G chip with external crystal oscillator
