Magnetic Levitation DIY Electronic Small Fabrication Experiment Coil Push-Down Module Circuit Board Fabrication Welding Kit

Product name: push-down maglev DIY welding kit

Product model: TJ-56-254

Working power supply: DC12V2A

Power: 2~5W

Suspended weight: 50g /150

Suspension distance: Not more than 2cm

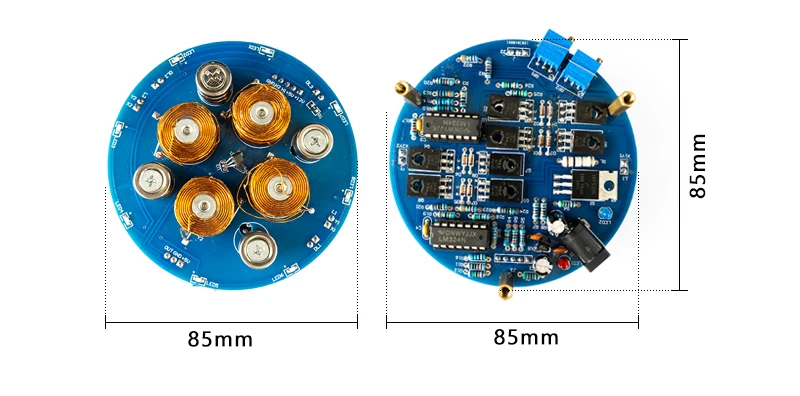

PCB size: 85 * 85mm

Product Features:

1. The circuit is simple, reliable and practical;

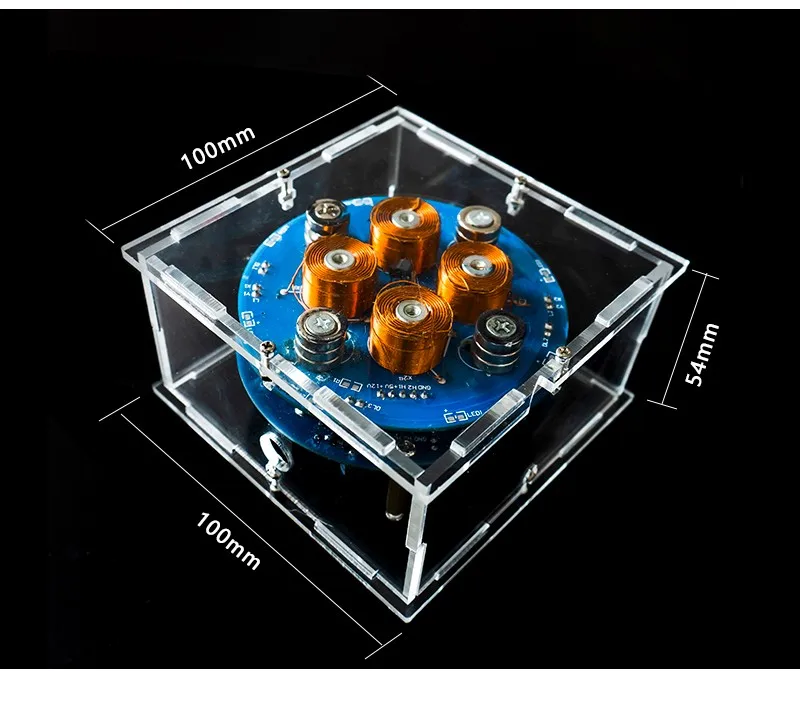

2. This kit is equipped with acrylic shell, which is not only beautiful, but also can effectively protect circuit components, which is convenient for demonstration and play.

3. This DIY kit is designed for scientific research and experiment and is not applicable to other purposes!

Product Description:

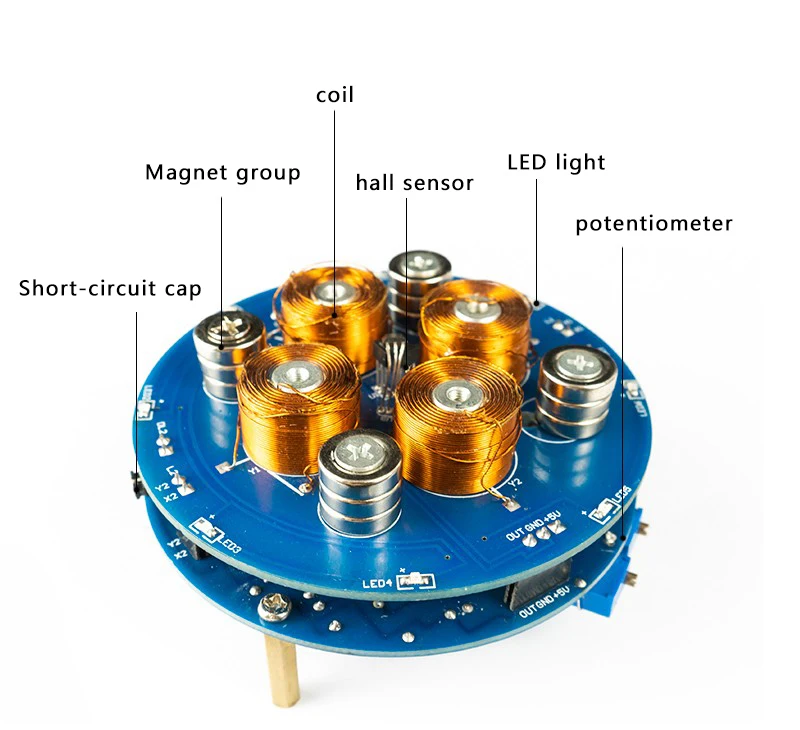

Magnetic levitation is mainly composed of coil, magnet, Hall sensor and drive circuit. When the magnet is close to the Hall sensor under the coil, the Hall sensor will output an analog quantity when sensing the magnetic field change to the amplification circuit for amplification, and then conduct pulse width modulation through this value. When the magnet and suspended objects fall away from the sensor due to gravity, the sensor output value will increase the voltage duty ratio on the coil and the coil magnetic force, Thus, the magnet and suspended object are pulled. On the contrary, when the distance from the sensor is very close, the sensor output value reduces the coil voltage duty ratio, and the coil magnetic force is weak. The magnet and suspended object depend on their own weight to keep away from the sensor, and the magnetic object is suspended by continuously adjusting the coil voltage duty ratio.

Usage Method:

Placing suspended solids and precautions

1. After the equipment is powered on, the power indicator on the PCB board will be lit. At this time, hold the float from the bottom of the ring to the bottom of the coil slowly. At about 5cm, you will feel the force that the coil will absorb the float at this time. At this time, hold the float with one hand to feel the upward force, and use the other hand to adjust the sliding rheostat on the PCB board. When you feel that the two forces can almost balance, stop adjusting the sliding rheostat, Then slowly loosen the float to keep it stable. In this way, the float can be successfully floated. The sliding rheostat reduces the magnetic force clockwise and increases the magnetic force counterclockwise. The magnetic force cannot be too large or too small. The rotating position of the sliding rheostat can refer to the above picture.

2. The float must be powered off for cooling if it fails to be placed for many times (up to 5 times), otherwise it is easy to damage the element

3. Do not float the float on the kit for a long time (up to 5 minutes), which may cause equipment damage.

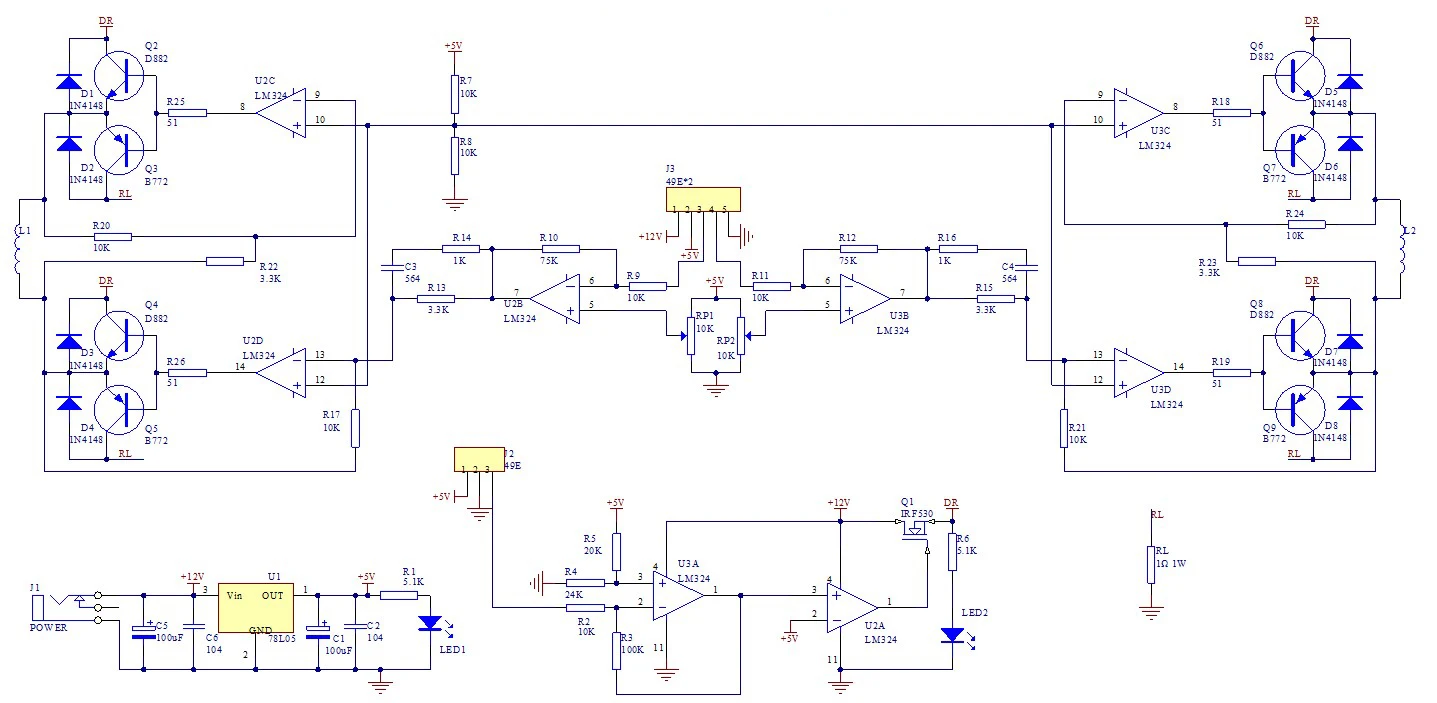

Circuit Diagram:

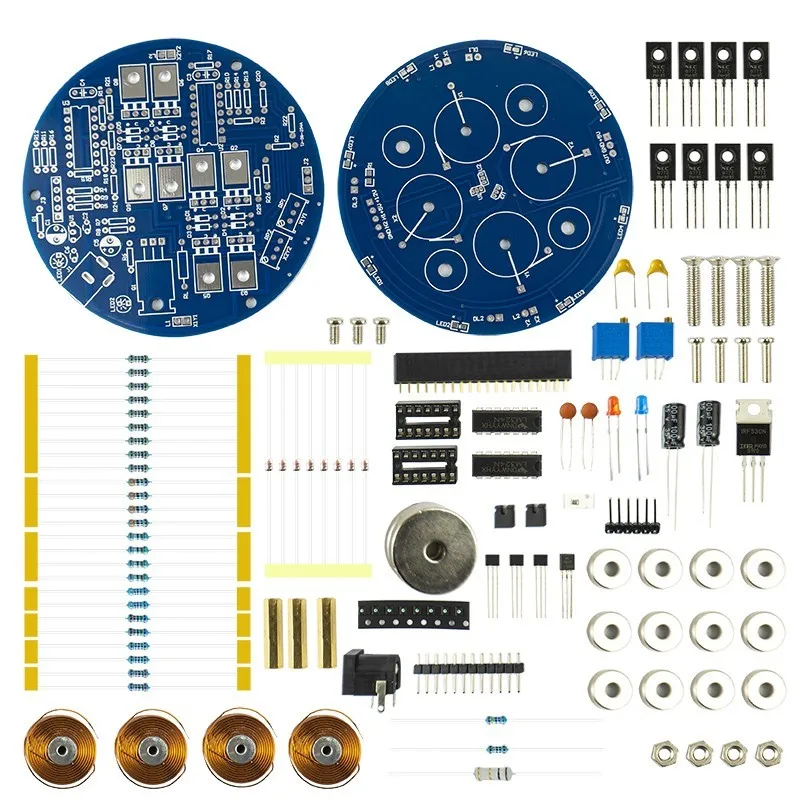

Package Included:

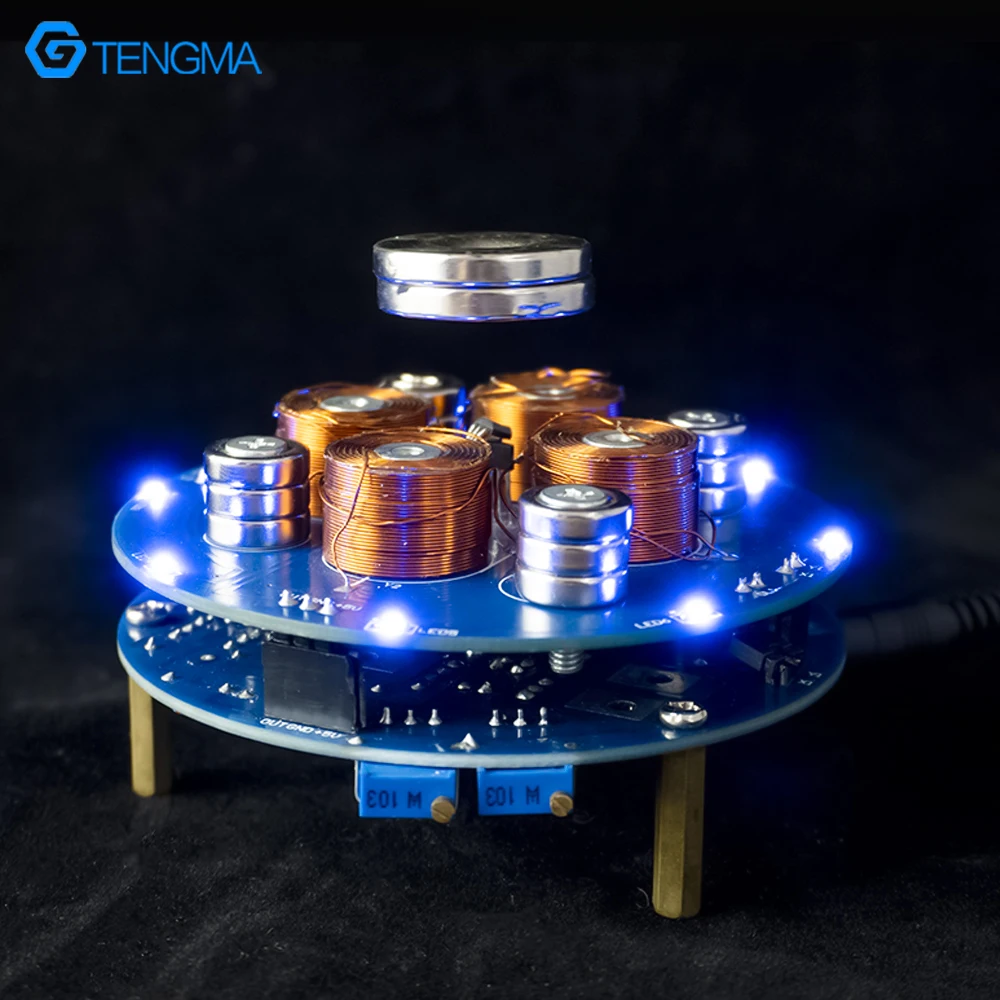

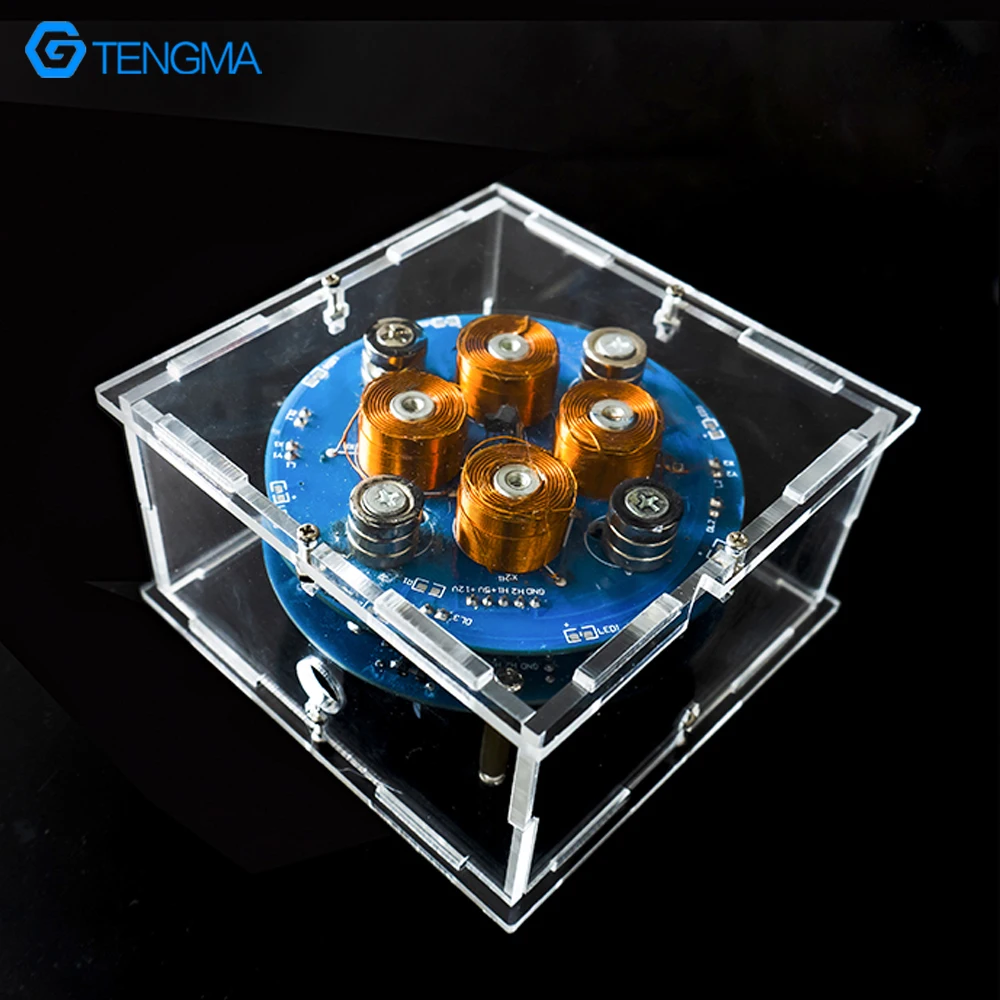

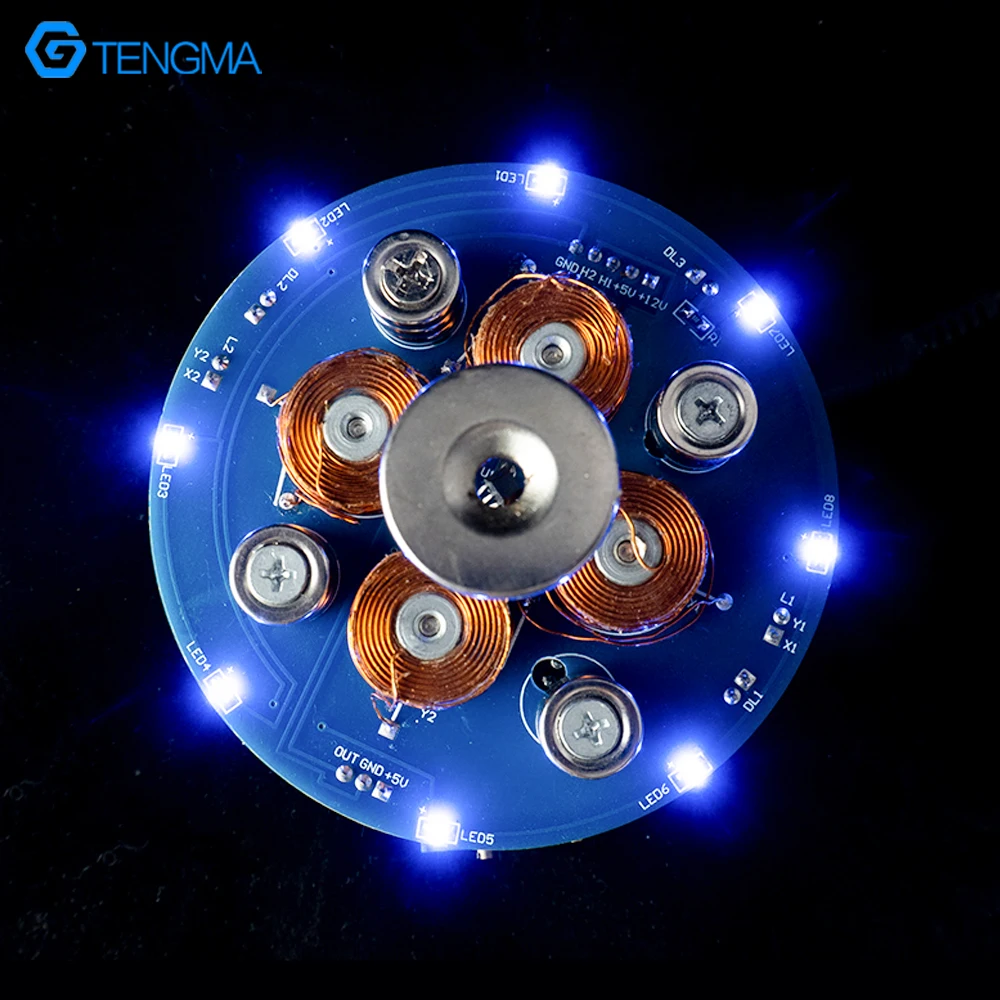

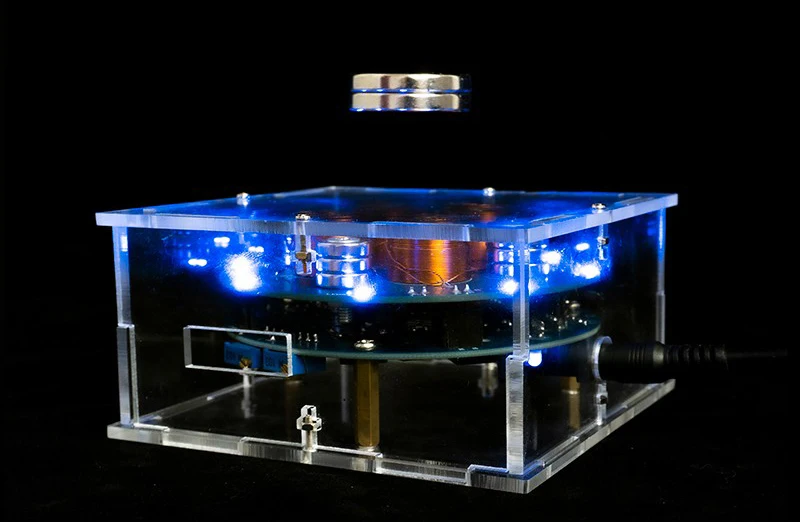

Finished Product Display:

Attentions

1. All products (except those specially marked) are loose parts, and the buyers need to solder, assemble and debug by themselves. If you need finished products, you can contact customer service to buy them.

2. Due to shipping restrictions, the product does not include any batteries.

3. If there is a problem with the product you received, or there is a problem during the soldering and assembly process, please contact us as soon as possible.

4. If you need the shipping of the package to be checked and faster, please choose the "AliExpress Save Shipping" or "AliExpress Standard Shipping" shipping method.

5. If you are satisfied with the product, you can leave us a 5-star review.

We will appreciate it. Thank you for your support!!!
