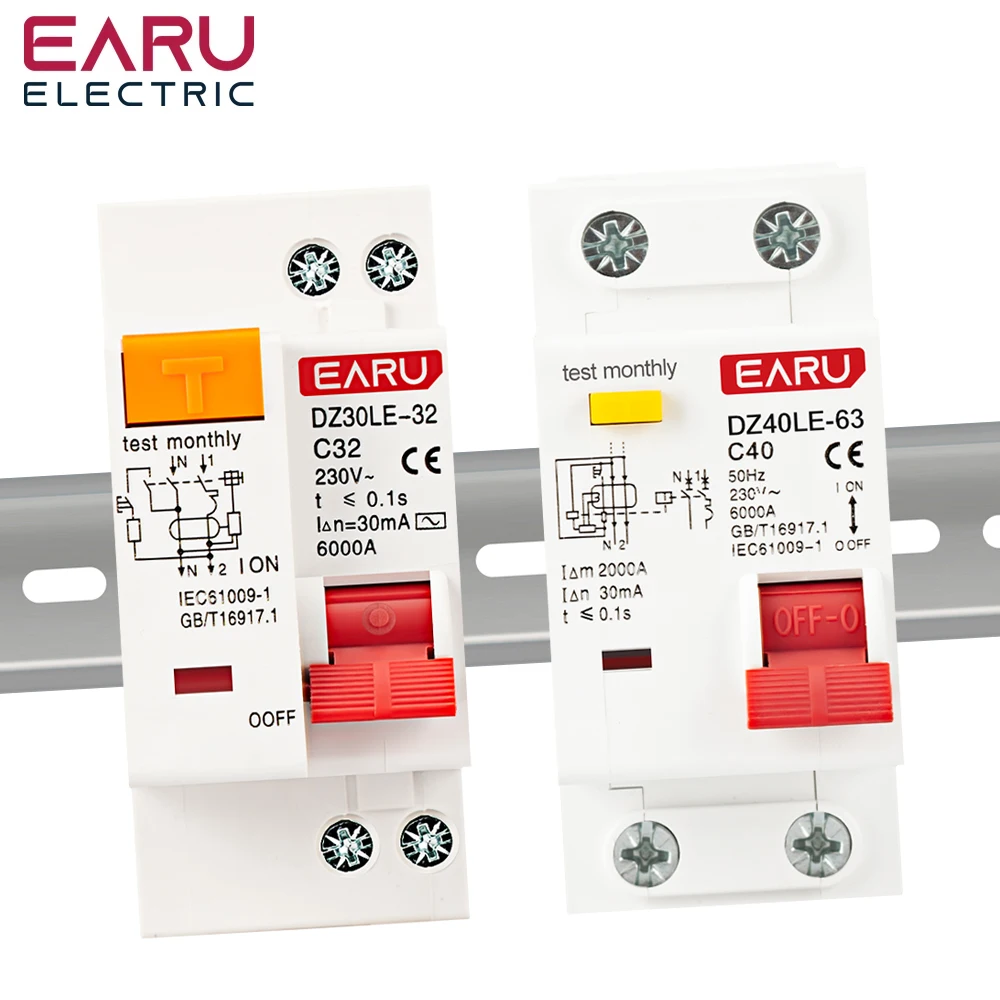

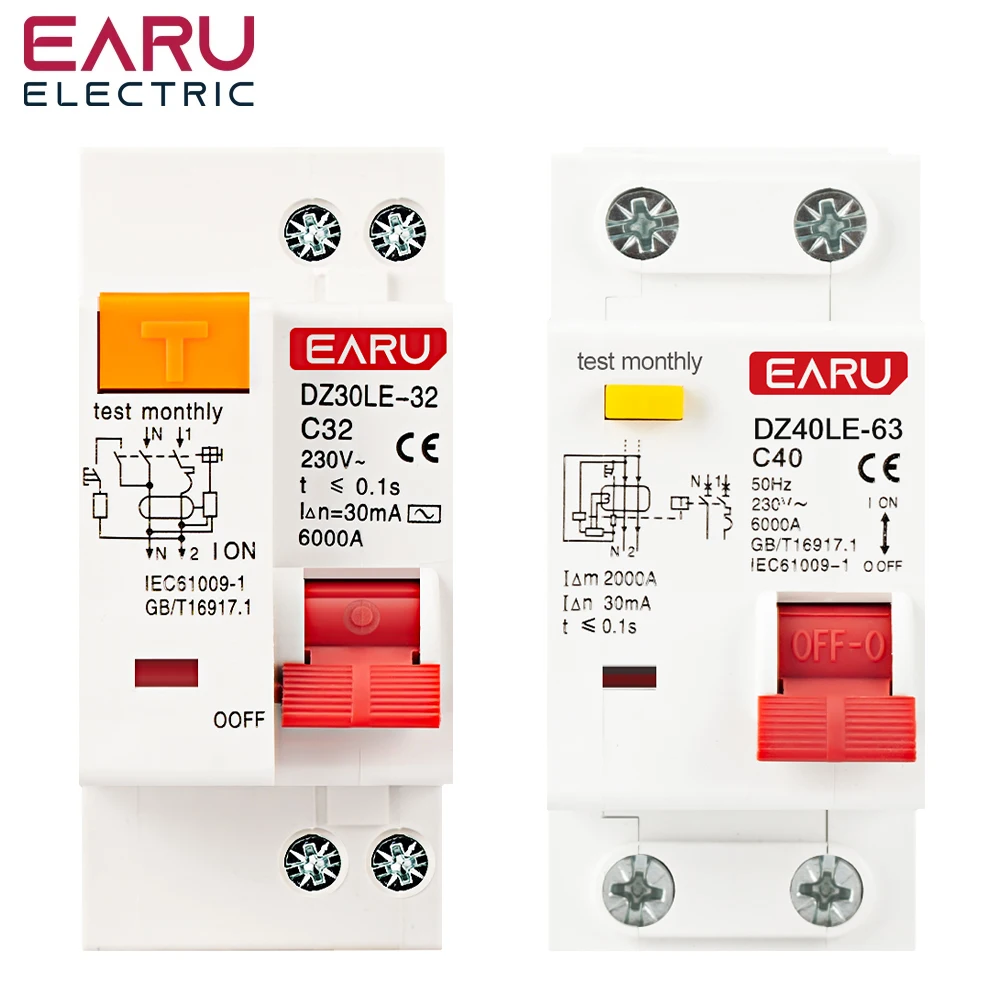

1P+N 230V DZ30L DZ40LE EPNL DPNL 6-63A Residual Current Circuit Breaker With Over And Short Current Leakage Protection RCBO MCB

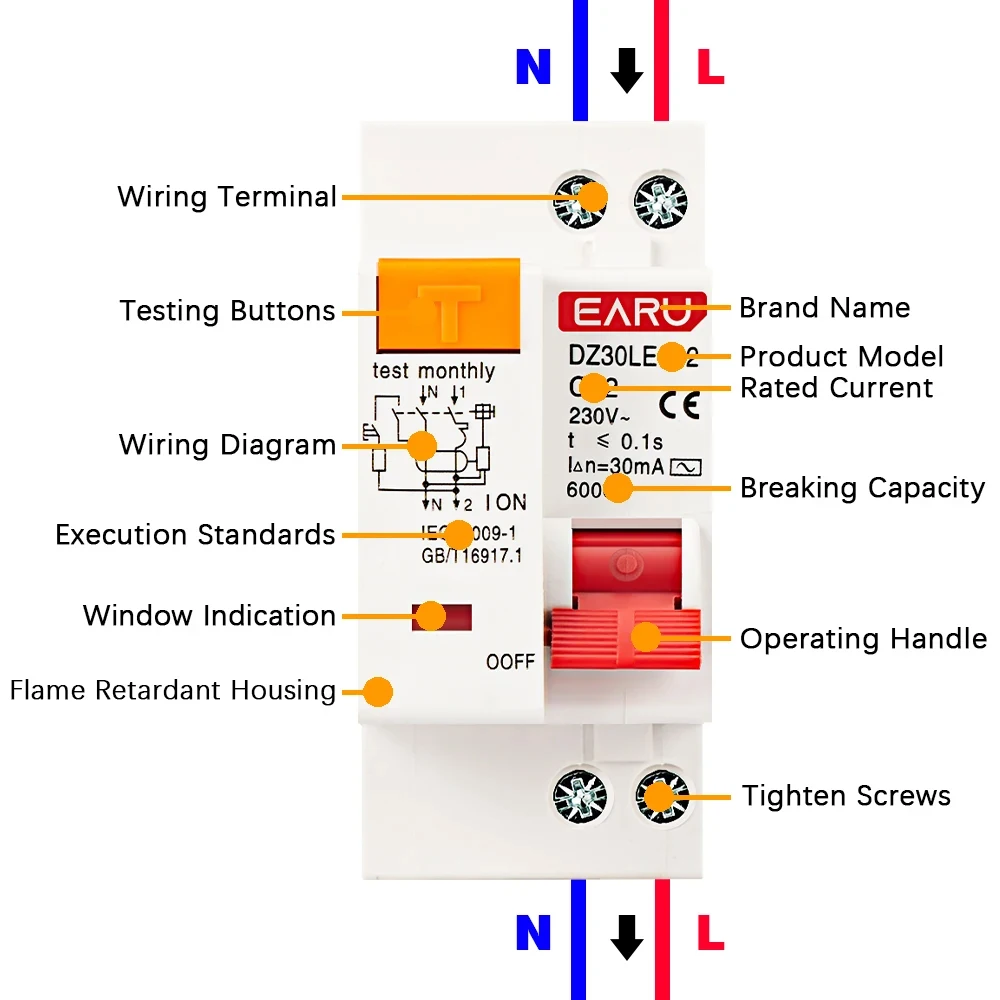

Construction and Feature

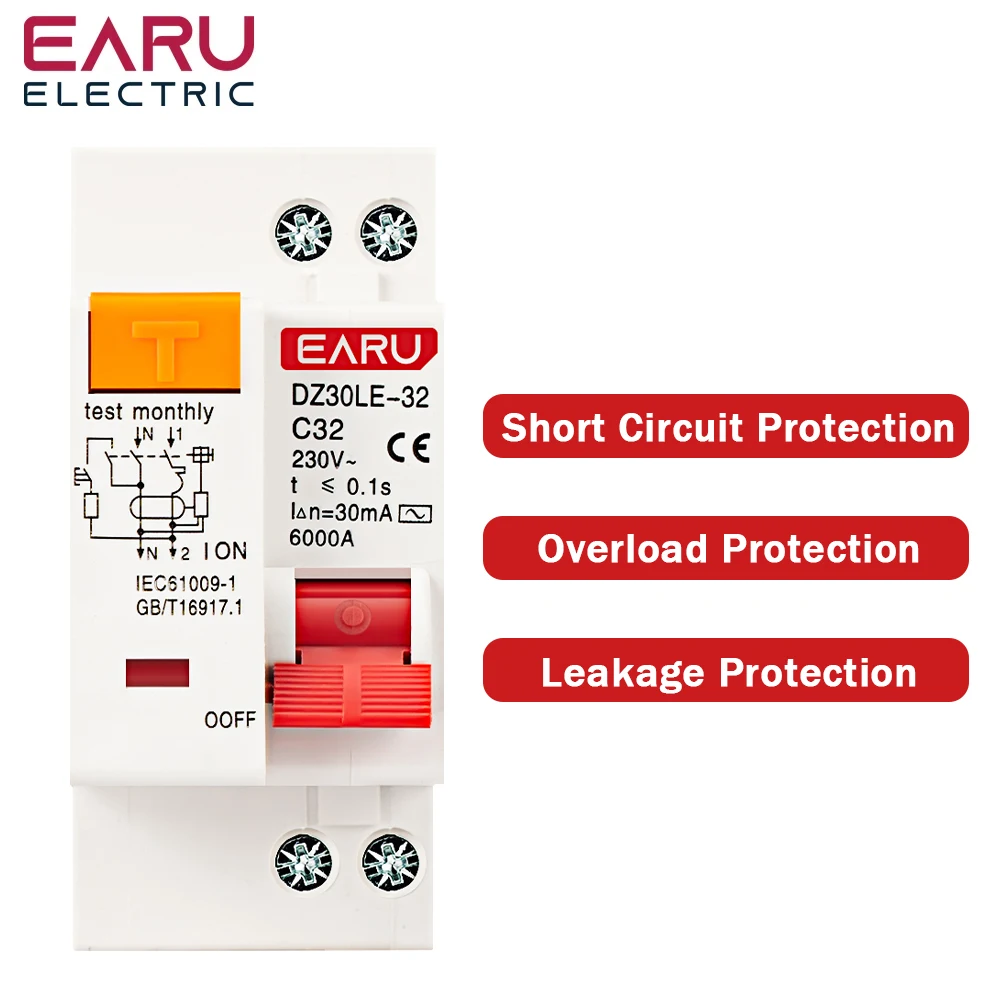

1.Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation.

2.Contact position indication.

3.Provides protection against indirect contact by human body.

4.Provides complementary protection against direct contact by human body.

5.Effectively protects electric equipment against insulating failure.

6.Equipped with switched neutral and phase pole .

7.Provides protection against over-voltage.

8.Provides comprehensive protection to household and commercial distribution systems.

Technical Data

1.Type: Electronic type

2.Residual current characteristics: AC

3.Pole No: 1P+N

4.Tripping curve: C

5.Rated short-circuit capacity:6KA

6.Rated Current(A): 6,10,16,20,25,32,63A

7.Rated Voltage:230VAC

8.Rated Frequency:50/60Hz

9.Rated residual operating current(mA): 30(63Ais 15mA)

10.Tripping duration:instantaneous under or equal 0.1s

11.Electro-mechanical: pillar terminal with clamp.

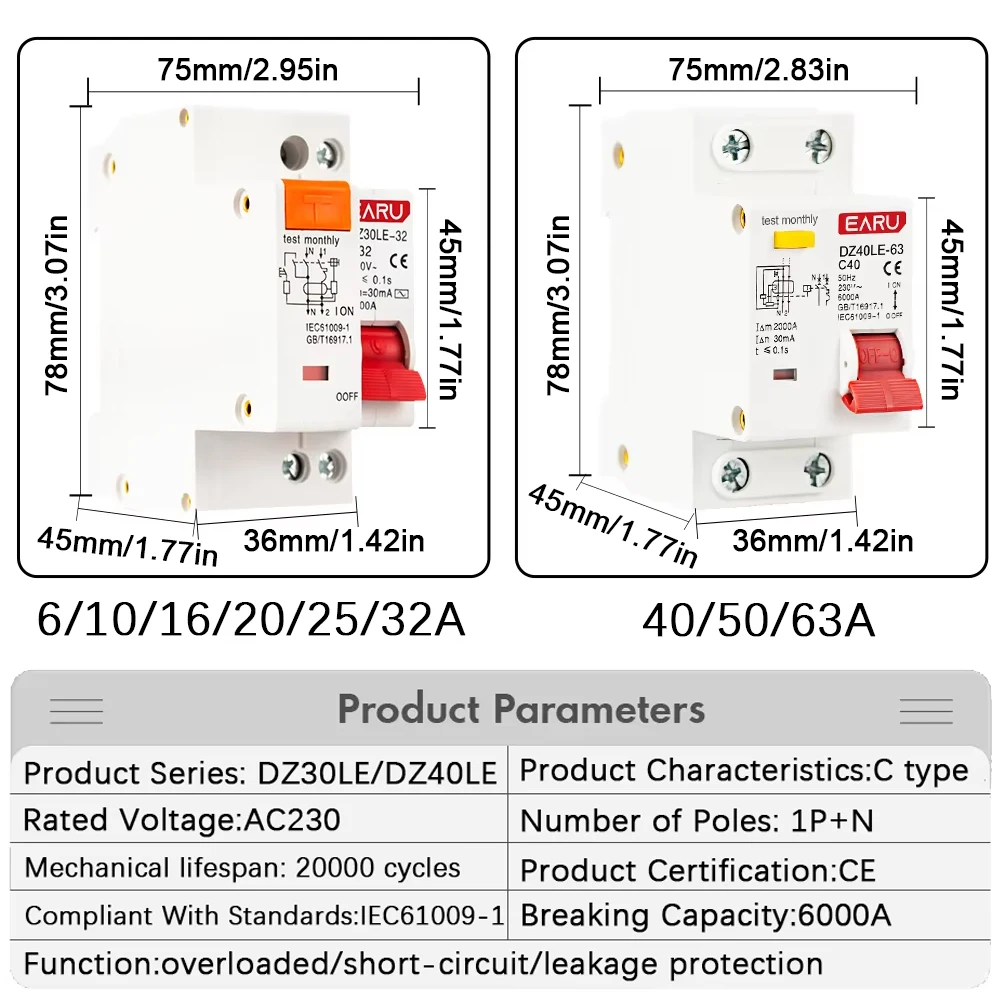

12.Terminal Connection Height:H1=16mm,H2=21mm

13.Over-votage tripping:280V±5%

14.Connection capacity: Flexible conductor 10mm², Rigid conductor 16mm².

15.Installation: On symmetrical DIN Rail 35mm, Panel mounting Accessories

16.S2 Shunt Tripper

17.U2+O2 Over-voltage and under-votage tripper.
