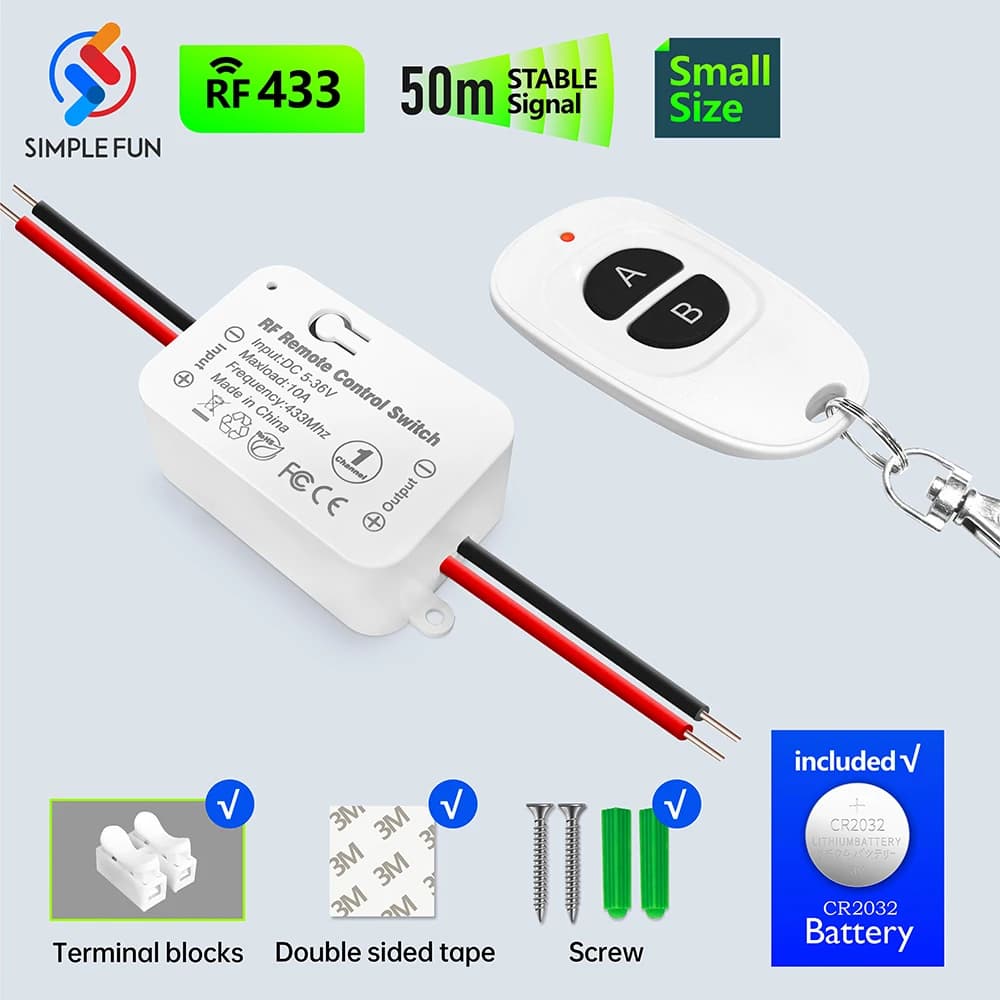

433Mhz Wireless Remote Control Switch 10A DC 6V 12V 24V 30V 36V Mini RF Relay Receiver Transmitter for Pumps Light Lamp LED Fan

Product Advantages

√ Simple Wiring，Easy to use.
The product comes with terminal blocks, the wiring is simple, and the matching signal is also very simple.

√ 3 modes of operation can be selected ( momentary / toggle /Latched ). You can easily set it up yourself if you want.

√ Stable remote signal.
50 meters of stable signal transmission, the remote control is waterproof, and it will not affect the use after being immersed in water and taken out.
The remote control contains batteries.

√Support flexible pairing.
One receiver can store about 20 transmitters, and one transmitter can also control multiple receivers.

√ Mini High Quality Receiver.

*Stable and reliable performance, high receiving sensitivity (＞97dBm). Small size, easy installation, the product comes with screws and double-sided tape.

*The chip code is EV1527 learning code, which is the most popular technology at present, making the remote control system more secure.

*The receiver adopts 10A relay, which is suitable for high-power electrical appliances and ensures long-term stable control.

√ Wide Range of Application Scenarios.
The products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc. You can remotely operate electric locks, electromagnetic doors, fans, lamps, lighting, ventilation, water pumps, signal transmission and DIY remote control switches, etc.

Features

√ Mini body, Easy wiring.

√ Stable remote signal.
50 meters of stable signal transmission.

√ Support flexible pairing.
One receiver can store about 20 transmitters, and one transmitter can also control multiple receivers.

√ Waterproof
Take out the remote immediately after falling into the water or when your hands are wet, the remote can still be used normally.

√ Wide Range of Application Scenarios.
The products can be used in homes, farms, factories, offices, laboratories, supermarkets, etc. You can remotely operate electric locks, electromagnetic doors, fans, lamps, lighting, ventilation, water pumps, signal transmission and DIY remote control switches, etc.

√ 3 modes of operation can be selected.

You can easily set it up yourself if you want.

*Momentary Mode*
For example:
1. Press and hold button "A" , The device will turn ON .
2. Release the same button, The device will turn OFF.

*Toggle Mode*
For example:
1. Press button "A" once, The device will turn ON .
2. Press button "A" again, The device will turn OFF.

*Latched mode*
1. Press button "A" ,The device will turn ON .
2. Press button "B" ,The device will turn OFF.

Pairing signal

Note：
1. When you receive our products, it may set in one remote mode randomly, that because each product was tested before it can be arranged to shipment. So, please delete the existing data to first use.
2. After deleted the data, all the remote controls cannot work any more.

Clear data:

Press the learn button (on the receiver) 8 times. Existing data will be successfully deleted.

Pair RF433mhz signal:

*Momentary Mode
Step1:Press the learning button on the receiver 4 times , Wait for 3 seconds;
Step2:Press one button on the remote, Wait for 3 seconds; Succeed.

*Toggle Mode
Step1:Press the learning button on the receiver 2 times , Wait for 3 seconds;
Step2:Press one button on the remote, Wait for 3 seconds; Succeed.

*Latched mode
Step1:Press the learning button on the receiver 3 times , Wait for 3 seconds;
Step2:Press button "A" on the remote, Wait for 3 seconds;
Step3:Press button "B" on the remote, Wait for 3 seconds; Succeed.

Parameter

√ RF433mhz Wireless Receiver
Working voltage : DC 5V~36V
Max current : 10A
RF frequency : 433MHz
Working temperature : -30~+80
Receiving Sensitivity : ＞97dbm
Amount of storage remote controls : about 25 pieces
Support encoding : 1527 Leaning code /2262 fixed code
RF Operating mode : ASK superheterodyne wireless reception
Receiving range : Open space is more than 50 meters
Size:62*36*23mm
Remote operating mode:Momentary Mode /Toggle Mode /latched mode

√ RF433mhz Remote Control
Support encoding : 1527 Leaning code
Remote distance : up to 50m (theoretical distance)
Battery : CR2032(included)
RF frequency : 433MHz
Size:34*59m*10 mm
Modulation: ASK
