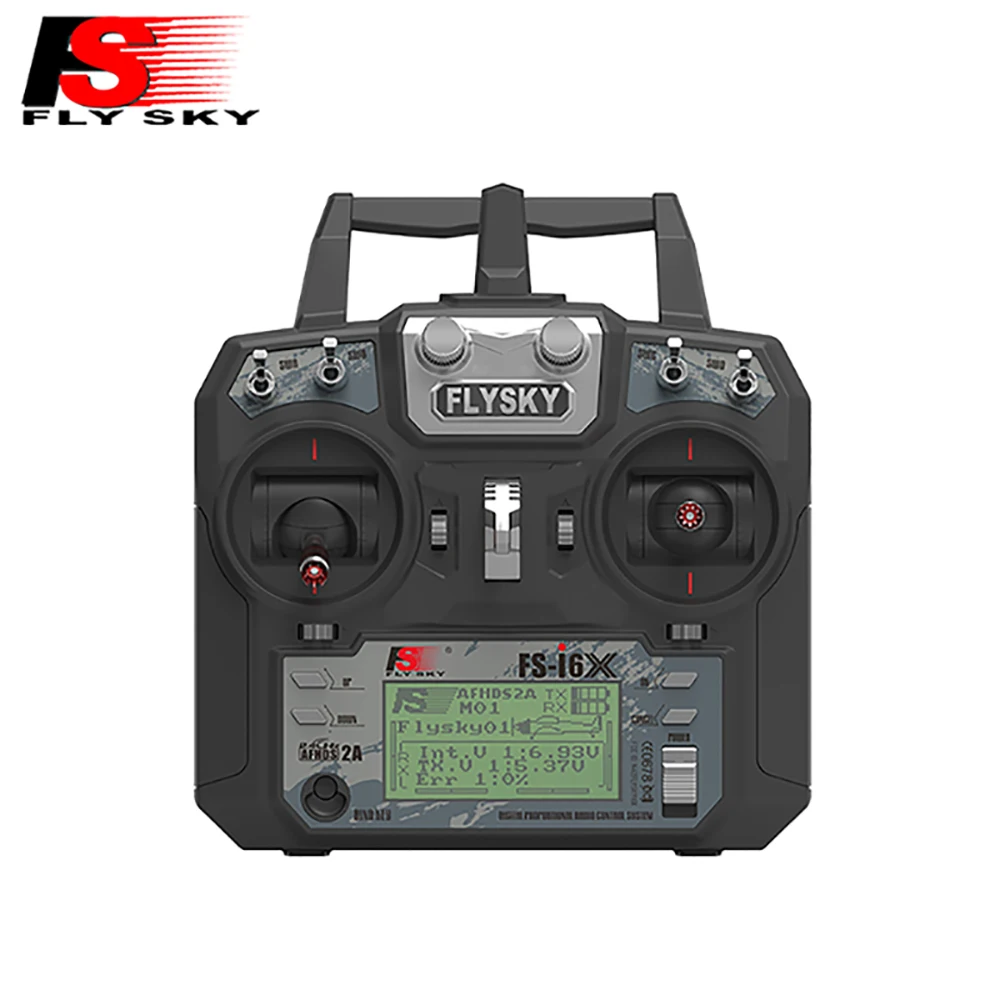

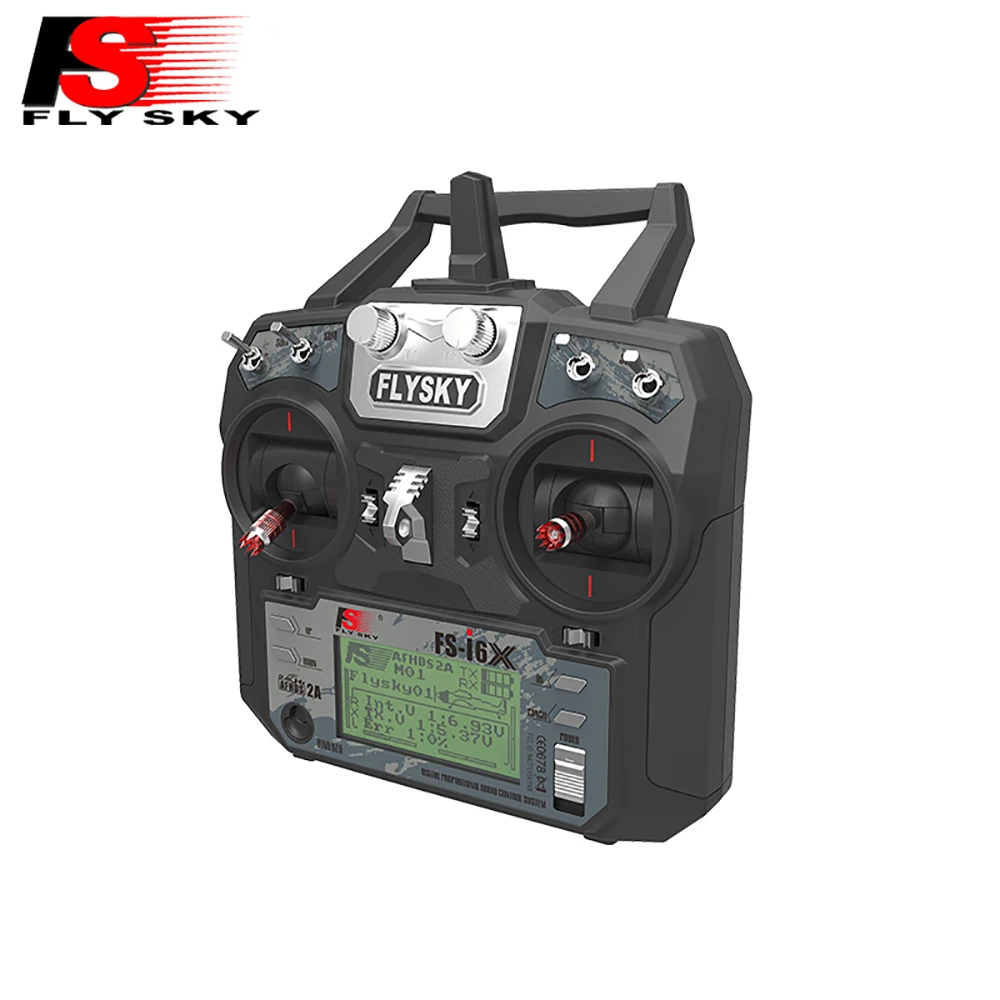

FLYSKY FS-i6X I6X AFHDS 2A RC Transmitter with X6B IA6B IA10B Receiver 10CH 2.4GHz for Aairplane Helicopter FPV Racing Drones

Mode1 stand for Right Hand Throttle

Mode2 stand for Left Hand Throttle

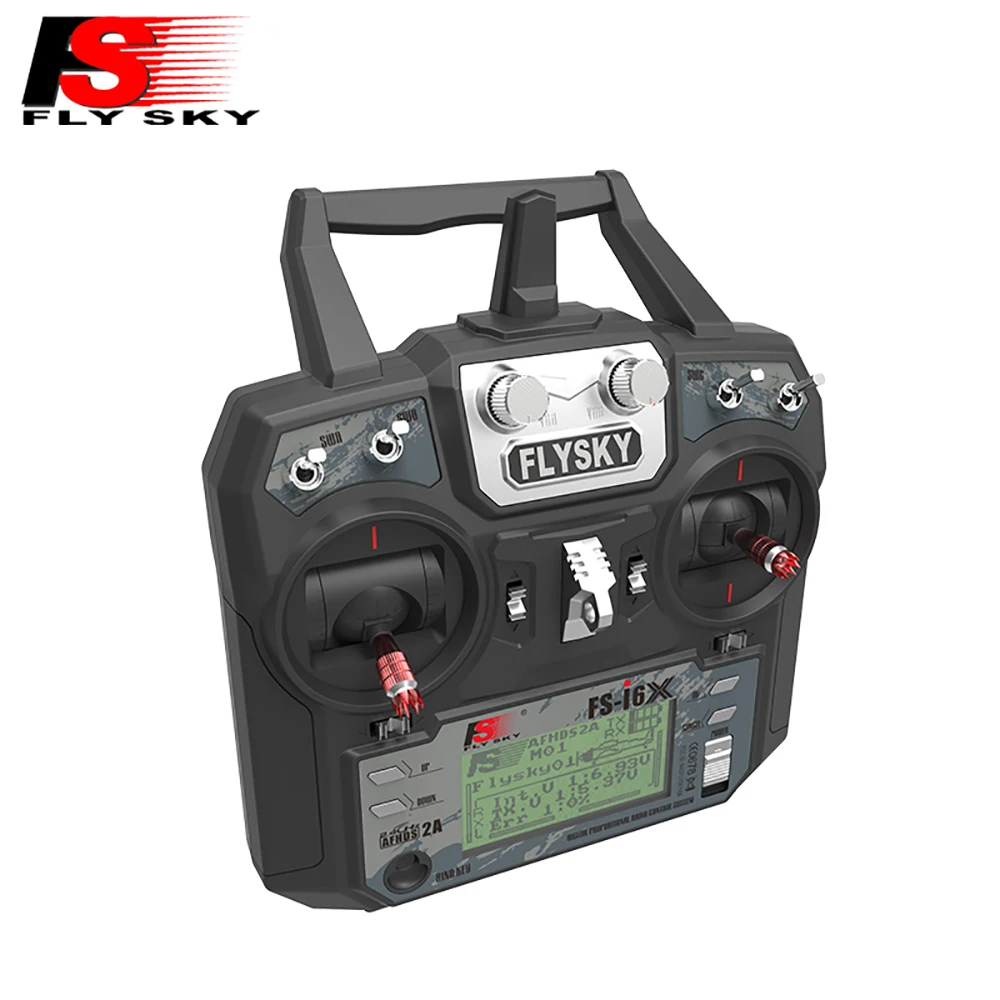

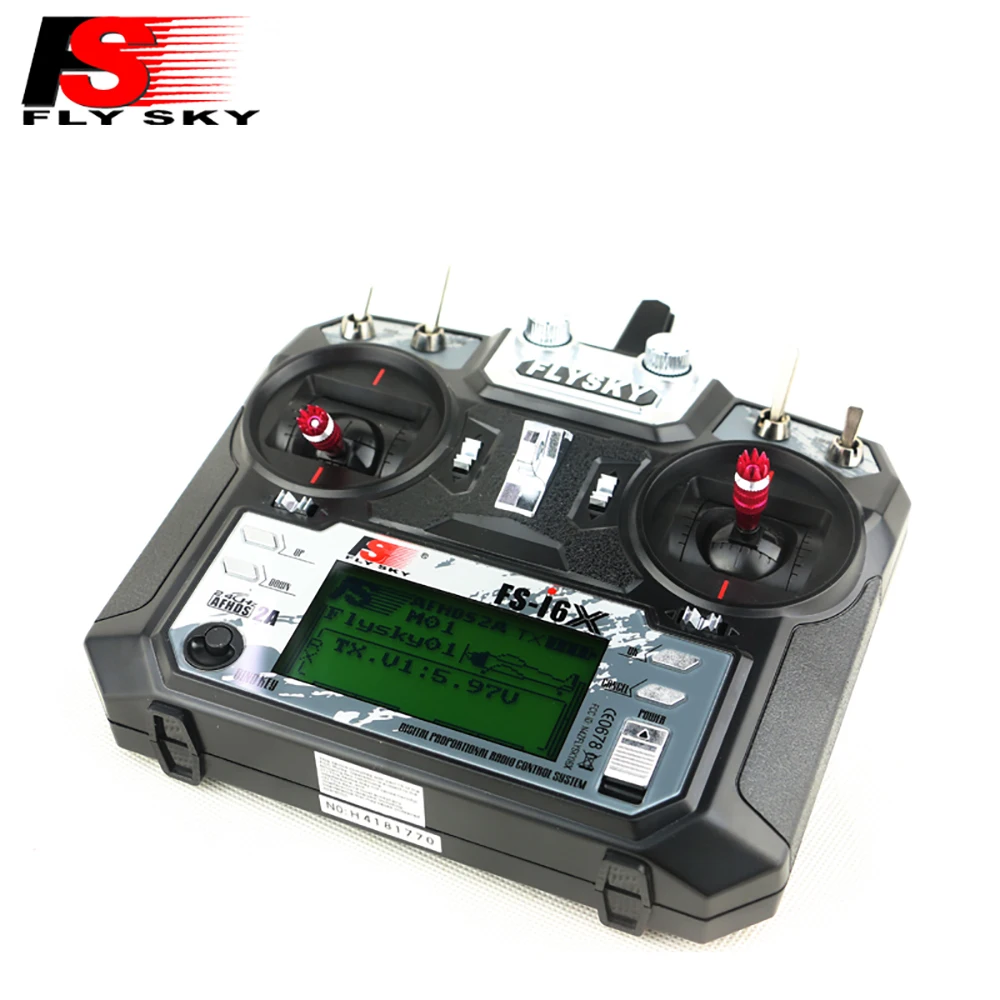

FS-i6X Specifications:

Item: FS-i6X RC Transmitter

Channel: 6-10 (Default 6)

Model Type: Fixed-Wing/Glider/Helicopter

RF Range: 2.408-2.475GHz

RF Power: < 20dBm

RF Channel: 135

Bandwidth: 500KHz

2.4GHz System: AFHDS 2A / AFDHS

Modulation Type: GFSK

Stick Resolution 4096

Low Voltage Warning: < 4.2V

DSC port: PS/2 Port PPM

Chargeable: No

Antenna Length: 26mm (Dual Antenna)

Weight: 392g

Power: 6V DC 1.5AA*4

Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight

Size: 174x89x190mm

On-line Update: Yes

Color: Black

Certificate: CE0678, FCC ID: N4ZFLYSKYI6X

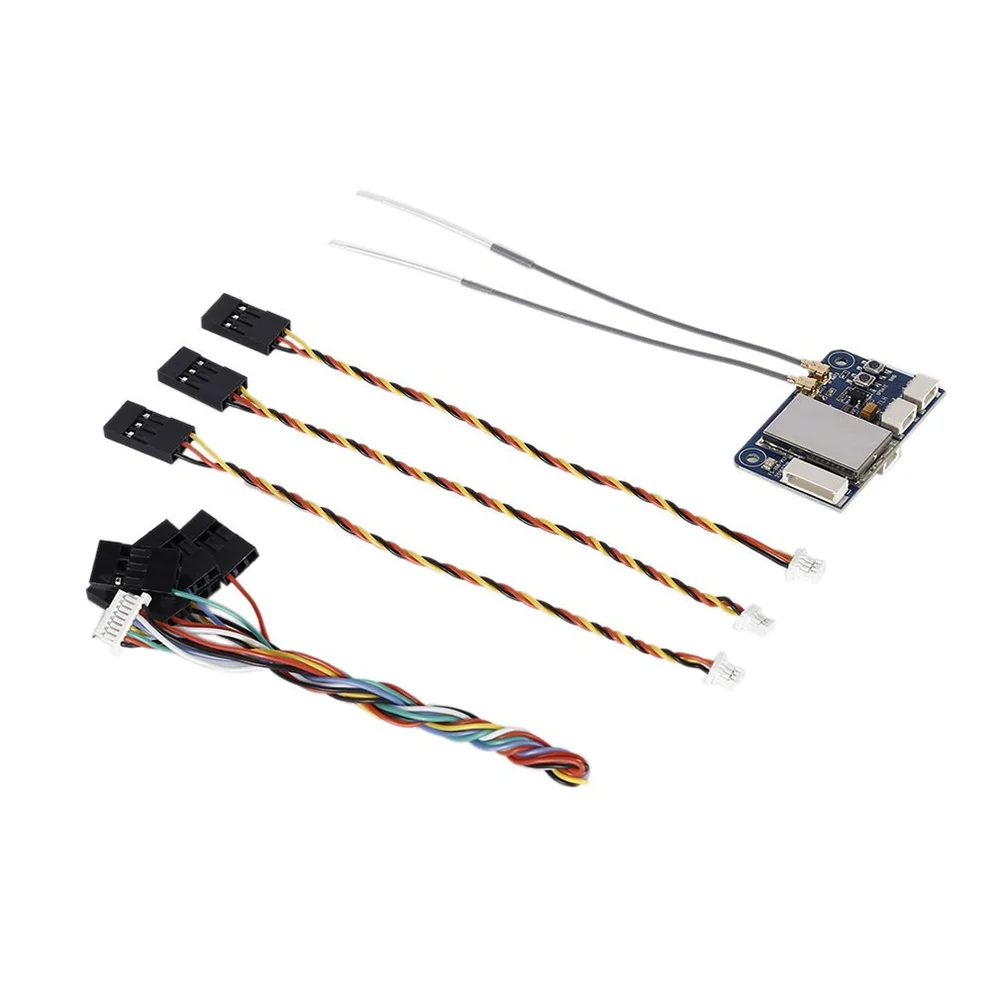

X6B i-BUS Specifications:

Brand Name: Flysky

Item: X6B i-BUS Receiver

Channels: 6(PWM), 8(PPM), 18(i-BUS)

Model Type: Multi-Totor

RF Range: 2.408-2.475 GHz

Brand Wigth: 500KHz

Number of bands: 135

RF Power: No more than 20 dBm

RX Sensitivity: -95dBm

2.4GHz protocol: AFHDS 2A

Modulation Type: GFSK

Stick resolution: 1024

Low voltage alarm: Yes

DSC port: PPM/PWM/i-BUS

Antenna Length: 93mm (Dual Antenna)

Power input: 4.0-8.4V

On-line Update: Yes(Wireless)

Range: >300m

Weight: 4.5g

Size: 36*22*7.5mm

i-BUS Port: Yes

Certificate: CE0678, FCC ID: N4ZX6B00

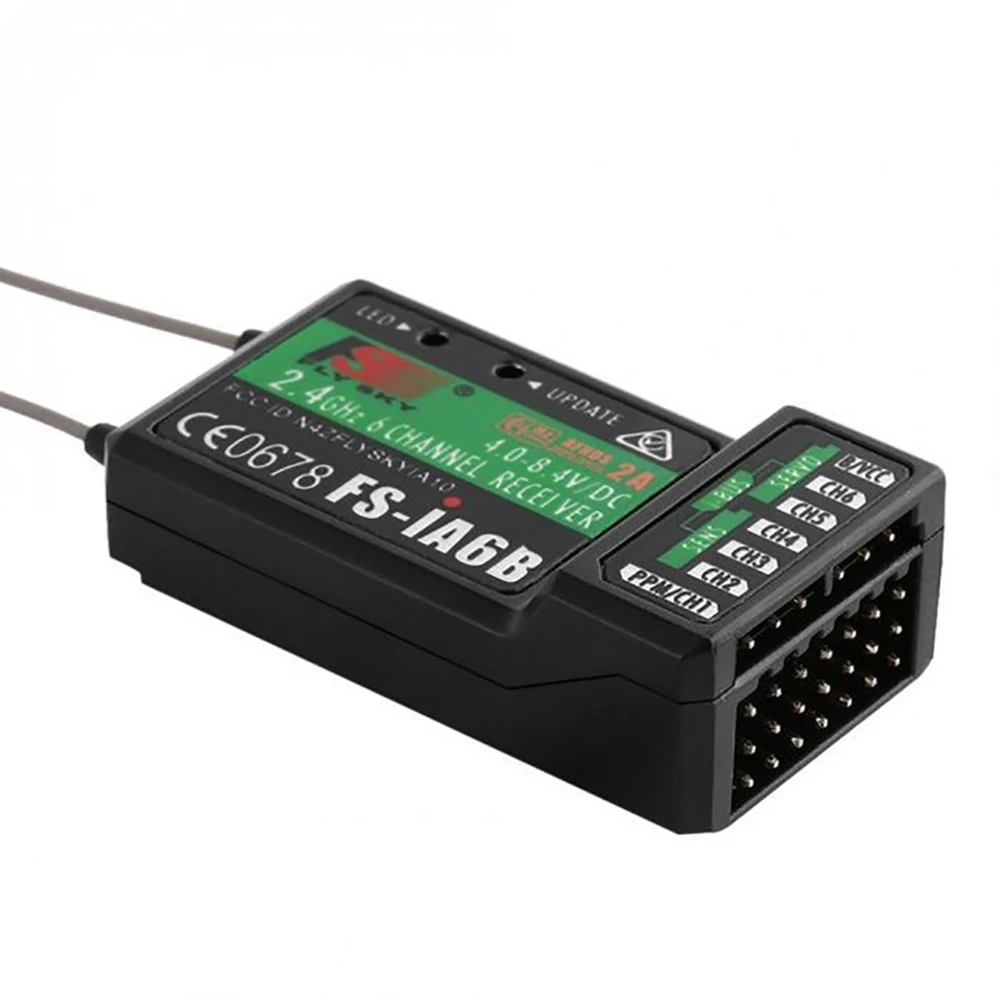

Item Name: IA6B

Channel: 6

Model type: fixed wing/helicopter/glider

RF receiver sensitivity: -105dBm

Modulation: GFSK

System type: AFHDS2A/AFHDS

Channel resolution: 1024 steps

Bind port: yes

Power port: yes( VCC)

Power: 4V -6.5V DC

Weight: 14.9g

Antenna lenght: 26mm

Size: 47.4*262.2*15 mm

Certificate: CE ,FCC

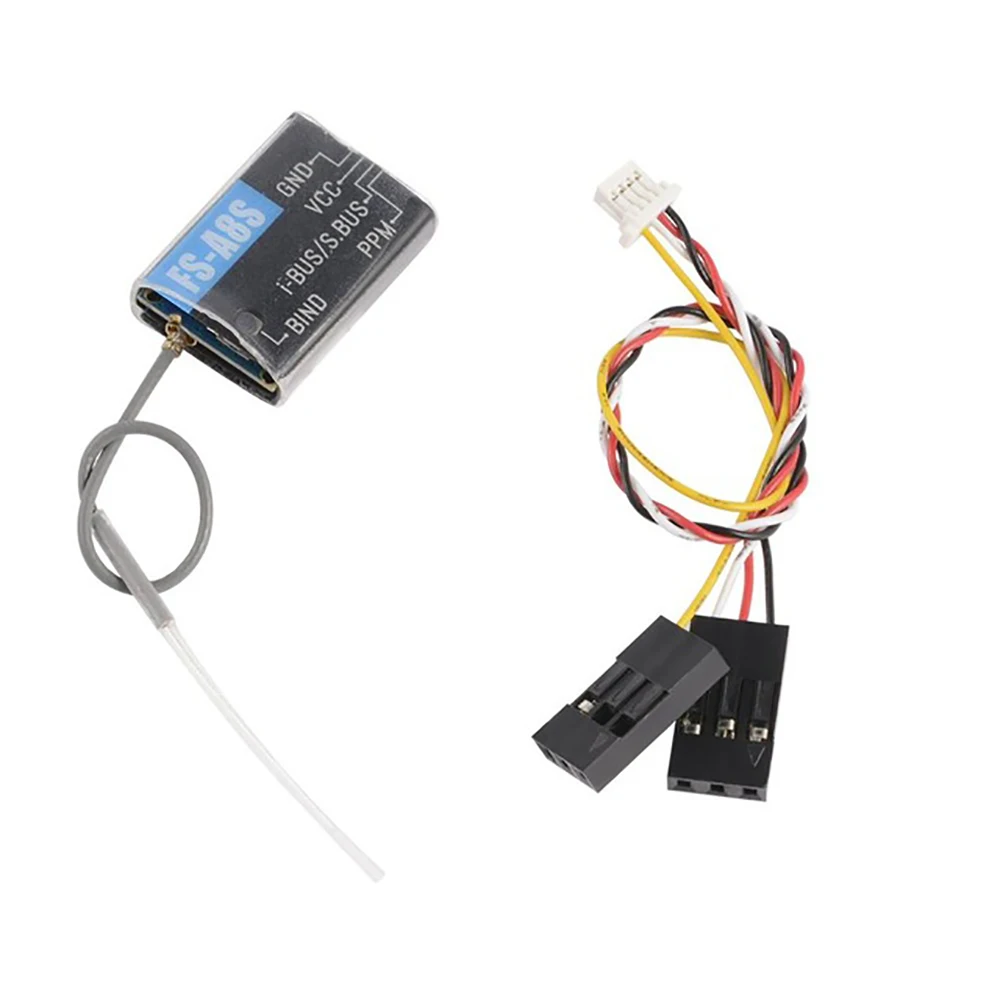

FS-A8S:

Brand Name:Flysky

Item Name:FS-A8S Receiver

Channels: PPM 8CH, i-BUS 18CH

Model type: Multi-rotor

Frequency range: 2.408-2.475GHz

b and width: 500KHz

b and number: 135

RX Sensitivity: -92 dBm

2.4GHz system: AFHDS 2A

Modulation type: GFSK

DSC port: PPM/i-BUS/S.BUS

Transfer method: FHSS

Data output: 1.5mm*3 Pin  PPM/i-BUS/S.BUS

Antenna length: 26mm (Not including brass contacts)

Input power supply: 4.0-8.4V

Display method: LED

No ground interference ( Transmitting and receiving 1 m from the ground): >300m

Working current: 40mA

Each channel data: depend on the transmitter

Channel delay: <15mS

Size: 20*14*5.3mm

Weight: 1.2g

Certificate: CE0678, FCCID: N45ZA8S00

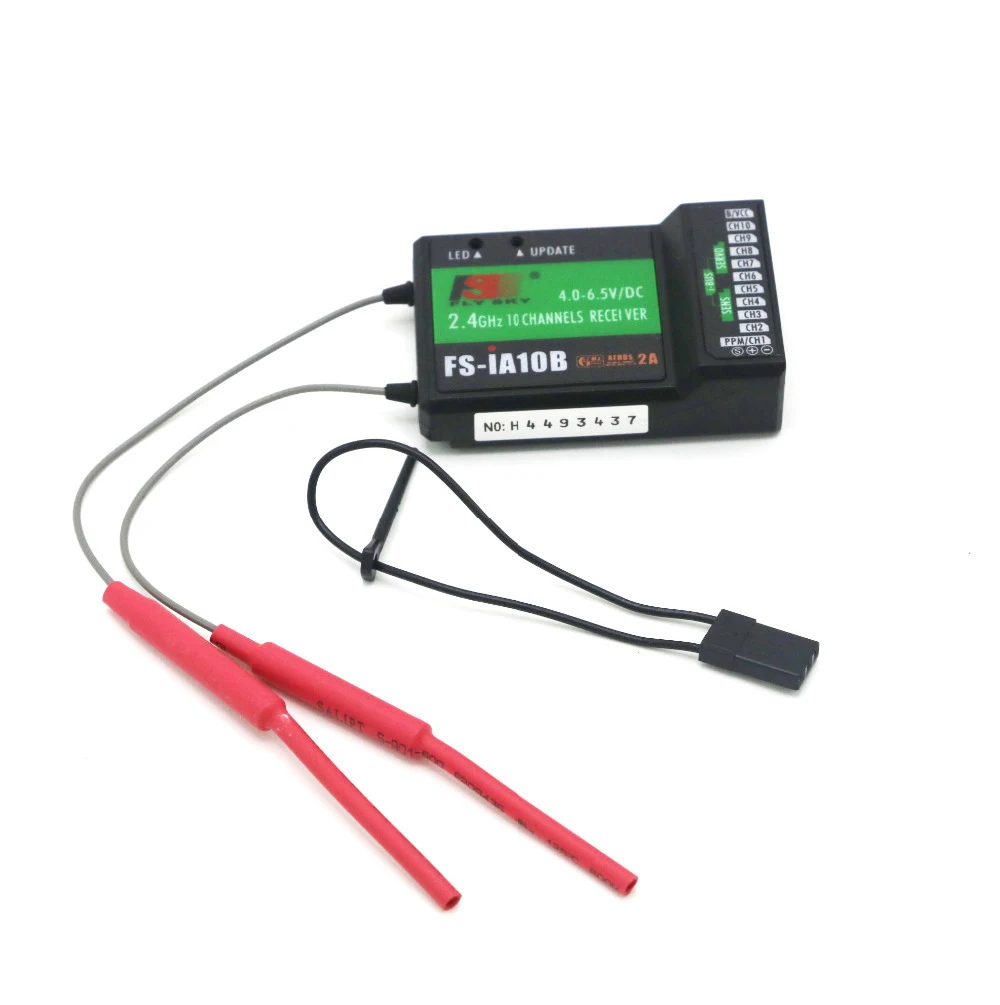

FS-IA10B:

Number of Channels: 10

Suitable models: Airplane / glider / helicopter Health

Frequency range :2.4-2 .48 GHz

Number of newspapers: 160

Transmitting power: not more than 20dBm

Receiver sensitivity:-105dBm

2.4G modes: automatic frequency second generation digital system

Encoding: GFSK

Antenna length: 26 mm * 2 (dual antenna)

Weight: 19.3 g

Input power :4.0-6 .5 V DC

Dimensions: 47 * 33.1 * 14.7 mm

Color: Black

Certification: CE0678, FCC

i-BUS Interface: Yes

Data acquisition interface: Yes

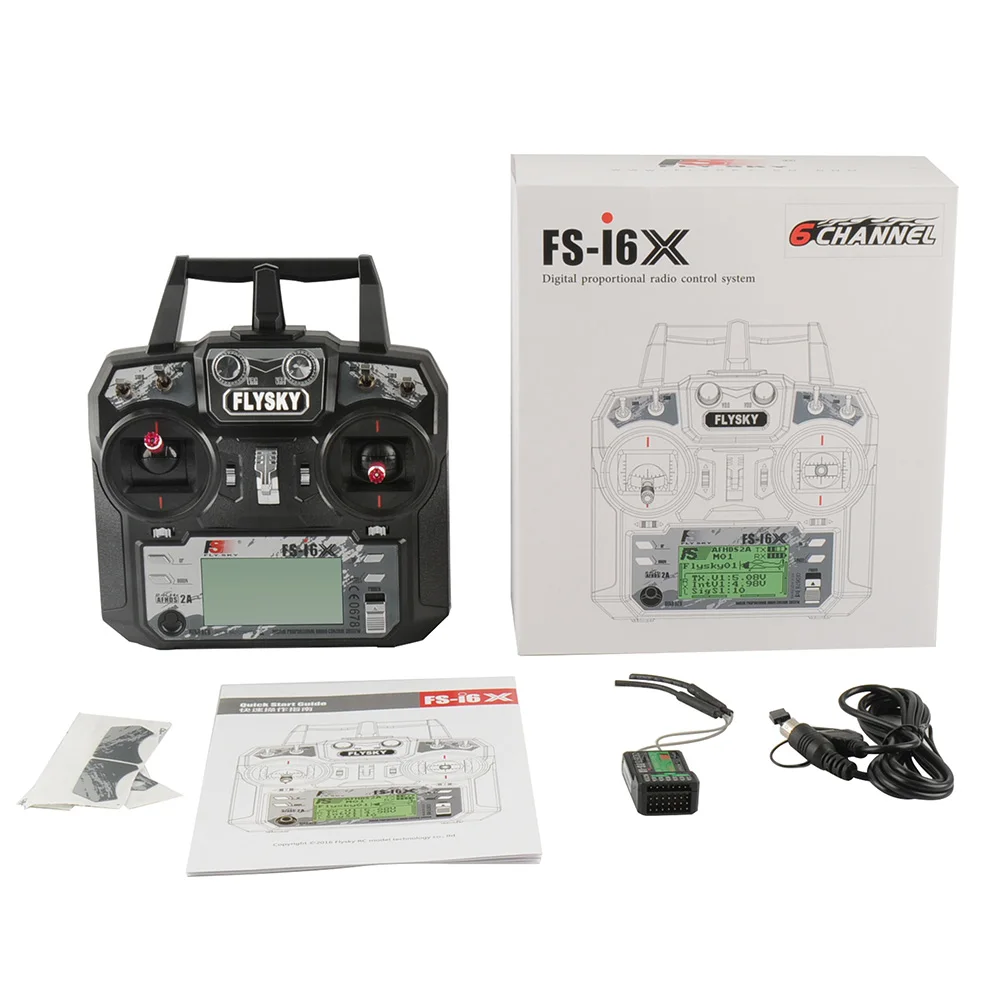

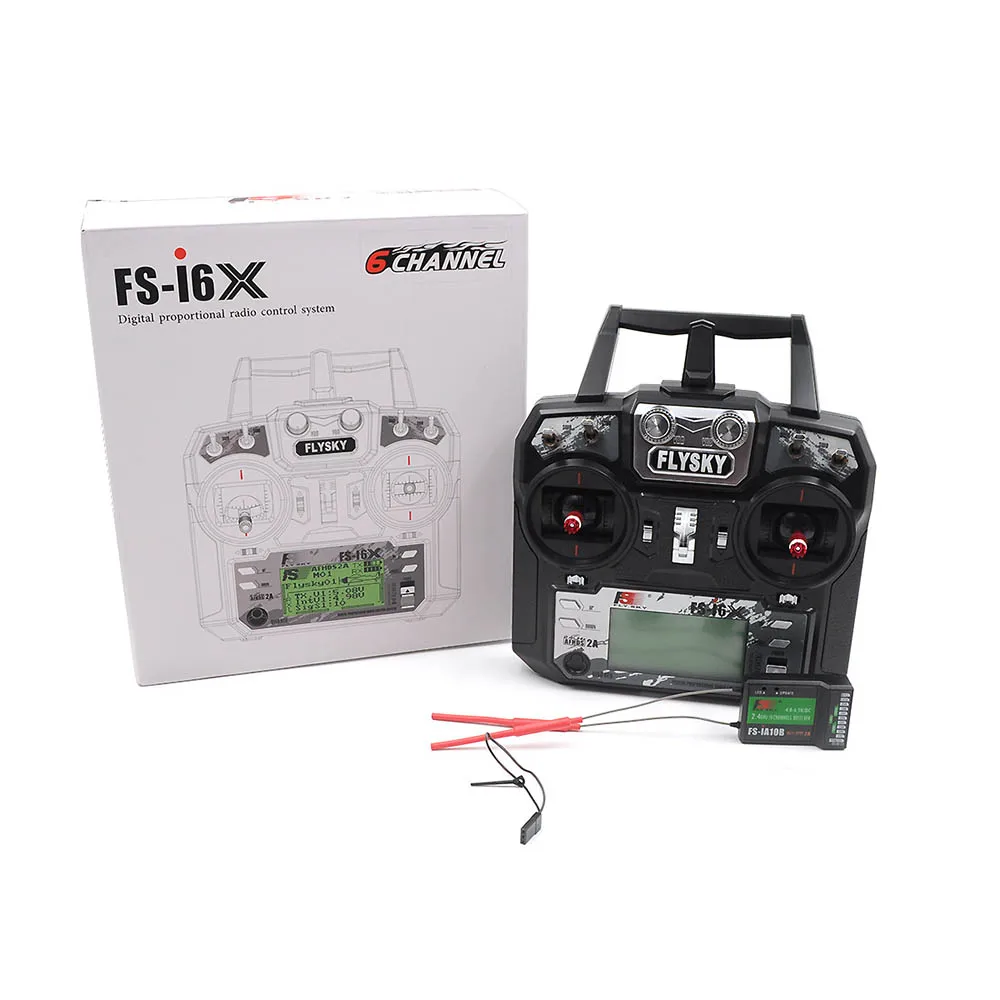

Package Included:

1X Flysky FS-i6X 10CH 2.4GHz AFHDS 2A RC Transmitter

1X Flysky Receiver

1 x Manual

.
